Replacement Diamond Waterjet Orifice For Waterjet Nozzle

Product Introduction

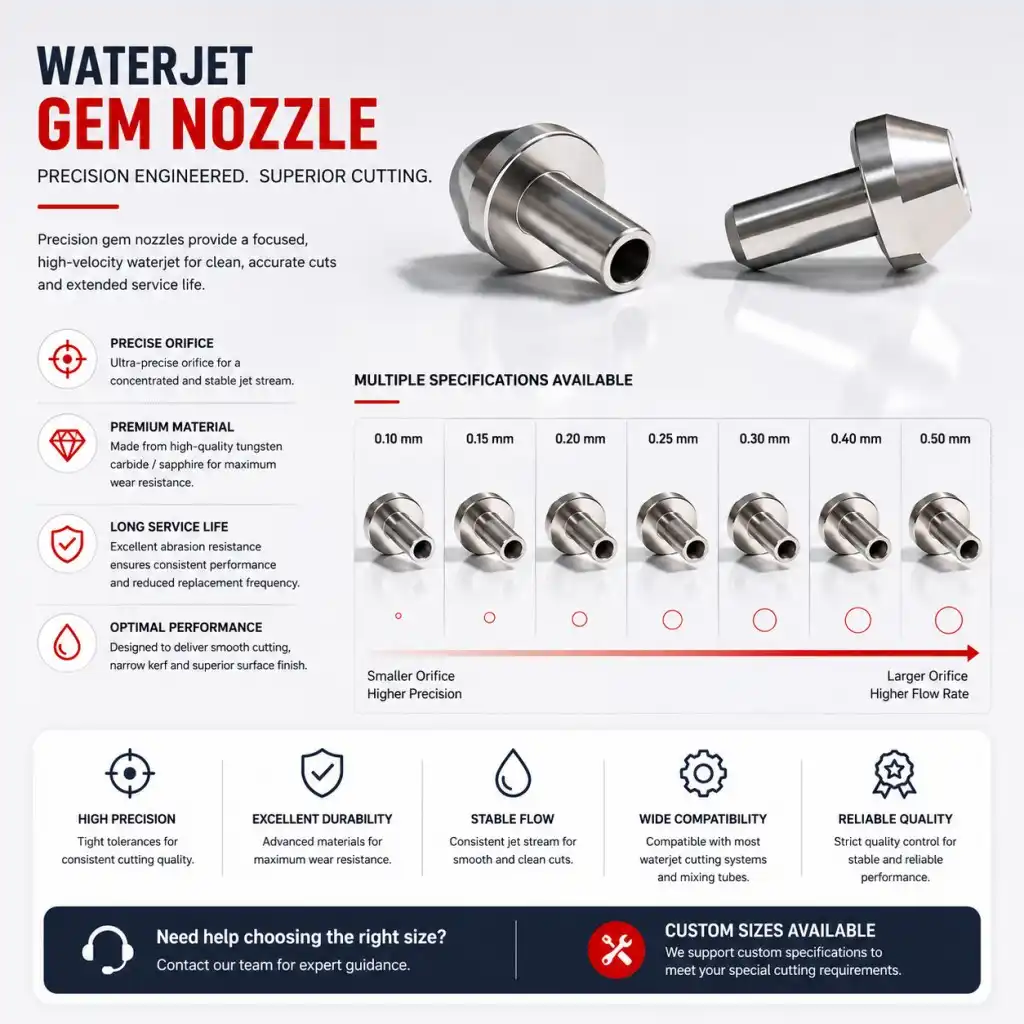

The diamond waterjet orifice is a precision replacement part used inside the Waterjet Cutting Head. It helps create a fine, stable, and concentrated water stream before the water enters the mixing chamber and Focusing Tube. A stable orifice can improve cutting quality, reduce unstable water flow, and help the machine keep better cutting performance during daily operation.

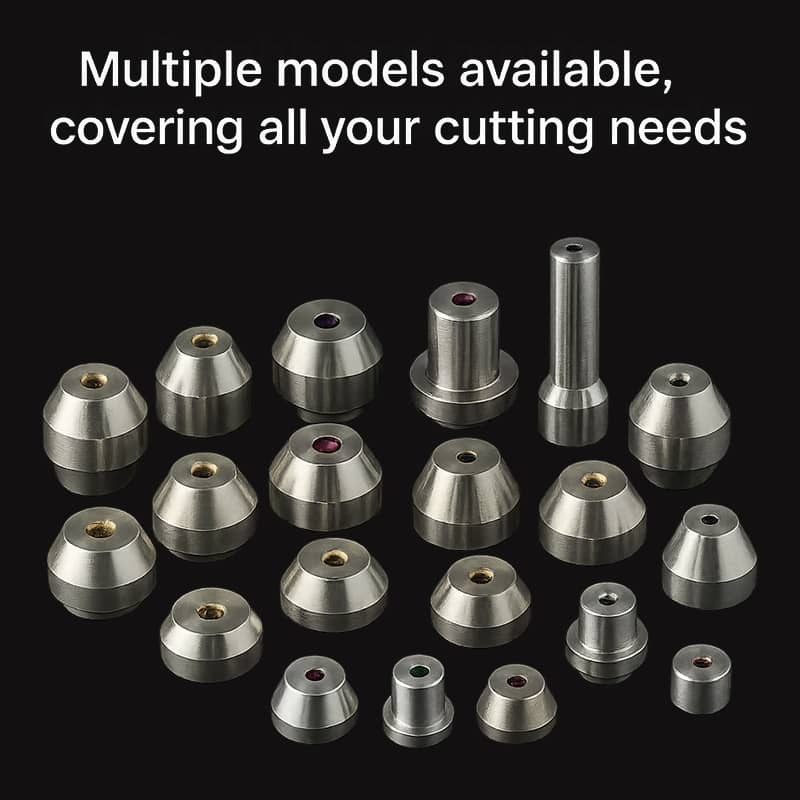

KUNDA supplies diamond, sapphire, and Ruby Waterjet Orifices in different sizes. These parts are suitable for Abrasive Waterjet Systems, pure Waterjet Cutting Machines, CNC Waterjet Equipment, and regular maintenance replacement.

Available Specifications

Part Number	Material	Orifice Size (mm)	Part Number	Material	Orifice Size (mm)	Part Number	Material	Orifice Size (mm)
A2260003	Sapphire	0.076	A2260004	Sapphire	0.102	015849-5	Diamond	0.127
A2260005	Sapphire	0.127	A2260006	Sapphire	0.152	003788-007	Sapphire	0.178
A2260007	Sapphire	0.178	A2260008	Sapphire	0.203	003788-008	Sapphire	0.203
A2260010	Sapphire	0.254	A2260011	Sapphire	0.279	304352-05	Sapphire	0.127
A2260012	Sapphire	0.305	A2260015	Sapphire	0.381	305322-13	Sapphire	0.330
A2260016	Sapphire	0.406	A2260020	Sapphire	0.508	305322-14	Sapphire	0.356
49888852	Diamond	0.076	49888860	Diamond	0.102	305322-15	Diamond	0.381
49888878	Diamond	0.127	49888886	Diamond	0.152	304352-16	Sapphire	0.406
49888894	Diamond	0.178	49888902	Diamond	0.203	304352-20	Sapphire	0.508
49888910	Diamond	0.229	49888928	Diamond	0.254	305322-07	Diamond	0.178
49888936	Diamond	0.305	49888951	Diamond	0.381	305322-10	Diamond	0.254
49888985	Diamond	0.508	05112537	Diamond	0.203	305322-22	Diamond	0.559
49888993	Diamond	0.559	05084504	Diamond	0.229	014201-013	Ruby	0.330

Why Choose A Diamond Orifice

Diamond orifices are often used when customers need longer service life and more stable cutting performance. Compared with standard jewel materials, diamond has better wear resistance, which helps the orifice keep its shape for a longer time under high-pressure operation.

Stable Water Flow For Better Cutting

A worn or low-quality orifice can cause an unstable water stream, poor abrasive mixing, rough cutting edges, and faster wear on the focusing tube. Using a precise replacement orifice helps restore waterjet cutting performance and keeps production more stable.

Replacement And Maintenance Use

This Waterjet Nozzle Orifice is suitable for regular maintenance, emergency replacement, and cutting head repair. Customers can choose different sizes according to machine pressure, cutting material, cutting speed, and daily production requirements.

Suitable Applications

The orifice can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics. It is suitable for abrasive Waterjet Cutting Systems and pure waterjet applications.

OEM And Bulk Supply

KUNDA provides diamond, sapphire, and ruby waterjet orifices for machine users, distributors, repair companies, and equipment manufacturers. OEM supply, custom packaging, private label service, and bulk orders are available.

Why Choose KUNDA

KUNDA supplies waterjet cutting machines, cutting head parts, pump parts, Mixing Tubes, focusing tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers find suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.

Contact Us

If you need Replacement Diamond Waterjet Orifices, sapphire orifices, ruby orifices, or other waterjet consumable parts, contact KUNDA for more details.
