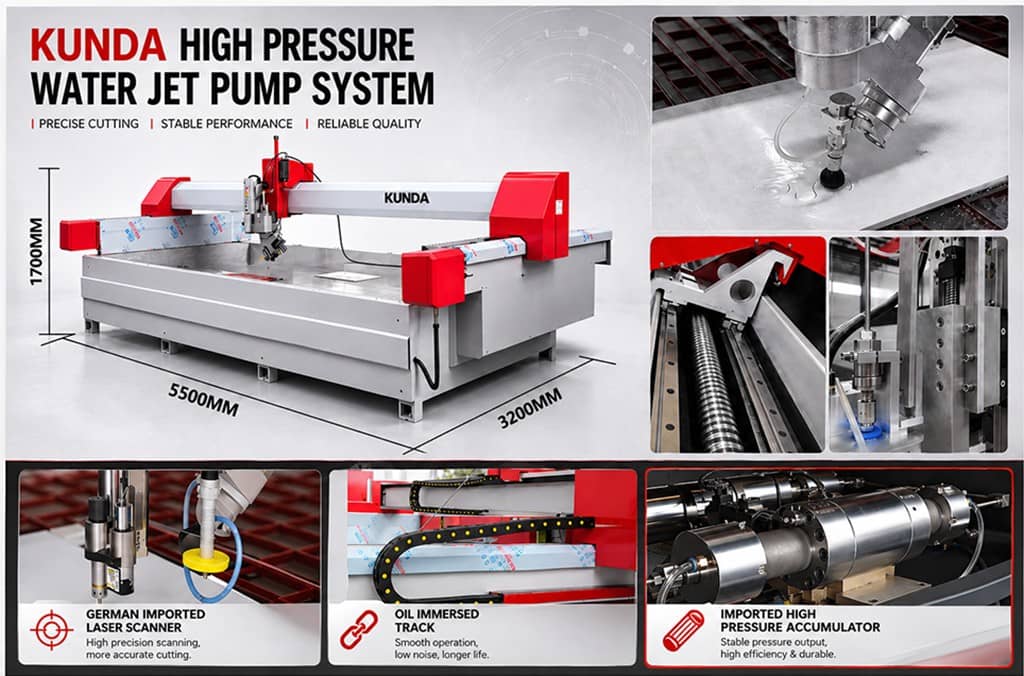

Waterjet Metal Cutting Machine New Waterjet Tile Marble Cutting Machine Manufacturers
Waterjet Metal Cutting Machine for Tile, Marble, and Industrial CNC Cutting
Product Introduction
The Waterjet Metal Cutting Machine is a high-precision CNC cutting solution designed for processing metal, tiles, marble, stone, glass, ceramics, and various industrial materials. Using ultra-high pressure water combined with abrasive garnet materials, this Waterjet Cutting Machine achieves smooth and accurate cutting performance while avoiding heat damage during processing. The stable CNC control system, durable industrial structure, and efficient cutting capability make this machine suitable for continuous industrial production environments.
Technical Specifications
| Model | KD1015 | KD2015 | KD3015 | KD3020 | KD4020 |
| Structure | Cantilever / Gantry / Fully Enclosed | ||||
| Cutting Table Size | 1200 × 1700mm | 2200 × 1700mm | 3200 × 1700mm | 3200 × 2200mm | 4200 × 2200mm |
| X Axis Stroke | 1000mm | 2000mm | 3000mm | 3000mm | 4000mm |
| Y Axis Stroke | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm |
| Z Axis Stroke | 130mm | ||||
| Cutting Accuracy | ±0.1mm | ||||
| Repeatability | ±0.05mm | ||||
| Traverse Speed | 6000 - 15000mm/min | ||||
| Power Supply | 220V / 380V / 415V, 50/60Hz | ||||
High Precision Waterjet Cutting Performance

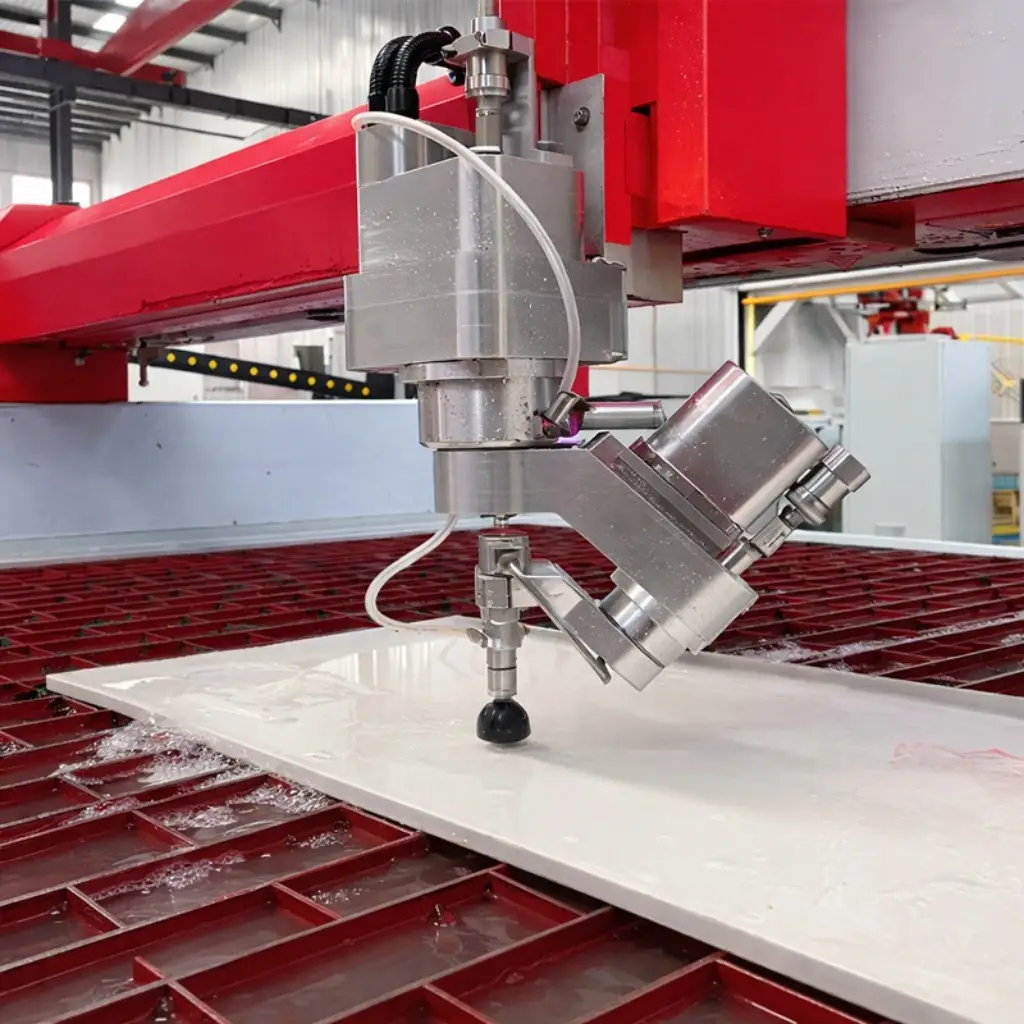

This waterjet metal cutting machine adopts advanced CNC motion control technology and a stable high-pressure cutting system to achieve accurate and efficient cutting performance on different materials. The ultra-high pressure abrasive water flow allows the machine to process straight cuts, curves, holes, bevels, and complex contour designs while maintaining smooth cutting edges and high dimensional accuracy.

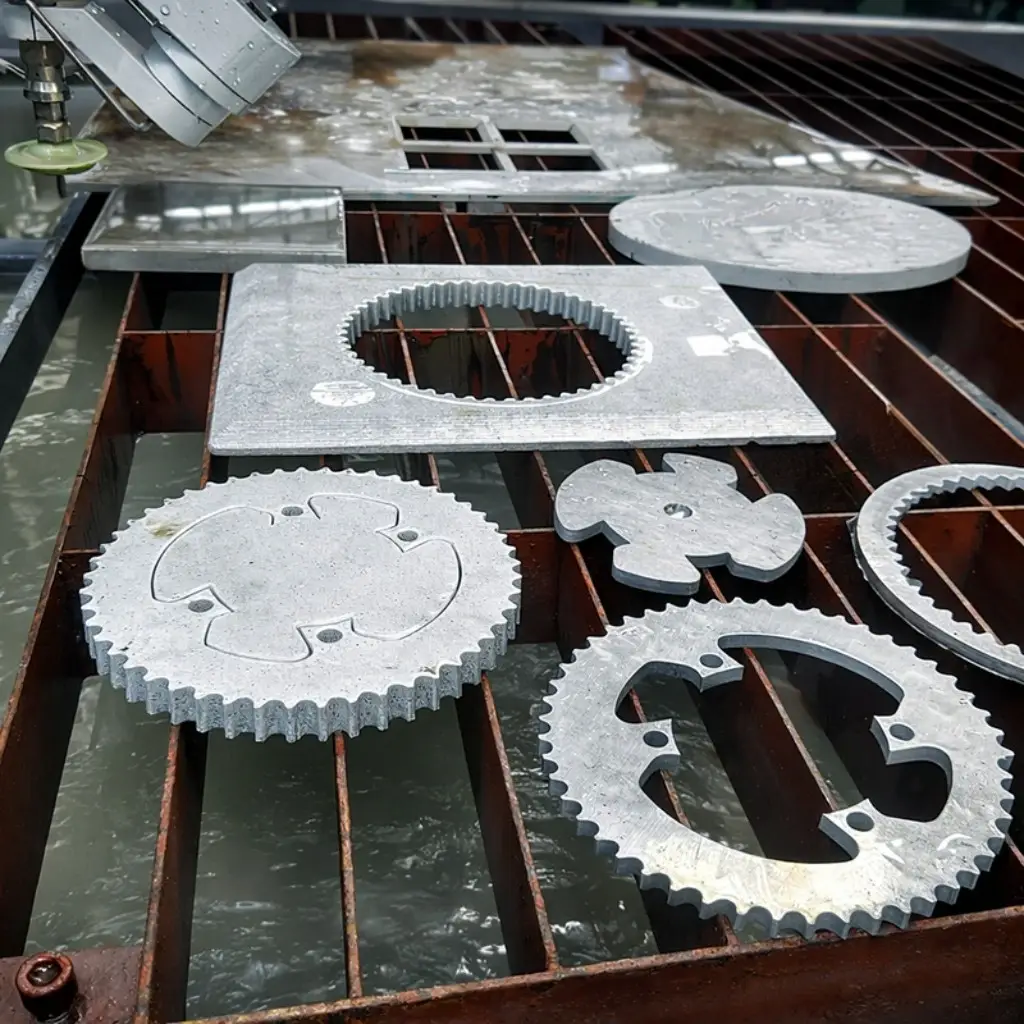

Professional Metal Cutting Solution
The waterjet metal cutting machine is suitable for cutting stainless steel, carbon steel, aluminum, copper, titanium, and various industrial metal materials. Waterjet cutting technology helps maintain the original material properties and surface quality during processing while reducing secondary finishing requirements.
Cutting Speed Reference
| Material | Thickness | 320MPa | 380MPa | 420MPa |
| Aluminum | 6mm | 400-520mm/min | 460-590mm/min | 500-680mm/min |
| Stainless Steel | 13mm | 80-120mm/min | 100-150mm/min | 125-180mm/min |
| Glass | 10mm | 600-700mm/min | 700-800mm/min | 820-900mm/min |
| Marble | 20mm | 400-500mm/min | 600-700mm/min | 750-850mm/min |
| Ceramic Tile | 15mm | 1200-1400mm/min | 1400-1500mm/min | 1600-1800mm/min |

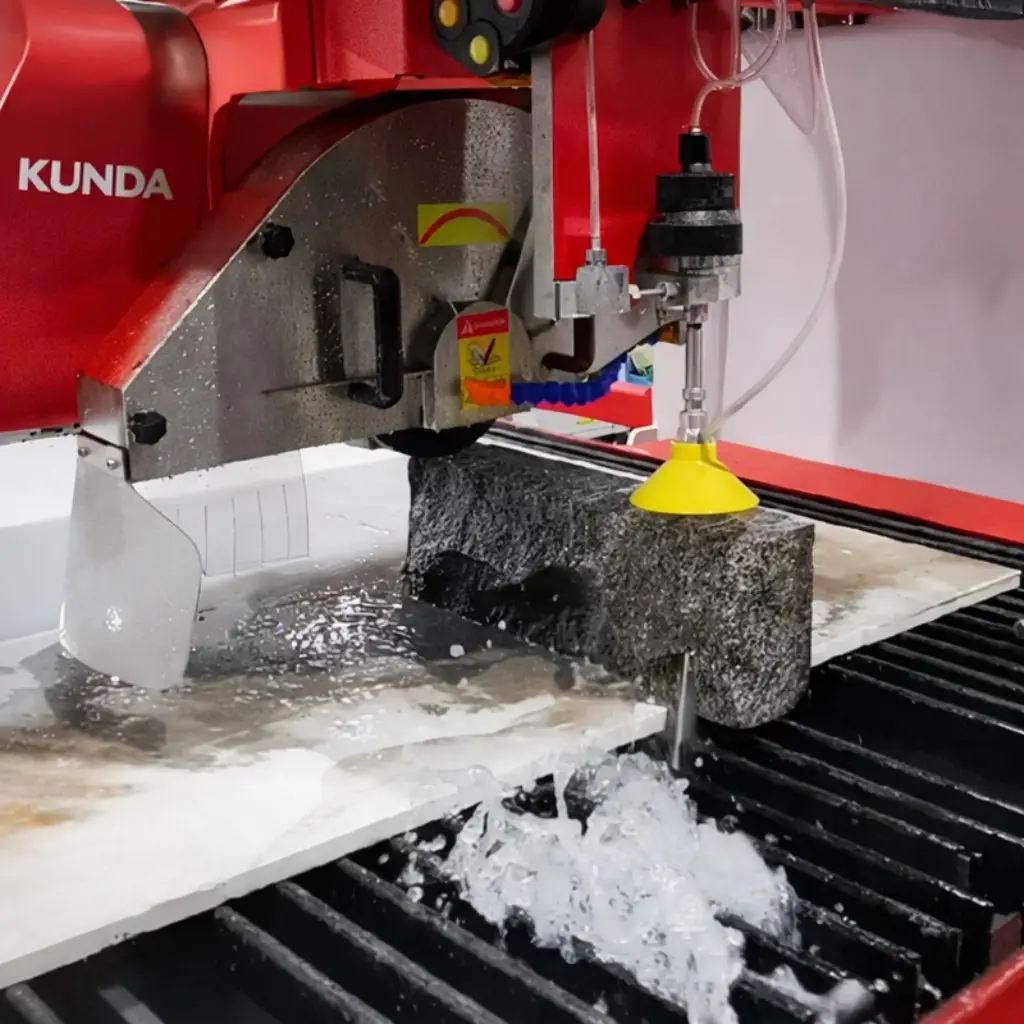

Efficient Tile and Marble Cutting Capability
This Waterjet Marble Cutting Machine is highly suitable for processing ceramic tiles, porcelain slabs, marble, granite, quartz stone, glass, and decorative materials. The stable abrasive Waterjet Cutting Process achieves clean cutting edges and precise cutting dimensions while minimizing edge chipping and material damage.
Durable Industrial Structure and Stable Operation

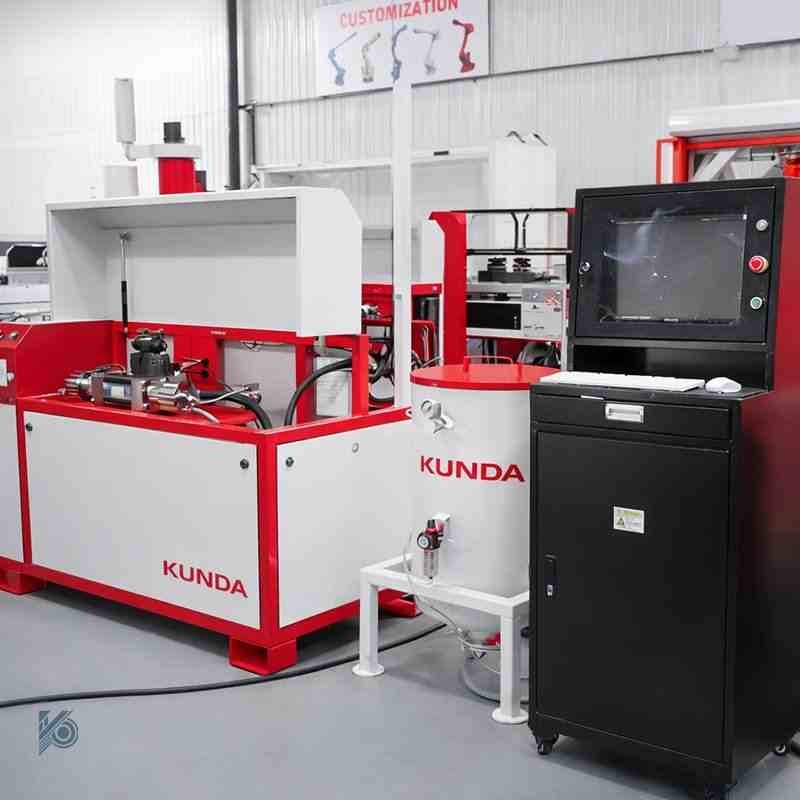

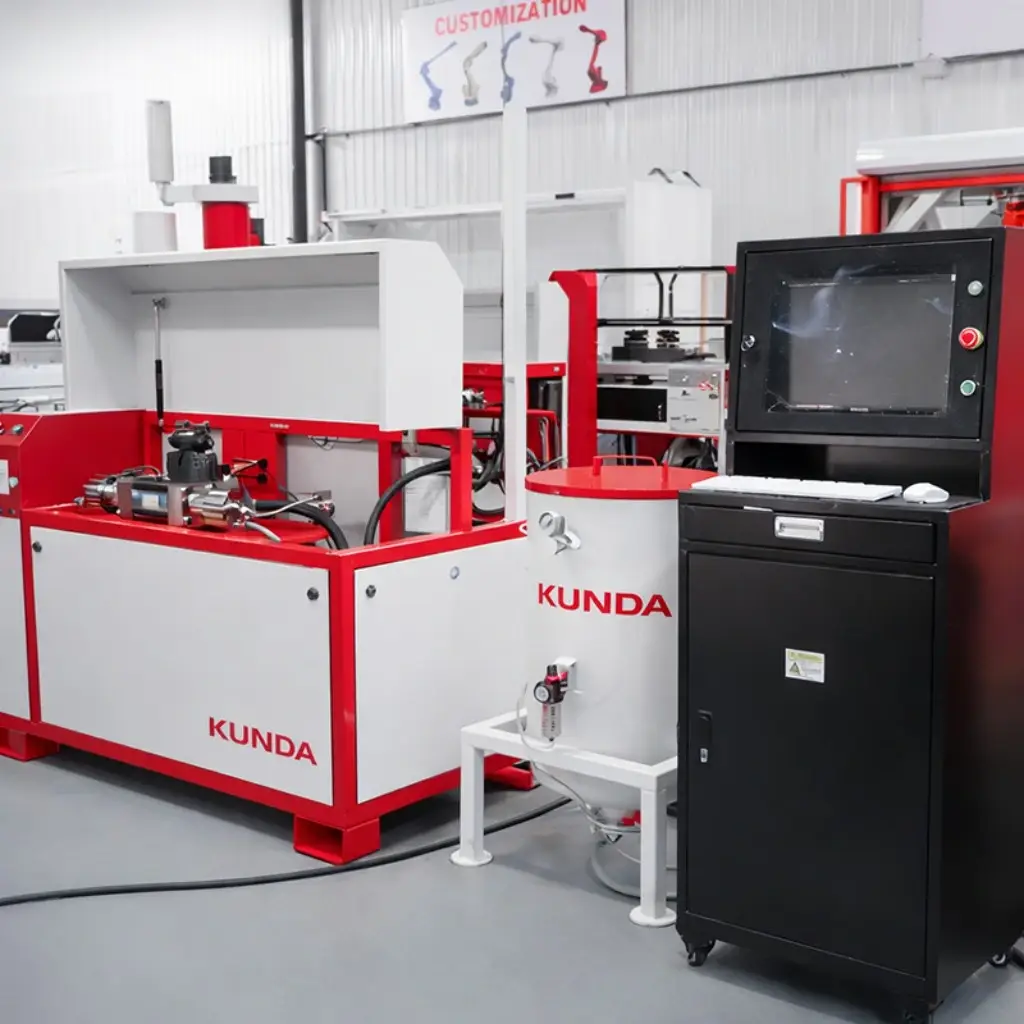

The waterjet cutting machine is manufactured with a heavy-duty industrial machine frame, durable guide rail systems, and stable hydraulic components to ensure reliable long-term operation. High-quality servo systems and precision motion control structures help reduce vibration during operation while improving overall cutting stability and machine lifespan.

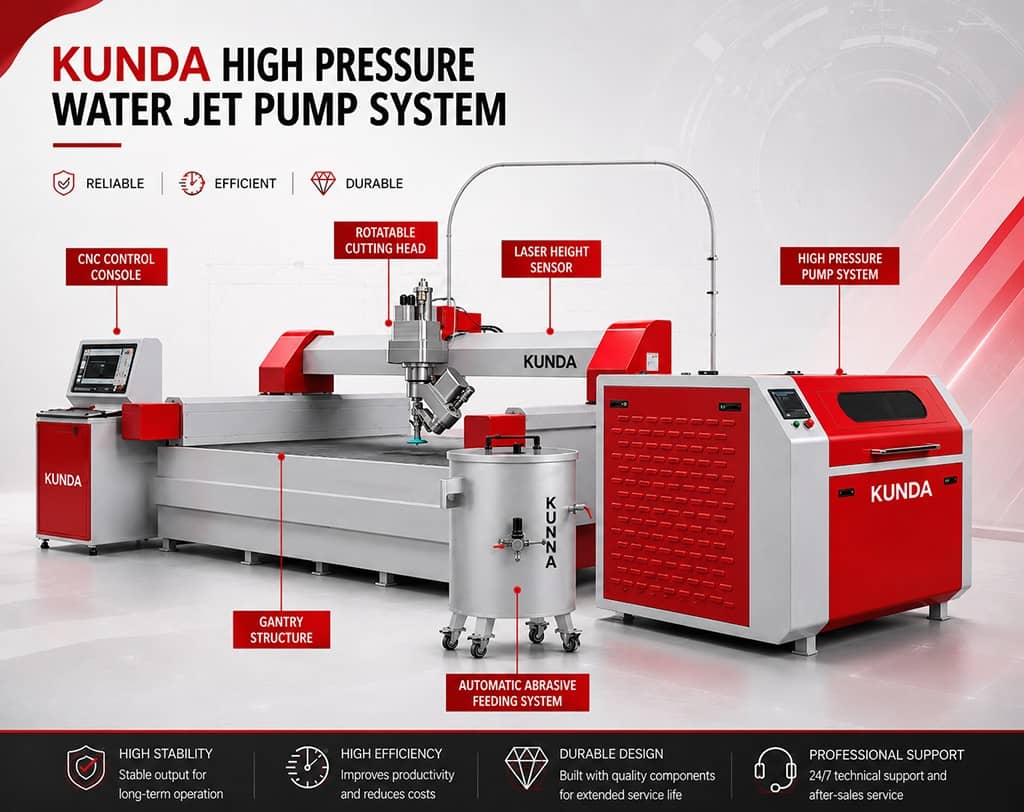

Optional Automation and Intelligent Upgrade Systems
KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized CNC systems, and intelligent automation solutions according to different industrial applications. These upgrade systems help improve cutting precision, reduce labor costs, and increase overall production efficiency.
Wide Industrial Applications
This waterjet cutting machine is widely used in metal fabrication, tile processing, marble and stone cutting, glass manufacturing, architectural decoration, machinery manufacturing, automotive industries, aerospace production, kitchen countertop processing, ceramic processing, and industrial custom fabrication industries.
Why Choose KUNDA Waterjet Machines
KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.
Contact Us
If you are looking for reliable waterjet metal cutting machines, marble cutting solutions, or customized CNC waterjet systems, please feel free to contact KUNDA for more information and professional support.
