Abrasive Waterjet Cutter Bridge Composite Material Aluminum Waterjet Cutting Machine

Short Description:

Name:Abrasive Waterjet Cutter
Brand:KUNDA
Cutting Size:6000*4000mm/3000*1500mm/4000*2000/3000*2000mm
Pump:Jet50
Cutting materials: marble, tiles, glass, steel, etc.
Accuracy:Cutting:±0.1mm/Repeatability:±0.05mm
Traverse Speed:6000-15000mm/min
Structure:Cantilever/Gantry/Fully Enclosed
Delivery time: 25 days
Warranty period: 1 year

INQUIRY

Details

Bridge Type Abrasive Waterjet Cutter for Aluminum and Composite Material Cutting

Abrasive Waterjet Cutter Bridge Composite Material <a href=https://www.kundacnc.com/Abrasive-Waterjet-Cutter-Bridge-Composite-Material-Aluminum-Waterjet-Cutting-Machine-p.html target='_blank'>Aluminum <a href=https://www.kundacnc.com/Waterjet-Cutting-Machine-High-Quality-Water-Jet-Ceramic-Stone-Cutting-Machine-Price-p.html target='_blank'>Waterjet Cutting Machine</a></a>

Product Introduction

The Bridge Type Abrasive Waterjet Cutter is a high-precision Cnc Waterjet Cutting Machine designed for aluminum processing, composite material cutting, and industrial manufacturing applications. Using ultra-high pressure water combined with abrasive garnet materials, this Abrasive Waterjet Cutting Machine efficiently cuts aluminum sheets, composite panels, stainless steel, carbon steel, stone, glass, ceramics, rubber, and plastics without generating heat during processing. The bridge structure design provides excellent machine stability, smooth movement performance, and reliable cutting precision.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Bridge Type / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

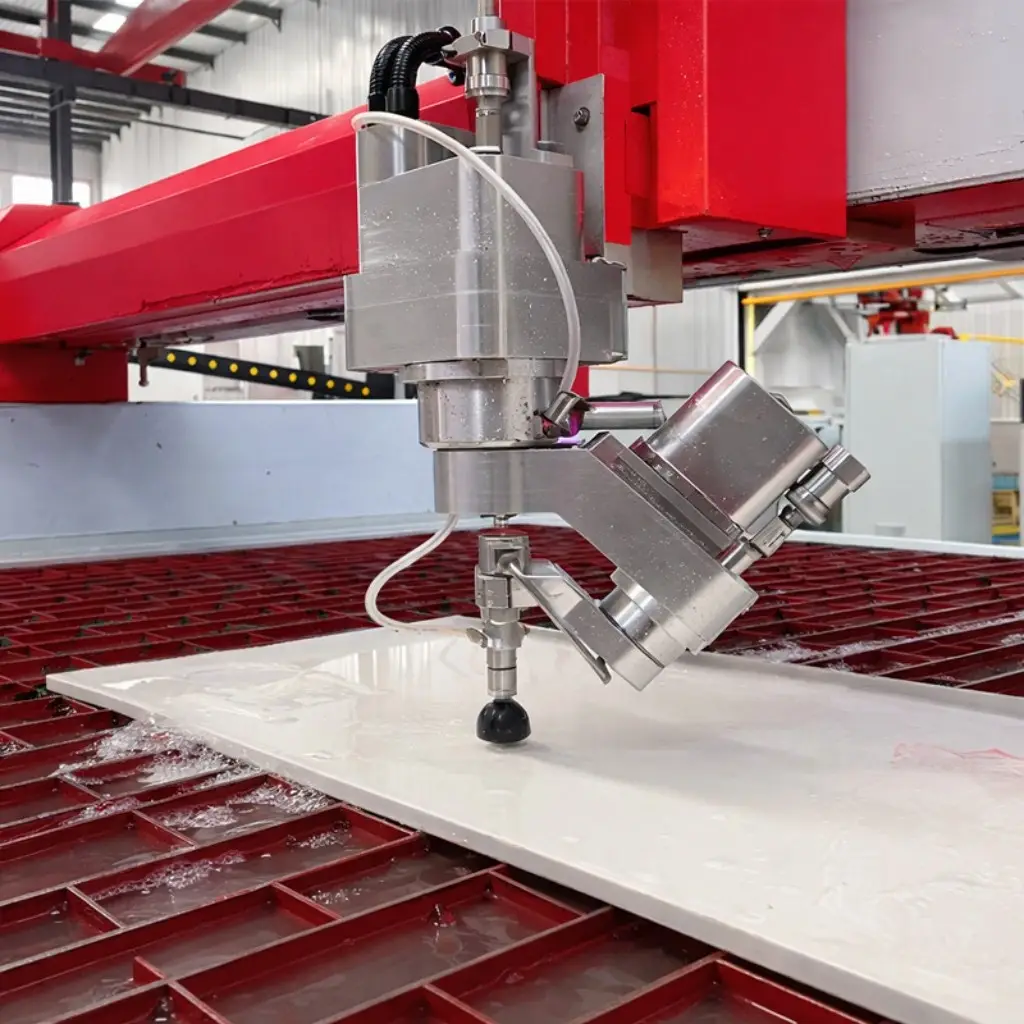

High Precision Abrasive Waterjet Cutting Performance

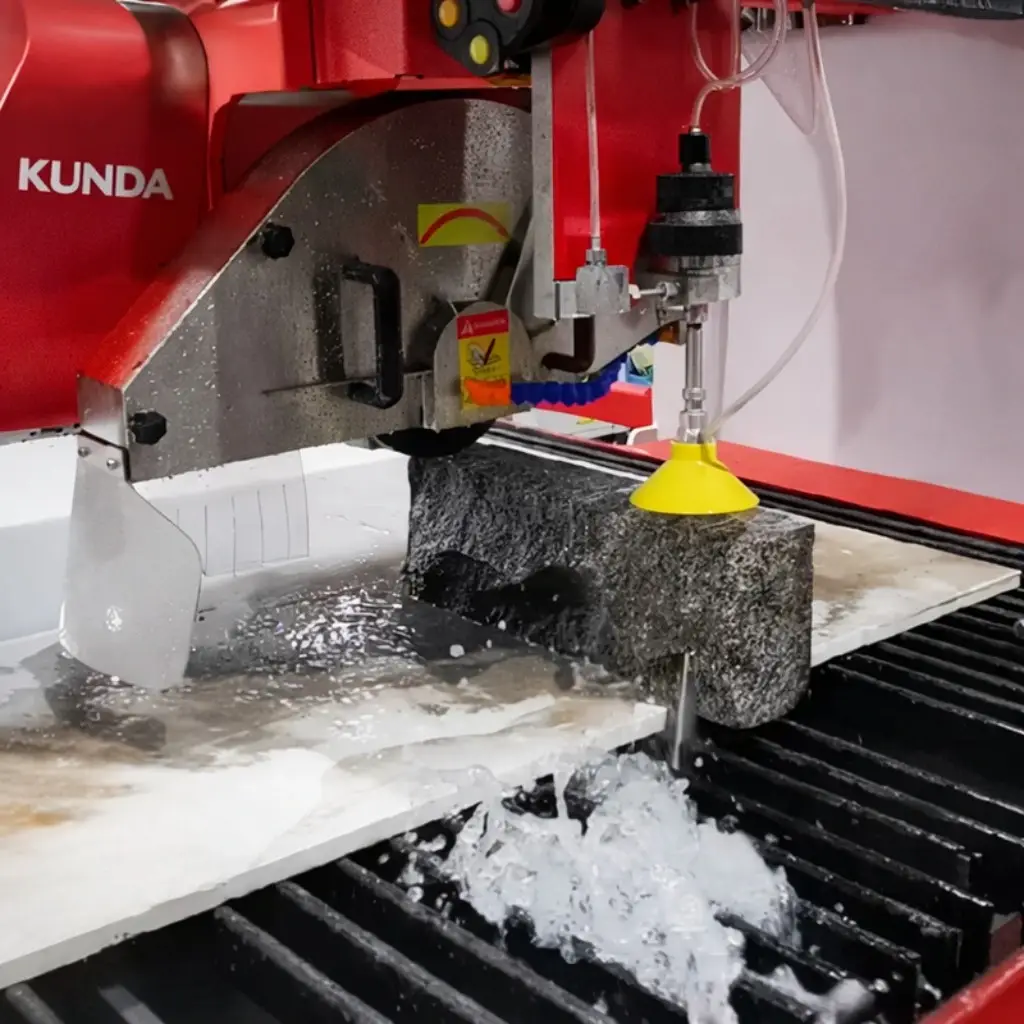

This abrasive waterjet cutter adopts advanced CNC motion control technology and a stable high-pressure cutting system to achieve smooth and accurate cutting results on different materials. The ultra-high pressure abrasive water flow allows the machine to process complex contours, curves, holes, and irregular shapes while maintaining clean cutting edges and high dimensional accuracy.

Abrasive Waterjet Cutter Bridge Composite Material Aluminum Waterjet Cutting Machine

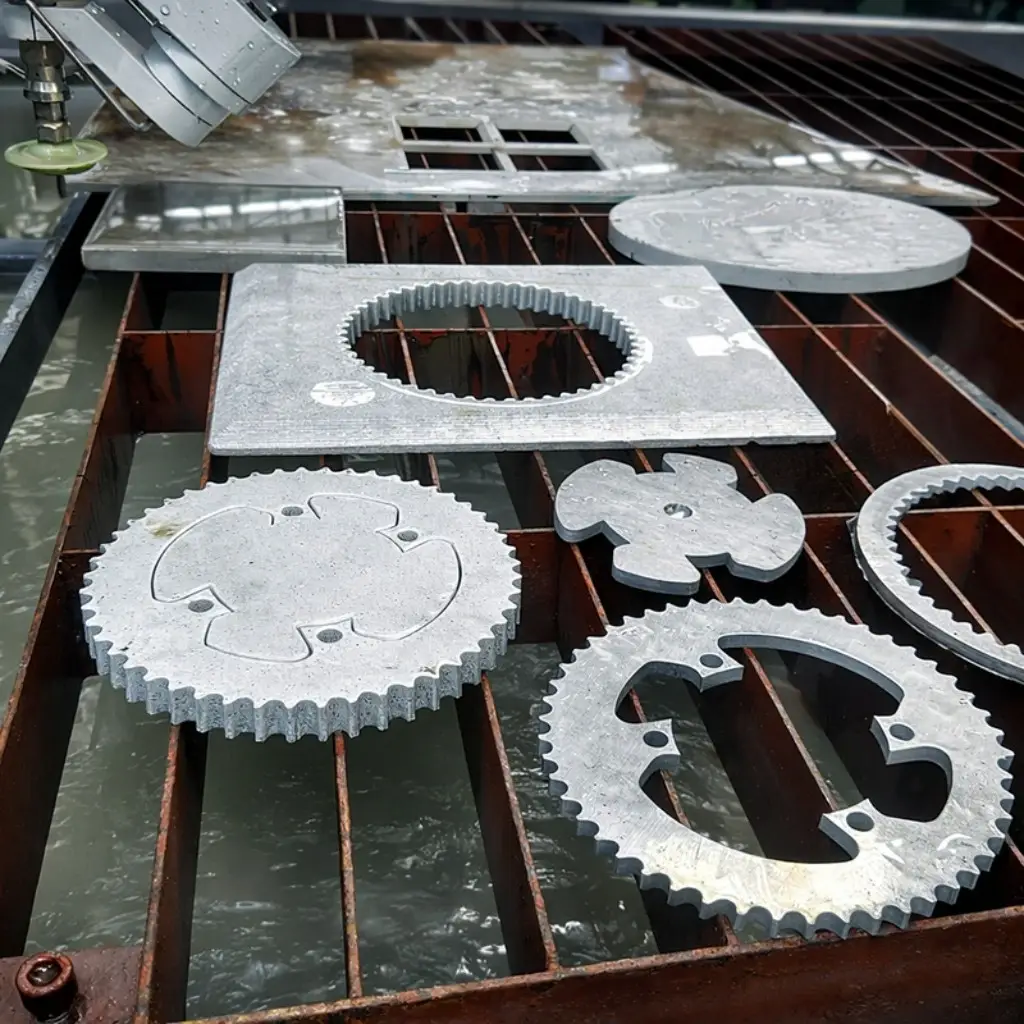

Excellent Aluminum Cutting Capability

The aluminum waterjet cutting machine is specially designed for efficient aluminum processing applications requiring smooth cutting quality and precise dimensions. Waterjet cutting technology processes aluminum materials without thermal deformation or oxidation, helping maintain original material properties and surface quality.

Abrasive Waterjet Cutter Bridge Composite Material Aluminum Waterjet Cutting Machine

Suitable for Composite Material Processing

This Composite Material Waterjet Cutting Machine is highly suitable for cutting carbon fiber, fiberglass, honeycomb panels, laminated materials, and other advanced composite materials. Because waterjet cutting does not generate heat, it helps avoid delamination, burning, or structural damage on sensitive composite materials.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

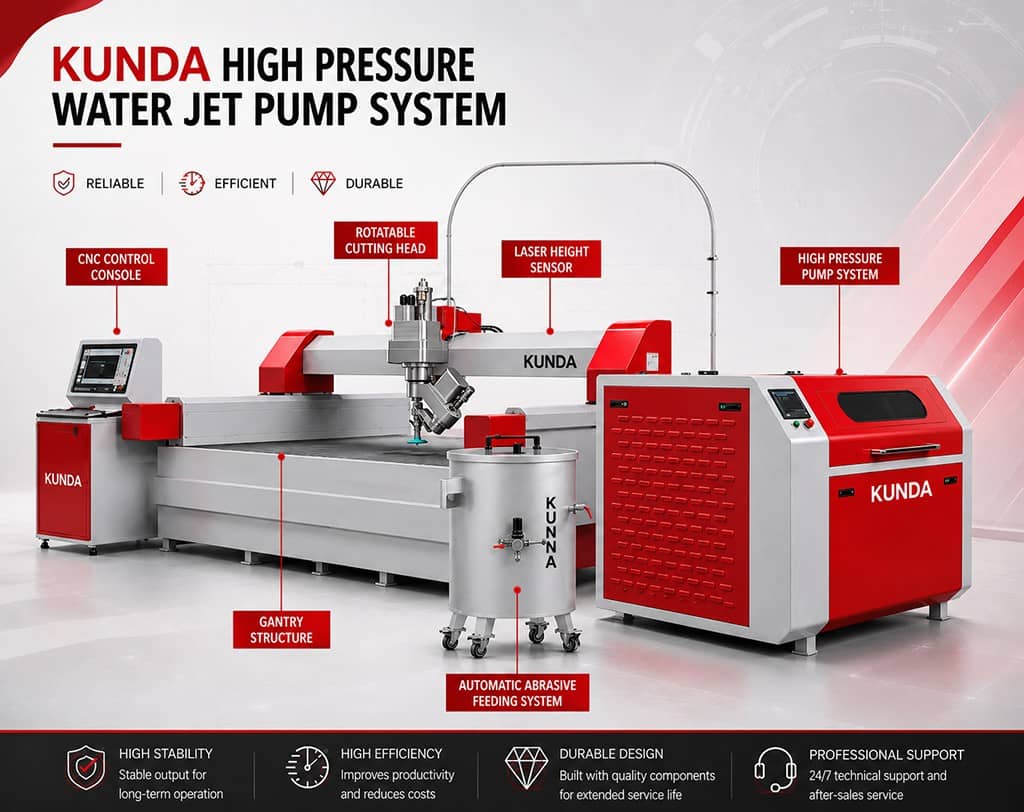

Stable Bridge Structure Design

The bridge-type machine structure provides strong stability and smooth motion performance during cutting operations. The heavy-duty machine frame and high-quality guide rail system help reduce vibration during high-speed movement, improving overall cutting precision and operational stability.

Optional Automation and Intelligent Upgrade Solutions

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized CNC systems, dust collection systems, and robotic automation solutions according to different industrial applications. These optional upgrades help improve cutting precision, reduce labor costs, and increase production efficiency.

Wide Industrial Applications

This abrasive waterjet cutting machine is widely used in aerospace manufacturing, automotive production, aluminum processing, composite material fabrication, architectural decoration, machinery manufacturing, glass processing, stone fabrication, shipbuilding, and industrial custom production industries.

Abrasive Waterjet Cutter Bridge Composite Material Aluminum Waterjet Cutting Machine

Why Choose KUNDA Waterjet Cutting Solutions

KUNDA provides professional waterjet cutting solutions for global industrial customers. We can supply abrasive waterjet cutting machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable abrasive waterjet cutters, aluminum cutting solutions, or customized composite material Waterjet Cutting Systems, please feel free to contact KUNDA for more information and professional support.
