Waterjet Focusing Nozzle Oem Waterjet Abrasive Focusing Tube Supplier

Short Description:

Waterjet Focusing Nozzle
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

OEM Waterjet Focusing Nozzle And Abrasive Focusing Tube Supplier

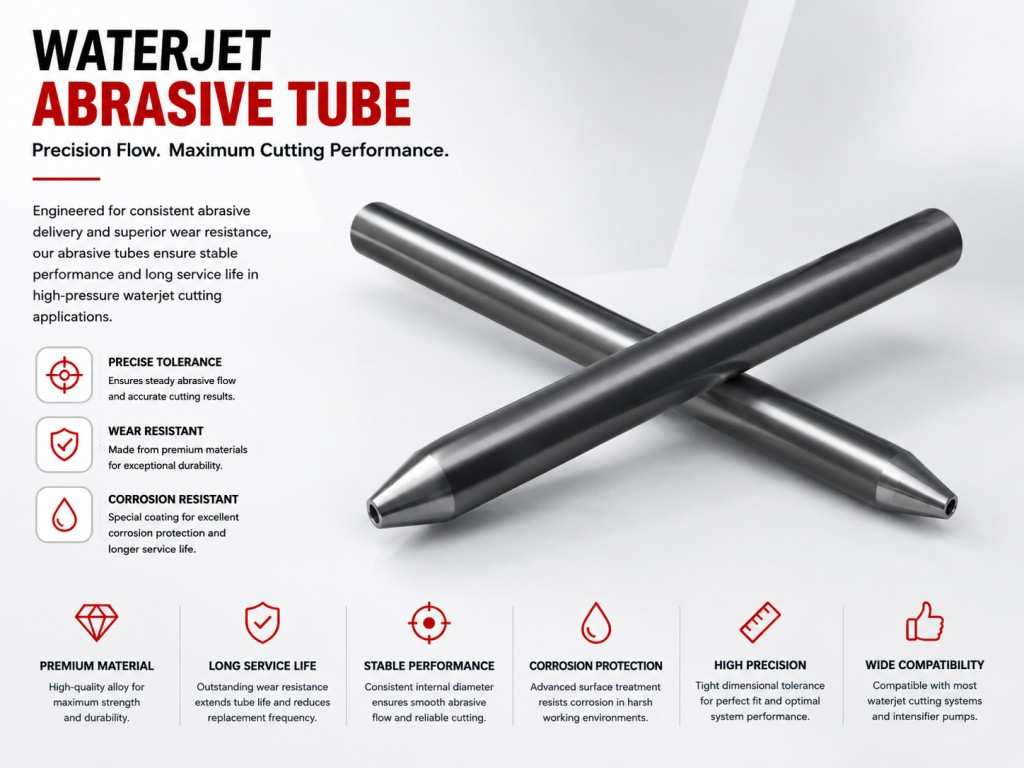

Waterjet Focusing Nozzle Oem <a href=https://www.kundacnc.com/Waterjet-Focusing-Nozzle-Oem-Waterjet-Abrasive-Focusing-Tube-Supplier-p.html target='_blank'>Waterjet Abrasive Focusing Tube</a> Supplier

Product Introduction

The Waterjet Focusing Nozzle, also called an abrasive focusing tube or Mixing Tube, is an important wear part used in abrasive Waterjet Cutting Heads. It focuses the high-pressure water and abrasive mixture into a concentrated cutting jet. A precise focusing nozzle helps improve cutting accuracy, edge quality, abrasive efficiency, and machine stability.

KUNDA supplies waterjet focusing nozzles in different sizes and part numbers. OEM supply, custom specifications, private label service, custom packaging, and bulk orders are available for distributors, repair companies, machine users, and equipment manufacturers.

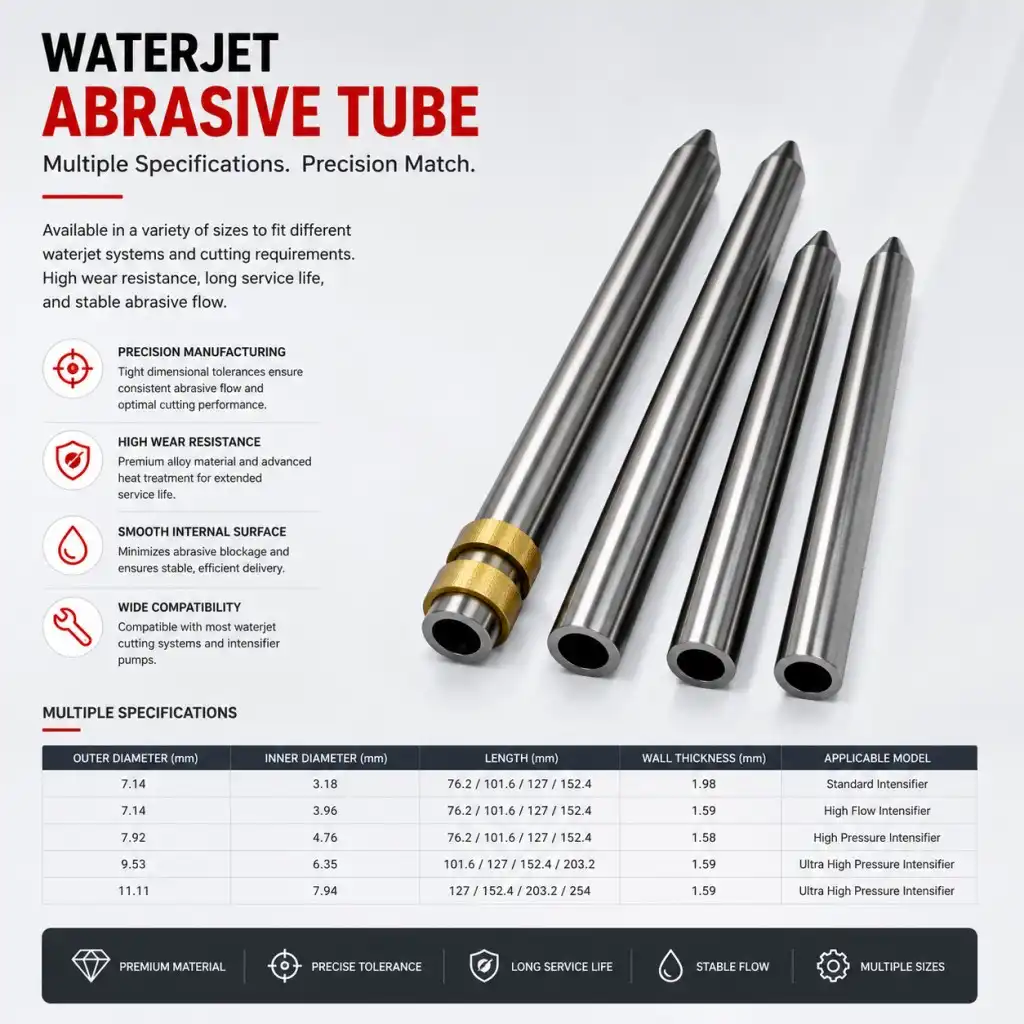

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

Why Focusing Nozzle Quality Matters

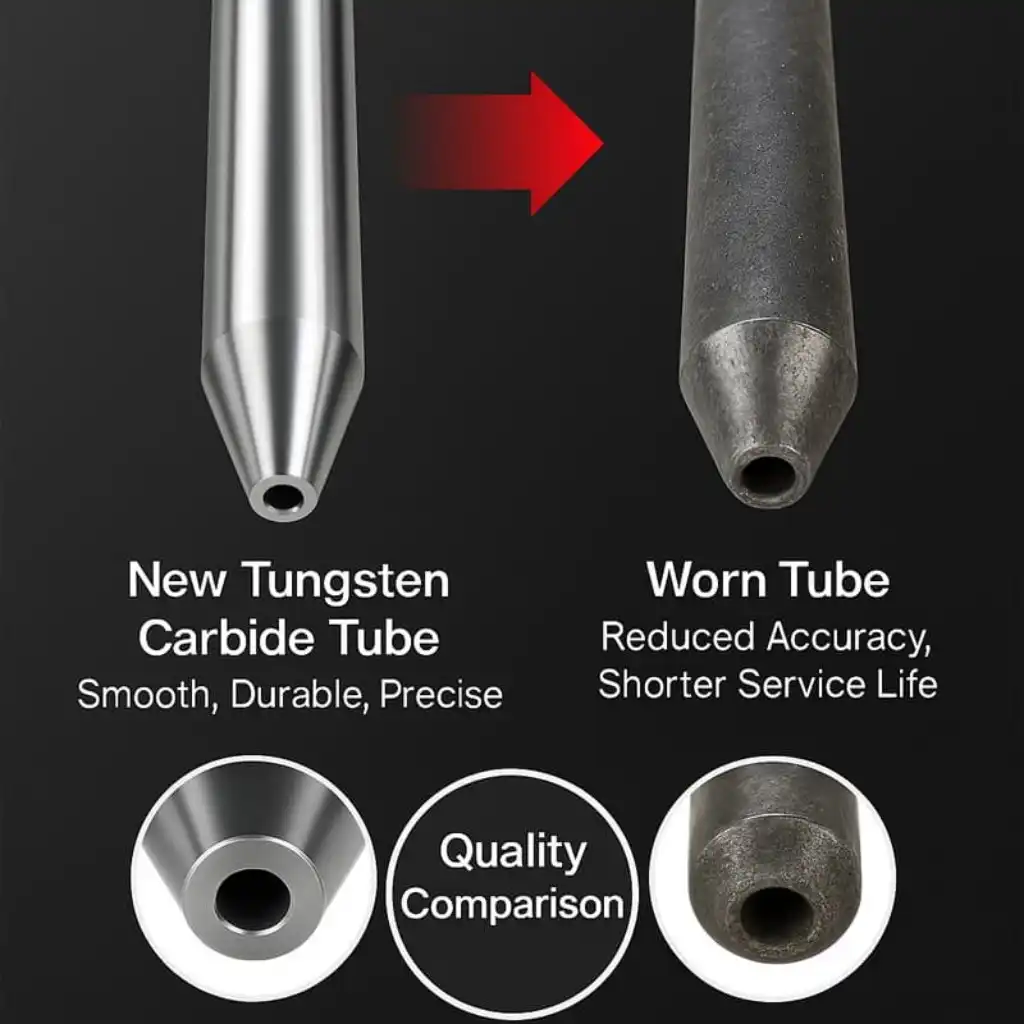

The focusing nozzle directly affects the final abrasive cutting jet. If the inner bore wears unevenly, the jet may lose focus, causing rough cutting edges, lower accuracy, slower cutting speed, and higher abrasive consumption.

For Abrasive Waterjet Systems

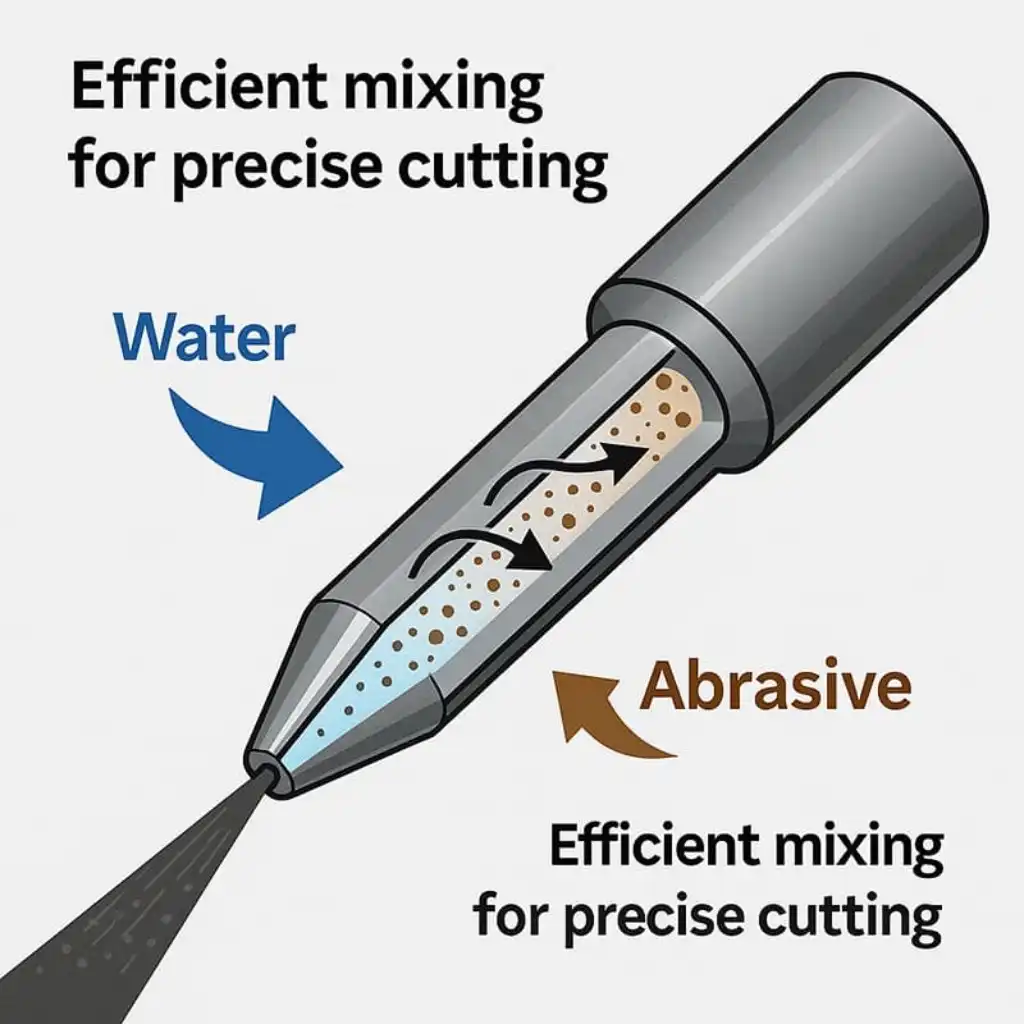

This focusing nozzle works with the orifice and mixing chamber to form a stable abrasive stream. It is suitable for CNC Waterjet Machines, abrasive Waterjet Cutting Systems, robotic Waterjet Equipment, and daily replacement use.

Wear-Resistant Construction

Abrasive particles pass through the focusing tube at high speed during cutting. Wear-resistant material and accurate bore processing help extend service life, reduce replacement frequency, and keep cutting performance stable for longer operation.

OEM Focusing Tube Options

KUNDA can provide different lengths, outer diameters, inner diameters, bore sizes, and part number options according to customer requirements. OEM branding, custom packaging, private label service, and bulk supply are available.

Suitable Applications

These waterjet focusing nozzles can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics.

Waterjet Focusing Nozzle Oem Waterjet Abrasive Focusing Tube Supplier

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, focusing nozzles, mixing tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
