Waterjet Mixing Tube Ultra Wear Resistant Carbide Focusing Replacement Mixing Tube

Short Description:

Waterjet Mixing Tube
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

Ultra Wear Resistant Carbide Waterjet Mixing Tube Replacement

Waterjet Mixing Tube Ultra Wear Resistant Carbide Focusing Replacement Mixing Tube

Product Introduction

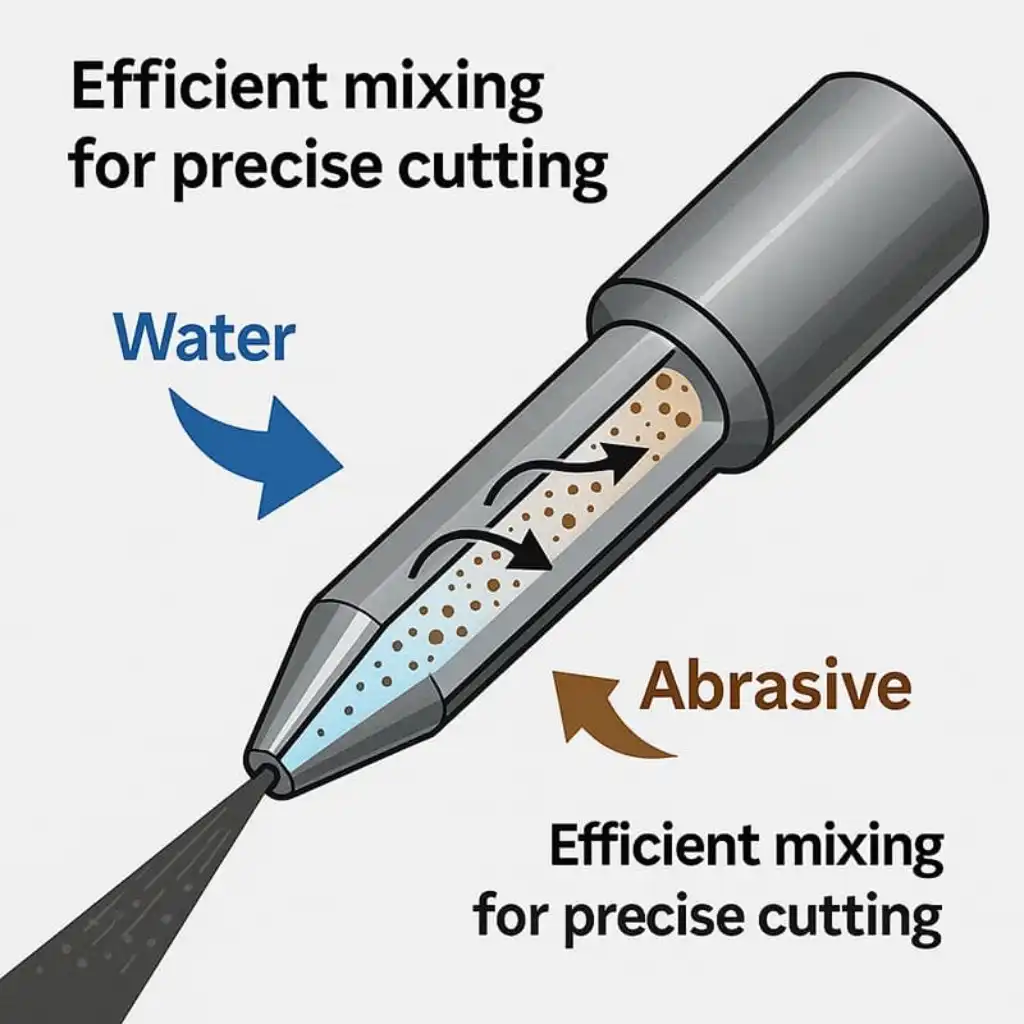

The Waterjet Mixing Tube, also called a carbide Focusing Tube, is an important wear part used in abrasive Waterjet Cutting Heads. It guides high-pressure water and abrasive particles into a concentrated cutting jet. A stable mixing tube helps improve cutting accuracy, edge quality, abrasive efficiency, and machine performance.

KUNDA supplies carbide waterjet mixing tubes in different sizes and part numbers. Standard models, custom specifications, OEM supply, private label service, and bulk orders are available for CNC Waterjet Machine users, distributors, repair companies, and equipment manufacturers.

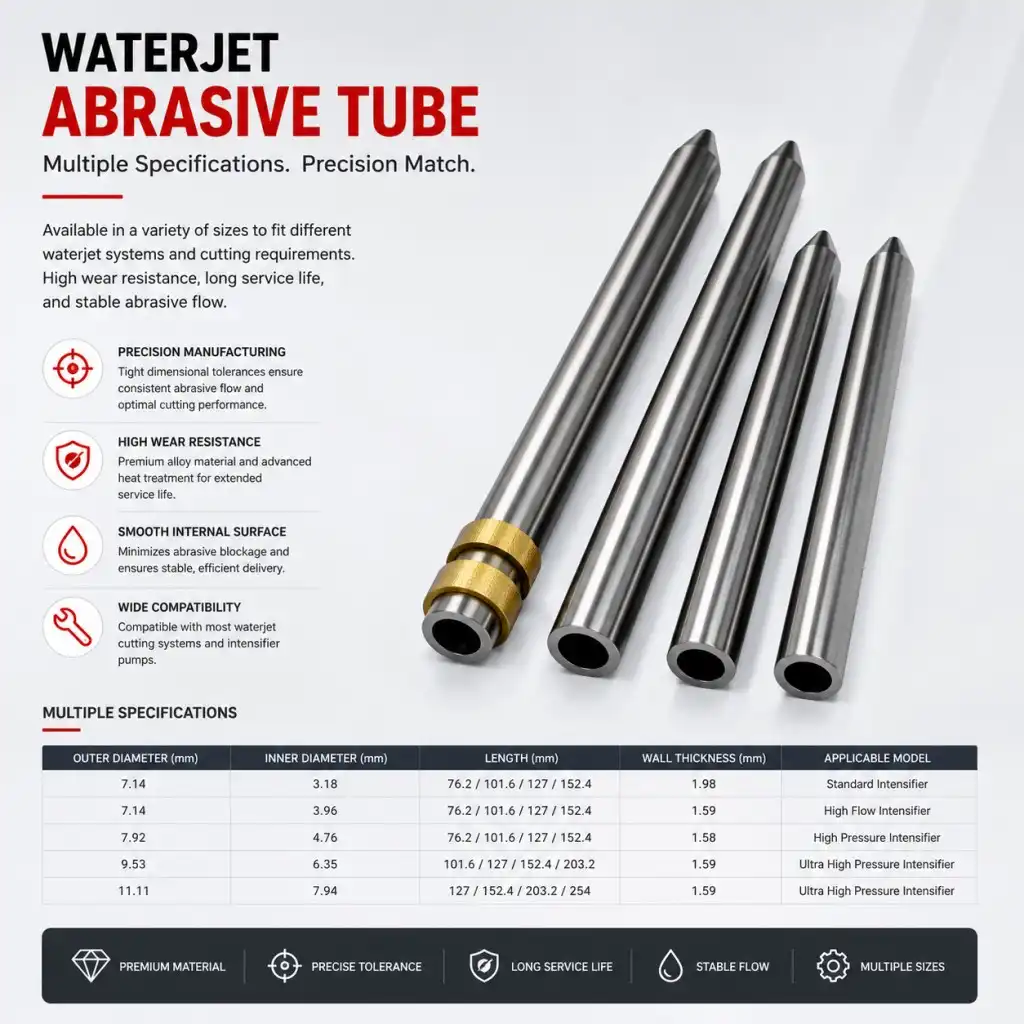

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

Carbide Material Advantage

Carbide material is commonly used for waterjet mixing tubes because it offers strong wear resistance under abrasive cutting conditions. It helps the inner bore keep a stable shape for longer use, which supports more consistent cutting performance.

Why Mixing Tube Quality Matters

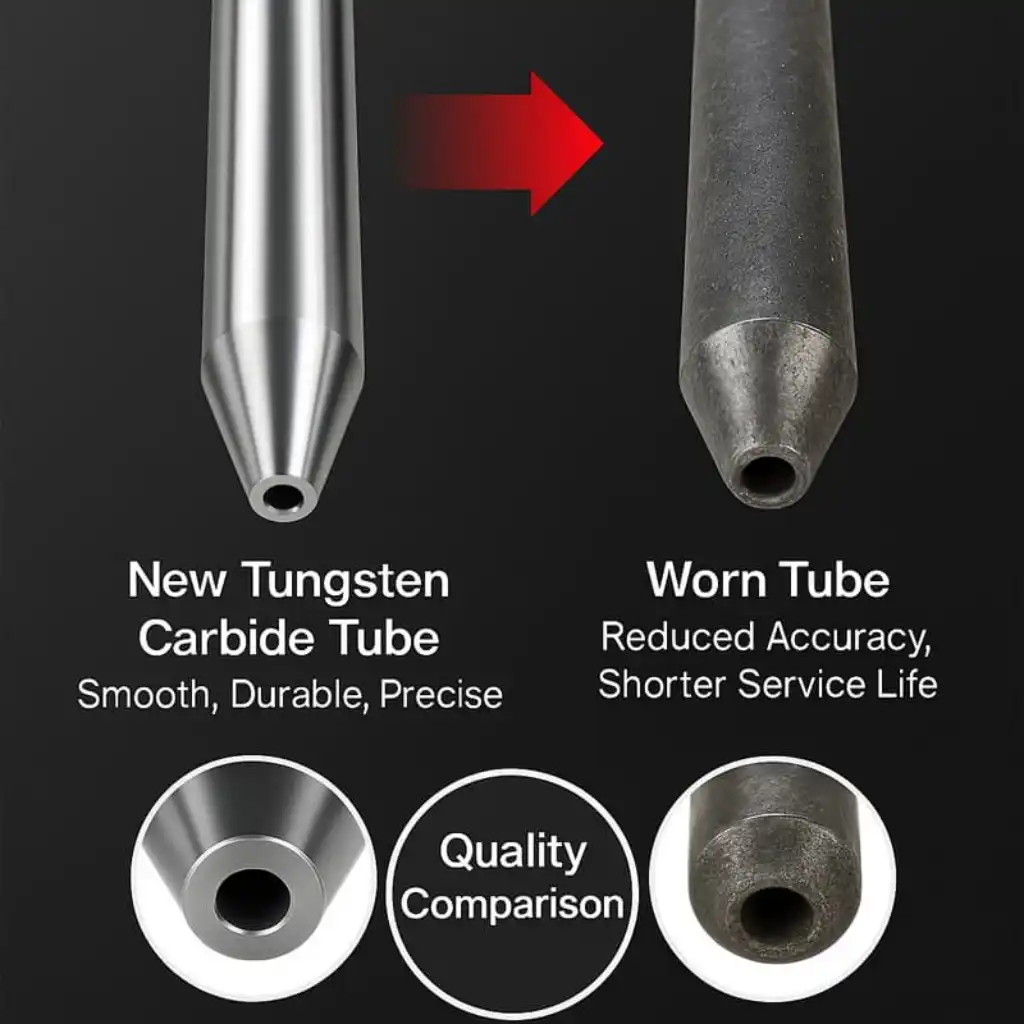

The mixing tube directly affects the final abrasive cutting jet. If the inner bore wears unevenly, the jet may lose focus, causing rough cutting edges, lower accuracy, slower cutting speed, and higher abrasive consumption.

Replacement And Maintenance Use

This carbide mixing tube can be used for regular maintenance, emergency replacement, OEM supply, and machine upgrade projects. Customers can choose suitable sizes according to machine model, cutting material, abrasive flow, and operating pressure.

Suitable Applications

These mixing tubes can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics. They are suitable for Cnc Waterjet Machines, abrasive Waterjet Cutting Systems, and Robotic Waterjet cutting equipment.

Custom And OEM Supply

KUNDA can provide different lengths, outer diameters, inner diameters, bore sizes, and part number options according to customer requirements. OEM branding, custom packaging, private label service, and bulk supply are available.

Waterjet Mixing Tube Ultra Wear Resistant Carbide Focusing Replacement Mixing Tube

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, mixing tubes, focusing tubes, Abrasive Nozzles, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
