Focusing Tube High Precision Waterjet Mixing Nozzle For Glass Cutting Supplier

Short Description:

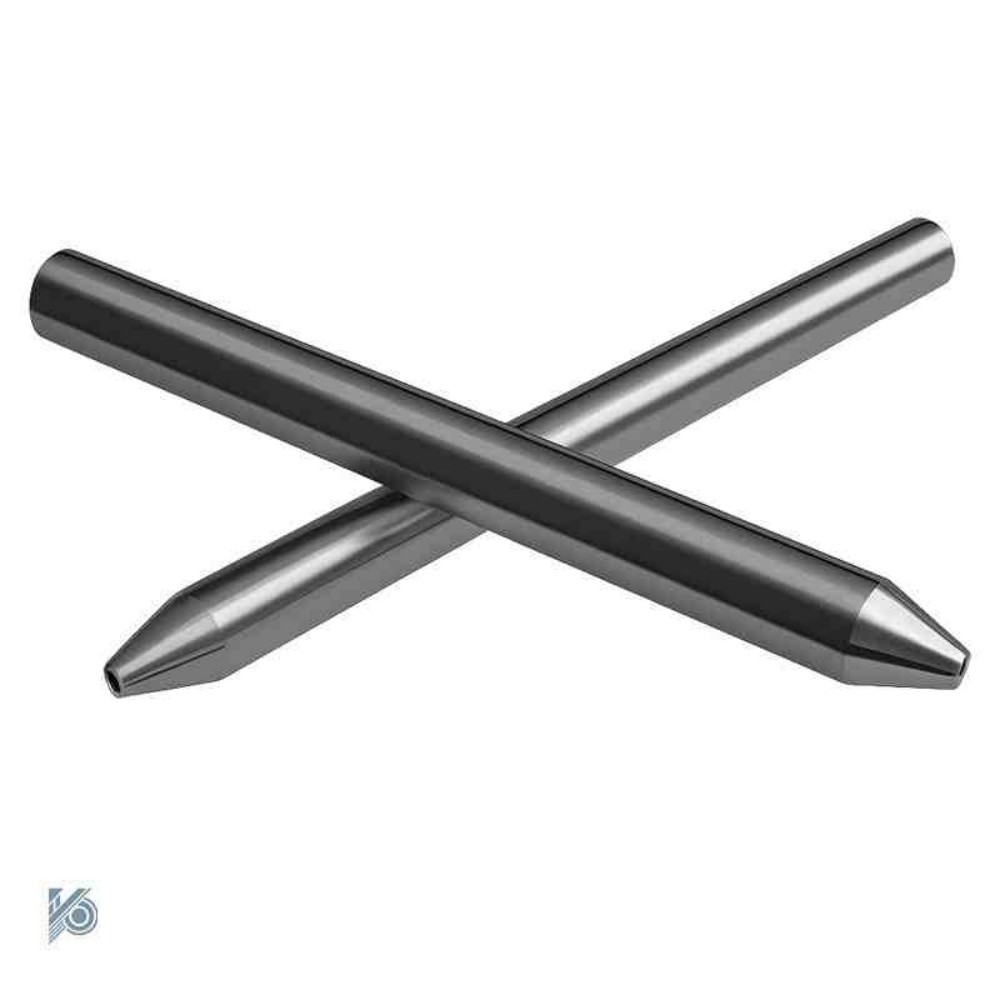

Focusing Tube
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

High Precision Waterjet Focusing Tube For Glass Cutting

Focusing Tube High Precision Waterjet Mixing Nozzle For Glass Cutting Supplier

Product Introduction

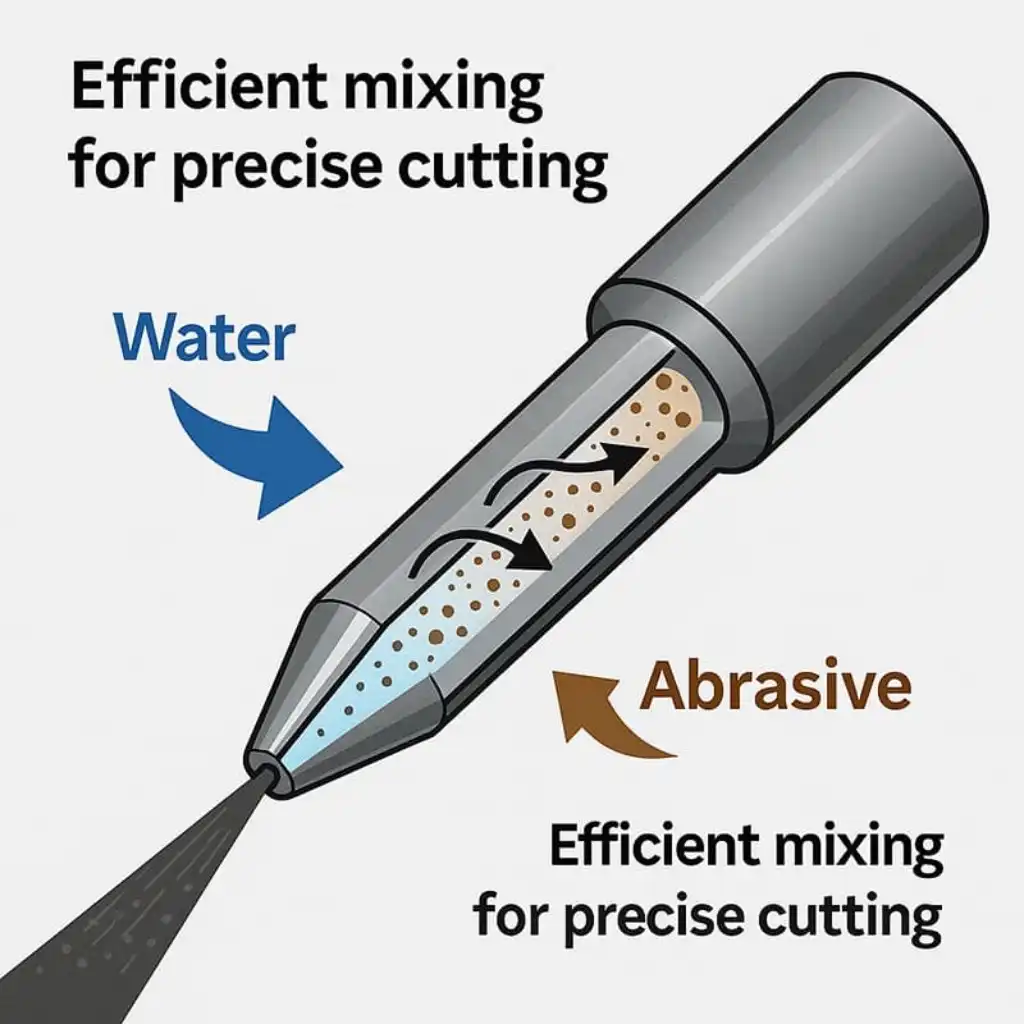

The focusing tube, also called a waterjet mixing nozzle, is an important wear part in abrasive Waterjet Cutting Heads. It guides and focuses the mixed water and abrasive into a concentrated cutting jet. A high-quality focusing tube helps improve cutting accuracy, edge quality, abrasive efficiency, and machine stability.

KUNDA supplies focusing tubes in different outer diameters, inner diameters, lengths, and part numbers. Custom sizes, OEM supply, private label service, and bulk orders are available for Waterjet Machine users, distributors, repair companies, and equipment manufacturers.

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

Why Focusing Tube Quality Matters

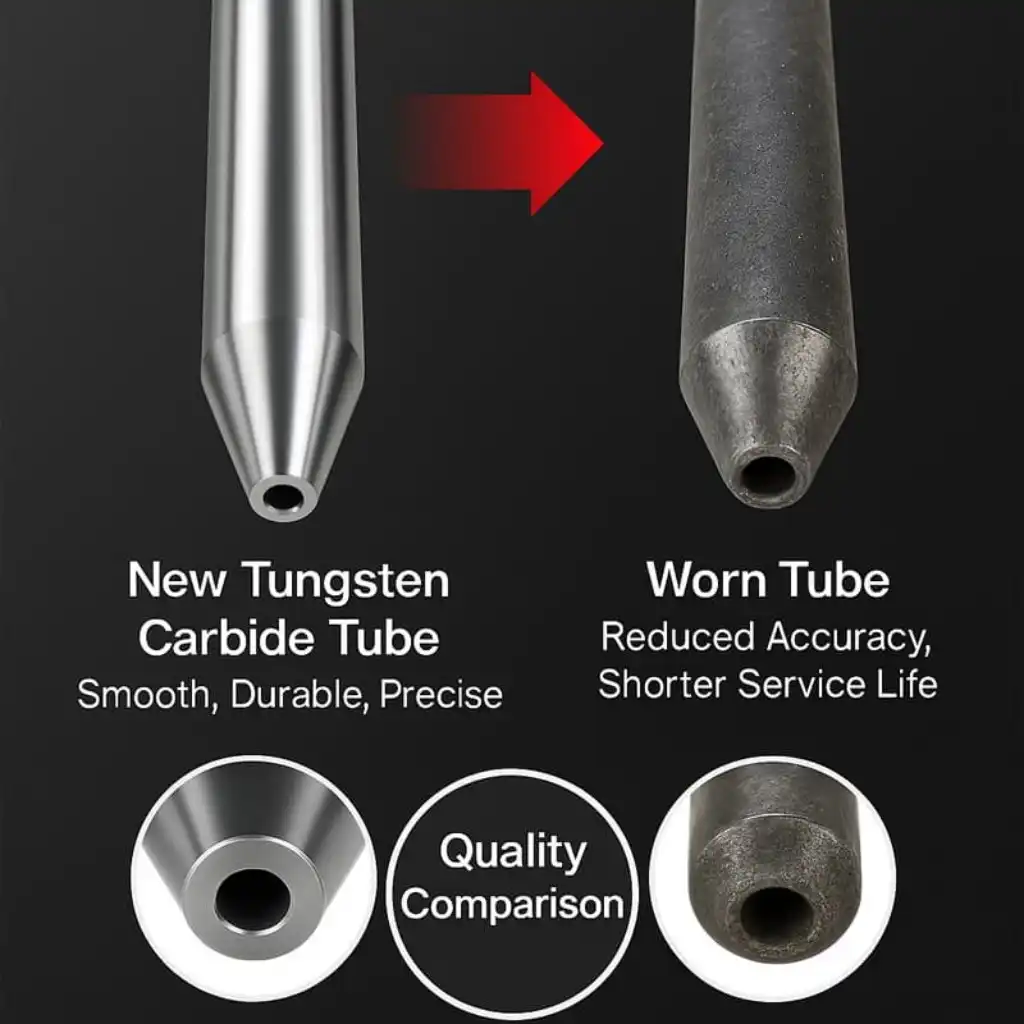

The focusing tube directly affects the shape and stability of the abrasive cutting jet. If the inner bore wears unevenly, the cutting jet may become scattered, which can lead to rough edges, lower accuracy, slower cutting speed, and higher abrasive consumption.

For Glass Cutting Applications

When cutting glass, a stable abrasive stream is especially important. A precise focusing tube helps reduce edge chipping, improve cutting consistency, and support smooth cutting of architectural glass, decorative glass, laminated glass, and other glass products.

Wear-Resistant Construction

Waterjet Focusing Tubes work under continuous abrasive impact. Wear-resistant material and accurate bore processing help extend service life, reduce replacement frequency, and keep the cutting result more stable during production.

Custom Focusing Tube Options

KUNDA can provide different lengths, outer diameters, inner diameters, and part number options according to customer requirements. OEM supply, custom packaging, private label service, and bulk orders are available.

Suitable Applications

These focusing tubes can be used for glass, ceramic, marble, granite, stainless steel, carbon steel, aluminum, titanium, composite materials, rubber, foam, and engineering plastics. They are suitable for Cnc Waterjet Machines, Abrasive Waterjet Systems, and Robotic Waterjet cutting equipment.

Focusing Tube High Precision Waterjet Mixing Nozzle For Glass Cutting Supplier

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, focusing tubes, mixing tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
