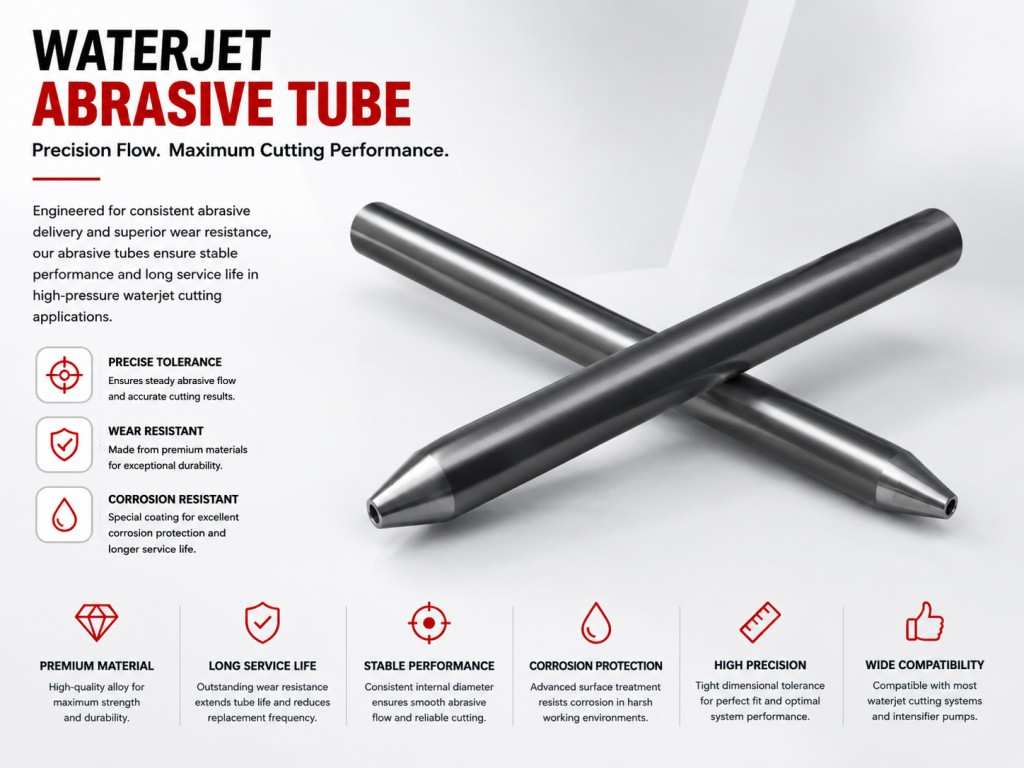

Nozzle Tube Abrasive Waterjet 76Mm Mixing Tube For Stone Cutting Machine
76MM Abrasive Waterjet Nozzle Tube For Stone Cutting Machine
Product Introduction

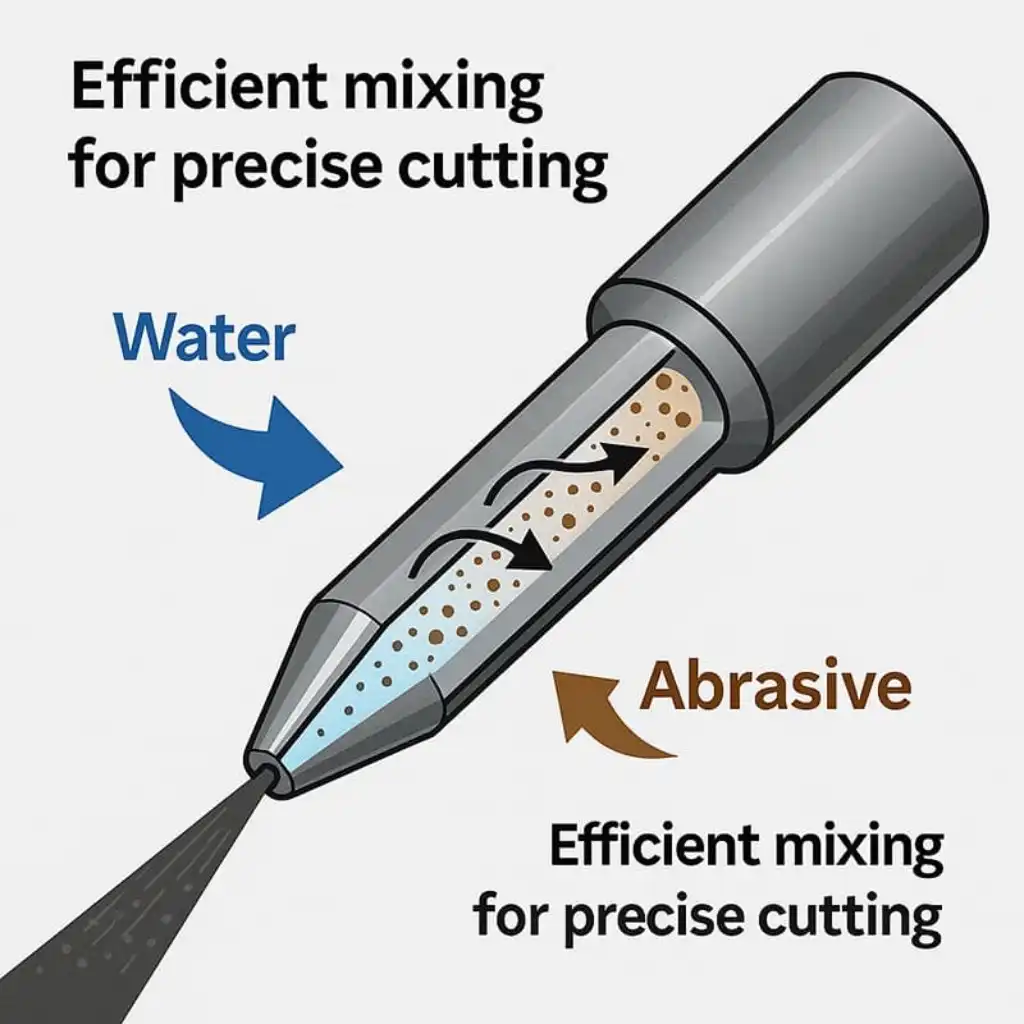

The 76mm nozzle tube, also called a Waterjet Mixing Tube or Focusing Tube, is an important wear part used in abrasive Waterjet Cutting Heads. It guides high-pressure water and abrasive particles into a focused cutting jet. A stable nozzle tube helps improve cutting accuracy, edge quality, abrasive efficiency, and machine performance.
KUNDA supplies 76mm Waterjet Nozzle Tubes and other mixing tube sizes for stone cutting machines, CNC waterjet systems, and daily replacement use. Custom specifications, OEM supply, private label service, and bulk orders are available.

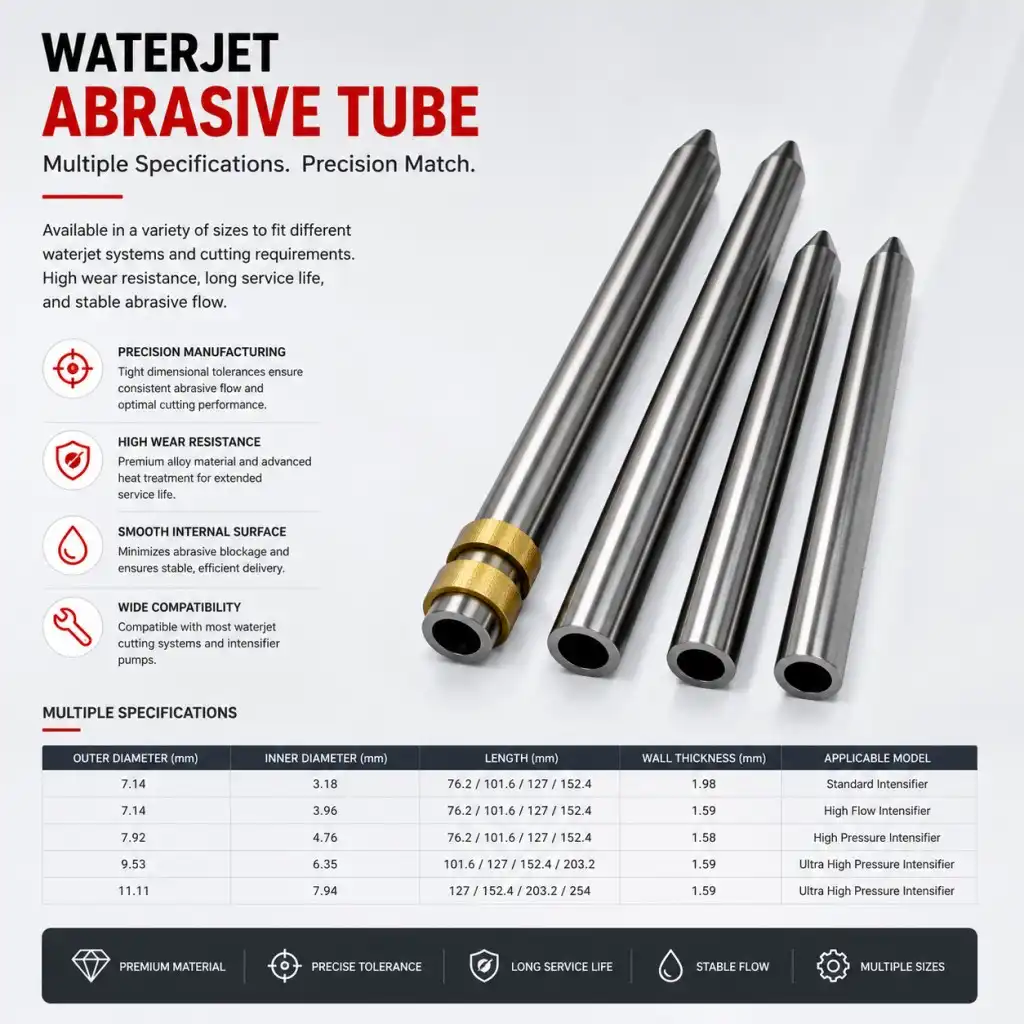

Standard Sizes
| Outer Diameter | Inner Diameter | Length |
|---|---|---|
| 6.35 | 0.76 | 76.2 |
| 6.35 | 1.02 | 76.2 |
| 6.35 | 1.02 | 101.6 |
| 7.14 | 0.76 | 76.2 |
| 7.14 | 1.02 | 76.2 |
| 7.14 | 0.76 | 101.6 |
| 7.14 | 1.02 | 101.6 |
| 9.47 | 0.76 | 76.2 |
| 9.47 | 0.76 | 101.6 |
Available Part Numbers
| Part Number | Details |
|---|---|
| 20457255 | Mixing Tube 0.030" |
| 20457256 | Mixing Tube 0.040" |
| 20457257 | Mixing Tube 0.050" |
| 20457258 | Mixing Tube 0.060" |
| 20457259 | Mixing Tube 0.070" |
| 100000-1 | Mixing Tube 0.030" |
| 100001-1 | Mixing Tube 0.040" |
| 100002-1 | Mixing Tube 0.050" |
| 100003-1 | Mixing Tube 0.060" |
| 303287 | Mixing Tube 0.030" |
| 303288 | Mixing Tube 0.040" |
| 303289 | Mixing Tube 0.050" |
| 303290 | Mixing Tube 0.060" |
| 4100601 | Mixing Tube 0.030" |
| 4100602 | Mixing Tube 0.040" |
| 4100603 | Mixing Tube 0.050" |
| 5200601 | Mixing Tube |
| 5200602 | Mixing Tube |
| 5200603 | Mixing Tube |
For Stone Cutting Machines
This nozzle tube is suitable for Stone Waterjet cutting machines used for marble, granite, quartz stone, porcelain slabs, ceramic tiles, and decorative stone products. A concentrated abrasive jet helps produce smoother cutting edges and more accurate dimensions during stone processing.
Why Nozzle Tube Quality Matters

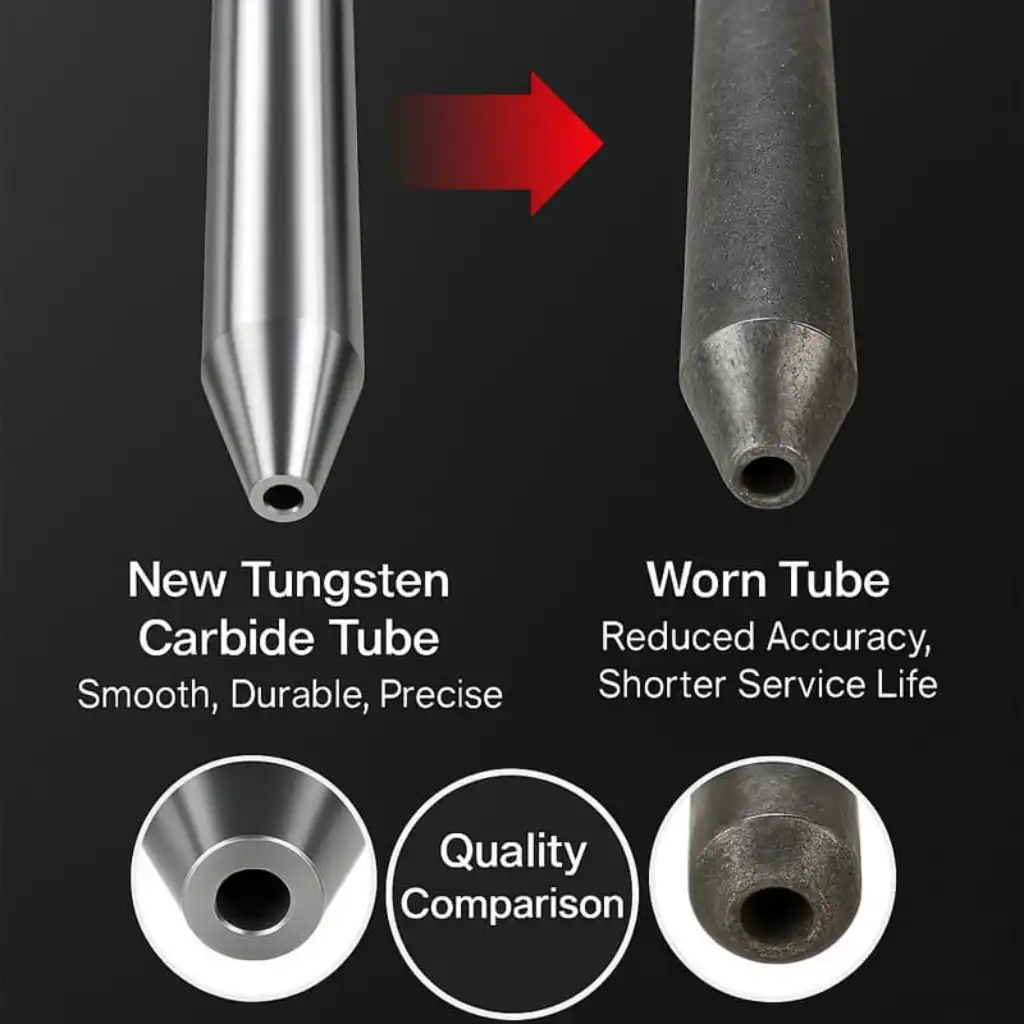

The nozzle tube directly affects abrasive flow and cutting stability. If the inner bore becomes worn or uneven, the cutting jet may lose focus, causing rough edges, lower accuracy, slower cutting speed, and higher abrasive consumption.
Wear-Resistant Construction

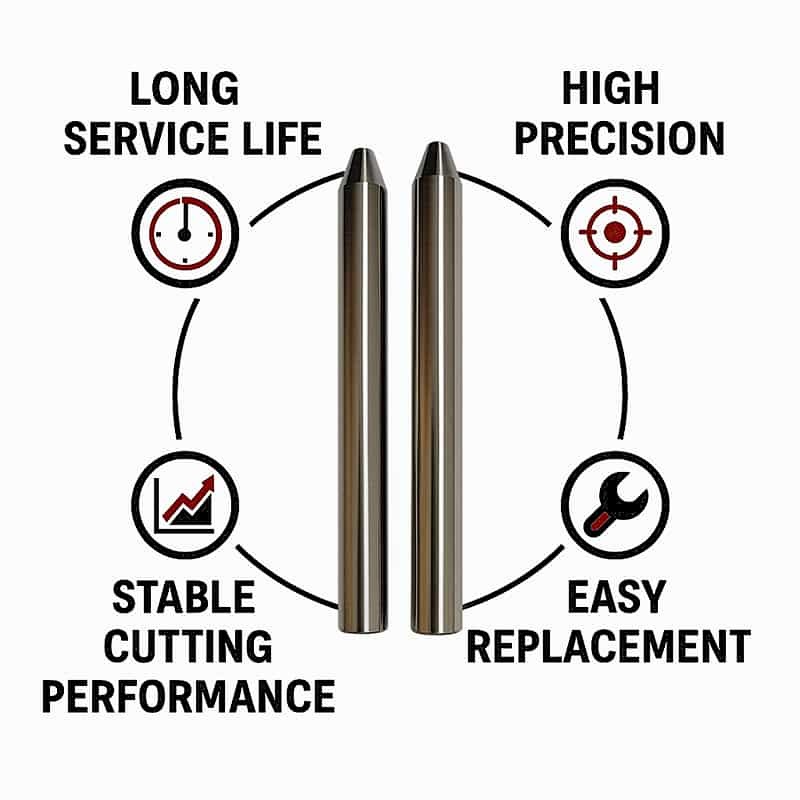

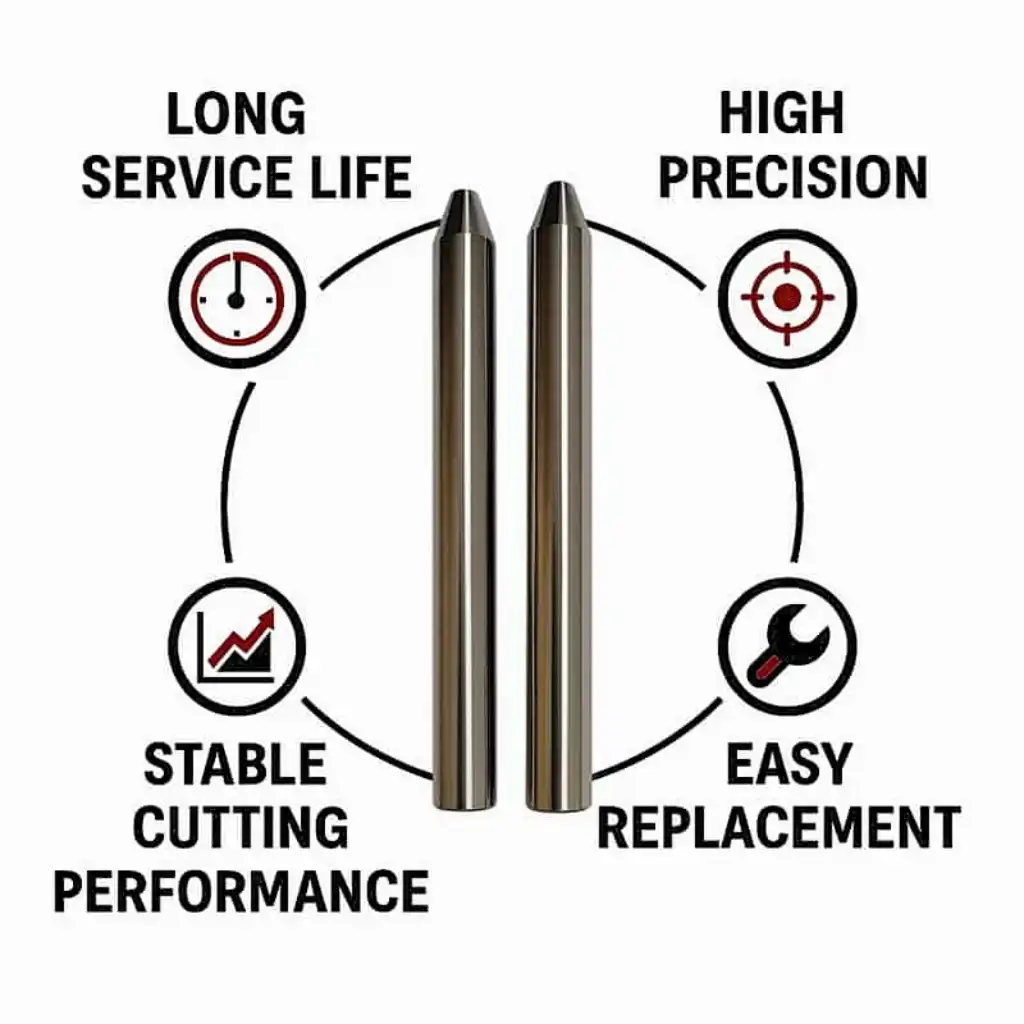

During waterjet cutting, abrasive particles pass through the nozzle tube at high speed. Wear-resistant material and accurate bore processing help extend service life, reduce replacement frequency, and keep cutting performance stable for longer operation.
Custom Nozzle Tube Options
KUNDA can provide different lengths, outer diameters, inner diameters, bore sizes, and part number options according to customer requirements. OEM branding, custom packaging, private label service, and bulk supply are available.
Why Choose KUNDA
KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, nozzle tubes, mixing tubes, focusing tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
Contact Us
If you need 76mm waterjet nozzle tubes, Abrasive Waterjet Mixing Tubes, focusing tubes, or other waterjet consumable parts, contact KUNDA for more details.
