Abrasive Water Jet Machine China Carbon Steel Waterjet Cutting Machine Supplier

Short Description:

Name:Abrasive Water Jet Machine
Brand:KUNDA
Cutting Size:6000*4000mm/3000*1500mm/4000*2000/3000*2000mm
Pump:Jet50
Cutting materials: marble, tiles, glass, steel, etc.
Accuracy:Cutting:±0.1mm/Repeatability:±0.05mm
Traverse Speed:6000-15000mm/min
Structure:Cantilever/Gantry/Fully Enclosed
Delivery time: 25 days
Warranty period: 1 year

INQUIRY

Details

Abrasive Water Jet Machine for Carbon Steel and Industrial CNC Cutting

Abrasive Water Jet Machine China Carbon Steel <a href=https://www.kundacnc.com/Waterjet-Cutting-Equipment-China-Supplier-Water-Jet-Marble-Cutting-Machine-Price-p.html target='_blank'><a href=https://www.kundacnc.com/Waterjet-Cutting-Machine-High-Quality-Water-Jet-Ceramic-Stone-Cutting-Machine-Price-p.html target='_blank'>Waterjet Cutting Machine</a> Supplier</a>

Product Introduction

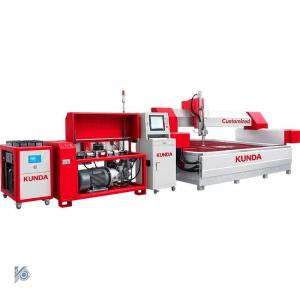

The Abrasive Water Jet Machine is a high-precision CNC Waterjet Cutting System designed for efficient carbon steel processing and industrial cutting applications. Using ultra-high pressure water combined with abrasive garnet materials, this Carbon Steel Waterjet Machine achieves precise and smooth cutting performance on carbon steel, stainless steel, aluminum, copper, titanium, stone, glass, ceramics, and composite materials. The advanced CNC control system, stable high-pressure cutting performance, and durable industrial structure make this abrasive water jet machine suitable for continuous heavy-duty industrial production environments.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

Professional Carbon Steel Cutting Performance

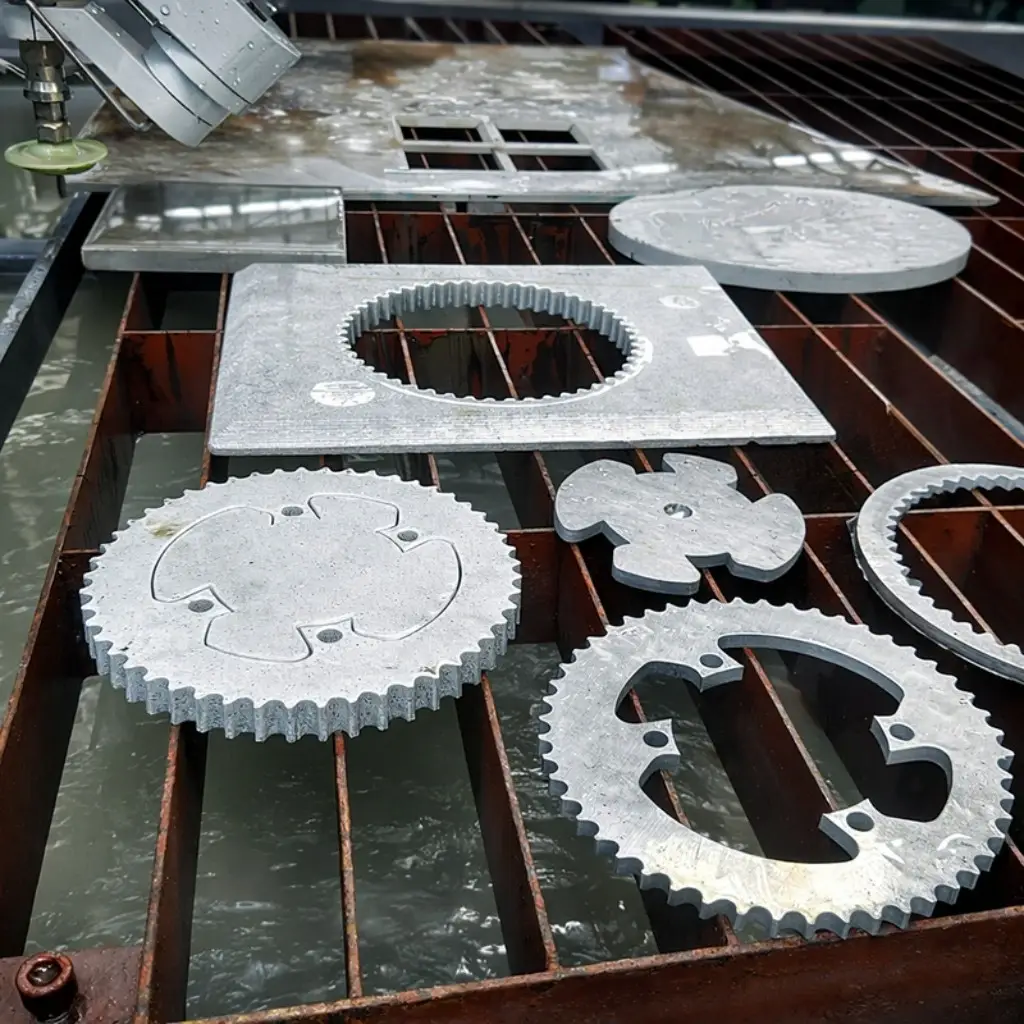

This abrasive water jet machine is specially designed for efficient carbon steel cutting applications requiring high precision and stable production performance. The ultra-high pressure abrasive water flow easily cuts different thicknesses of carbon steel while maintaining smooth cutting edges and accurate cutting dimensions. Compared with plasma or flame cutting, waterjet cutting does not generate heat during processing, helping avoid thermal deformation, burning, slag, and heat-affected zones.

Abrasive Water Jet Machine China Carbon Steel Waterjet Cutting Machine Supplier

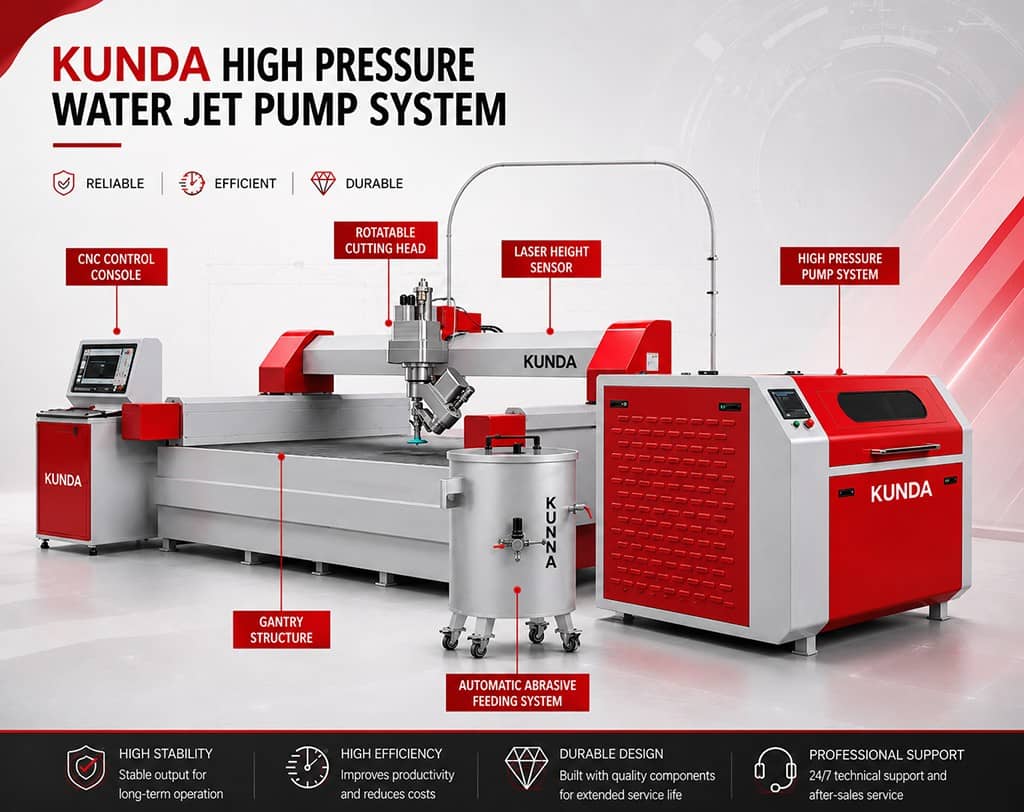

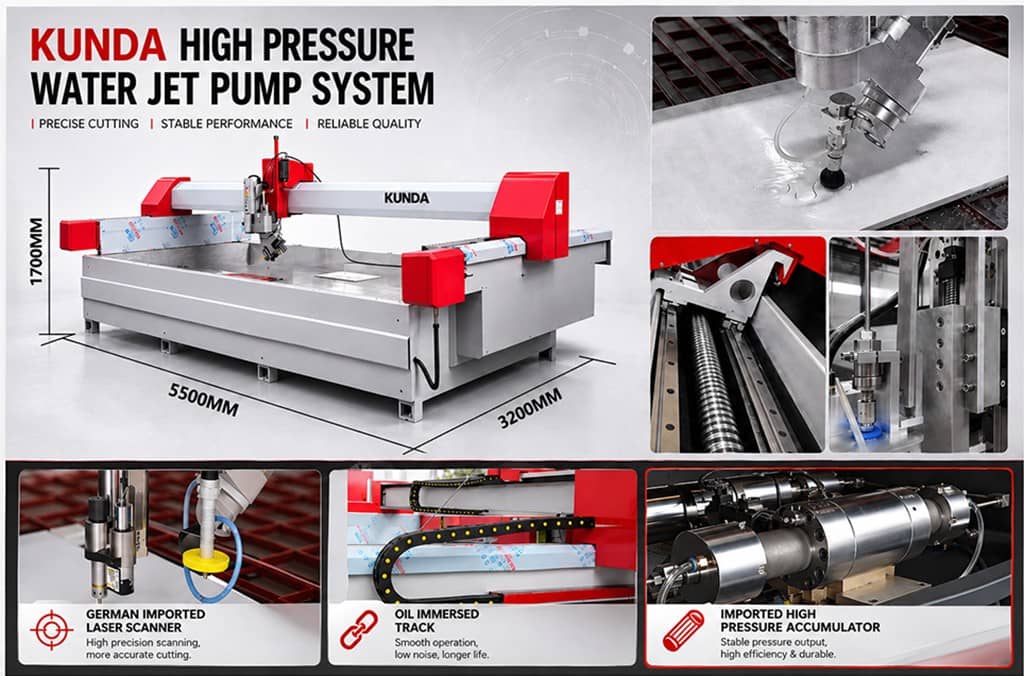

Stable High Pressure Abrasive Waterjet System

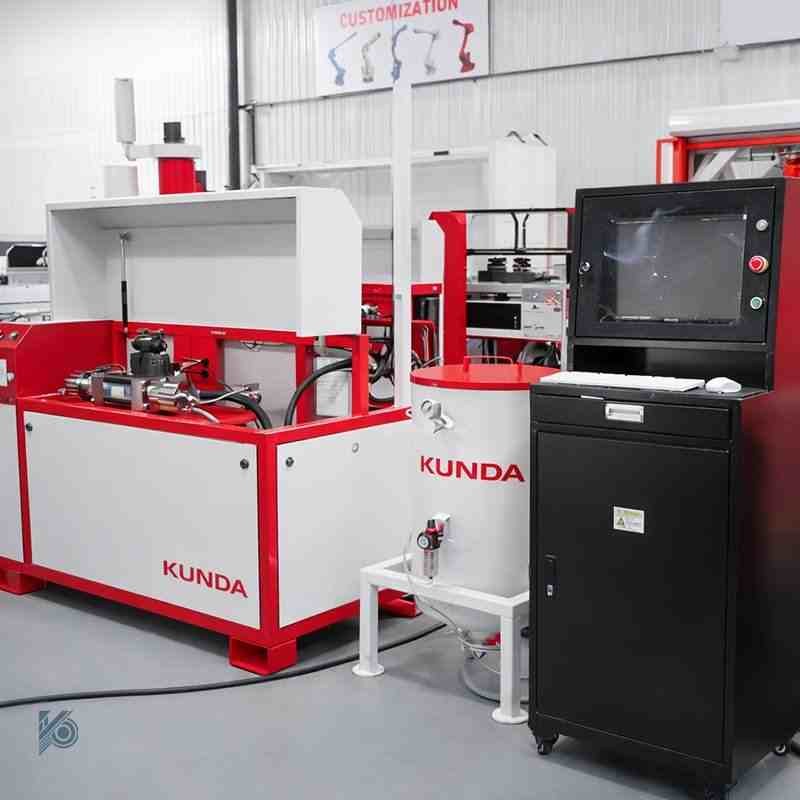

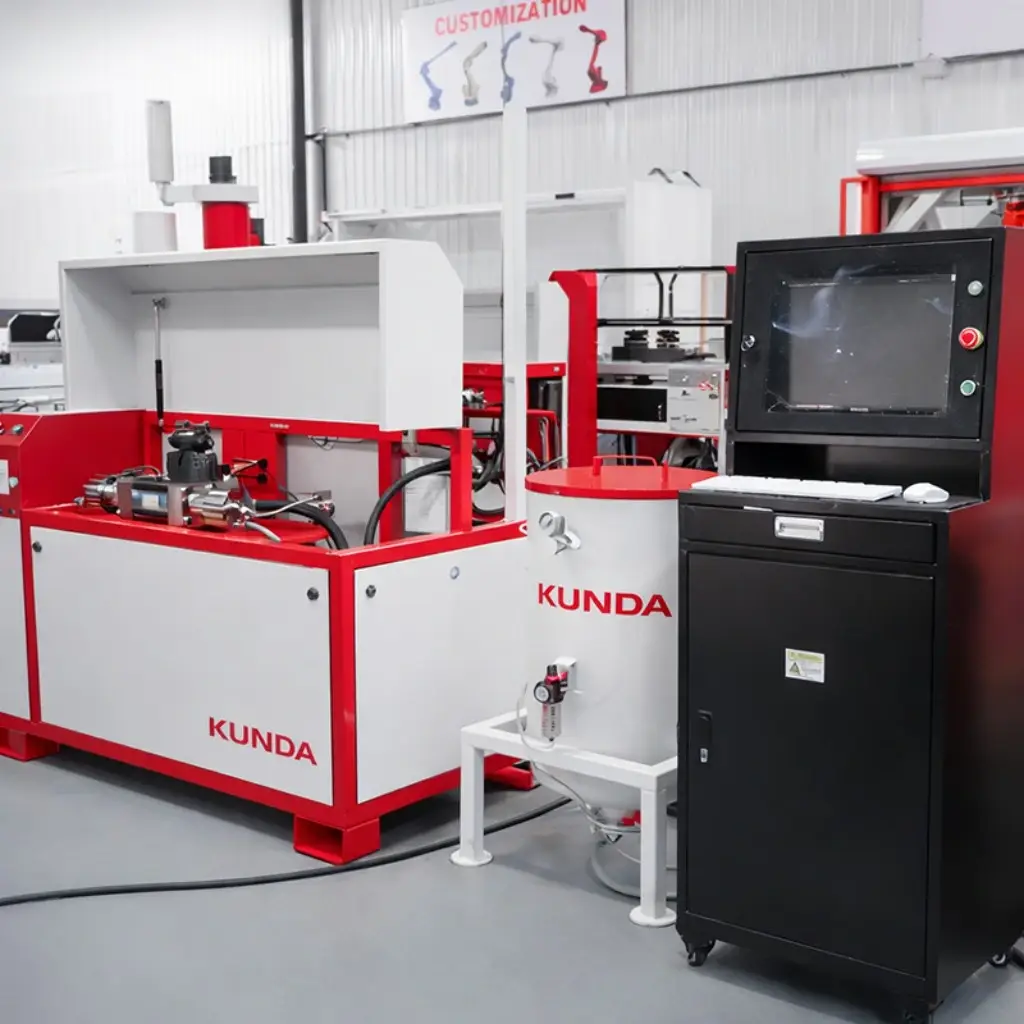

The carbon steel waterjet cutting machine adopts a stable high-pressure intensifier system and precision abrasive delivery structure to ensure reliable cutting performance during continuous industrial operation. Stable pressure output helps maintain consistent cutting quality and improve overall production efficiency.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Carbon Steel	6mm	200-260mm/min	240-310mm/min	260-350mm/min
Carbon Steel	20mm	50-65mm/min	70-90mm/min	100-120mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

High Precision CNC Control Technology

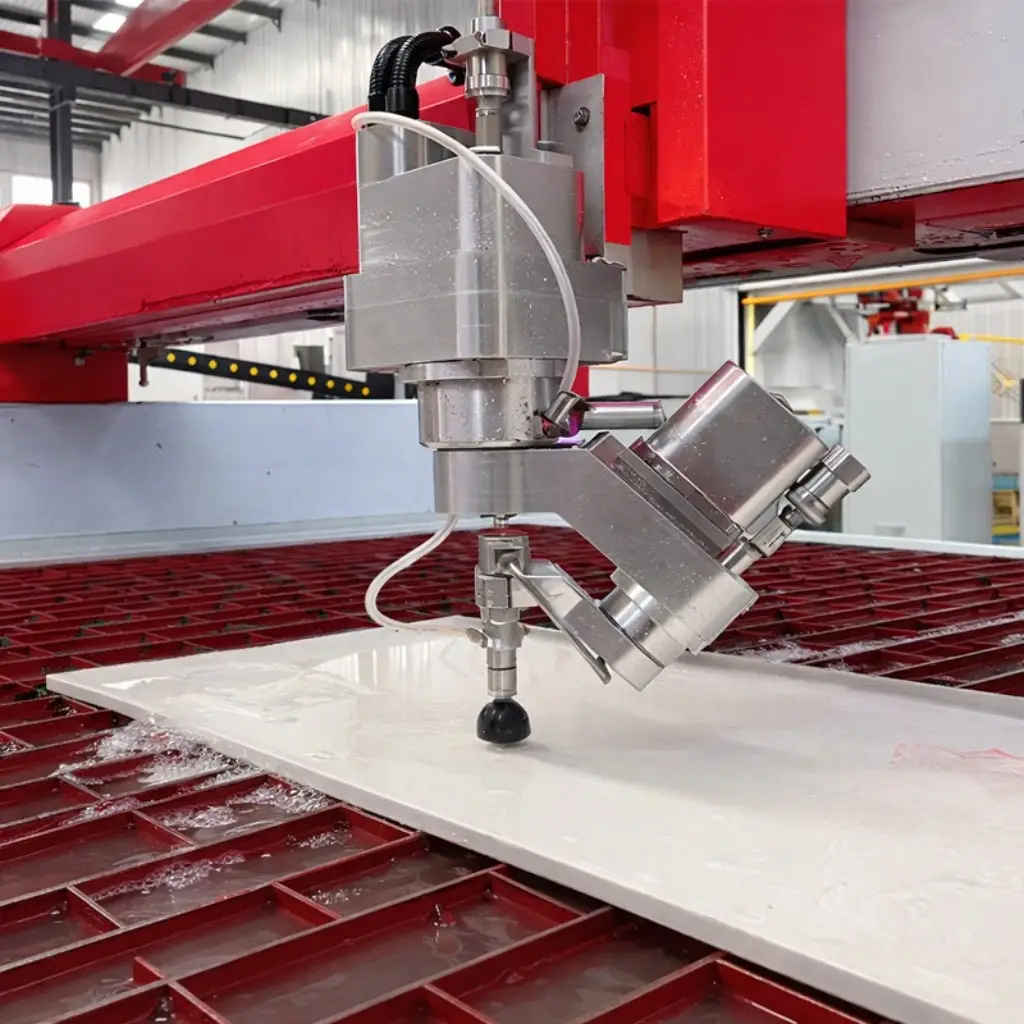

The advanced CNC control system allows the abrasive water jet machine to perform precise straight cutting, curve cutting, hole cutting, and complex contour processing with excellent dimensional accuracy. The stable motion control system and high-quality guide rail structure reduce vibration during operation, improving cutting precision and finished product quality.

Abrasive Water Jet Machine China Carbon Steel Waterjet Cutting Machine Supplier

Durable Industrial Structure and Reliable Operation

This abrasive water jet machine is manufactured with heavy-duty industrial-grade structures and durable components to ensure stable long-term operation. High-quality machine frames, hydraulic systems, servo motors, and cutting components improve machine reliability while reducing maintenance frequency during continuous production.

Optional Automation and Upgrade Solutions

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, and customized intelligent automation solutions according to different production requirements. These optional upgrades help improve cutting precision, reduce labor costs, and extend machine service life.

Wide Industrial Applications

The abrasive water jet machine is widely used in carbon steel fabrication, metal processing, machinery manufacturing, aerospace production, automotive industries, architectural decoration, stone processing, glass manufacturing, shipbuilding, and industrial custom fabrication industries.

Abrasive Water Jet Machine China Carbon Steel Waterjet Cutting Machine Supplier

Why Choose KUNDA Waterjet Cutting Machines

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Machines, pure waterjet cutting systems, high-pressure Intensifier Pumps, CNC cutting tables, Robotic Waterjet systems, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation solutions.

Contact Us

If you are looking for reliable abrasive water jet machines, carbon steel cutting solutions, or customized CNC waterjet systems, please feel free to contact KUNDA for more information and professional support.

Email: info@kundacnc.com
WhatsApp: +86 157 9367 0759

Abrasive Water Jet Machine China Carbon Steel Waterjet Cutting Machine Supplier
