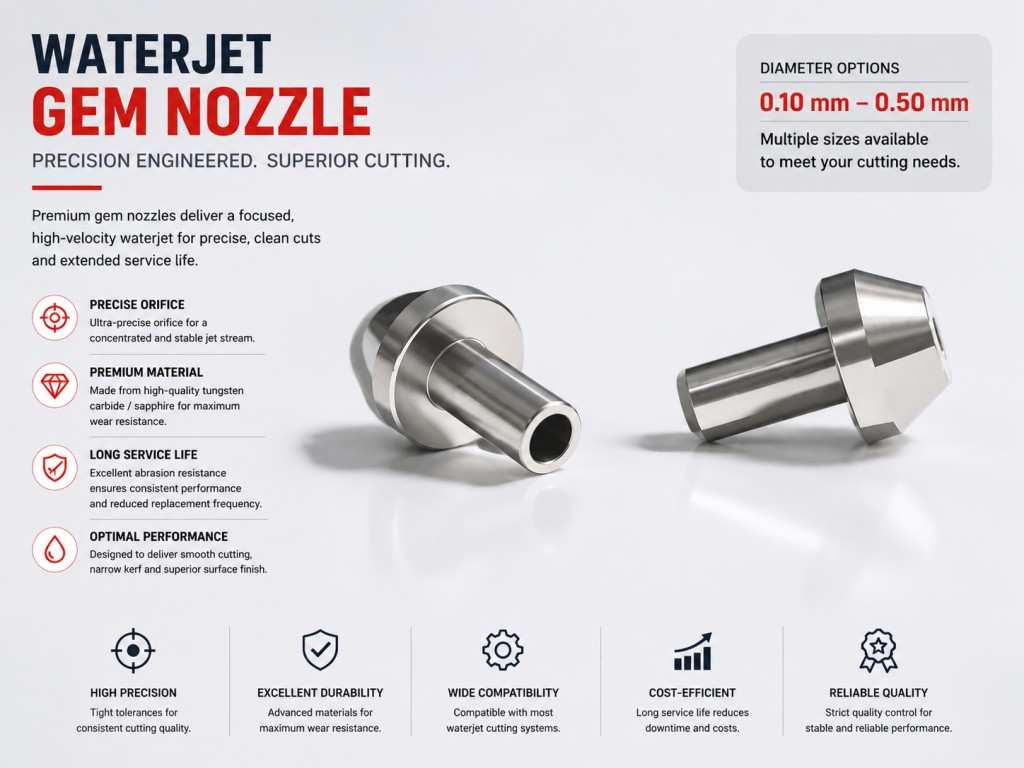

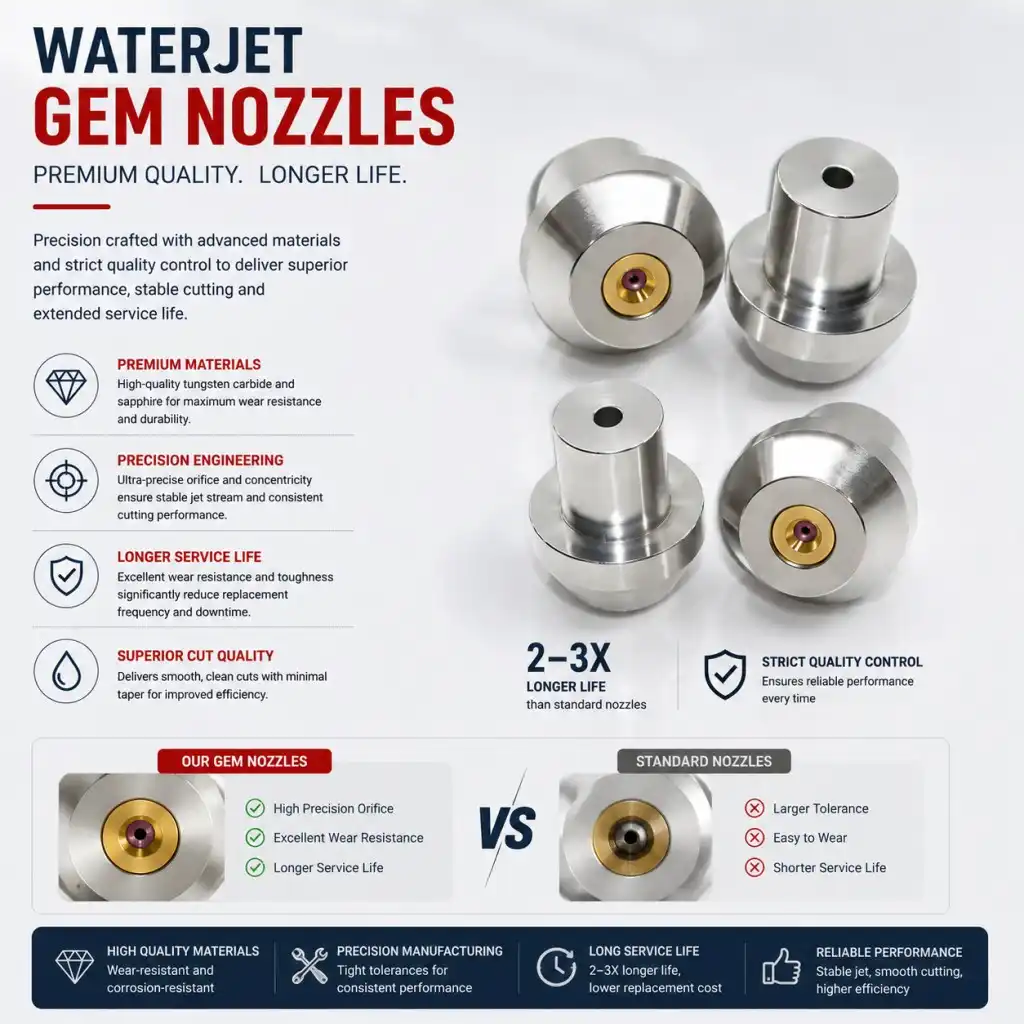

Waterjet Jewel Synthetic Sapphire Orifice For Abrasive Waterjet Cutting System

Product Introduction

The waterjet jewel is an important consumable part used in high-pressure Waterjet Cutting Heads. It converts high-pressure water into a fine and stable jet stream before the water enters the mixing chamber and Focusing Tube. A precise orifice helps improve cutting accuracy, abrasive mixing performance, edge quality, and overall cutting stability.

KUNDA supplies synthetic sapphire orifices, ruby orifices, and diamond orifices for abrasive waterjet systems and pure Waterjet Cutting Machines. Different sizes and part numbers are available for customers who need replacement parts, wholesale supply, or customized waterjet consumables.

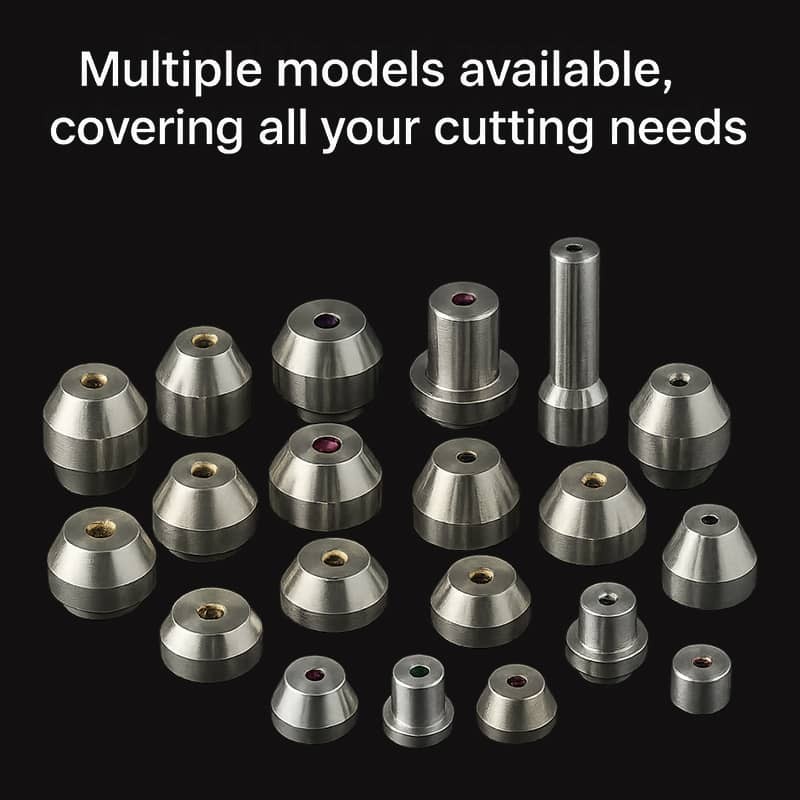

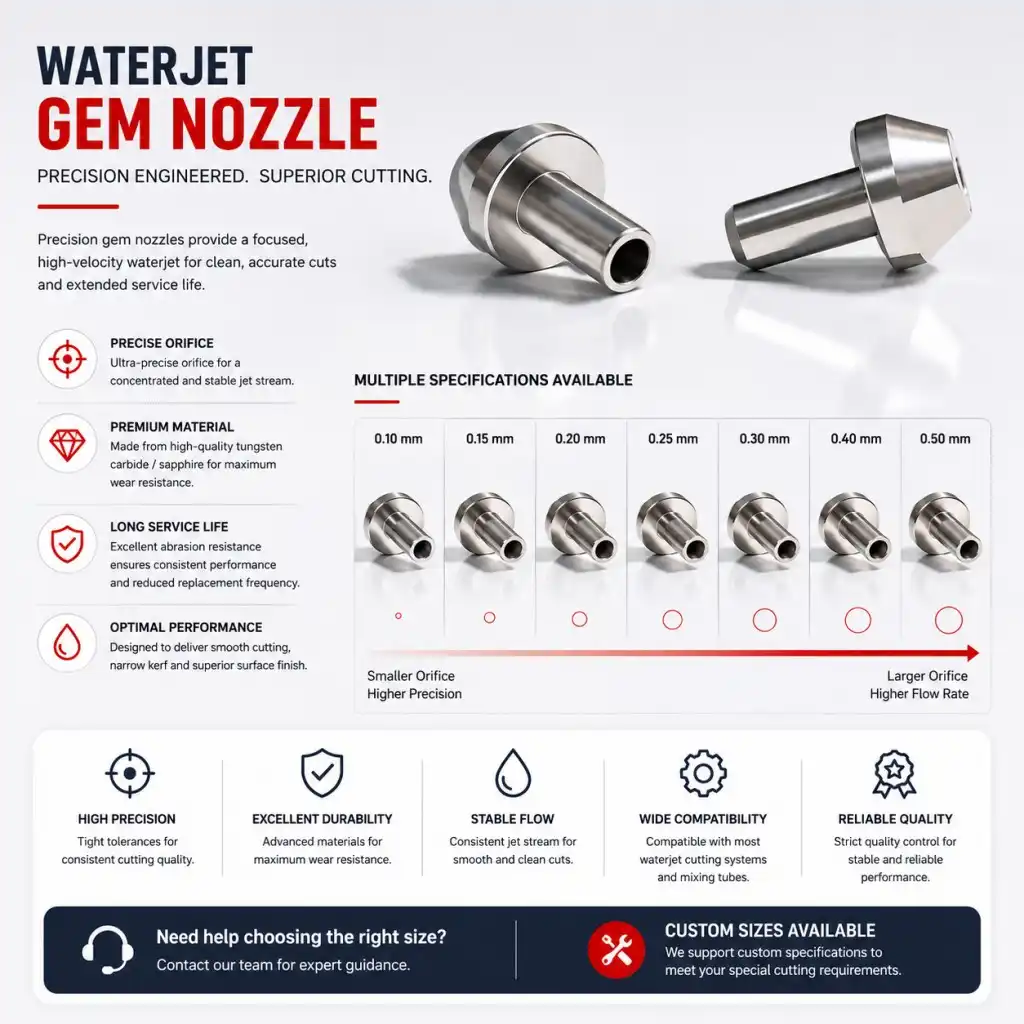

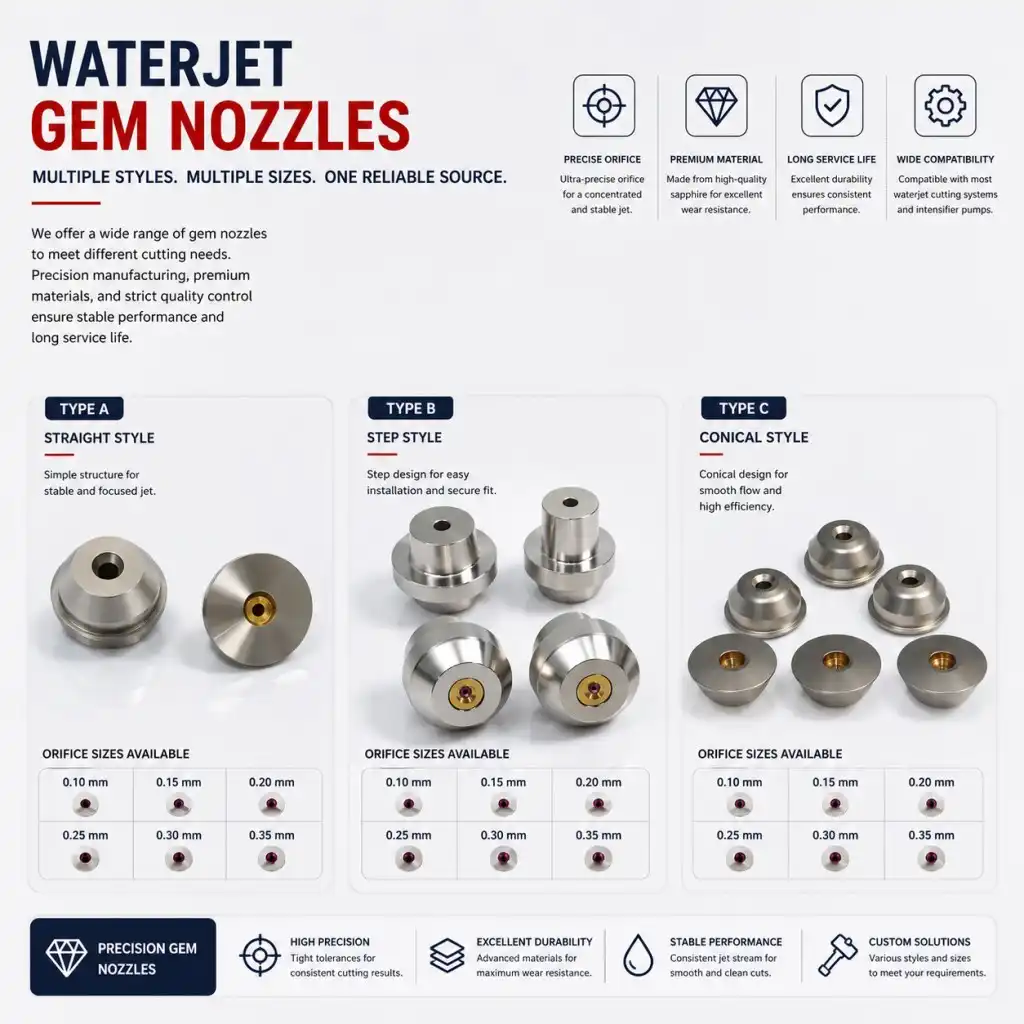

Available Specifications

Part Number	Material	Orifice Size (mm)	Part Number	Material	Orifice Size (mm)	Part Number	Material	Orifice Size (mm)
A2260003	Sapphire	0.076	A2260004	Sapphire	0.102	015849-5	Diamond	0.127
A2260005	Sapphire	0.127	A2260006	Sapphire	0.152	003788-007	Sapphire	0.178
A2260007	Sapphire	0.178	A2260008	Sapphire	0.203	003788-008	Sapphire	0.203
A2260010	Sapphire	0.254	A2260011	Sapphire	0.279	304352-05	Sapphire	0.127
A2260012	Sapphire	0.305	A2260015	Sapphire	0.381	305322-13	Sapphire	0.330
A2260016	Sapphire	0.406	A2260020	Sapphire	0.508	305322-14	Sapphire	0.356
49888852	Diamond	0.076	49888860	Diamond	0.102	305322-15	Diamond	0.381
49888878	Diamond	0.127	49888886	Diamond	0.152	304352-16	Sapphire	0.406
49888894	Diamond	0.178	49888902	Diamond	0.203	304352-20	Sapphire	0.508
49888910	Diamond	0.229	49888928	Diamond	0.254	305322-07	Diamond	0.178
49888936	Diamond	0.305	49888951	Diamond	0.381	305322-10	Diamond	0.254
49836786	Diamond	0.33	49888969	Diamond	0.406	305322-12	Diamond	0.305
49888944	Diamond	0.356	49888977	Diamond	0.457	305322-20	Diamond	0.508
49888985	Diamond	0.508	05112537	Diamond	0.203	305322-22	Diamond	0.559
49888993	Diamond	0.559	05084504	Diamond	0.229	014201-013	Ruby	0.330

Stable Jet Stream Performance

A well-made orifice produces a focused and consistent water stream under ultra-high pressure. This helps the cutting head maintain stable abrasive mixing, cleaner cutting edges, and better dimensional accuracy during continuous operation.

Sapphire, Ruby And Diamond Options

Sapphire orifices are commonly used for reliable daily cutting performance. Ruby orifices are suitable for selected applications, while diamond orifices are often chosen when longer service life and higher wear resistance are required. Customers can choose the material according to machine pressure, cutting material, working time, and maintenance cost requirements.

Suitable Applications

These waterjet jewels can be used for cutting stainless steel, carbon steel, aluminum, titanium, stone, glass, ceramic, composite materials, rubber, foam, and engineering plastics. They are suitable for Abrasive Waterjet Machines, pure waterjet systems, CNC cutting tables, and Industrial Waterjet production lines.

OEM And Wholesale Supply

KUNDA can provide different orifice sizes, part numbers, and material options for distributors, waterjet machine users, repair service companies, and equipment manufacturers. OEM service, custom specifications, private label supply, and bulk orders are available.

Why Choose KUNDA Waterjet Parts

KUNDA supplies waterjet cutting machines, high-pressure pump parts, cutting head parts, Mixing Tubes, focusing tubes, orifices, accumulators, high-pressure tubing, and other waterjet spare parts. We help customers reduce downtime, replace worn parts quickly, and keep waterjet cutting systems running smoothly.

Contact Us

If you need waterjet jewels, synthetic sapphire orifices, ruby orifices, diamond orifices, or wholesale waterjet consumables, contact KUNDA for more information.
