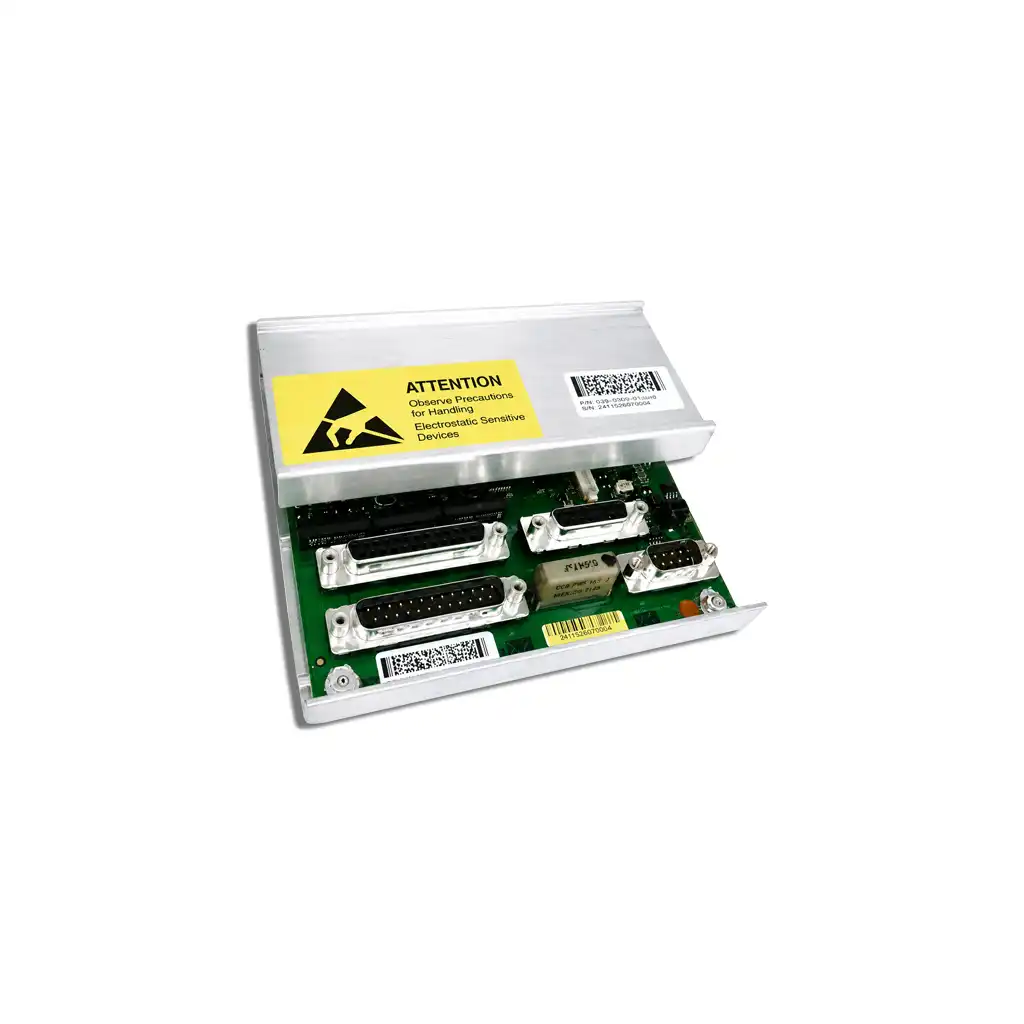

Serial measurement Unit DSQC 633 3HAC022286-001 Waterjet Parts Price

The Serial Measurement Unit DSQC 633 (3HAC022286-001) is a high-accuracy feedback interface module designed for ABB industrial robots. It serves as the key connection between the robot’s servo motors, resolvers, or encoders and the main controller, allowing precise measurement and monitoring of joint positions, movement speed, and orientation in real time.

This unit ensures exact synchronization between all robotic axes, enabling smooth motion control, precise positioning, and consistent repeatability — critical for high-performance applications such as waterjet cutting, CNC machining, welding, and automated assembly. Built to ABB’s stringent quality and safety standards, the DSQC 633 offers stable signal processing, strong noise immunity, and long-term reliability even in harsh industrial environments.

Key Features:
Model: DSQC 633 (3HAC022286-001)
Type: Serial Measurement Unit (SMU)
Provides precise position feedback from servo encoders to the controller
Ensures real-time motion synchronization across all robot axes
High immunity to electrical noise and signal interference
Compact, rugged design for installation in ABB control cabinets
Compatible with ABB S4C, S4C+, and IRC5 robot systems
Integrated diagnostic and monitoring functions for enhanced reliability
Essential for maintaining motion precision and system calibration

Applications:
Used in ABB industrial robots for accurate feedback of motor and joint positions
Ideal for waterjet cutting, laser machining, metal forming, and robotic assembly
Suitable for maintenance, calibration, or replacement in ABB automation systems
