Check Valve Body WS2007 Abrasive Glass Water Jet Cutter Parts

Short Description:

Minimum Order Quantity: 1
Availability: Yes
WSI Part Number: WS2007
Other: WS2007
Product Details:
This Assembly Contains:
1-WS1038 Check Valve Body
2-WA1023 O-Ring, Check Valve
1-WA1020 Check Valve Adapter
1-WS1024 Outlet Ball Seat
2-WS1022 Check Valve Ball
1-WS1023 Outlet Ball Retainer
1-WA1029 Spring, Check Valve
1-WS1034 Inlet Poppet Guide
1-WS1037 Inlet Ball Seat
2-WS1045 Retaining Screw, WS2007, Hex Head

INQUIRY

Details

Check Valve Body WS2007 Abrasive Glass Water Jet Cutter Parts

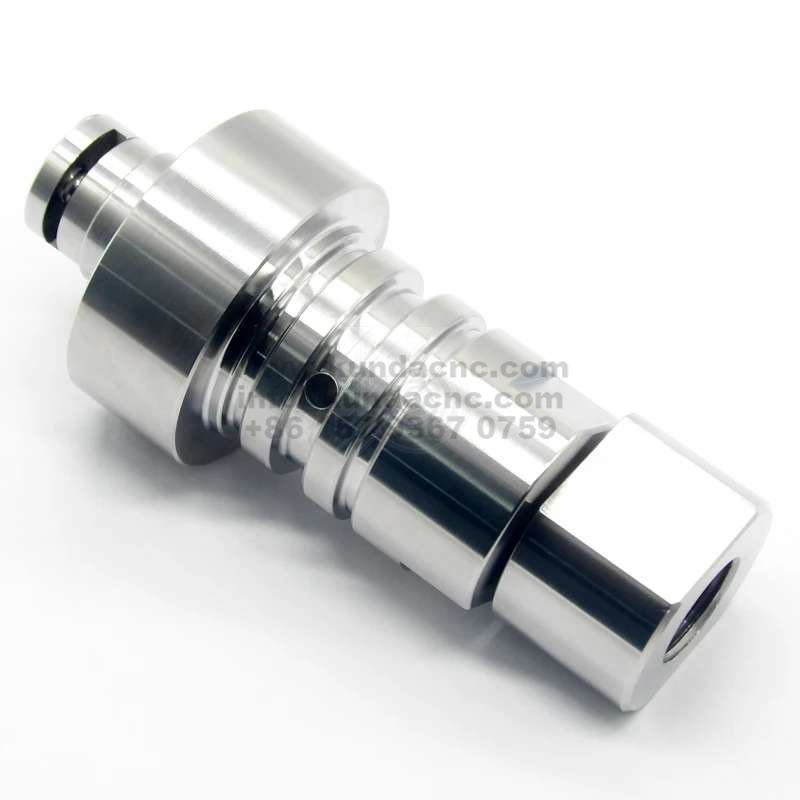

The Check Valve Body WS2007 is a critical precision component in high-pressure Waterjet Cutting Systems, designed to house and support the internal elements of the check valve assembly. It plays a vital role in maintaining proper water flow direction, pressure stability, and overall system reliability during high-intensity cutting operations.

Manufactured from high-strength stainless steel or nickel-plated alloy, the WS2007 valve body offers exceptional resistance to corrosion, erosion, and fatigue under continuous pressures of up to 420 MPa (60,000 psi). Each unit is CNC-machined to micron-level accuracy, ensuring a perfect fit with corresponding check valve components such as the valve poppet, seat, and spring. Its internal channel geometry is optimized to minimize turbulence and energy loss, promoting smoother water flow and more efficient cutting performance.

The Check Valve Body WS2007 is compatible with major waterjet systems, including KMT, FLOW, OMAX, WSI, BFT, and BHDT, and serves as a direct replacement for worn or damaged check valve housings. Using genuine WS2007 bodies helps maintain the precision and safety of your Intensifier Pump or cutting head, ensuring consistent performance and reduced maintenance costs.
