Waterjet Ruby Orifice Industrial Custom Waterjet Diamond Orifice For Waterjet Cutting Machine
Ruby Waterjet Orifice And Custom Diamond Orifice For Waterjet Cutting
Product Introduction

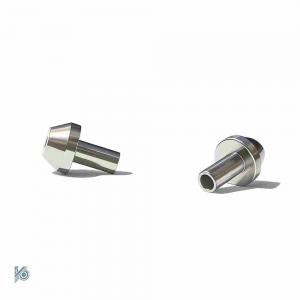

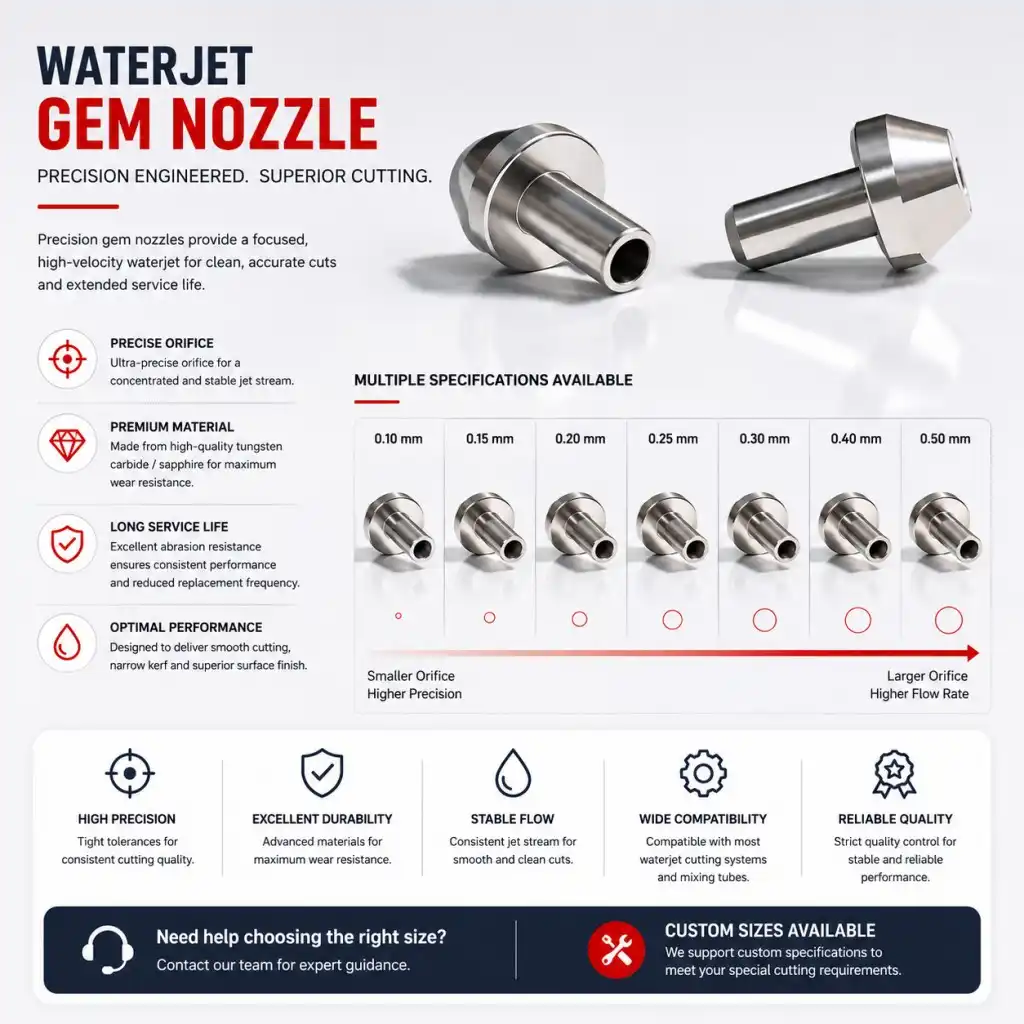

The ruby waterjet orifice is a precision consumable part used in Waterjet Cutting Heads. It helps form a fine and stable water stream before the water enters the mixing chamber and Focusing Tube. A stable orifice can improve abrasive mixing, cutting accuracy, edge quality, and overall cutting performance.

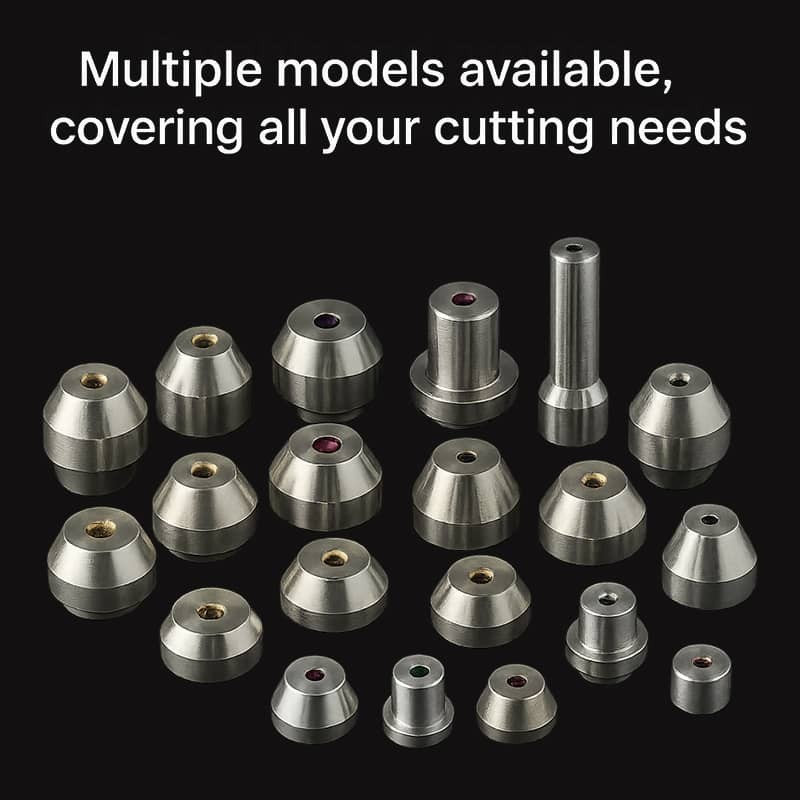

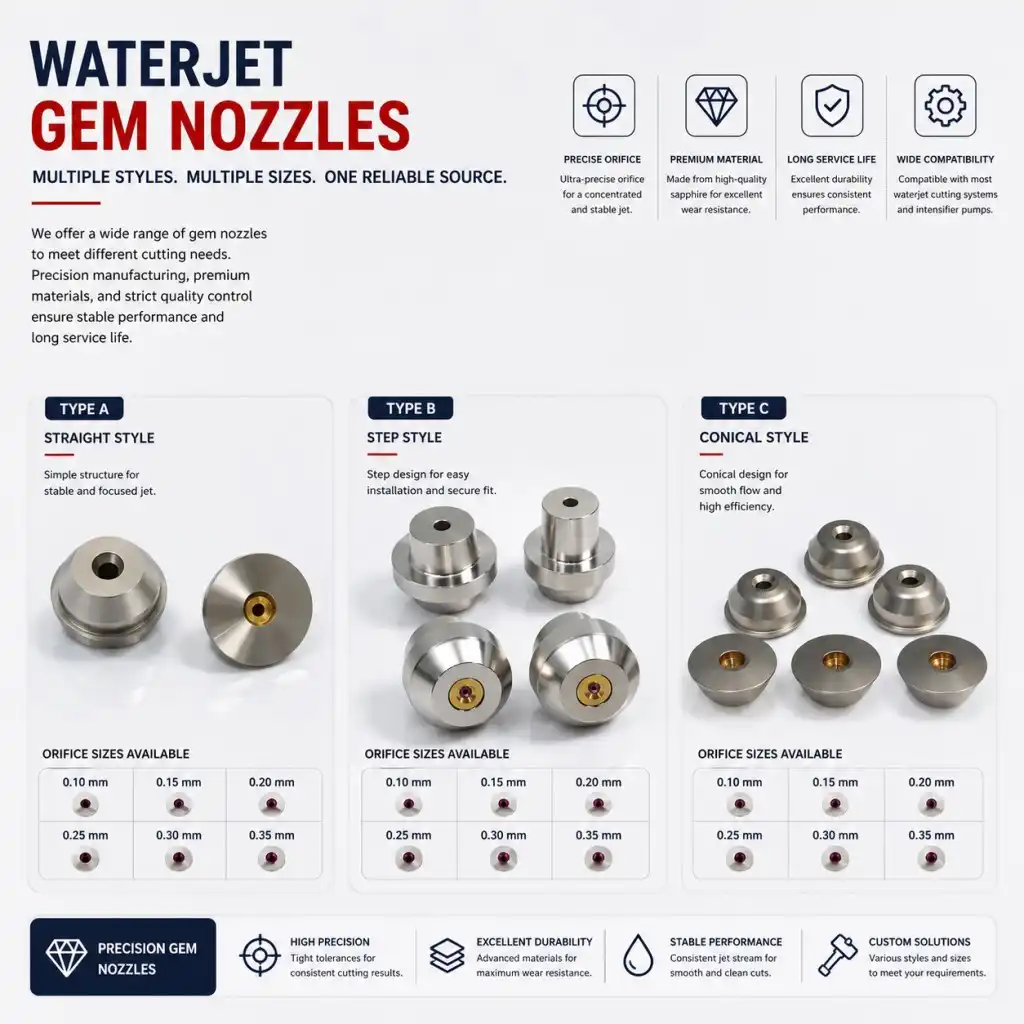

KUNDA supplies ruby, sapphire, and Diamond Waterjet Orifices in different sizes. Custom orifice options are also available for customers who need special diameters, specific part numbers, private label supply, or bulk replacement parts.
Available Specifications
| Part Number | Material | Orifice Size (mm) | Part Number | Material | Orifice Size (mm) | Part Number | Material | Orifice Size (mm) |
|---|---|---|---|---|---|---|---|---|
| A2260003 | Sapphire | 0.076 | A2260004 | Sapphire | 0.102 | 015849-5 | Diamond | 0.127 |
| A2260005 | Sapphire | 0.127 | A2260006 | Sapphire | 0.152 | 003788-007 | Sapphire | 0.178 |
| A2260007 | Sapphire | 0.178 | A2260008 | Sapphire | 0.203 | 003788-008 | Sapphire | 0.203 |
| A2260010 | Sapphire | 0.254 | A2260011 | Sapphire | 0.279 | 304352-05 | Sapphire | 0.127 |
| A2260012 | Sapphire | 0.305 | A2260015 | Sapphire | 0.381 | 305322-13 | Sapphire | 0.330 |
| A2260016 | Sapphire | 0.406 | A2260020 | Sapphire | 0.508 | 305322-14 | Sapphire | 0.356 |
| 49888852 | Diamond | 0.076 | 49888860 | Diamond | 0.102 | 305322-15 | Diamond | 0.381 |
| 49888878 | Diamond | 0.127 | 49888886 | Diamond | 0.152 | 304352-16 | Sapphire | 0.406 |
| 49888894 | Diamond | 0.178 | 49888902 | Diamond | 0.203 | 304352-20 | Sapphire | 0.508 |
| 49888910 | Diamond | 0.229 | 49888928 | Diamond | 0.254 | 305322-07 | Diamond | 0.178 |
| 49888936 | Diamond | 0.305 | 49888951 | Diamond | 0.381 | 305322-10 | Diamond | 0.254 |
| 49836786 | Diamond | 0.33 | 49888969 | Diamond | 0.406 | 305322-12 | Diamond | 0.305 |
| 49888944 | Diamond | 0.356 | 49888977 | Diamond | 0.457 | 305322-20 | Diamond | 0.508 |
| 49888985 | Diamond | 0.508 | 05112537 | Diamond | 0.203 | 305322-22 | Diamond | 0.559 |
| 49888993 | Diamond | 0.559 | 05084504 | Diamond | 0.229 | 014201-013 | Ruby | 0.330 |
Ruby Orifice For Daily Cutting Use
Ruby orifices are commonly used in waterjet cutting machines because they offer reliable performance and good cost control. They are suitable for many standard cutting jobs and regular maintenance replacement.
Diamond Orifice For Longer Service Life
For customers who run Waterjet Machines for long working hours, diamond orifices can be a better choice. Diamond material has stronger wear resistance and can help extend replacement intervals, reduce downtime, and maintain stable cutting quality for a longer time.
Custom Waterjet Orifice Options
KUNDA can provide custom waterjet orifices according to customer requirements. Different materials, diameters, part numbers, packaging methods, and OEM supply solutions are available for distributors, repair companies, equipment manufacturers, and waterjet machine users.
Suitable Applications

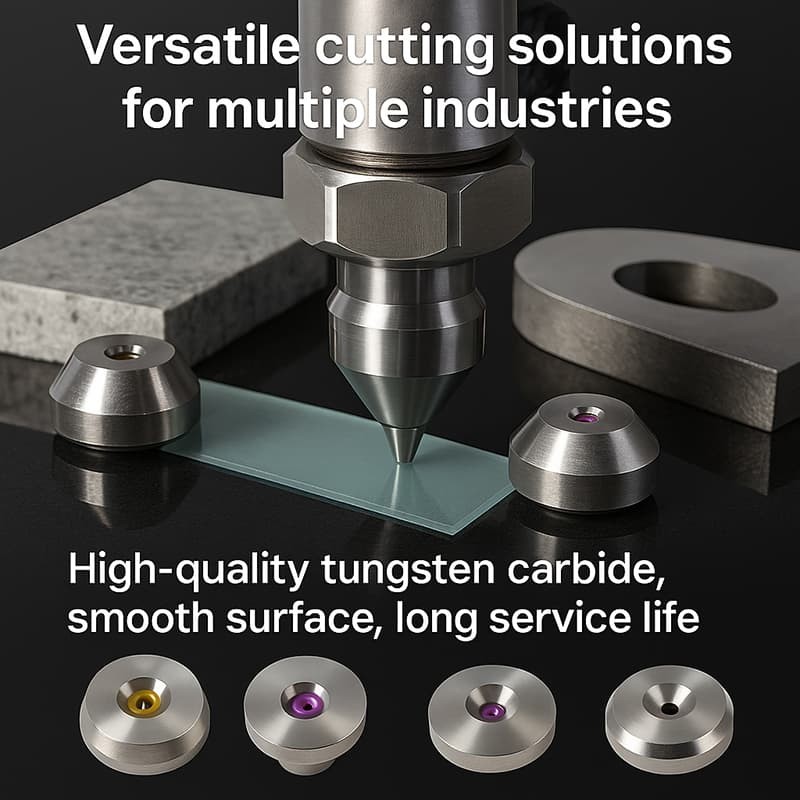

These waterjet orifices can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics. They are suitable for abrasive Waterjet Cutting Systems and pure waterjet cutting applications.
Why Choose KUNDA
KUNDA supplies waterjet cutting machines, cutting head parts, pump parts, Mixing Tubes, focusing tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce machine downtime, and keep waterjet systems running smoothly.
Contact Us
If you need ruby waterjet orifices, custom diamond orifices, sapphire orifices, or other waterjet consumable parts, contact KUNDA for more details.
