Waterjet Sand Tube Custom Size Smooth Inner Surface Waterjet Mixing Tube Supplier

Short Description:

Waterjet Sand Tube
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

Custom Size Waterjet Sand Tube With Smooth Inner Surface

Waterjet Sand Tube Custom Size Smooth Inner Surface <a href=https://www.kundacnc.com/Focusing-Nozzle-High-Efficiency-Waterjet-Nozzle-Mixing-Tube-Price-For-Cnc-Cutting-Machine-p.html target='_blank'>Waterjet <a href=https://www.kundacnc.com/Mixing-Tube-Industria-Abrasive-Waterjet-Mixing-Focusing-Tube-Manufacturer-p.html target='_blank'>Mixing Tube</a> Supplier</a>

Product Introduction

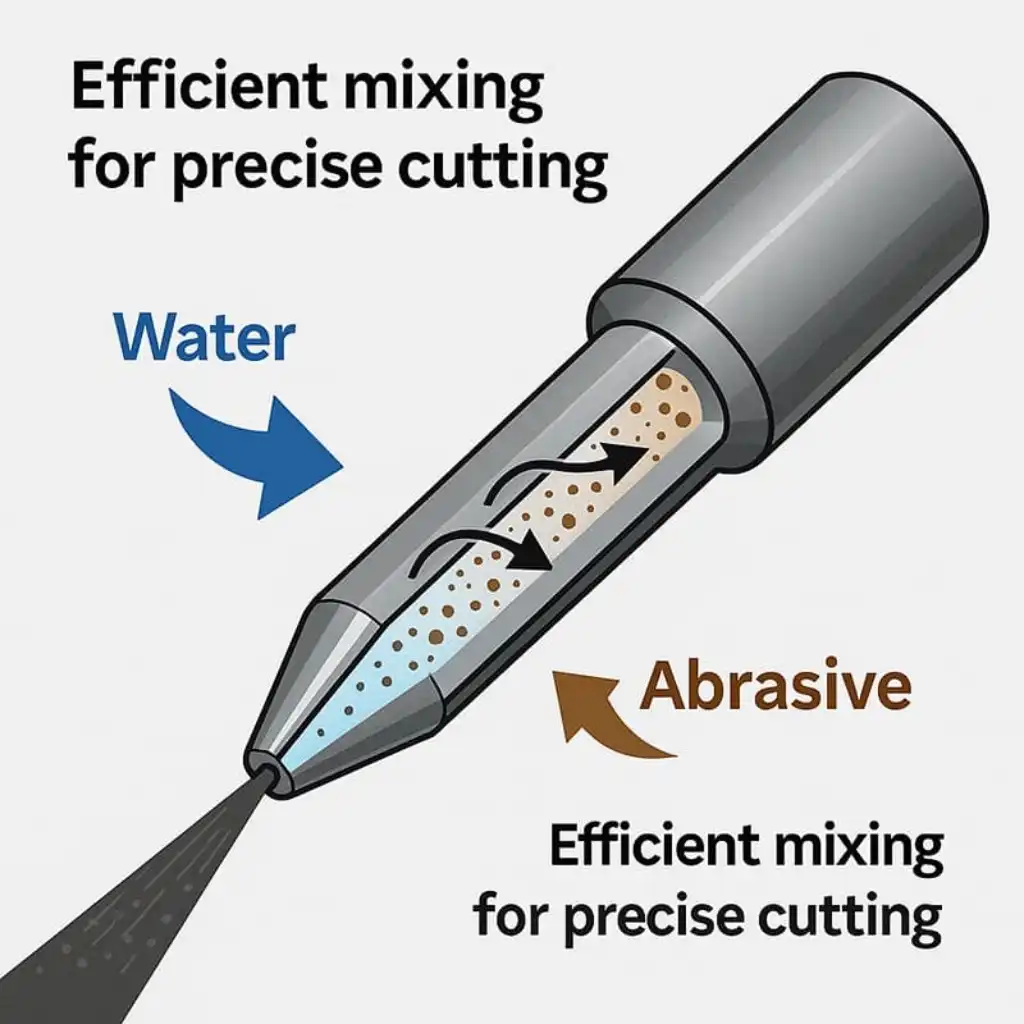

The waterjet sand tube, also called a mixing tube or Focusing Tube, is an important wear part used in abrasive Waterjet Cutting Heads. It guides high-pressure water and abrasive particles into a concentrated cutting jet. A stable sand tube helps improve cutting accuracy, edge quality, abrasive efficiency, and machine performance.

KUNDA supplies waterjet sand tubes in standard and custom sizes. Different lengths, outer diameters, inner diameters, bore sizes, part numbers, OEM branding, private label service, and bulk orders are available.

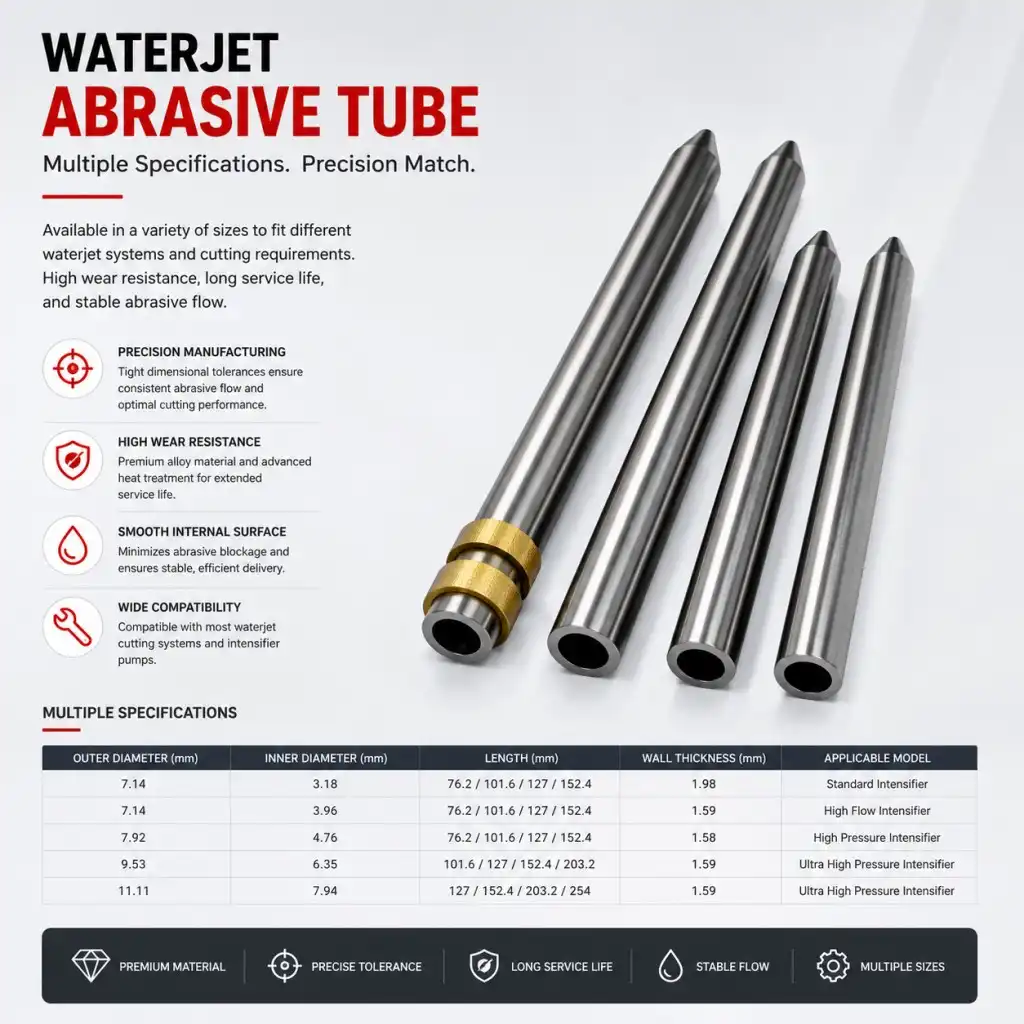

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

Smooth Inner Surface Advantage

A smooth inner surface helps abrasive particles pass through the tube more evenly. This can reduce turbulence inside the bore, support a more stable cutting jet, and help improve edge quality during waterjet cutting.

Why Sand Tube Quality Matters

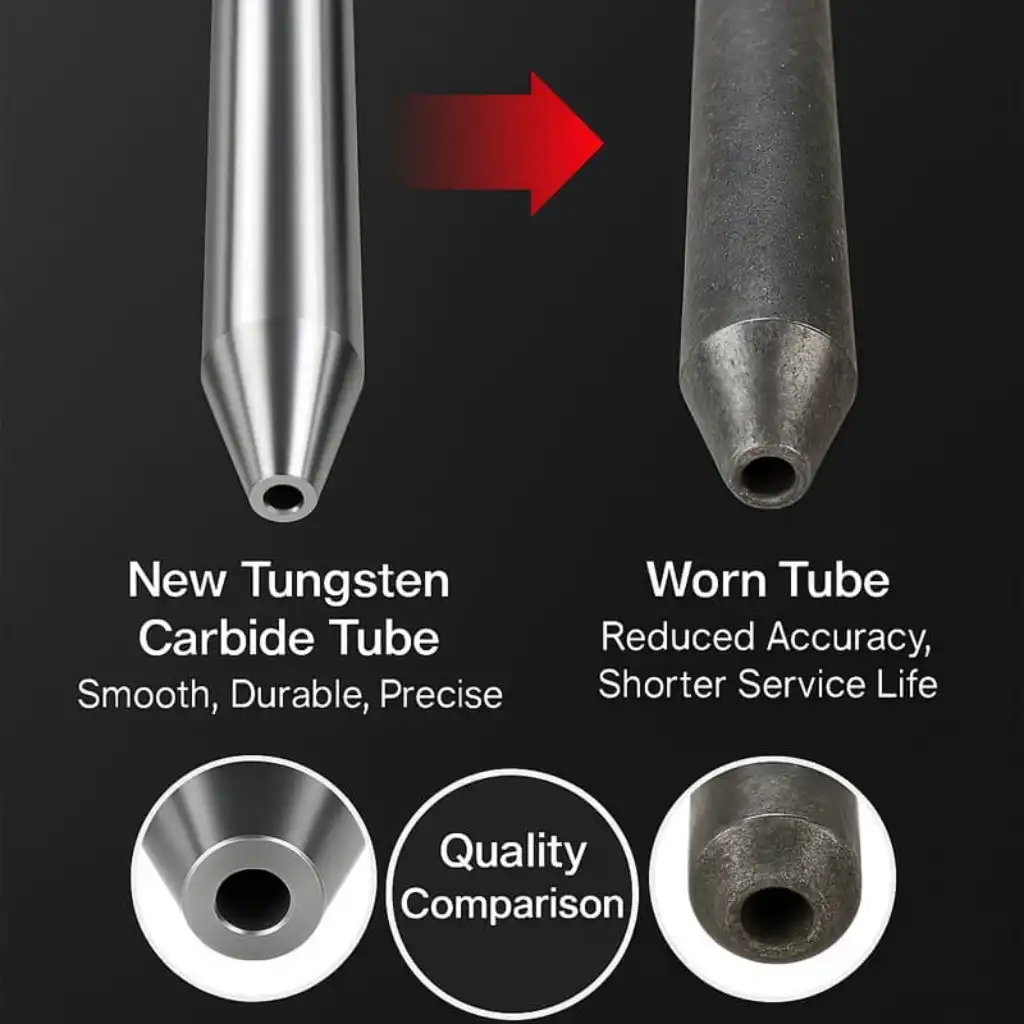

The sand tube directly affects the final abrasive cutting stream. If the inner bore wears unevenly or the surface is rough, the jet may lose focus, causing rough edges, lower accuracy, slower cutting speed, and higher abrasive consumption.

Custom Size Manufacturing

KUNDA can provide custom-size waterjet sand tubes according to customer requirements. Customers can send machine model, current part number, or required dimensions for replacement support.

Wear-Resistant Construction

Abrasive particles pass through the sand tube at high speed during cutting. Wear-resistant material and accurate bore processing help extend service life, reduce replacement frequency, and keep cutting performance stable for longer operation.

Suitable Applications

These waterjet sand tubes can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics. They are suitable for CNC Waterjet Machines, Abrasive Waterjet Systems, and Robotic Waterjet cutting equipment.

Waterjet Sand Tube Custom Size Smooth Inner Surface <a href=https://www.kundacnc.com/Waterjet-Mixing-Tube-Ultra-Wear-Resistant-Carbide-Focusing-Replacement-Mixing-Tube-p.html target='_blank'>Waterjet Mixing Tube</a> Supplier

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, sand tubes, mixing tubes, focusing tubes, Abrasive Nozzles, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
