Waterjet Nozzle Tube Composite Material Replacement Waterjet Abrasive Focusing Tube Kit

Short Description:

Waterjet Nozzle Tube
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

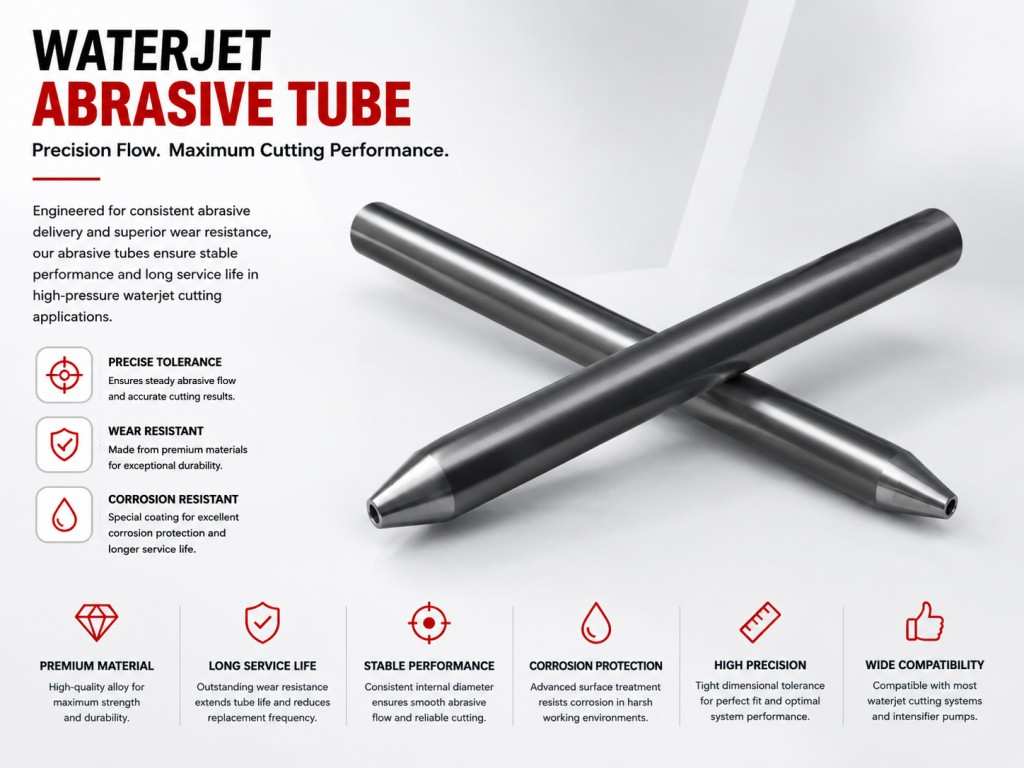

Waterjet Nozzle Tube For Composite Material Cutting

Waterjet Nozzle Tube Composite Material Replacement Waterjet Abrasive <a href=https://www.kundacnc.com/Focusing-Nozzle-High-Efficiency-Waterjet-Nozzle-Mixing-Tube-Price-For-Cnc-Cutting-Machine-p.html target='_blank'>Focusing Tube</a> Kit

Product Introduction

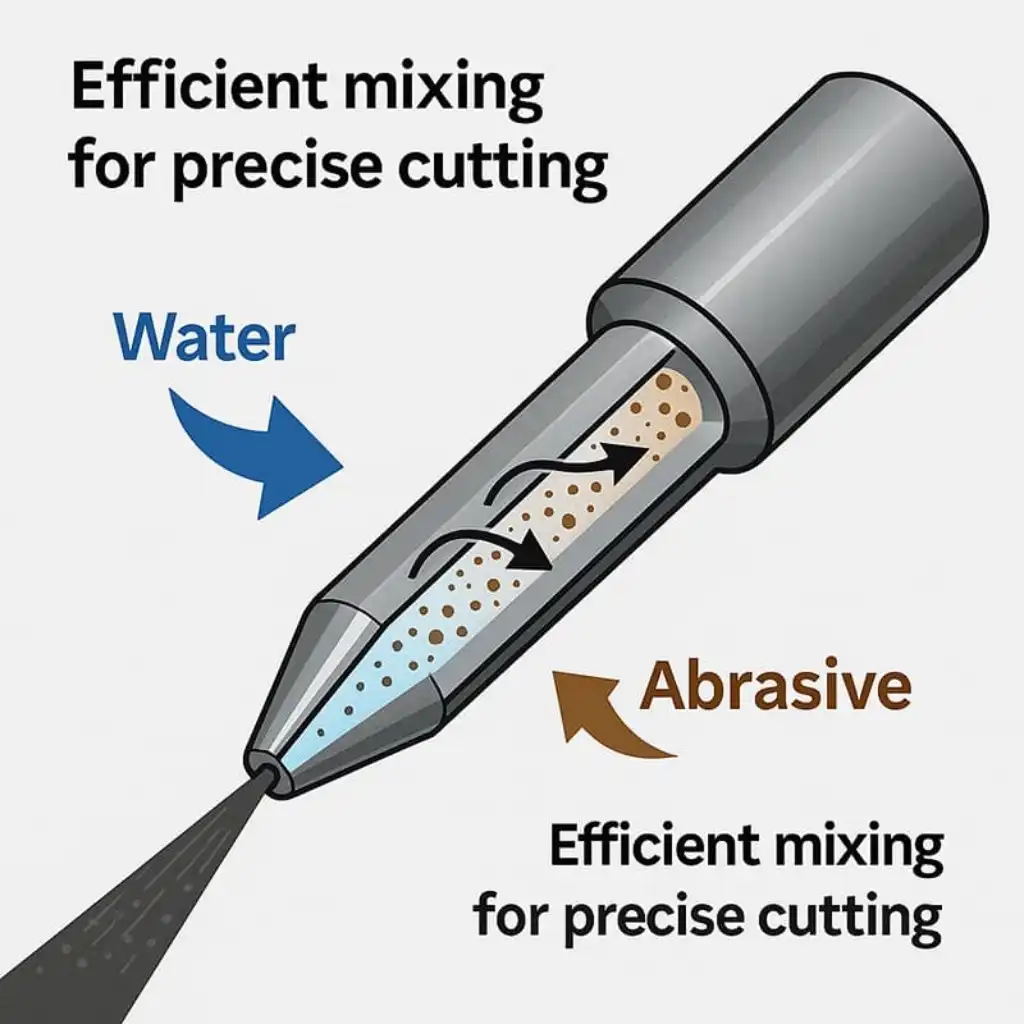

The Waterjet Nozzle Tube, also called an abrasive focusing tube or Mixing Tube, is an important wear part used in abrasive Waterjet Cutting Heads. It focuses the high-pressure water and abrasive mixture into a concentrated cutting jet. A precise nozzle tube helps improve cutting accuracy, edge quality, abrasive efficiency, and machine stability.

KUNDA supplies waterjet nozzle tubes in different sizes and part numbers. Standard models, custom specifications, OEM supply, private label service, and bulk orders are available for CNC Waterjet Machine users, distributors, repair companies, and equipment manufacturers.

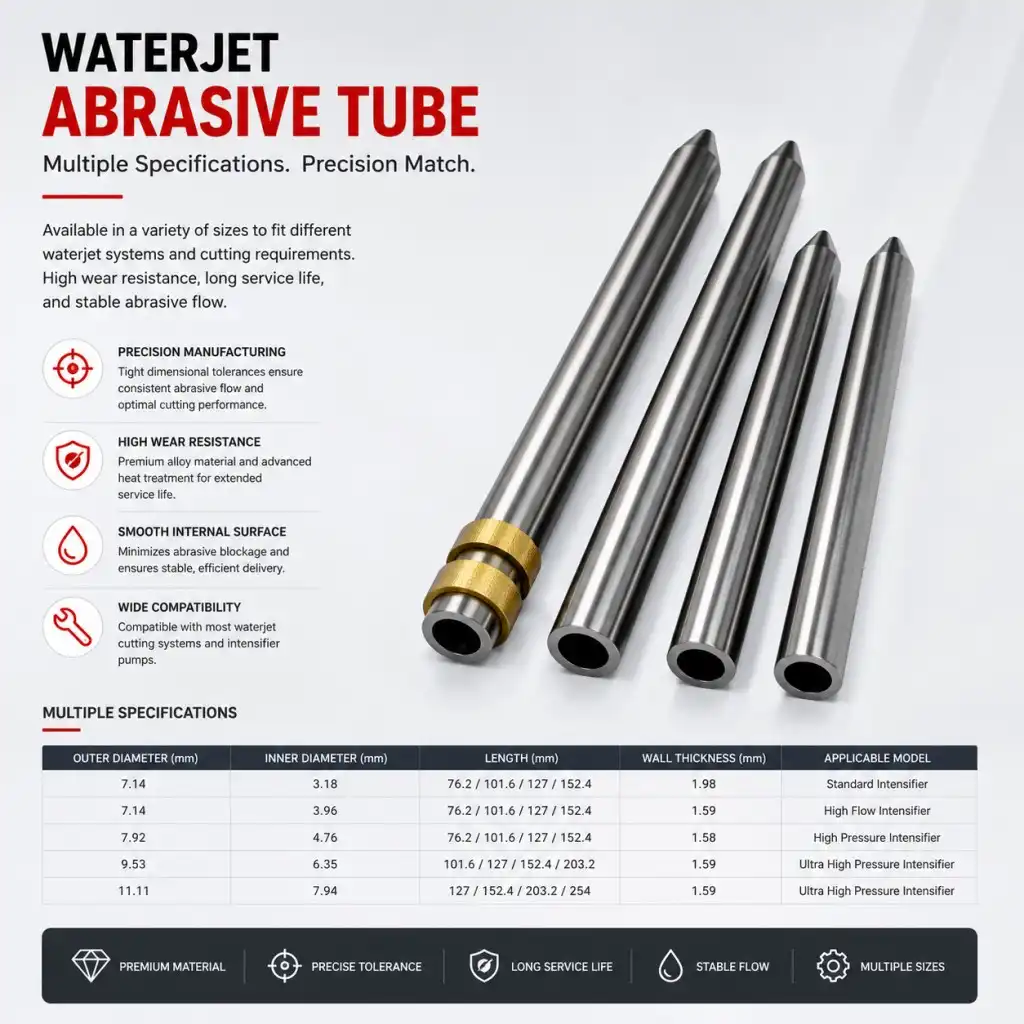

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

For Composite Material Cutting

This waterjet nozzle tube is suitable for cutting carbon fiber composites, fiberglass, honeycomb panels, reinforced plastics, laminated materials, and other composite products. Waterjet cutting produces no heat-affected zone, helping reduce burning, deformation, and material damage during processing.

Why Nozzle Tube Quality Matters

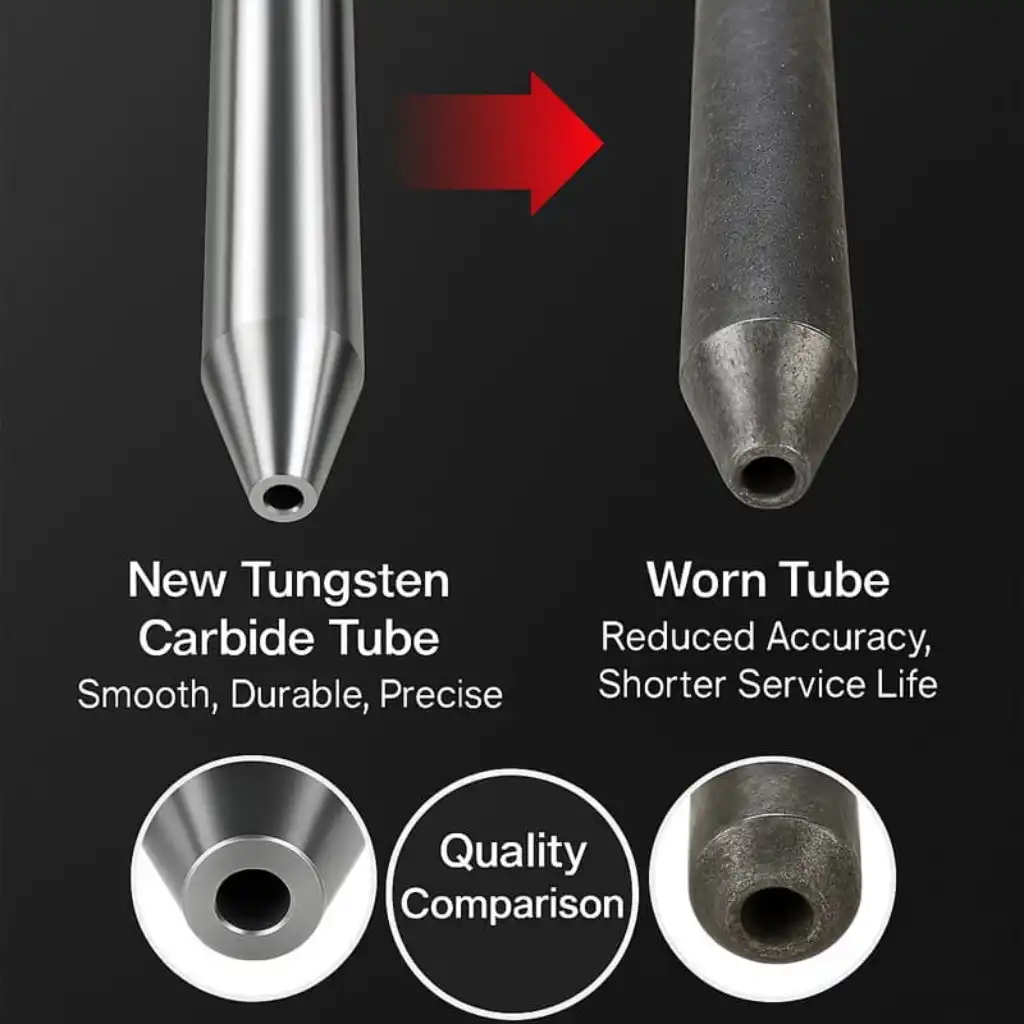

The nozzle tube directly affects the final abrasive cutting jet. If the inner bore wears unevenly, the jet may lose focus, causing rough edges, lower accuracy, slower cutting speed, and higher abrasive consumption.

Replacement Focusing Tube Use

This replacement focusing tube can be used for regular maintenance, emergency replacement, OEM supply, and machine upgrade projects. Customers can choose suitable sizes according to machine model, cutting material, abrasive flow, and operating pressure.

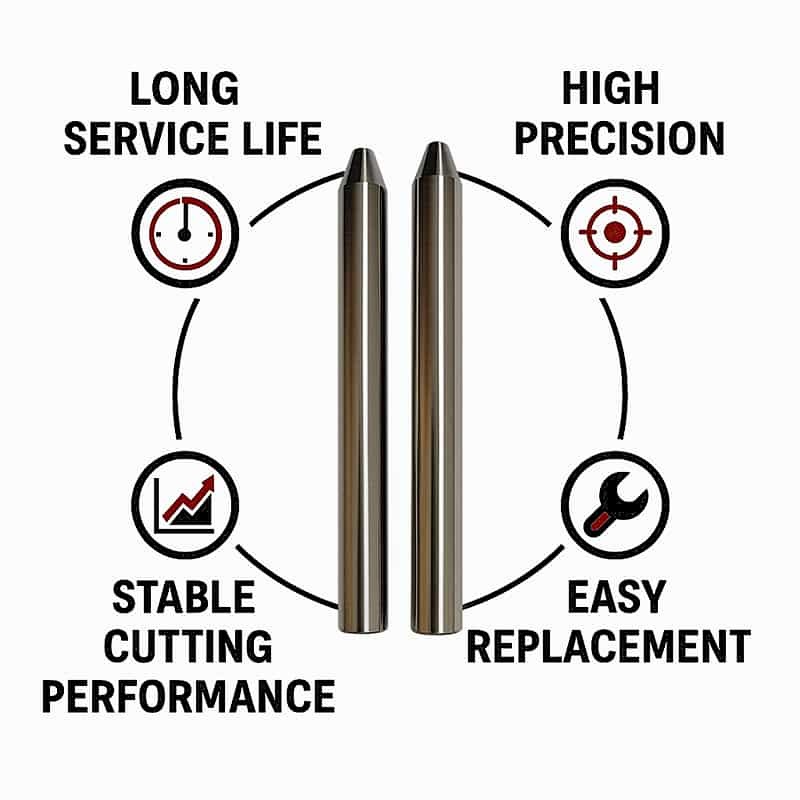

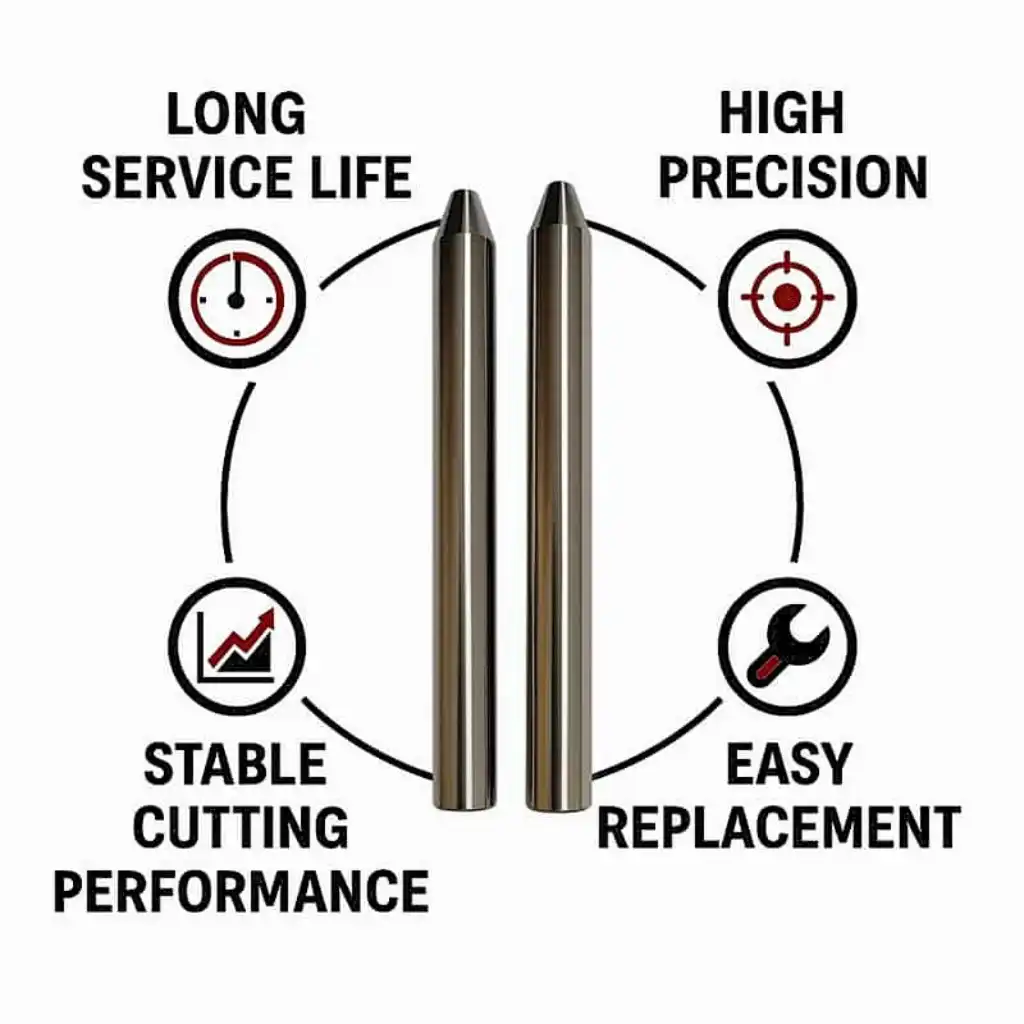

Wear-Resistant Construction

Abrasive particles pass through the focusing tube at high speed during cutting. Wear-resistant material and accurate bore processing help extend service life, reduce replacement frequency, and keep cutting performance stable for longer operation.

Suitable Applications

These nozzle tubes can also be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, rubber, foam, and engineering plastics. They are suitable for Cnc Waterjet Machines, Abrasive Waterjet Systems, and Robotic Waterjet cutting equipment.

Waterjet Nozzle Tube Composite Material Replacement <a href=https://www.kundacnc.com/Waterjet-Focusing-Nozzle-Oem-Waterjet-Abrasive-Focusing-Tube-Supplier-p.html target='_blank'>Waterjet Abrasive Focusing Tube</a> Kit

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, nozzle tubes, focusing tubes, mixing tubes, Abrasive Nozzles, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
