Bronze Seal Backup 1-11134 for Waterjet Pump Sealing Support
Bronze Seal Backup 1-11134 for Waterjet Pump Sealing Support
| Part Number | Name |
|
014155-10 |
Orifice |
|
014201-9 |
ECL Ruby Orifice |
|
015849-5 |
60K Diamond Orifice |
|
014194-20-30 |
Mixing Tube |
|
1000003-15-40 |
Premium Mixing Tube |
|
014241-1 |
Mixing Tube Nut |
|
014197-1 |
ECL Mixing Chamber Assembly |
|
020694-1 |
Mixing Chamber Assembly |
|
014660-1 |
87K On/Off Valve Assembly |
|
014988-1 |
On/Off Valve Seal Kit |
|
019520-1 |
Cutting Head Clamp Assembly |
|
711933-1 |
Blast Disk |
|
012952-1 |
3/8 HP Insert（Double Cone） |
|
012252-1 |
100K Plug |
|
015093-1 |
1/4 Swivel Repair Kit |
|
049357-1 |
Swivel Body |
|
20452968 |
Cross |
|
20452971 |
Tee |
|
20453115 |
Elbow |
|
040015-1 |
Intensifier Seal Carrier |
|
020080-1 |
Low Pressure Piston |
|
018020-1 |
Ceramic Plunger Assembly |
|
001197-1 |
40K Seal Kit |
|
013383-1 |
Check Valve Body |
|
013051-1 |
Bleed Down Seat |
|
019309-1 |
Bleed Down Valve Assembly |
|
020323-1 |
Water Manifold |
|
1-11679-xxx |
O-ring |
|
1-11680-xxx |
Backup Ring |
|
B-5078-1 |
High Pressure Collar |
|
B-8428-1 |
Bleed Down Valve Piston |

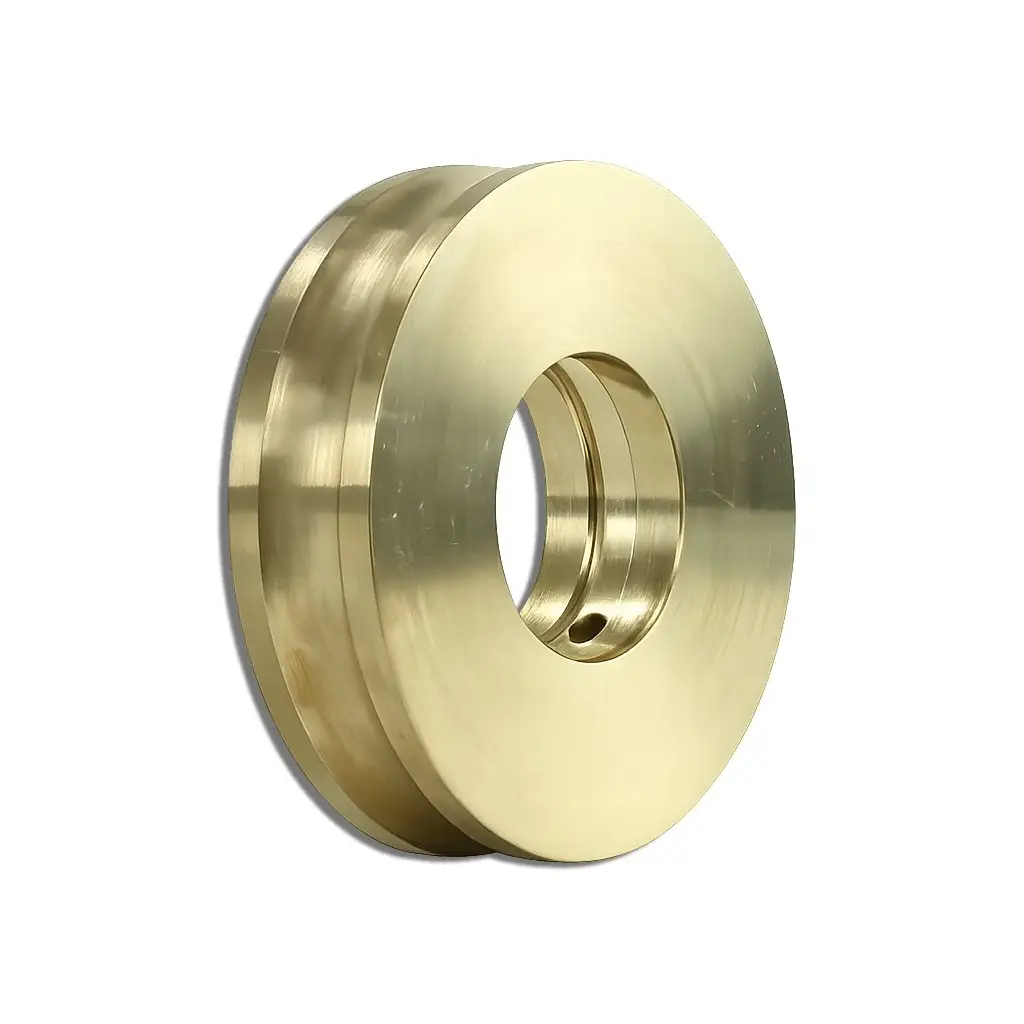

The bronze retaining ring 1-11134 is a critical auxiliary support component in high-Pressure Water Jet Pump systems. It is primarily installed in conjunction with seals to provide structural support under extreme high-pressure conditions, prevent seal deformation, and enhance the overall stability of the seal.
Its core function is to protect the main seal from compression and damage caused by ultra-high pressure, thereby ensuring the long-term reliable operation of the entire sealing system and maintaining the stable performance of the pump equipment.
This component is widely used in the maintenance of Booster Pumps and in the sealing assemblies of high-pressure cylinders.
Is the Bronze Retaining Ring 1-11134 a wear part?
Yes—the Bronze Retaining Ring 1-11134 is classified as a “semi-wear part.”Although it does not wear out as quickly as seals or O-rings, because it must continuously withstand high pressure, friction, and mechanical loads, this component may still experience wear, deformation, or damage over time, which can affect the sealing performance of the entire system.
Therefore, it is recommended to inspect this component regularly during equipment maintenance; if signs of wear are detected, it should be replaced promptly.
Please contact our sales team if you have any inquiries!
