High Quality Waterjet Cutting Machine for Ceramic and Stone CNC Cutting

Product Introduction

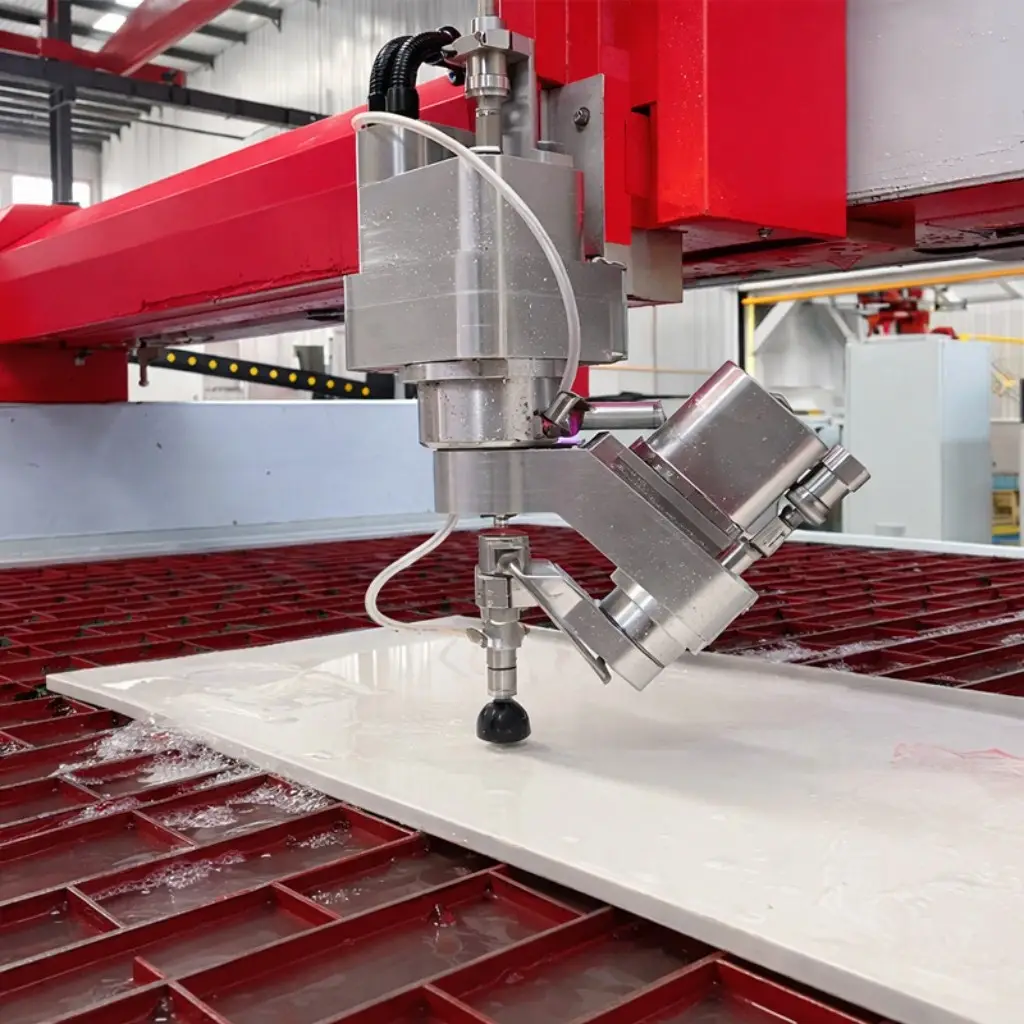

The High Quality Waterjet Cutting Machine is a professional CNC water jet stone cutting solution designed for ceramic, marble, granite, glass, and industrial material processing applications. Using ultra-high pressure water combined with abrasive garnet materials, this machine achieves smooth, accurate, and efficient cutting performance while protecting the original material structure. The advanced CNC control system, stable high-pressure cutting technology, and durable industrial-grade structure make this Water Jet Stone Cutting Machine suitable for continuous industrial production and customized decorative processing applications.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

Professional Ceramic and Stone Cutting Performance

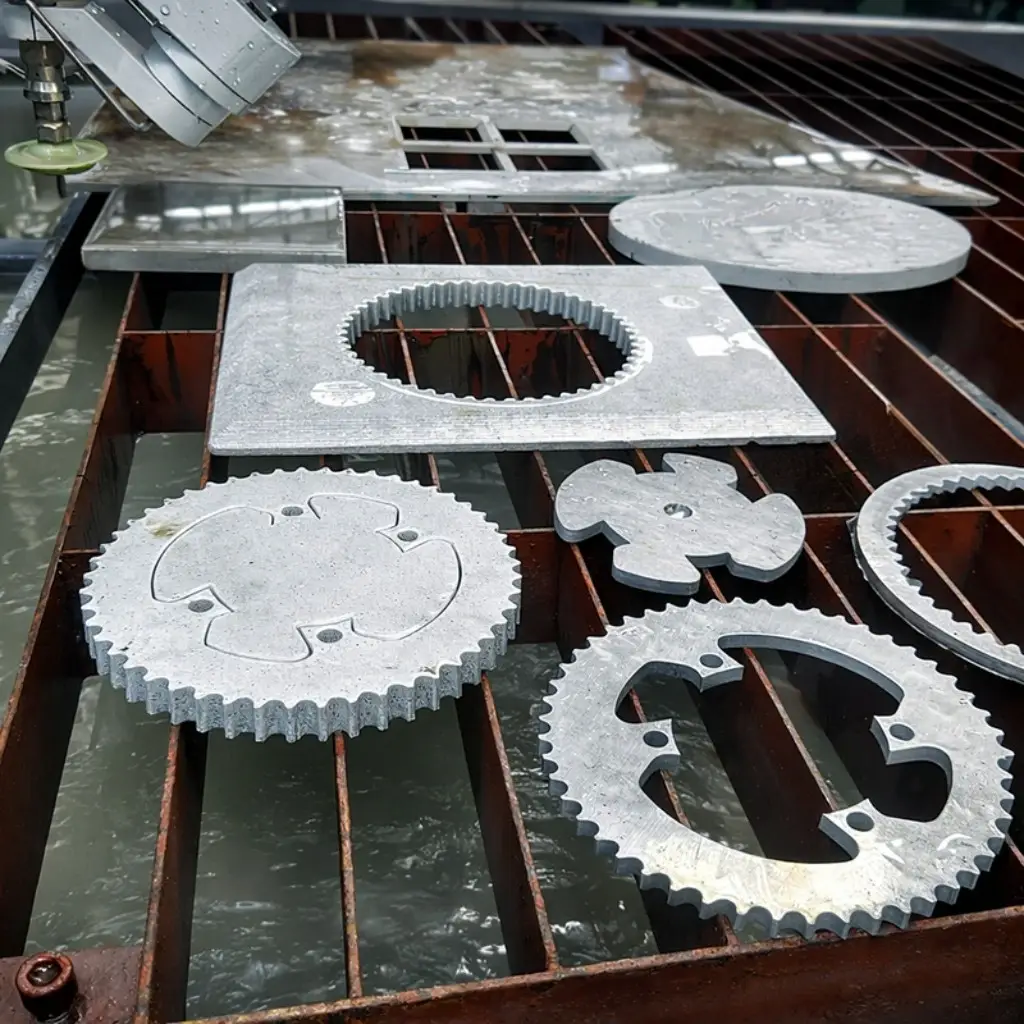

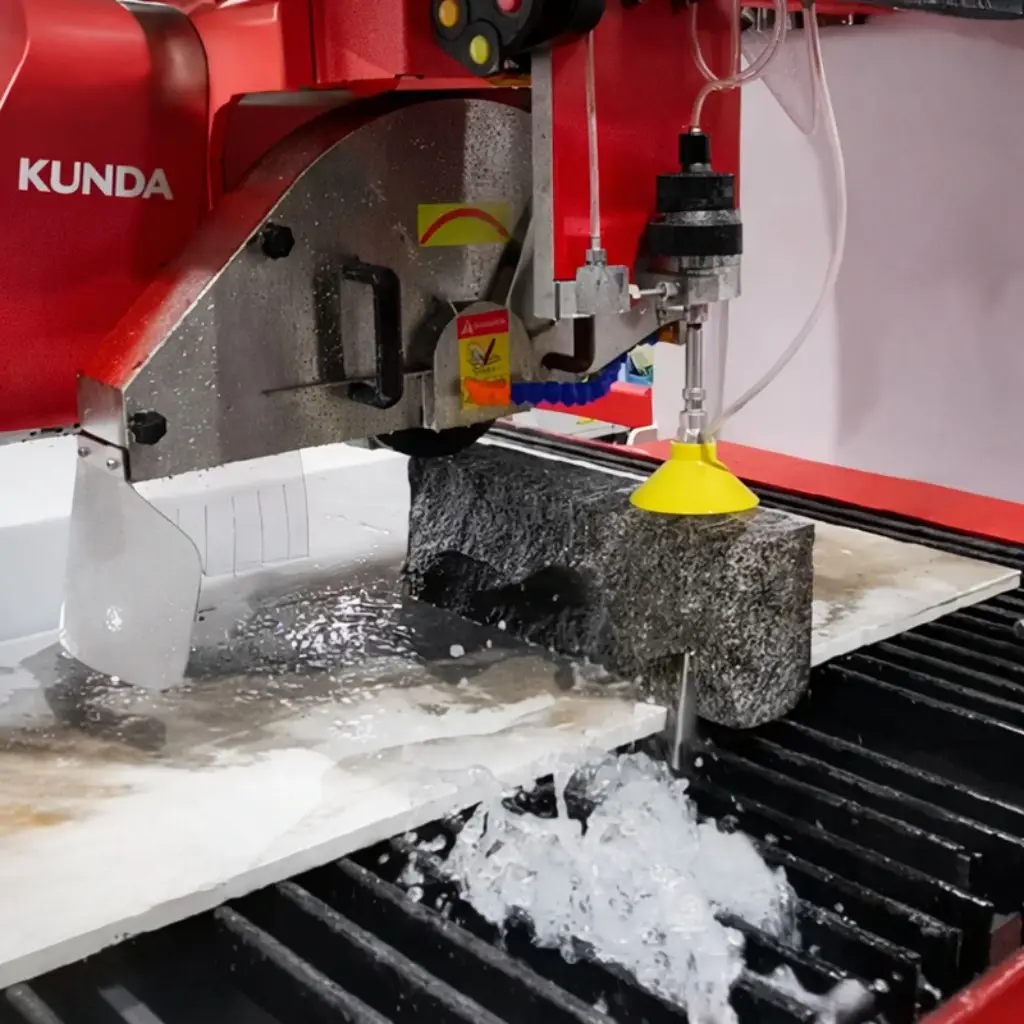

This water jet ceramic stone cutting machine is specially designed for processing ceramic tiles, porcelain slabs, marble, granite, quartz stone, and decorative stone materials with high precision and excellent cutting quality. The ultra-high pressure abrasive water flow allows the machine to process straight cuts, curves, holes, bevels, and complex decorative patterns while maintaining smooth cutting edges and accurate dimensions.

High Precision CNC Waterjet Technology

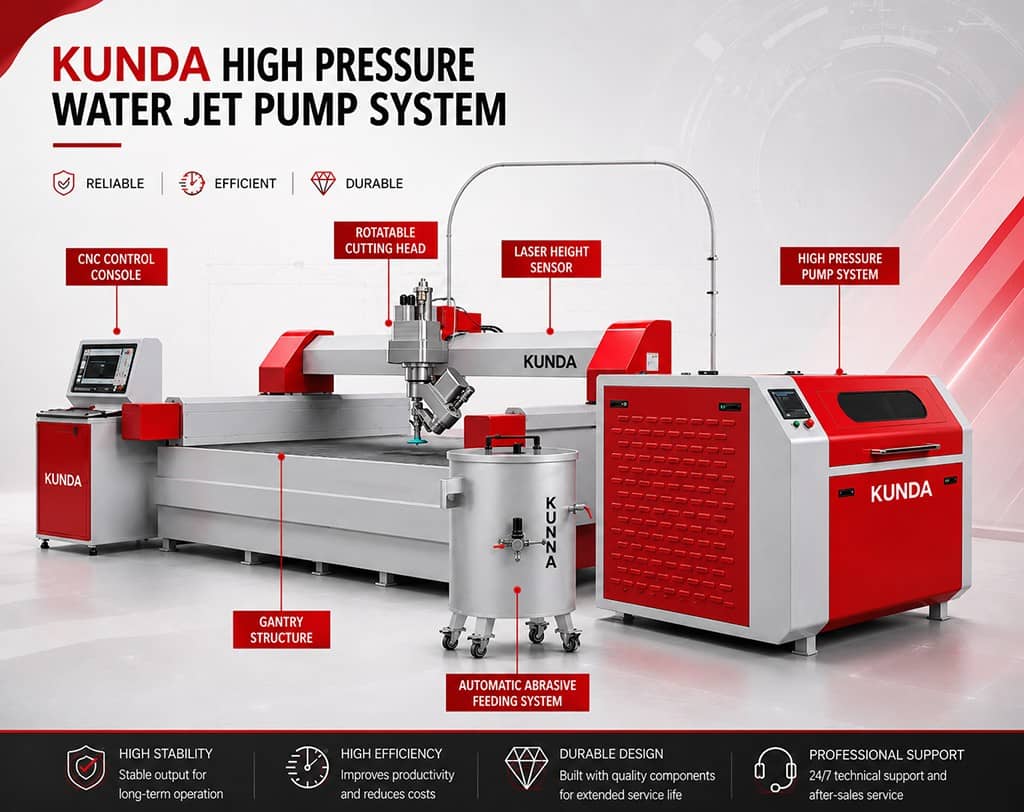

The waterjet cutting machine adopts advanced CNC motion control systems and stable hydraulic intensifier technology to achieve accurate and efficient cutting performance on different industrial materials. Complex contour cutting and customized decorative designs can be processed efficiently while maintaining high-quality finished surfaces.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

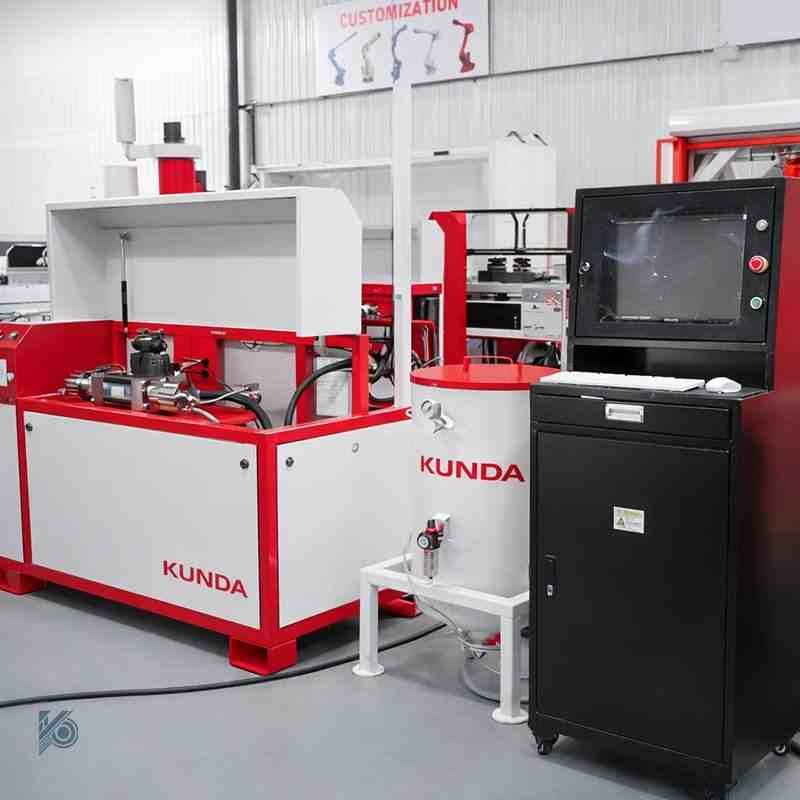

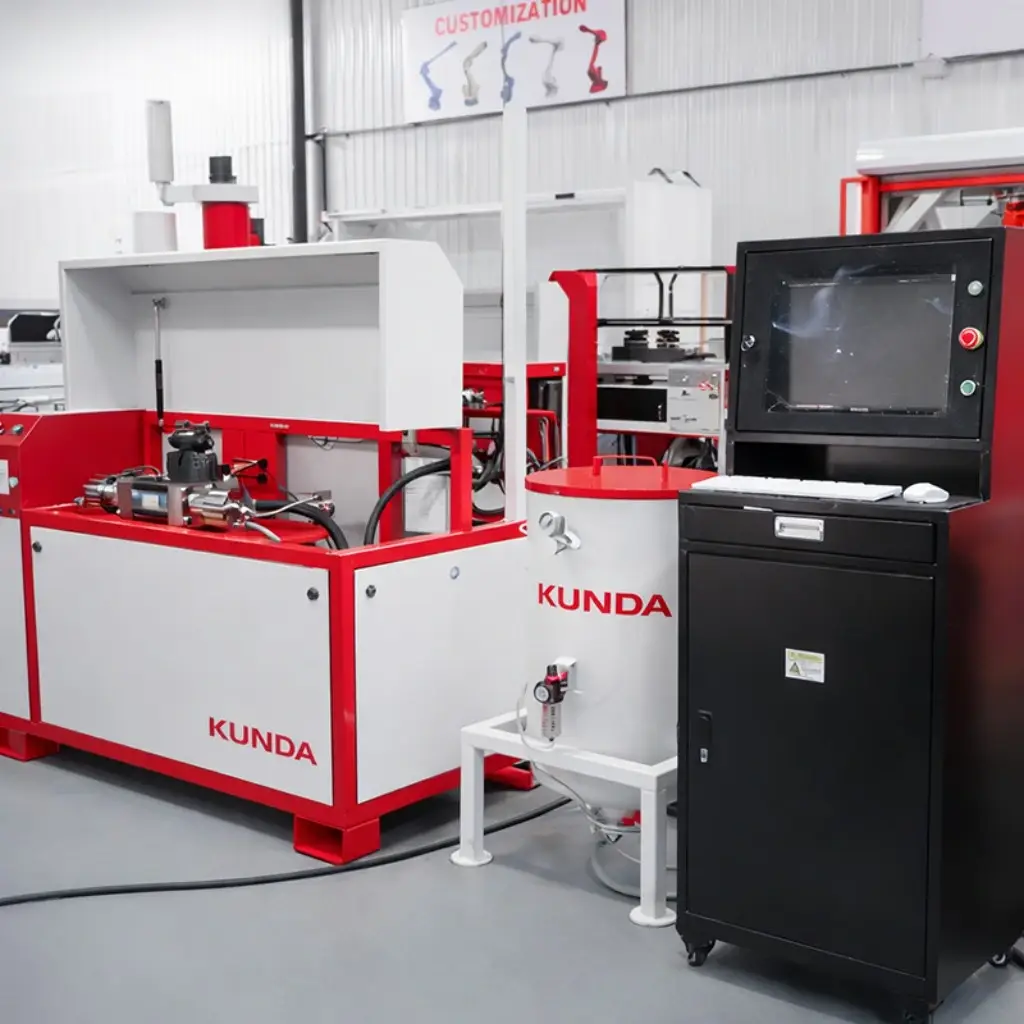

Stable High Pressure Cutting System

This water jet stone cutting machine is equipped with a reliable high-pressure intensifier system capable of generating stable ultra-high pressure water flow for long-term industrial operation. The optimized hydraulic structure helps maintain stable cutting performance while reducing pressure fluctuations during continuous production.

Durable Industrial Structure and Reliable Operation

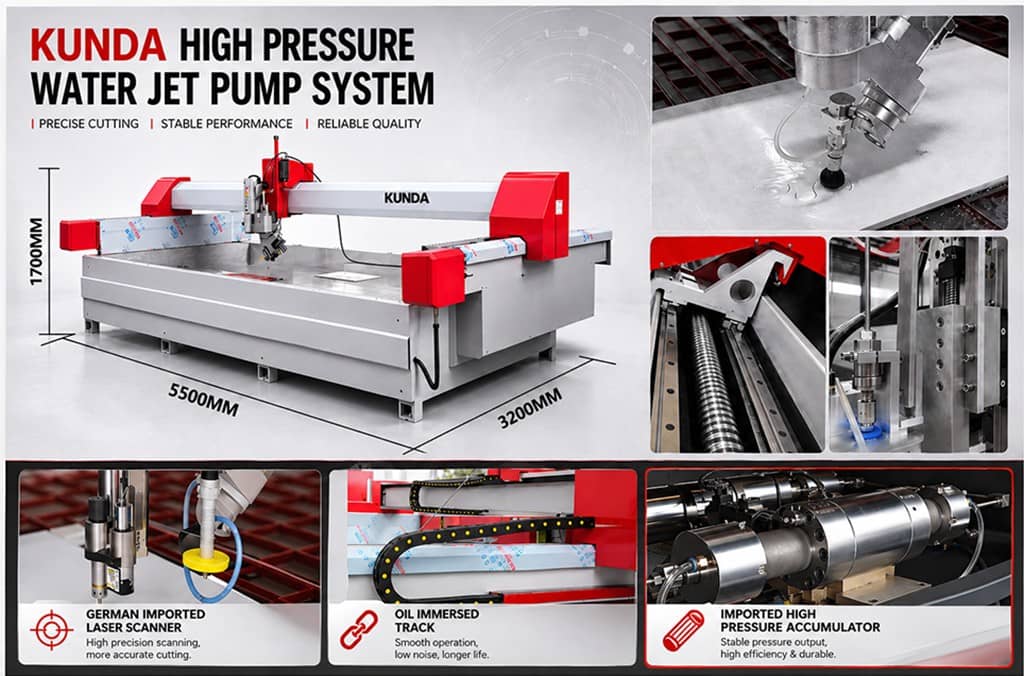

The waterjet cutting machine is manufactured with a heavy-duty industrial frame, precision guide rail systems, and high-quality servo control components to ensure stable long-term operation under demanding industrial environments. Durable industrial-grade components help maintain efficient production performance while reducing downtime and long-term maintenance costs.

Optional Automation and Intelligent Upgrade Solutions

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized intelligent CNC systems, and automated production solutions according to different industrial applications. These upgrade systems help improve cutting precision, reduce labor costs, and increase production efficiency.

Wide Industrial Applications

This high-quality waterjet cutting machine is widely used in ceramic processing, stone fabrication, marble countertop production, granite cutting, glass manufacturing, architectural decoration, machinery manufacturing, metal fabrication, and industrial custom processing industries.

Why Choose KUNDA Waterjet Cutting Machines

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable waterjet cutting machines, ceramic and stone cutting solutions, or customized CNC waterjet systems, please feel free to contact KUNDA for more information and professional support.
