Cnc Water Jet Cutter for Granite and High Accuracy Industrial Cutting

Product Introduction

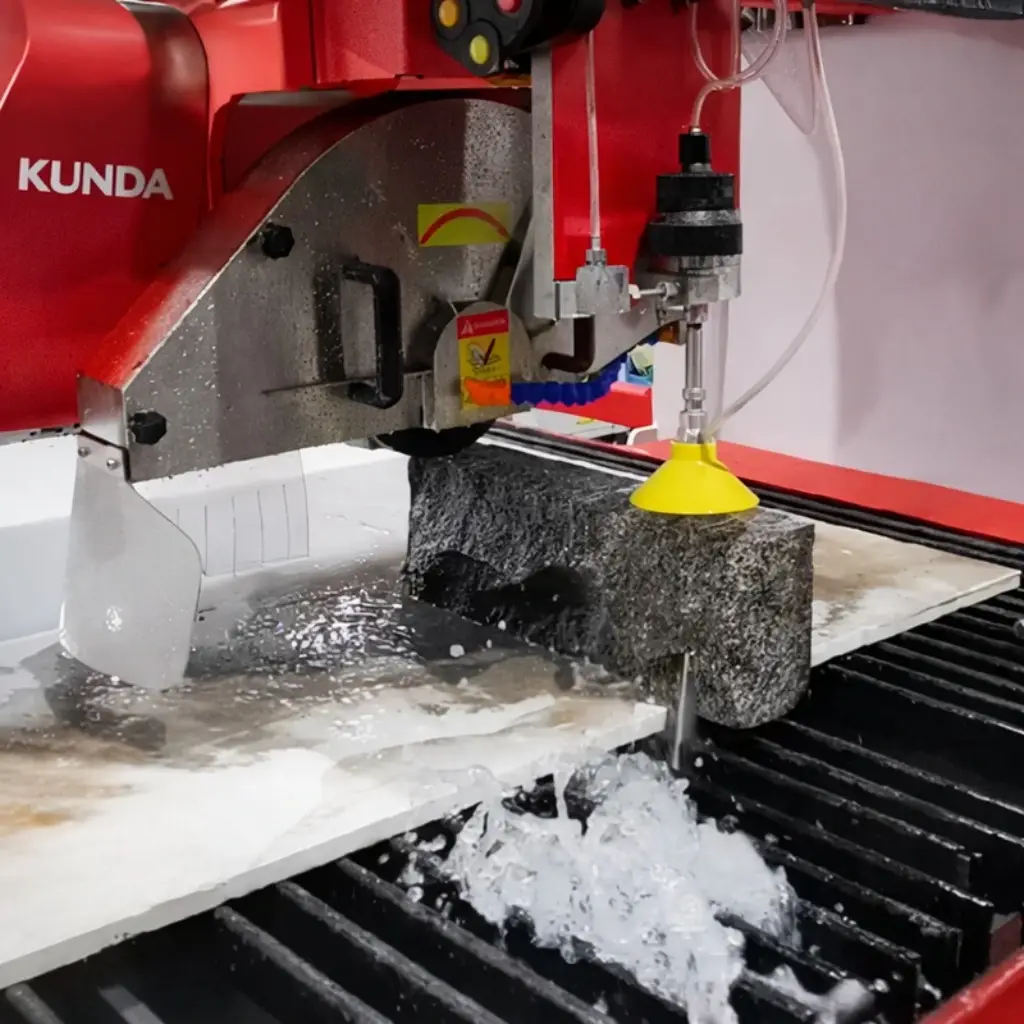

The CNC Water Jet Cutter is a high-accuracy hydro waterjet cutting machine designed for granite processing and industrial precision cutting applications. Using ultra-high pressure water combined with abrasive garnet materials, this machine efficiently cuts granite, marble, metal, glass, ceramics, composite materials, foam, rubber, and plastics while maintaining smooth cutting edges and excellent dimensional accuracy. The advanced CNC control system, stable high-pressure cutting performance, and durable industrial structure make this Granite Waterjet cutting machine suitable for continuous industrial production and customized processing applications.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

High Accuracy CNC Waterjet Cutting Performance

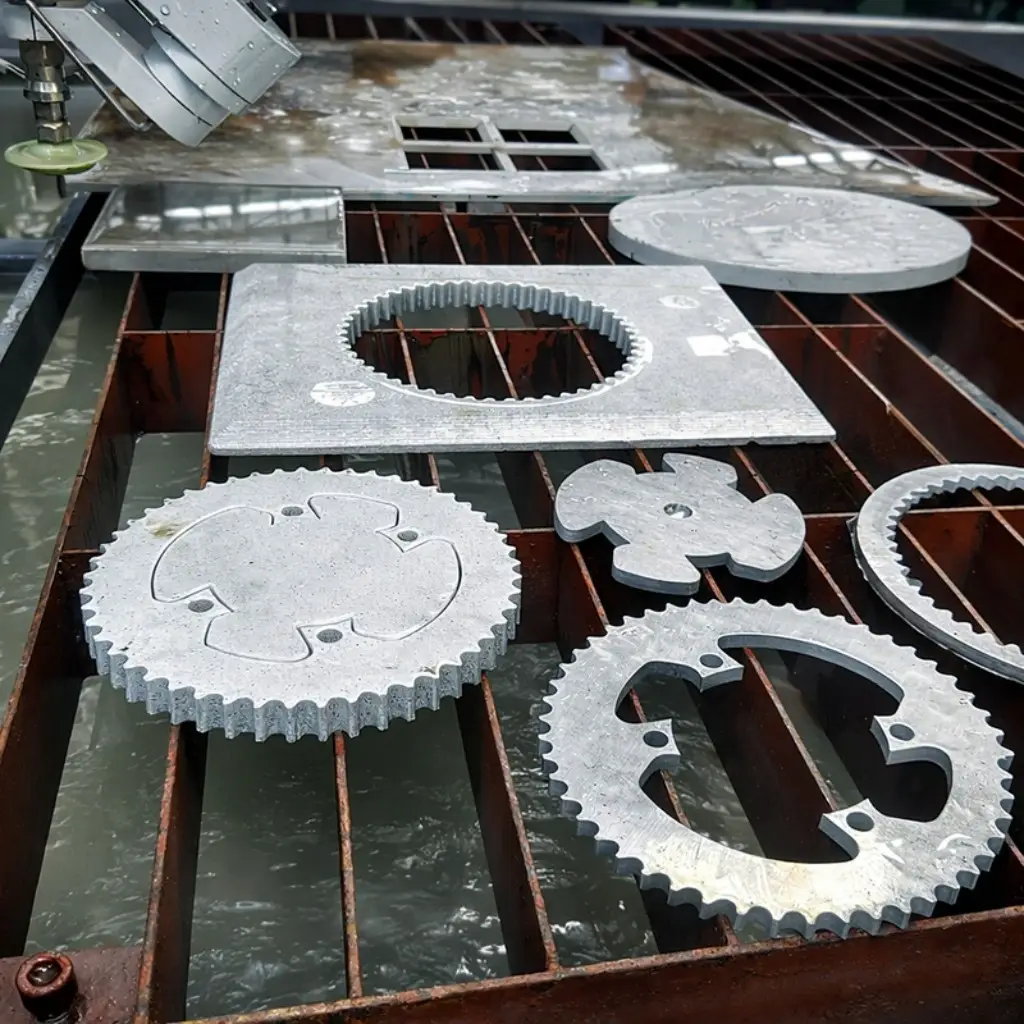

This CNC water jet cutter adopts advanced CNC motion control technology and a stable hydro cutting system to achieve highly accurate and efficient cutting performance on various industrial materials. The ultra-high pressure abrasive water flow allows the machine to process straight cuts, curves, holes, bevels, and complex contour shapes while maintaining clean cutting edges and precise dimensions.

Professional Granite and Stone Cutting Solution

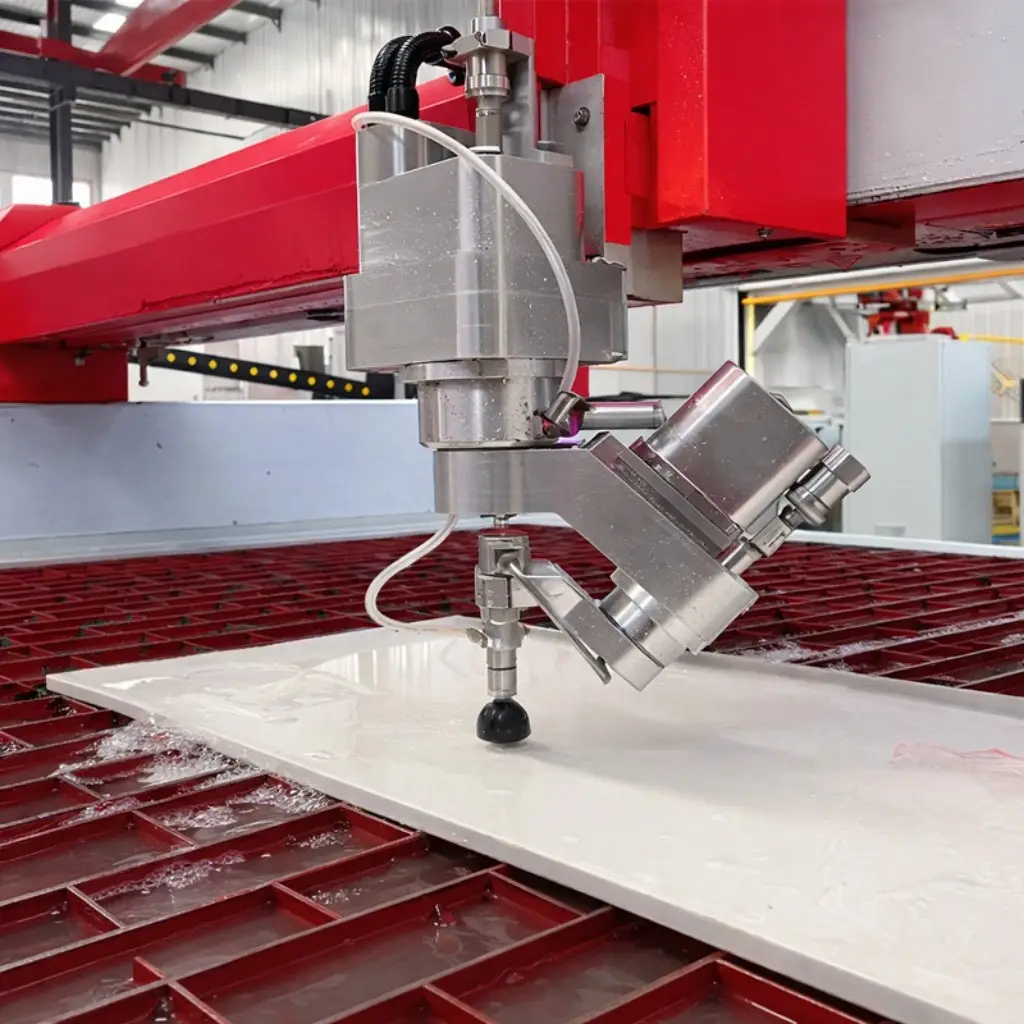

The granite waterjet cutting machine is specially designed for stone fabrication and architectural decoration industries requiring precise cutting quality and smooth finished surfaces. The stable abrasive Waterjet Cutting Process efficiently processes granite, marble, quartz stone, ceramic tiles, and decorative stone materials while minimizing edge chipping and material waste.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

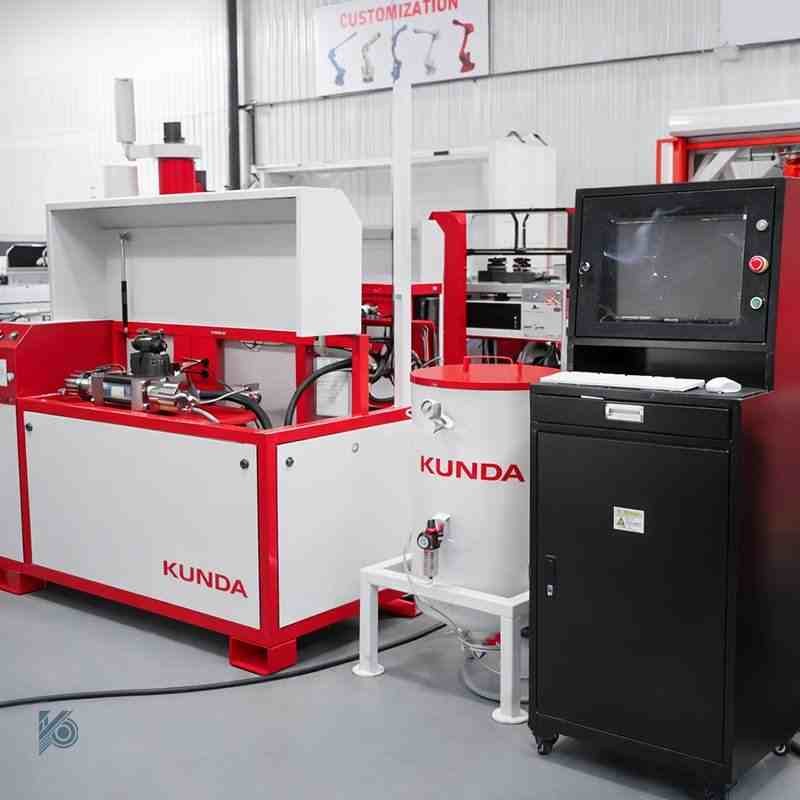

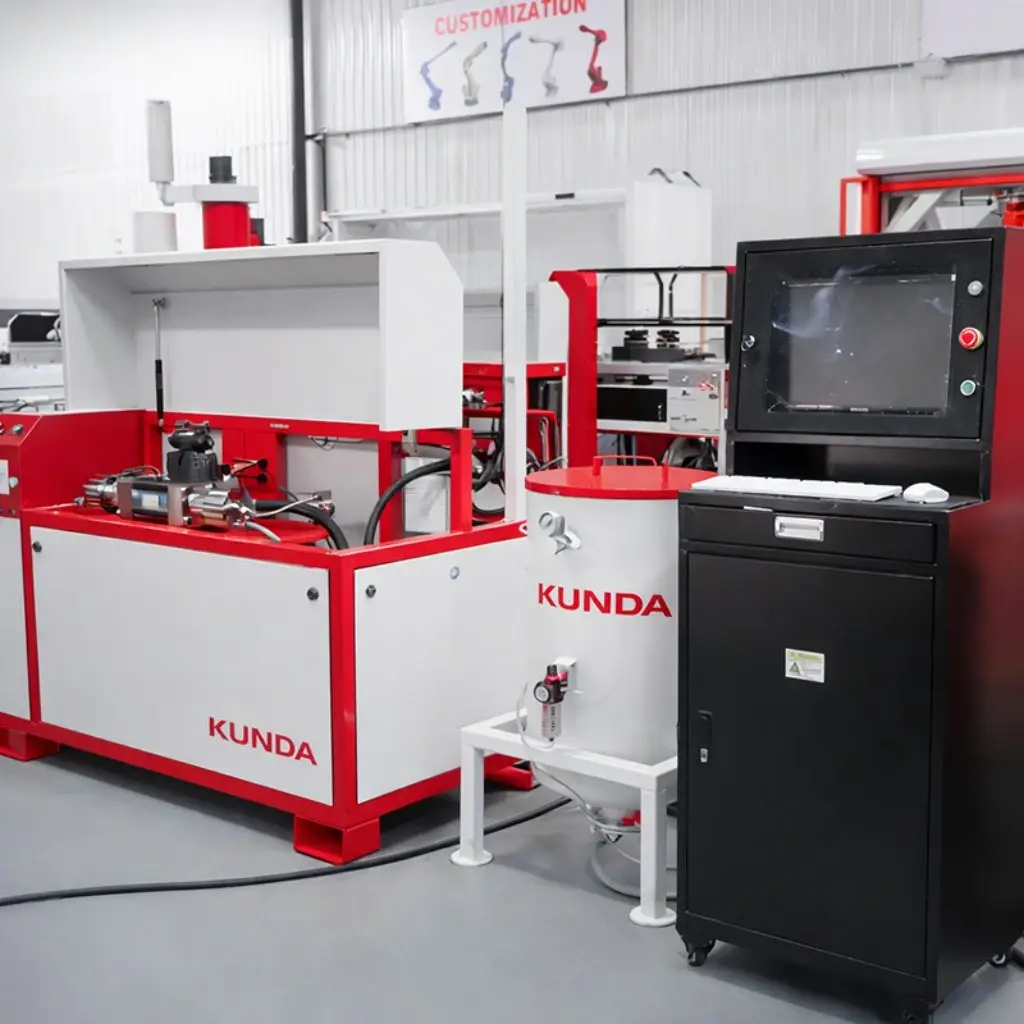

Stable Hydro Waterjet System

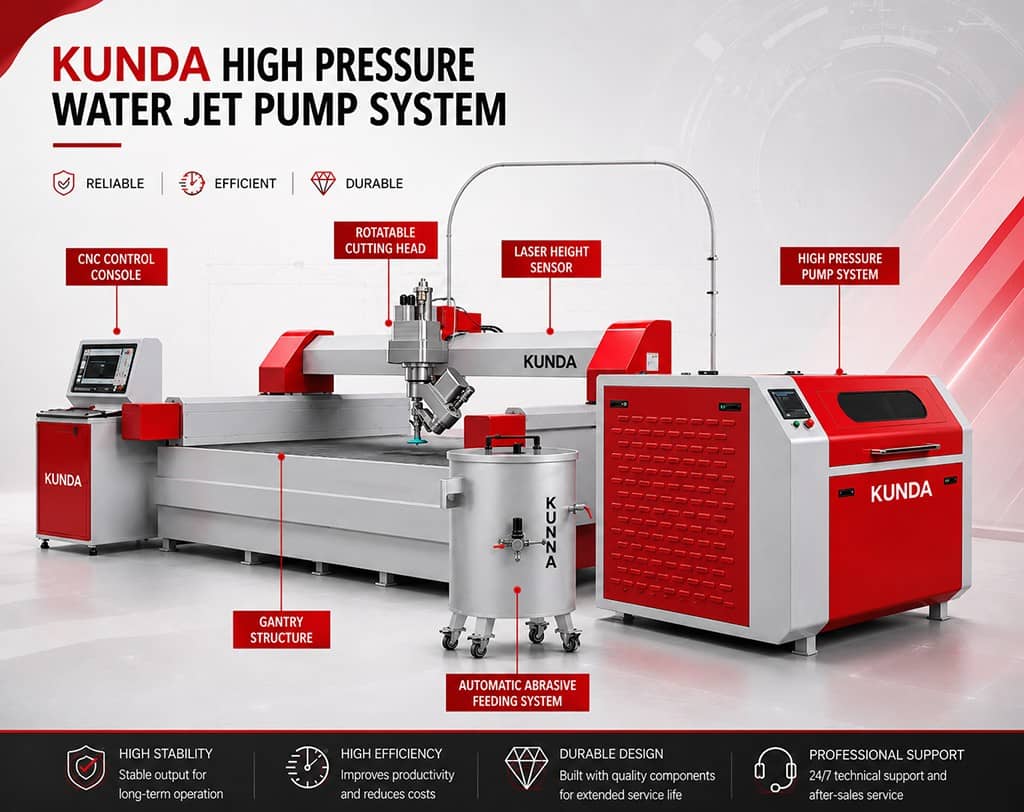

This High Accuracy Waterjet Cutting Machine is equipped with a reliable hydro waterjet system capable of generating stable ultra-high pressure water flow for continuous industrial operation. The optimized hydraulic intensifier structure helps maintain stable pressure output during long working periods while improving cutting consistency and operational efficiency.

Durable Industrial Structure and Reliable Operation

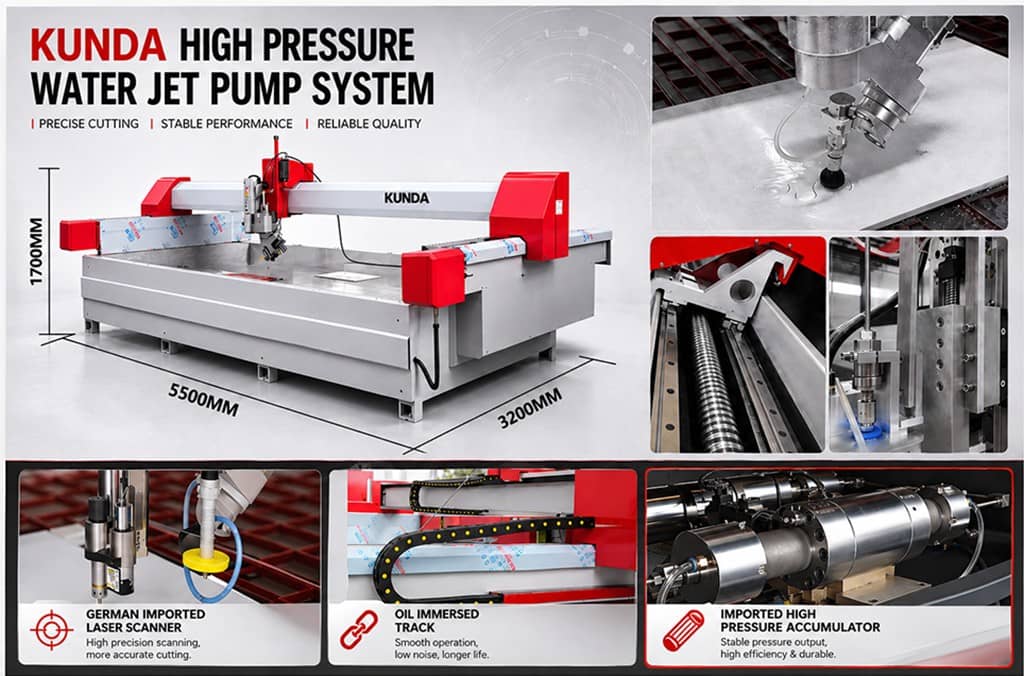

The Cnc Waterjet Cutting Machine is manufactured with a heavy-duty industrial frame, stable guide rail systems, and precision servo control components to ensure reliable long-term operation under demanding industrial environments. The robust machine structure helps reduce vibration during operation while improving cutting accuracy and machine stability.

Optional Automation and Intelligent Upgrade Solutions

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized CNC control systems, and intelligent automation solutions according to different industrial applications. These upgrade systems help improve cutting precision, reduce labor costs, and increase overall production efficiency.

Wide Industrial Applications

This CNC water jet cutter is widely used in granite processing, marble fabrication, metal cutting, glass manufacturing, ceramic processing, architectural decoration, machinery manufacturing, automotive industries, aerospace production, and industrial custom fabrication industries.

Why Choose KUNDA Waterjet Cutting Machines

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable CNC water jet cutters, granite waterjet cutting machines, or customized Industrial Waterjet solutions, please feel free to contact KUNDA for more information and professional support.
