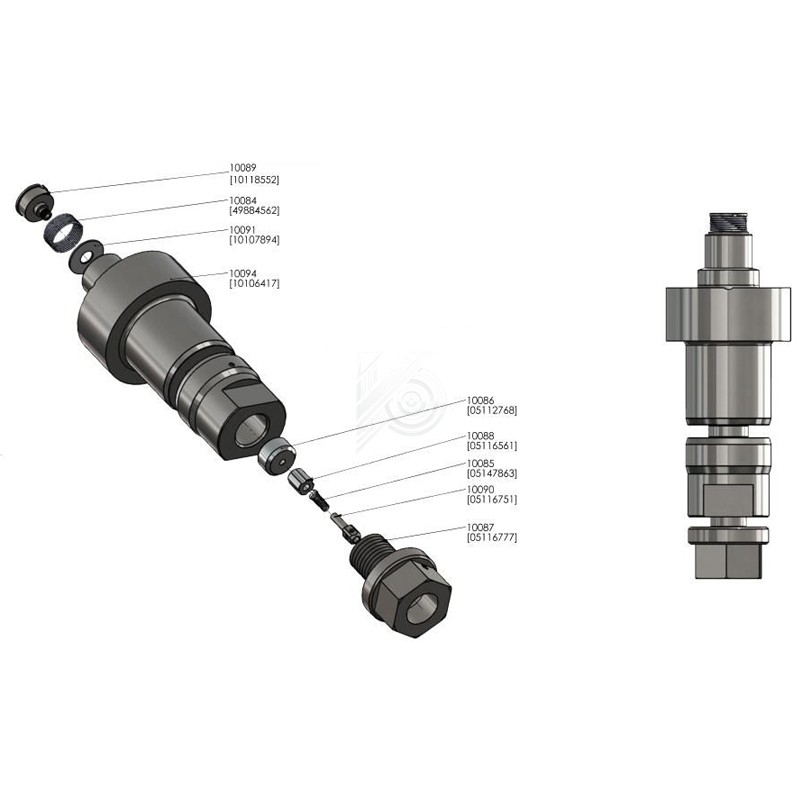

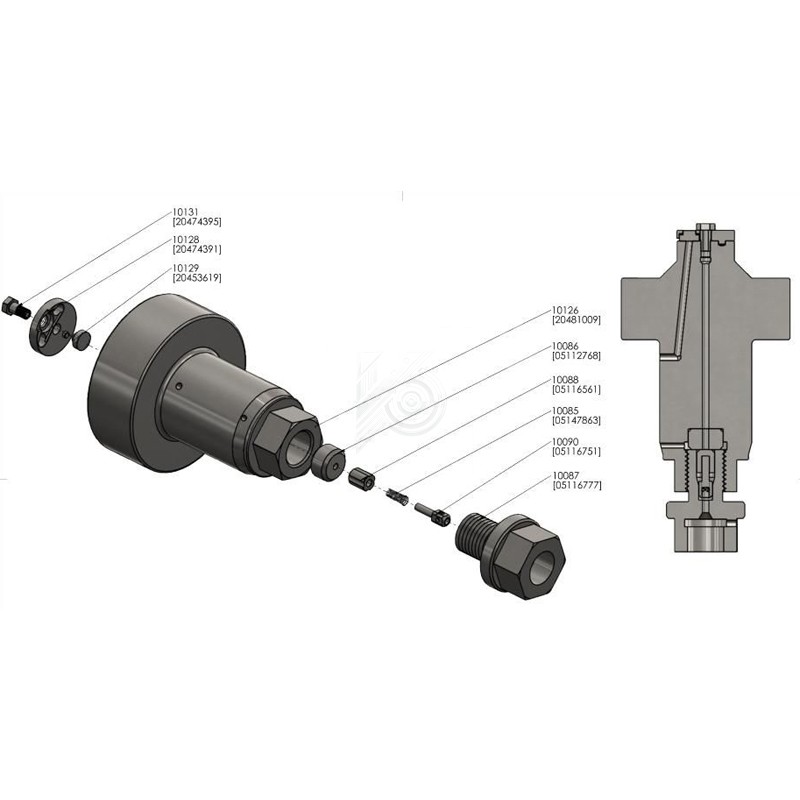

The Sealing Head Outlet Seat 05112768 is an OEM KMT high‑pressure discharge seat engineered for waterjet Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pumps, particularly compatible with KMT Streamline SL‑IV/V/VI series and many dual‑topworks models. Crafted for a .875″ plunger and rated up to 60,000 psi (4,100 bar), it ensures precise sealing under extreme pressures . With a compact 17 mm diameter and weighing just 0.035 lbs, it offers a direct, drop‑in replacement for worn or damaged seats, restoring peak pump efficiency and longevity.
Specifications
Part Number: KMT 05112768; also cross‑referenced as WSI SL05112768, Accustream 1‑11266, WSI 5000018, and OEM 10107902.
Function: Outlet (discharge) sealing seat for intensifier water circuits.
Plunger Compatibility: .875″ (22.2 mm) intensifier plungers.
Pressure Rating: Up to 60,000 psi (4,100 bar).
Material & Coating: High‑grade stainless steel with precision ground sealing face (NeoLine or equivalent surface finish).
Dimensions: 17 mm sealing diameter; overall weight ~0.035 lbs (0.05 kg).
Installation & Maintenance
1.Disassembly: Relieve system pressure and drain intensifier before removing the sealing head assembly.
2.Seat Removal: Extract the old outlet seat using the manufacturer‑recommended pull‑out tool or gentle press method to avoid damage.
3.Surface Inspection: Clean and inspect the seating bore for scratches or deformation; polish lightly if needed.
4.New Seat Installation: Press the 05112768 seat into place, ensuring full, flush seating with no tilt; torque retaining hardware per KMT guidelines.
5.Reassembly & Testing: Reinstall sealing head components, repressurize slowly, and verify leak‑free operation at full system pressure.
If you need other KMT Waterjet Parts,Please contact us!
