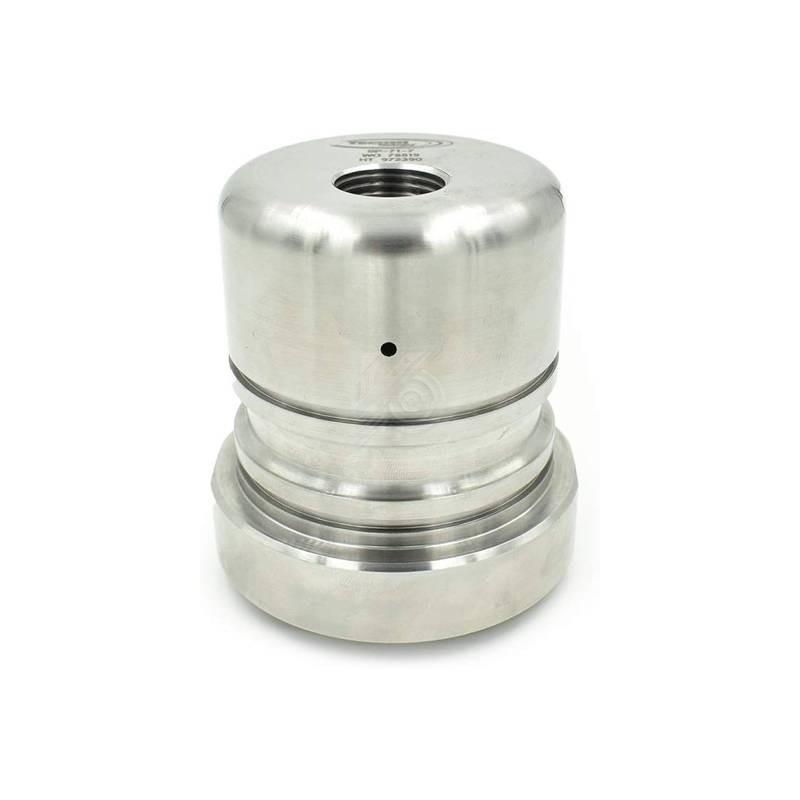

Sealing Head SP-71-9 Water Jet Cutting Machine Parts For Techni

Part Overview
Part Number:SP-71-9
Name:Sealing Head
Techni OEM Code:SP-71-9 (Article 12437)
Material:Stainless steel housing; precision elastomer sealing element

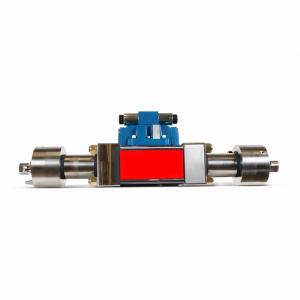

Function:Provides high-pressure hydraulic seal in Intensifier Pump head
Compatible With:Cylinder liner SP-69-9, check-valve assemblies, head cover

Installation & Maintenance
System Shutdown & Depressurize: Fully isolate and relieve hydraulic pressure.
Head Disassembly: Remove the intensifier head cover to expose the sealing head and cylinder liner.
Remove Old Seal: Extract the worn SP-71-9 assembly; inspect the liner and cover surfaces for scoring.
Clean & Prepare: Degrease and lightly hone the bore; ensure no sharp edges.
Install New SP-71-9: Press the sealing head into the cylinder head cover until fully seated.
Reassemble & Test: Reinstall cover, repressurize at low pressure to seat the seal, then ramp to full pressure while checking for leaks.
