Oil Filter 5 Micron 500-19-0052 Waterjet Pump Parts In Stock
Oil Filter 5 Micron 500-19-0052 Waterjet Pump Parts In Stock

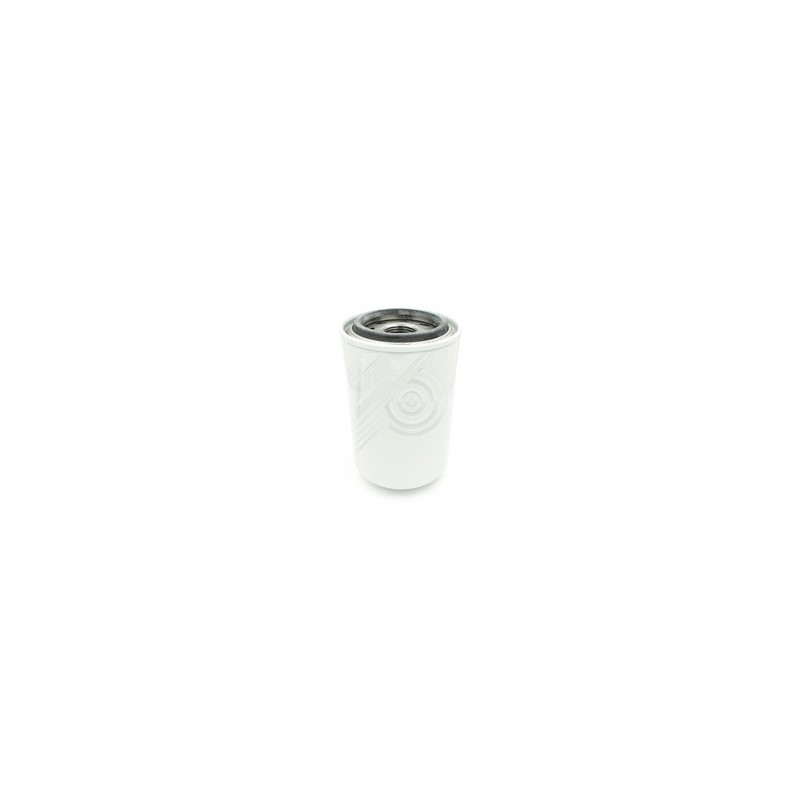

The part 500-19-0052 is a 5 micron Polynet oil filter cartridge, 19.5 inches long, designed for Waterjet pump lubrication systems to remove fine particulate and moisture from hydraulic oil before it enters the high-pressure Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier. It uses a mesh-wrapped, pleated Polynet media to capture contaminants while providing moisture absorption, thereby extending pump life and reducing maintenance downtime.
Specifications
Micron Rating:5 µm (captures particles ≥ 5 microns)
Length:19.5 inches (filter element)
Configuration:“2 High” stacked elements
Materials:Polynet media, synthetic fiber wraps, polymer end caps
Operating Temp.:0–80 °C (suitable for hydraulic oil)
Housing Interface:Standard 20″ filter shell
Installation & Maintenance
Shutdown & Depressurize: Isolate the filter housing and relieve system oil pressure.
Open Housing: Use the appropriate spanner to remove the 20″ shell cap
Replace Element: Remove old 500-19-0052 filter and insert the new Polynet cartridge, ensuring proper seating.
Reassemble & Torque: Reinstall shell cap, torque per OEM spec for leak-free Seal.
Flush & Test: Slowly pressurize the system, flush until oil is clear, then resume normal operation.
Interval: Inspect filter differential pressure every 200 hours; replace element when ΔP exceeds manufacturer’s threshold
