Oil Filter 24 Micron 500-19-0053 Water Jet Pump Parts In Stock
Oil Filter 24 Micron 500-19-0053 Water Jet Pump Parts In Stock

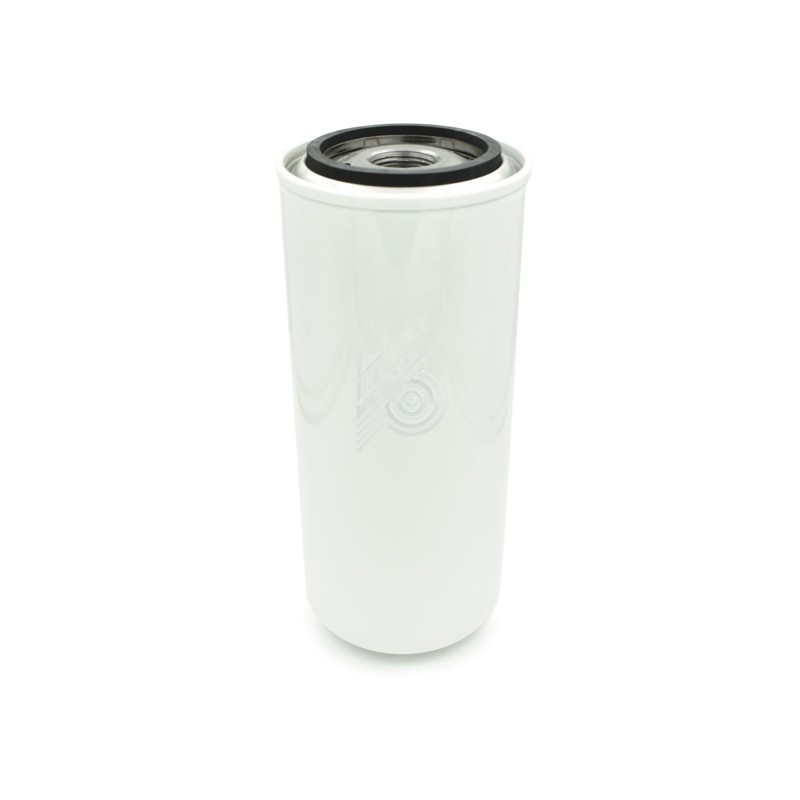

The part 500-19-0053 is a genuine OEM oil filter cartridge for Waterjet Pump lubrication systems, featuring a 24 µm Polynet filtration media and a 19.5 inch element length. It provides both particulate removal and moisture absorption, safeguarding hydraulic components in 60 000 psi Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pumps by keeping oil clean and dry.
Specifications
Micron Rating:24 µm (captures particles ≥ 24 microns)
Element Length:19.5 inches
Configuration:“2-High” stacked filter elements
Media Material:Polynet mesh-wrapped pleated synthetic fibers
Moisture Control:Integrated moisture-adsorbent layer
Operating Temp.:0–80 °C (suitable for hydraulic oil)
Installation & Maintenance
Shutdown & Isolate: Depressurize and isolate the oil filter housing from the system.
Open Housing: Use the filter shell spanner (part 500-19-0030) to remove the 20″ cap
Replace Element: Remove the old 500-19-0053 cartridge and insert the new one, ensuring correct seating.
Reassemble & Torque: Reinstall the housing cap and torque per OEM specification to ensure leak-free operation.
Flush & Test: Slowly repressurize the oil circuit, flush until oil runs clear of air, then resume normal operations.
Replacement Interval: Inspect the filter differential pressure every 200 hours; replace the element when ΔP exceeds the manufacturer’s threshold.
