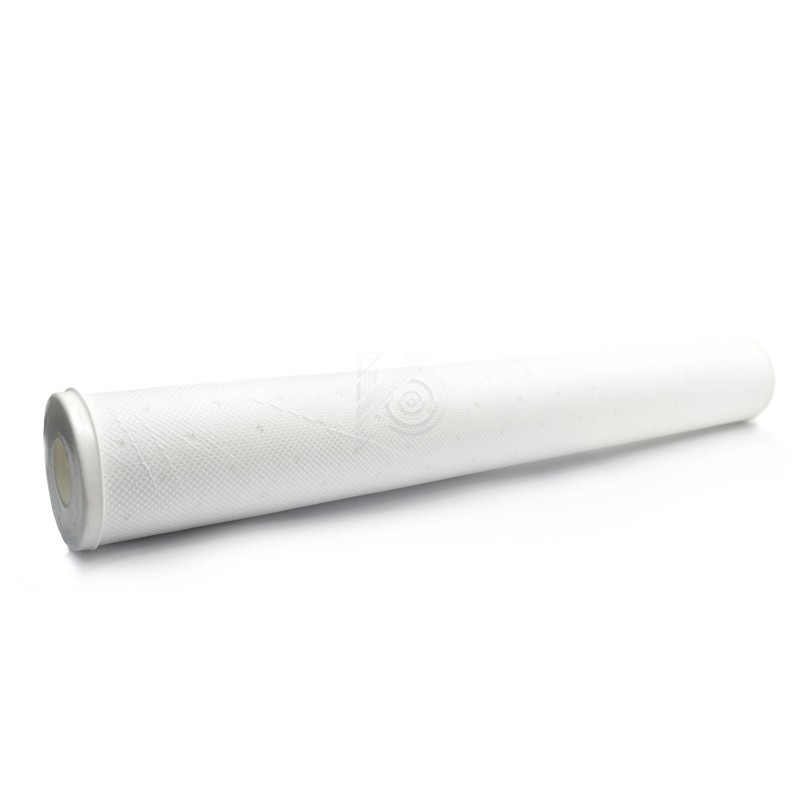

The part 500-19-0011 is a Polynet water filter assembly—19.5 inches long with a 10 micron rating—designed to remove particulate contaminants from the feed water of Waterjet cutting systems before high-pressure pumping. This OEM filter protects pumps, Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier Seals, and cutting heads from abrasive damage and clogging, extending component life and reducing maintenance costs.
Specifications
Micron Rating:10 µm (captures particles ≥ 10 microns)
Length:19.5 inches (≈ 20 inches overall filter length)
Configuration:“2 High” stacked filter elements
Housing Interface:Standard Techni water inlet housing (20″ shells)
Material:Synthetic Polynet media + corrosion-resistant end caps
Weight:≈ 3 kg (filter only)
Installation & Maintenance
System Shutdown: Depressurize and isolate the water supply to the filter housing.
Remove Housing Cover: Use the filter housing spanner to unscrew the 20″ shell cap (e.g., Techni part 500-19-0030)
Replace Filter Element: Remove the old 500-19-0011 filter and insert the new Polynet filter, ensuring proper orientation.
Reassemble Housing: Reinstall the shell cap, torque to manufacturer’s specification to ensure a leak-free seal.
Flush & Test: Open the inlet, flush until water runs clear, then resume normal cutting operations.
