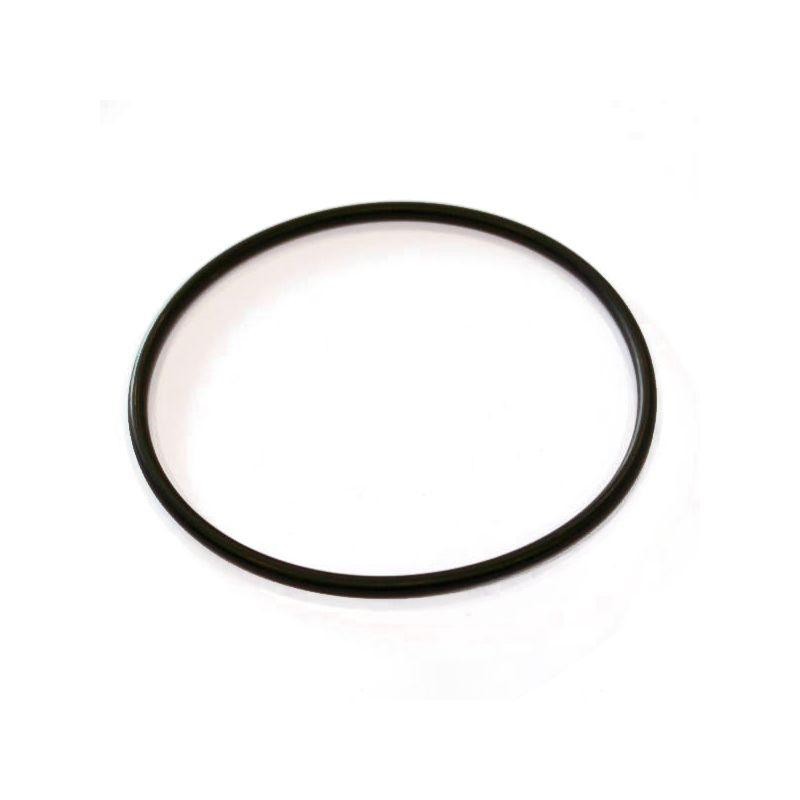

OR0885035/220 O-ring BFT Intensifier Waterjet Pump Seal High-Pressure O-ring Replacement

Short Description:

BFT OR0885035/220, O-ring 88.5×3.5 mm, BFT Intensifier O-ring
Weight: 0.001 kg.
Working pressure: 4137 bar
Material: Rubber
Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump.
What is the function (what is it for, what role):
Serves for additional fixation of the cylinder cover.

INQUIRY

Details

Waterjet Pump Seal High-Pressure O-ring Replacement

The BFT O-Ring OR0885035/220 is an OEM-grade sealing element used in high-pressure intensifier and filter assemblies on BFT Waterjet Pumps. It features an inner diameter of 88.5 mm and a cross-section of 3.5 mm, typically molded from nitrile rubber (NBR) with a 70 Shore A hardness to withstand pressures up to 4 000 bar and temperatures from −30 °C to +120 °C, ensuring leak-free performance in ultra-high-pressure environments.

Technical Specifications
Part Number: OR0885035/220
Dimensions: ID 88.5 mm × CS 3.5 mm
Material: Nitrile Rubber (NBR)
Hardness: 70 Shore A (common grade)
Temperature Range: −30 °C to +120 °C
Pressure Rating: Up to ~4 137 bar (60 000 psi) in intensifier service
Color: Black (standard NBR)
