Product Introduction
The Waterjet Multi-Axis Cutting Head is a high-precision servo-controlled cutting solution designed for metal plate processing and advanced CNC waterjet applications.
Engineered as a reliable Replacement Waterjet Cutting Head, this system combines intelligent multi-axis motion control, high-speed servo positioning, and ultra-high pressure abrasive cutting technology to deliver exceptional cutting accuracy and superior edge quality.
Designed for processing stainless steel, carbon steel, aluminum, copper, titanium, and various industrial materials, this waterjet cutting head helps manufacturers improve cutting performance, reduce taper, and achieve more complex cutting geometries.
KUNDA provides high-quality replacement cutting heads, OEM customization services, and professional technical support for global waterjet users.

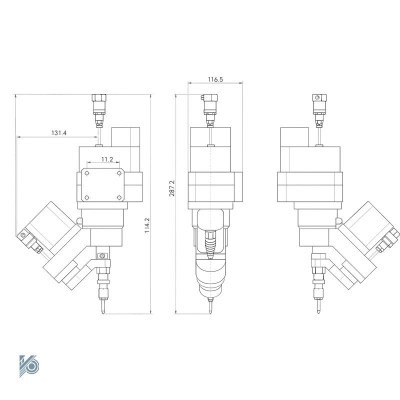

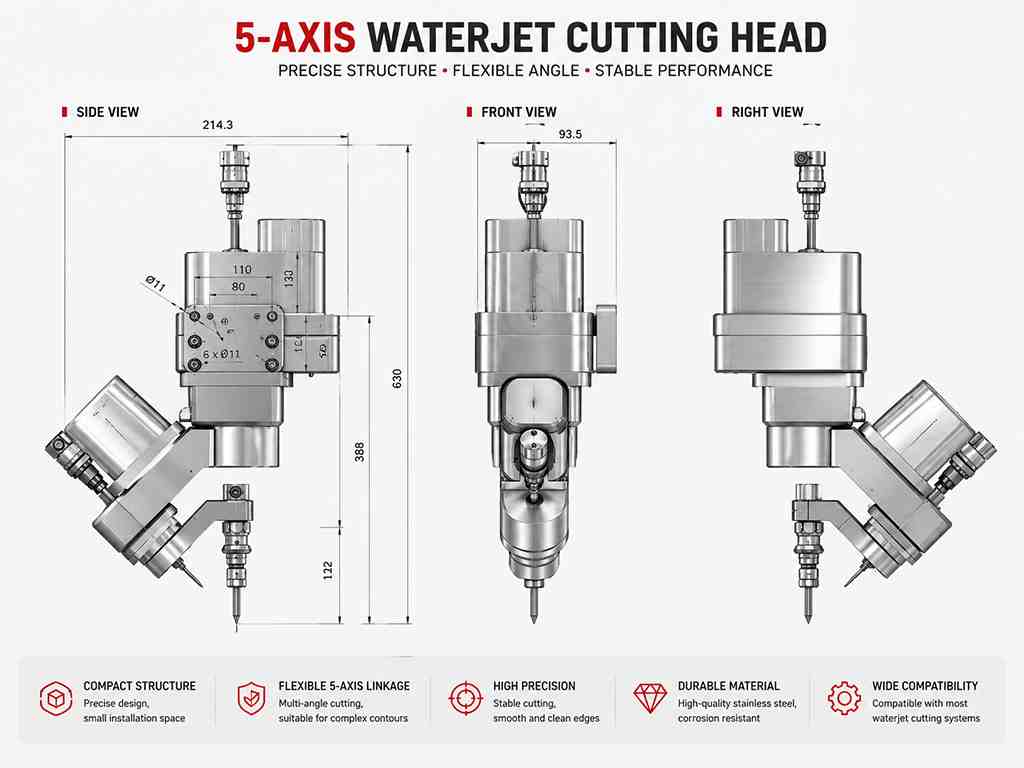

Technical Specifications
| A-axis Rotating Range | ±70° |
| C-axis Rotating Range | Infinite |
| Positioning Precision | 1.5' |
| Max Rotational Speed | 50 RPM |
| Cutting Precision at Fixed Point | ±0.05mm |
| Rotating Radius | 261mm |
| Automatic Height Measurement | Optional |
| Max Height | 607mm |
| Max Length | 376mm |
| Max Width | 161mm |
| High Pressure Tube Inlet Thread | 1/4 Inch |
Advanced Multi-Axis Servo Control Technology
This waterjet multi-axis cutting head utilizes advanced servo motion control technology to achieve precise cutting angle adjustment and smooth multi-directional movement during operation.
Compared with conventional cutting heads, the servo-controlled design offers faster response times, improved positioning accuracy, and greater flexibility when processing complex contours, bevels, and angled components.
The intelligent control system continuously optimizes cutting performance, helping manufacturers achieve higher production accuracy, improved efficiency, and reduced material waste.
Ideal For Metal Plate Processing
This waterjet cutting head for metal plate applications is specifically designed to process a wide range of industrial metals with exceptional precision.
Whether cutting stainless steel, carbon steel, aluminum alloys, copper, titanium, or specialty metals, the cutting head delivers smooth edges and accurate dimensions without generating heat.
As a cold-cutting technology, waterjet cutting eliminates thermal distortion, oxidation, and heat-affected zones, making it ideal for high-value metal fabrication projects.
High Precision and Superior Edge Quality
The servo-controlled cutting head maintains stable cutting angles and precise motion control throughout the cutting process.
This helps reduce taper, improve edge quality, and achieve tighter tolerances across different material thicknesses.
Improved cutting accuracy minimizes secondary processing requirements such as grinding, polishing, and machining, helping reduce labor costs and increase production efficiency.
Ultra High Pressure Abrasive Cutting Performance
Designed to operate with ultra-High Pressure Waterjet Pump systems, this replacement waterjet cutting head supports demanding abrasive cutting applications.
The optimized internal flow structure ensures a stable abrasive stream, providing consistent cutting performance across various material types and thicknesses.
The cutting head can efficiently process:
- Stainless Steel
- Carbon Steel
- Aluminum
- Copper
- Titanium
- Composite Materials
- Engineering Plastics
- Glass
- Ceramics
- Stone Materials
Applications of Multi-Axis Waterjet Cutting Heads
- Metal Plate Fabrication
- Stainless Steel Processing
- Aluminum Sheet Cutting
- Titanium Component Manufacturing
- Aerospace Parts Production
- Automotive Manufacturing
- Industrial Equipment Fabrication
- Architectural Metal Panels
- Custom Metal Components
- Precision Engineering Projects
Durable Construction and Long Service Life
Manufactured using high-quality materials and precision-engineered components, this waterjet multi-axis cutting head is built to withstand demanding industrial environments.
The wear-resistant design helps reduce component deterioration during continuous operation, extending service life and reducing maintenance requirements.
The robust structure ensures reliable performance under ultra-high pressure operating conditions while maintaining cutting accuracy over time.
Easy Replacement and System Compatibility
This replacement waterjet cutting head is designed for convenient installation and compatibility with various Cnc Waterjet Cutting Machines and automated production systems.
Whether replacing worn components, upgrading existing equipment, or integrating into new waterjet systems, KUNDA can provide customized solutions and technical support according to customer requirements.
The flexible design makes it suitable for a wide range of industrial applications and machine configurations.
Frequently Asked Questions
What is a servo-controlled waterjet cutting head?
A servo-controlled waterjet cutting head uses high-precision servo motors to control cutting angles and movement, providing higher accuracy, smoother operation, and better cutting quality.
Can this cutting head process thick metal plates?
Yes. It is designed for processing stainless steel, carbon steel, aluminum, titanium, copper, and other metal materials with excellent cutting performance.
What are the advantages of multi-axis waterjet cutting?
Multi-axis cutting allows bevel cutting, angle compensation, complex contour processing, and improved dimensional accuracy compared with traditional vertical cutting heads.
Can this cutting head be installed on existing Waterjet Machines?
Yes. The cutting head can be integrated with many CNC waterjet systems and ultra-High Pressure Pump configurations.
