Waterjet Focusing Tube Universal Precision Cut Water Jet Abrasive Boron Carbide Mixing Tube
Boron Carbide Waterjet Focusing Tube For Precision Cutting
Product Introduction

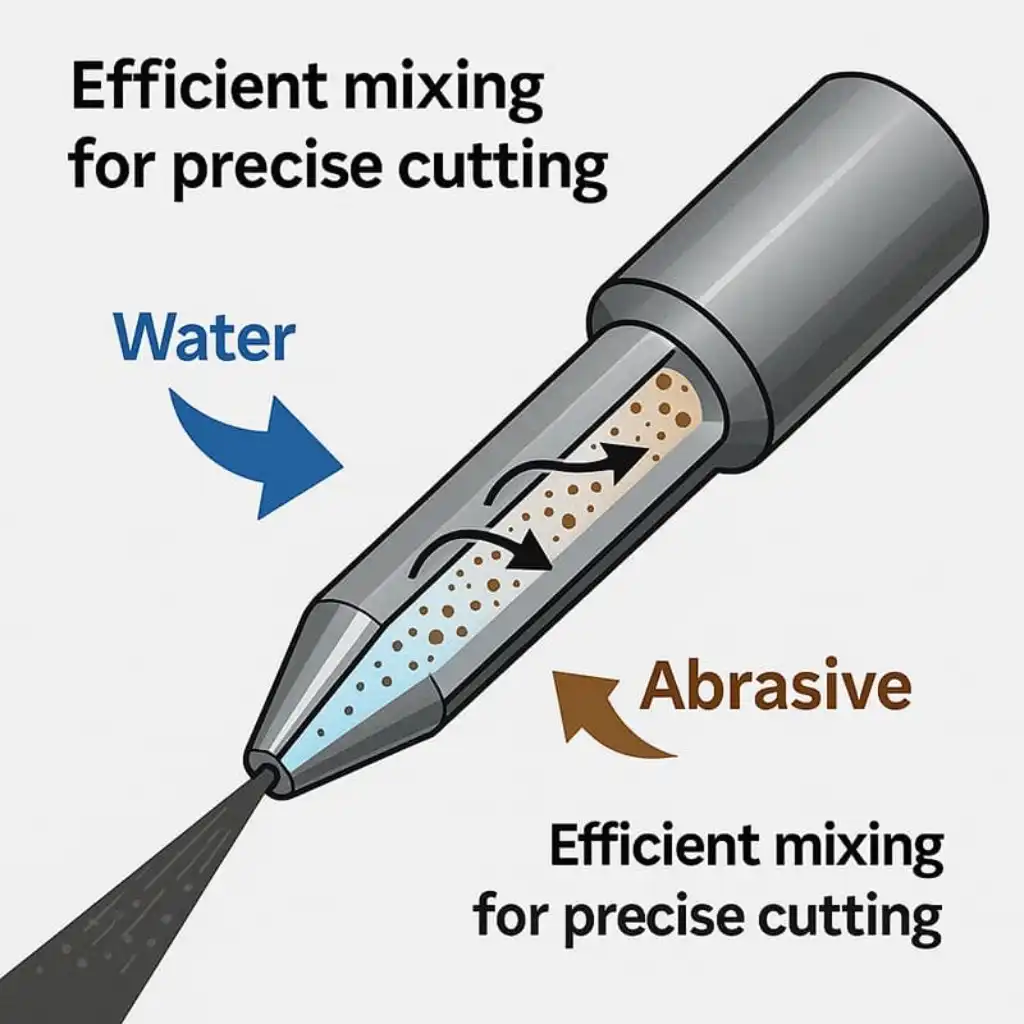

The Waterjet Focusing Tube, also called a Boron Carbide Mixing Tube, is an important wear part used in abrasive Waterjet Cutting Heads. It focuses the high-pressure water and abrasive mixture into a concentrated cutting jet. A precise focusing tube helps improve cutting accuracy, edge quality, abrasive efficiency, and machine stability.
KUNDA supplies Boron Carbide Waterjet Focusing Tubes in different sizes and part numbers. Standard sizes, custom specifications, OEM supply, private label service, and bulk orders are available for CNC Waterjet Machine users, distributors, repair companies, and equipment manufacturers.
Standard Sizes
| Outer Diameter | Inner Diameter | Length |
|---|---|---|
| 6.35 | 0.76 | 76.2 |
| 6.35 | 1.02 | 76.2 |
| 6.35 | 1.02 | 101.6 |
| 7.14 | 0.76 | 76.2 |
| 7.14 | 1.02 | 76.2 |
| 7.14 | 0.76 | 101.6 |
| 7.14 | 1.02 | 101.6 |
| 9.47 | 0.76 | 76.2 |
| 9.47 | 0.76 | 101.6 |
Available Part Numbers
| Part Number | Details |
|---|---|
| 20457255 | Mixing Tube 0.030" |
| 20457256 | Mixing Tube 0.040" |
| 20457257 | Mixing Tube 0.050" |
| 20457258 | Mixing Tube 0.060" |
| 20457259 | Mixing Tube 0.070" |
| 100000-1 | Mixing Tube 0.030" |
| 100001-1 | Mixing Tube 0.040" |
| 100002-1 | Mixing Tube 0.050" |
| 100003-1 | Mixing Tube 0.060" |
| 303287 | Mixing Tube 0.030" |
| 303288 | Mixing Tube 0.040" |
| 303289 | Mixing Tube 0.050" |
| 303290 | Mixing Tube 0.060" |
| 4100601 | Mixing Tube 0.030" |
| 4100602 | Mixing Tube 0.040" |
| 4100603 | Mixing Tube 0.050" |
| 5200601 | Mixing Tube |
| 5200602 | Mixing Tube |
| 5200603 | Mixing Tube |
Boron Carbide Material Advantage
Boron carbide is commonly used for waterjet focusing tubes because it offers strong wear resistance under abrasive cutting conditions. It helps the inner bore keep a stable shape for longer use, which supports more consistent cutting performance.
Why Focusing Tube Quality Matters

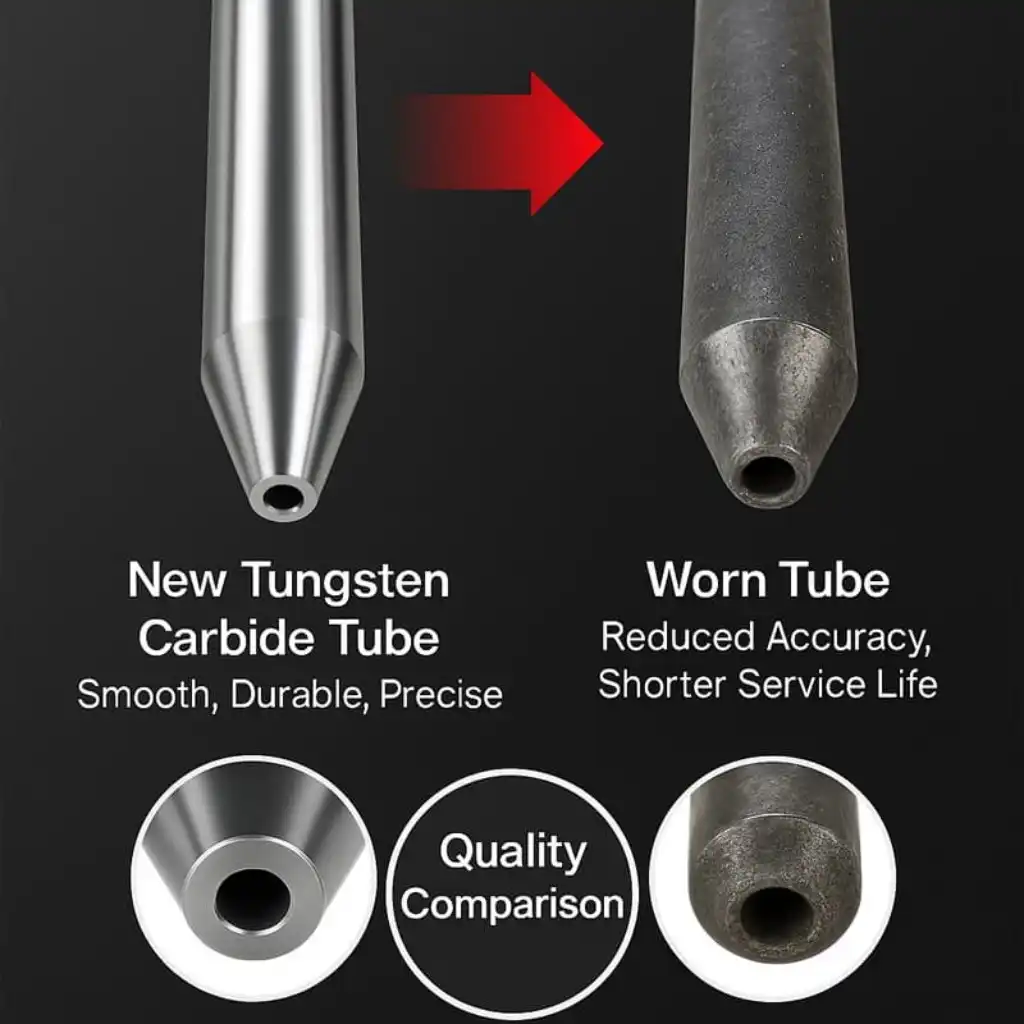

The focusing tube directly affects the final abrasive cutting jet. If the inner bore wears unevenly, the jet may lose focus, causing rough cutting edges, lower accuracy, slower cutting speed, and higher abrasive consumption.
Universal Replacement Use
This waterjet focusing tube can be used for regular maintenance, emergency replacement, OEM supply, and machine upgrade projects. Customers can choose suitable sizes according to machine model, cutting material, abrasive flow, and operating pressure.
Suitable Applications
These focusing tubes can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics. They are suitable for Cnc Waterjet Machines, abrasive Waterjet Cutting Systems, and Robotic Waterjet cutting equipment.
Custom And OEM Supply
KUNDA can provide different lengths, outer diameters, inner diameters, bore sizes, and part number options according to customer requirements. OEM branding, custom packaging, private label service, and bulk supply are available.
Why Choose KUNDA
KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, focusing tubes, mixing tubes, Abrasive Nozzles, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
Contact Us
If you need boron carbide waterjet focusing tubes, mixing tubes, abrasive nozzles, or other waterjet consumable parts, contact KUNDA for more details.
Email: info@kundacnc.com
Whatsapp: +86 157 9367 0759
