High Pressure Waterjet Cutter for Low Cost Industrial CNC Cutting

Product Introduction

The High Pressure Waterjet Cutter is a low-cost and high-precision Cnc Water Jet Cutting Machine designed for industrial cutting applications in Saudi Arabia and global markets. Using ultra-high pressure water combined with abrasive garnet materials, this machine efficiently processes metal, stone, glass, ceramics, marble, granite, foam, rubber, plastics, and composite materials while maintaining smooth cutting edges and accurate dimensions. The stable CNC control system, durable industrial structure, and cost-effective design make this Waterjet Cutting Machine suitable for workshops, factories, architectural projects, and industrial manufacturing applications requiring reliable cutting performance and controlled investment costs.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

Stable High Pressure Waterjet Cutting Performance

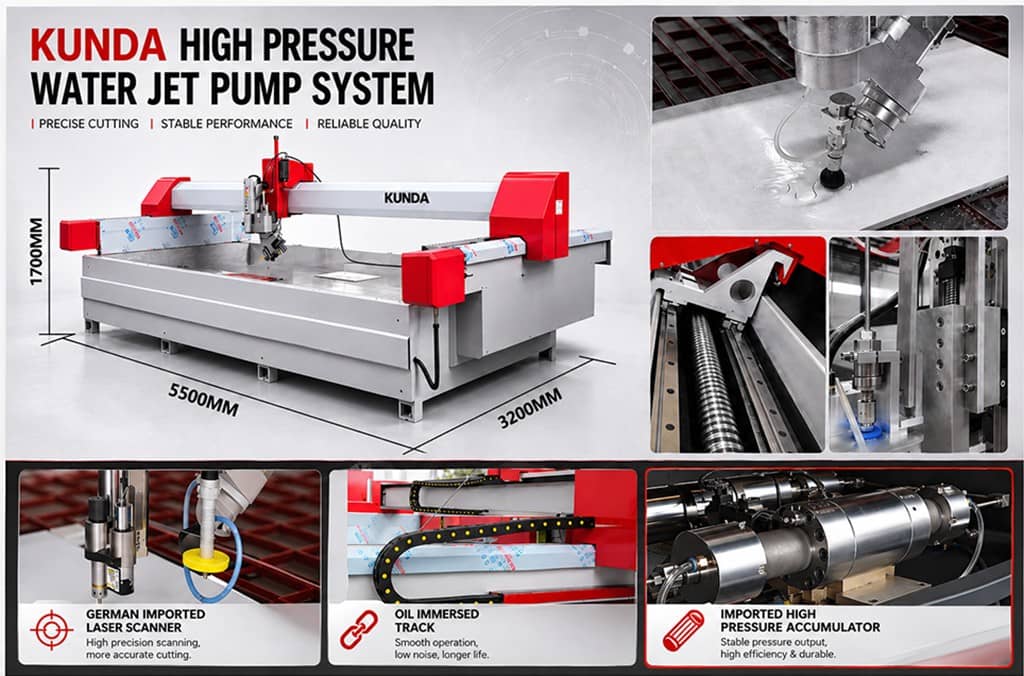

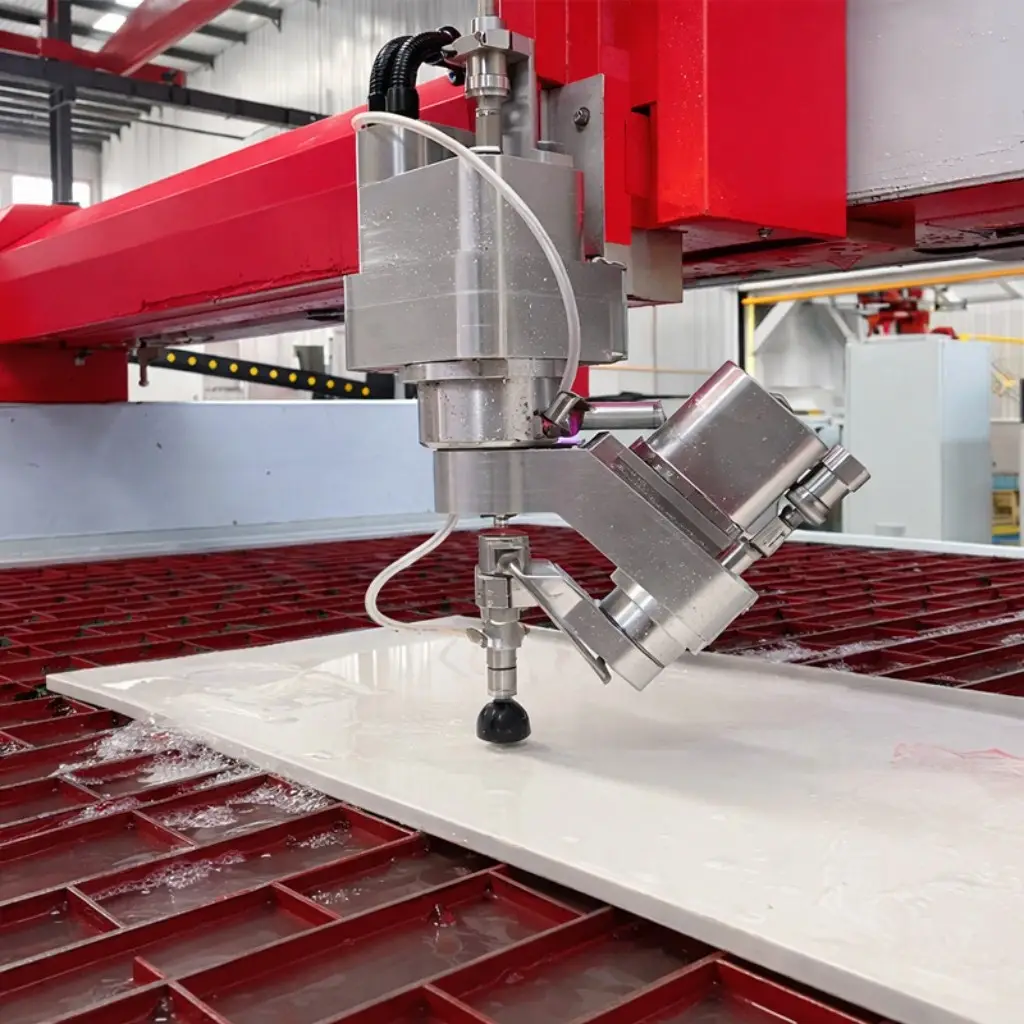

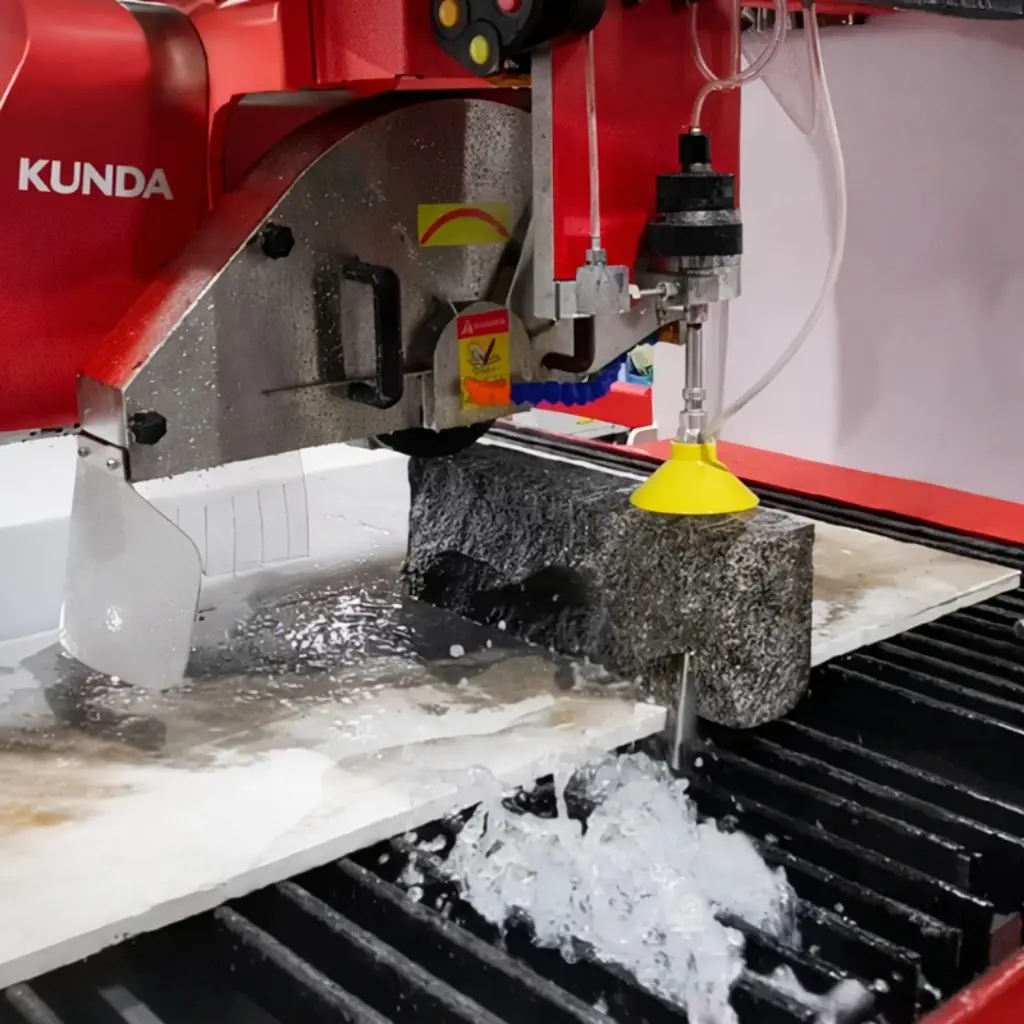

This high pressure waterjet cutter adopts advanced hydraulic intensifier technology and a stable high-pressure cutting system to achieve efficient and precise cutting performance on various industrial materials. The ultra-high pressure abrasive water flow allows the machine to process straight cuts, curves, holes, bevels, and complex contour designs while maintaining clean cutting edges and high dimensional accuracy.

Low Cost and High Efficiency Solution

The Low Cost Water Jet Cutting Machine is designed to provide stable industrial cutting performance while helping customers reduce initial investment and long-term operating costs. The optimized machine structure and reliable hydraulic system improve operational efficiency while reducing unnecessary maintenance expenses.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

Suitable for Various Industrial Materials

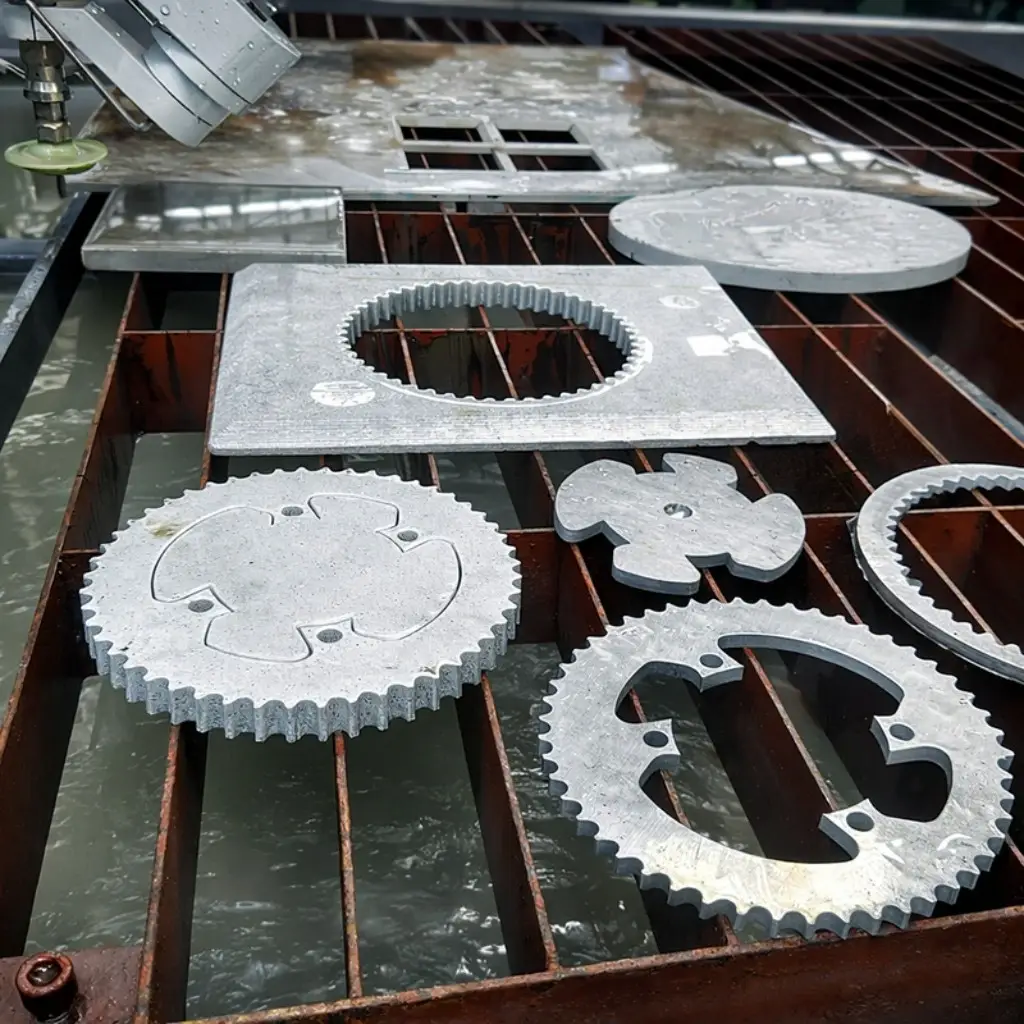

This waterjet cutting machine efficiently processes stainless steel, carbon steel, aluminum, copper, titanium, marble, granite, ceramic tiles, glass, foam, rubber, plastics, and composite materials. Because waterjet cutting uses high-pressure water instead of heat, it helps protect the original material structure and maintain high cutting quality during processing.

Durable Industrial Structure and Reliable Operation

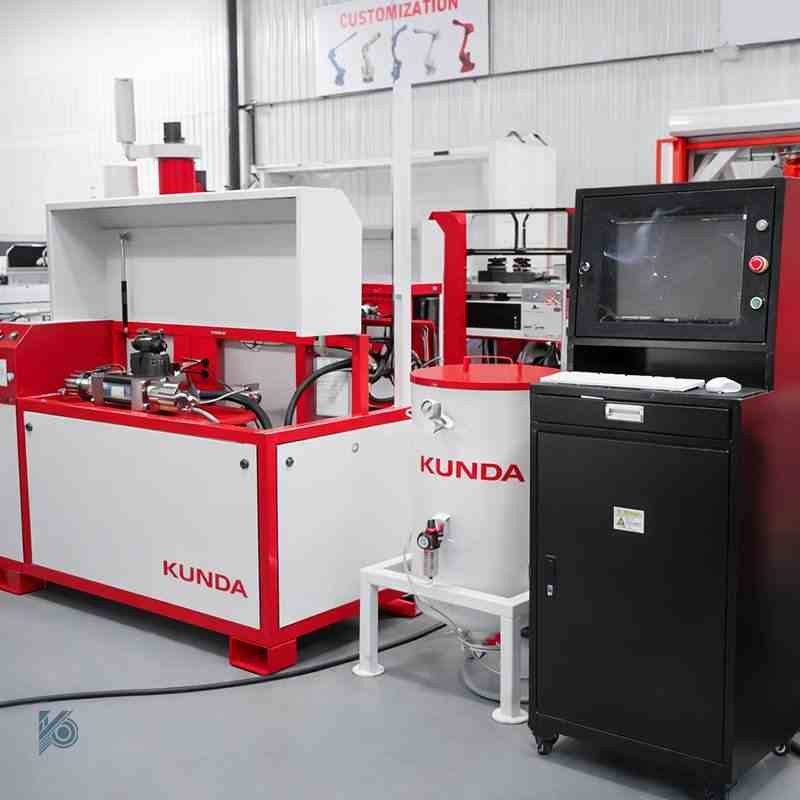

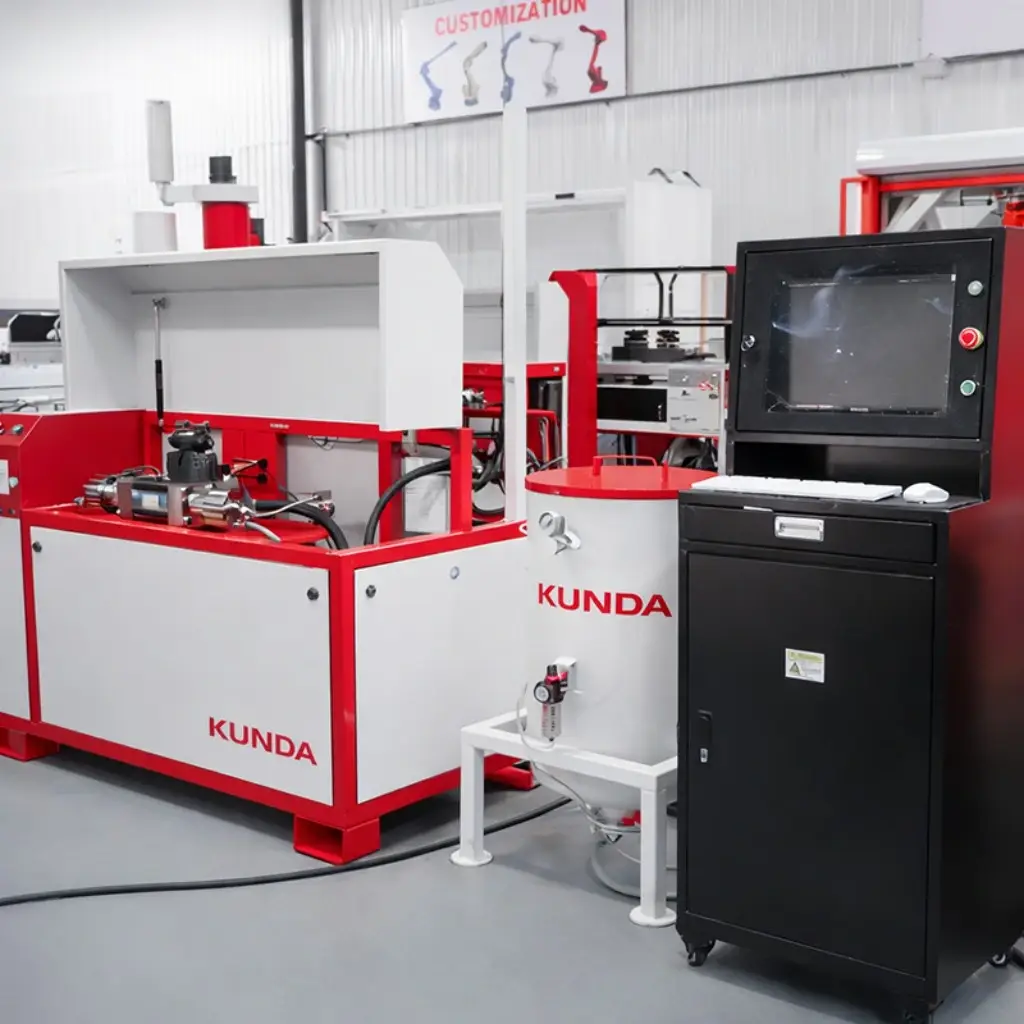

The waterjet cutting machine is manufactured with a heavy-duty industrial frame, precision guide rail systems, and stable servo control components to ensure reliable long-term operation under demanding industrial environments. High-quality hydraulic components and durable cutting systems help maintain stable cutting performance during continuous production.

Optional Automation and Intelligent Upgrade Solutions

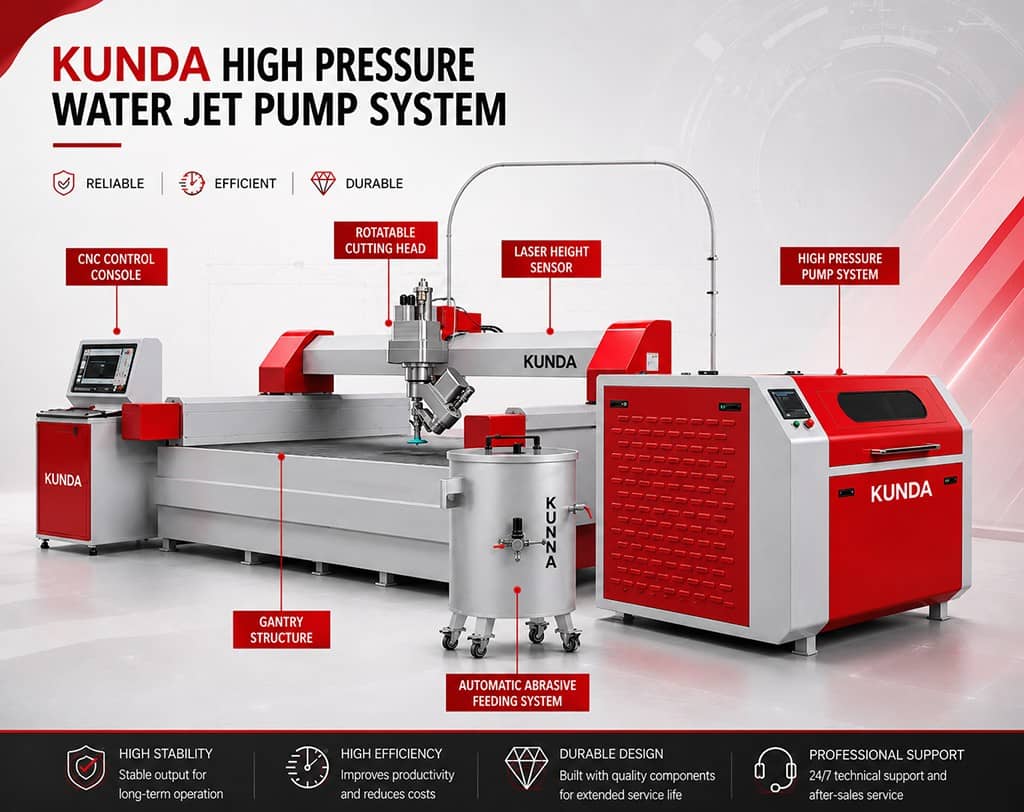

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized CNC systems, and intelligent automation solutions according to different industrial applications. These optional upgrades help improve cutting precision, reduce labor costs, and increase production efficiency.

Wide Industrial Applications

This high pressure waterjet cutter is widely used in metal fabrication, stone processing, glass manufacturing, ceramic cutting, architectural decoration, automotive industries, aerospace production, machinery manufacturing, kitchen countertop fabrication, and industrial custom processing industries.

Why Choose KUNDA Waterjet Cutting Machines

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable high-pressure waterjet cutters, low-cost CNC waterjet systems, or customized industrial cutting solutions, please feel free to contact KUNDA for more information and professional support.

Email: info@kundacnc.com
WhatsApp: +86 157 9367 0759
