Abrasive Water Jet Cutter Affordable Cnc Abrasive Waterjet Ceramic Cutting Machine
Affordable CNC Abrasive Water Jet Cutter for Ceramic and Industrial Cutting
Product Introduction

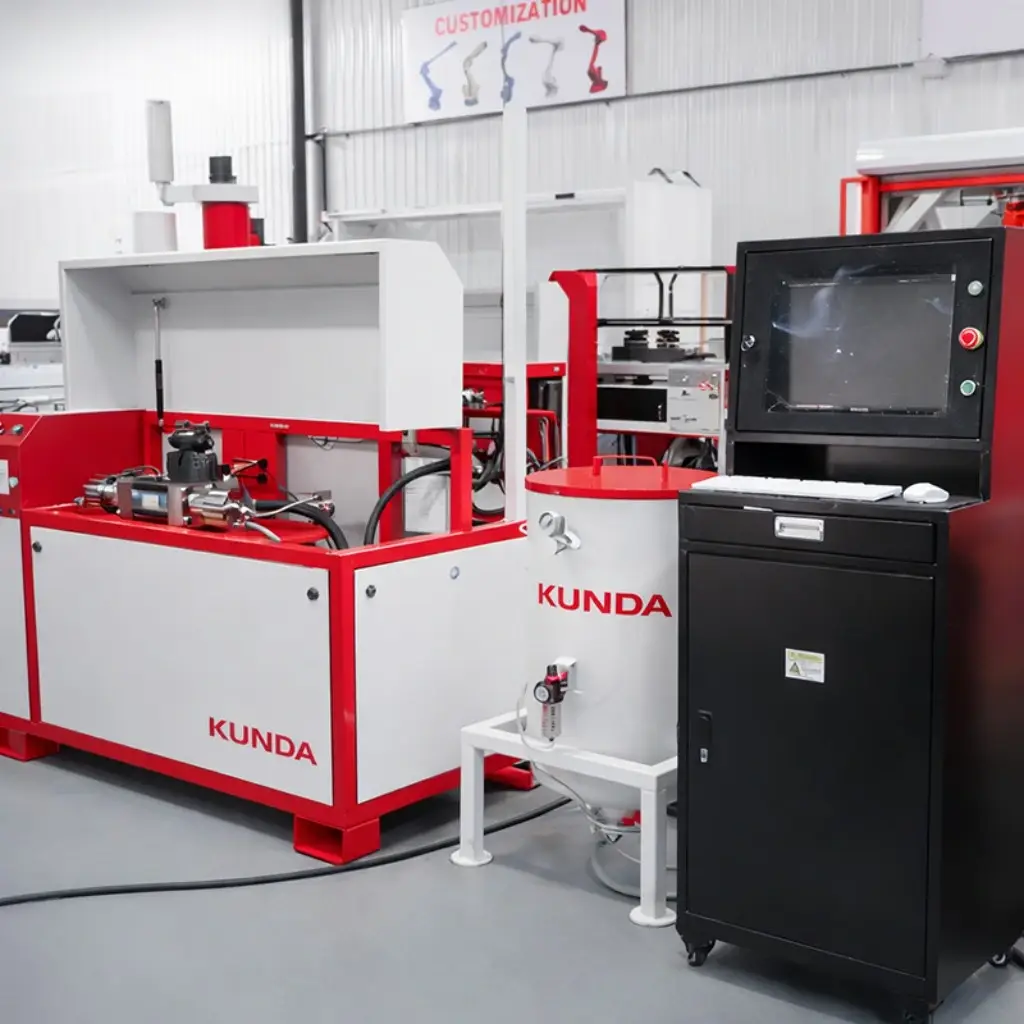

The Affordable CNC Abrasive Water Jet Cutter is a high-precision abrasive waterjet ceramic cutting machine designed for efficient and flexible industrial cutting applications. Using ultra-high pressure water combined with abrasive materials, this Abrasive Waterjet Machine can cut ceramics, stone, metal, glass, marble, granite, composite materials, rubber, foam, and many other materials with smooth cutting edges and excellent cutting quality. The CNC control system provides stable and accurate cutting performance for complex shapes and detailed processing requirements.
Technical Specifications
| Model | KD1015 | KD2015 | KD3015 | KD3020 | KD4020 |
| Structure | Cantilever / Gantry / Fully Enclosed | ||||
| Cutting Table Size | 1200 × 1700mm | 2200 × 1700mm | 3200 × 1700mm | 3200 × 2200mm | 4200 × 2200mm |
| X Axis Stroke | 1000mm | 2000mm | 3000mm | 3000mm | 4000mm |
| Y Axis Stroke | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm |
| Z Axis Stroke | 130mm | ||||
| Cutting Accuracy | ±0.1mm | ||||
| Repeatability | ±0.05mm | ||||
| Traverse Speed | 6000 - 15000mm/min | ||||
| Power Supply | 220V / 380V / 415V, 50/60Hz | ||||
High Precision Abrasive Waterjet Cutting Performance

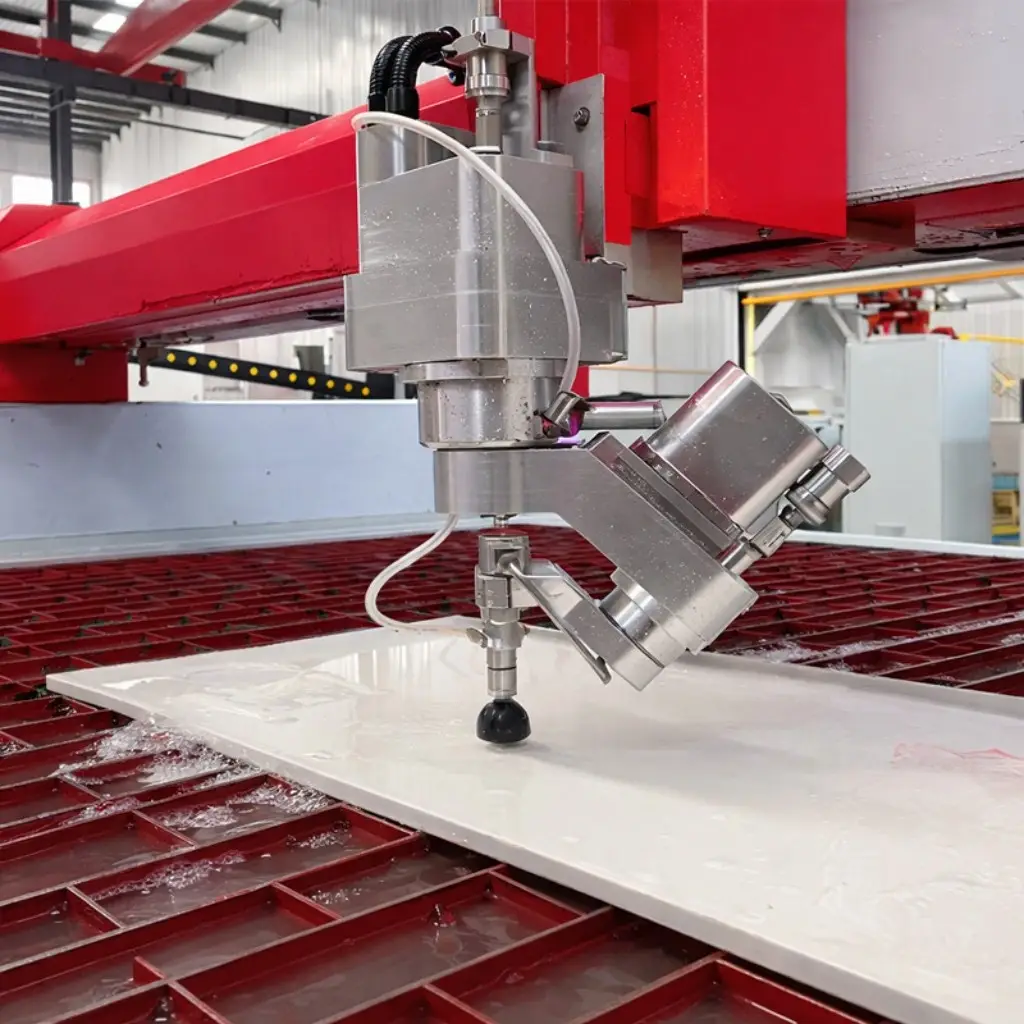

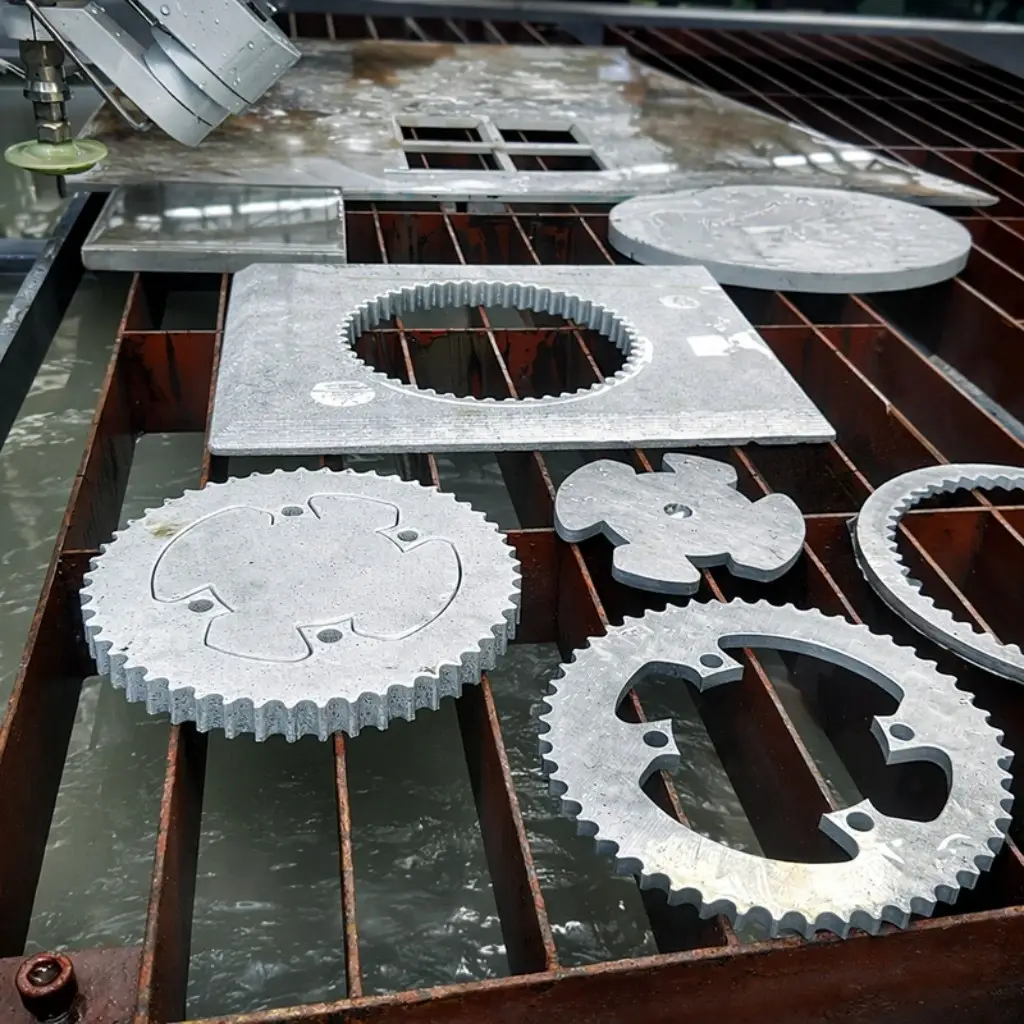

This abrasive waterjet ceramic cutting machine adopts advanced CNC control technology and a stable high-pressure cutting system to achieve accurate and efficient cutting performance. The ultra-high pressure abrasive water flow allows the machine to cut complex patterns, curves, holes, and irregular shapes while maintaining smooth cutting edges and high dimensional accuracy.
Suitable for Multiple Material Applications
The abrasive waterjet machine can process ceramic tiles, porcelain slabs, marble, granite, glass, stainless steel, aluminum, copper, titanium, rubber, plastics, and composite materials. The flexible cutting capability makes the machine suitable for ceramic tile manufacturing, architectural decoration, kitchen countertop processing, metal fabrication, glass cutting, stone processing, and custom industrial production.
Cutting Speed Reference
| Material | Thickness | 320MPa | 380MPa | 420MPa |
| Aluminum | 6mm | 400-520mm/min | 460-590mm/min | 500-680mm/min |
| Stainless Steel | 13mm | 80-120mm/min | 100-150mm/min | 125-180mm/min |
| Glass | 10mm | 600-700mm/min | 700-800mm/min | 820-900mm/min |
| Marble | 20mm | 400-500mm/min | 600-700mm/min | 750-850mm/min |
| Ceramic Tile | 15mm | 1200-1400mm/min | 1400-1500mm/min | 1600-1800mm/min |
Affordable and Efficient CNC Waterjet Solution
This CNC abrasive water jet cutter is designed to provide a balance between cutting performance, operational stability, and affordable investment cost. The optimized machine structure and efficient hydraulic system help reduce operating costs while maintaining stable cutting performance during continuous production.
Stable Industrial Structure and Easy Operation
The Abrasive Waterjet Cutting Machine is manufactured with a durable machine frame, stable CNC control system, and reliable high-pressure cutting components to ensure long-term industrial operation. The user-friendly control interface allows operators to easily adjust cutting parameters according to different materials and thickness requirements.
Optional Automation and Upgrade Solutions

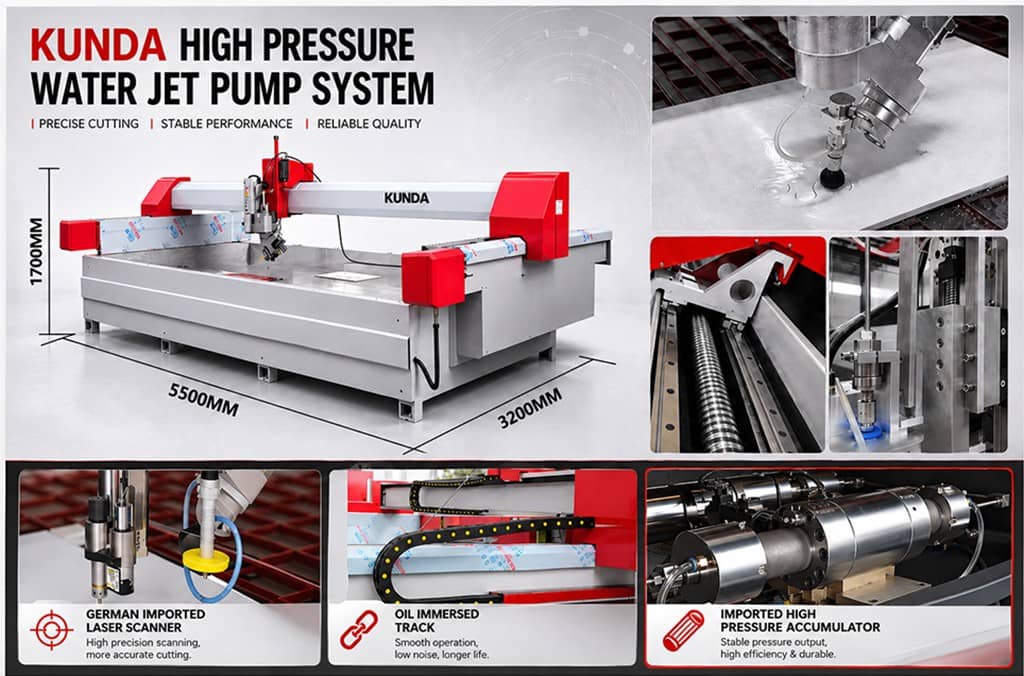

To improve production efficiency and achieve more intelligent manufacturing processes, customers can choose optional upgrade configurations according to production requirements. KUNDA can provide laser height measurement systems, automatic loading systems, soft water treatment systems, and customized automation solutions to improve cutting precision, reduce labor costs, and extend machine service life.
Why Choose KUNDA Abrasive Waterjet Machines

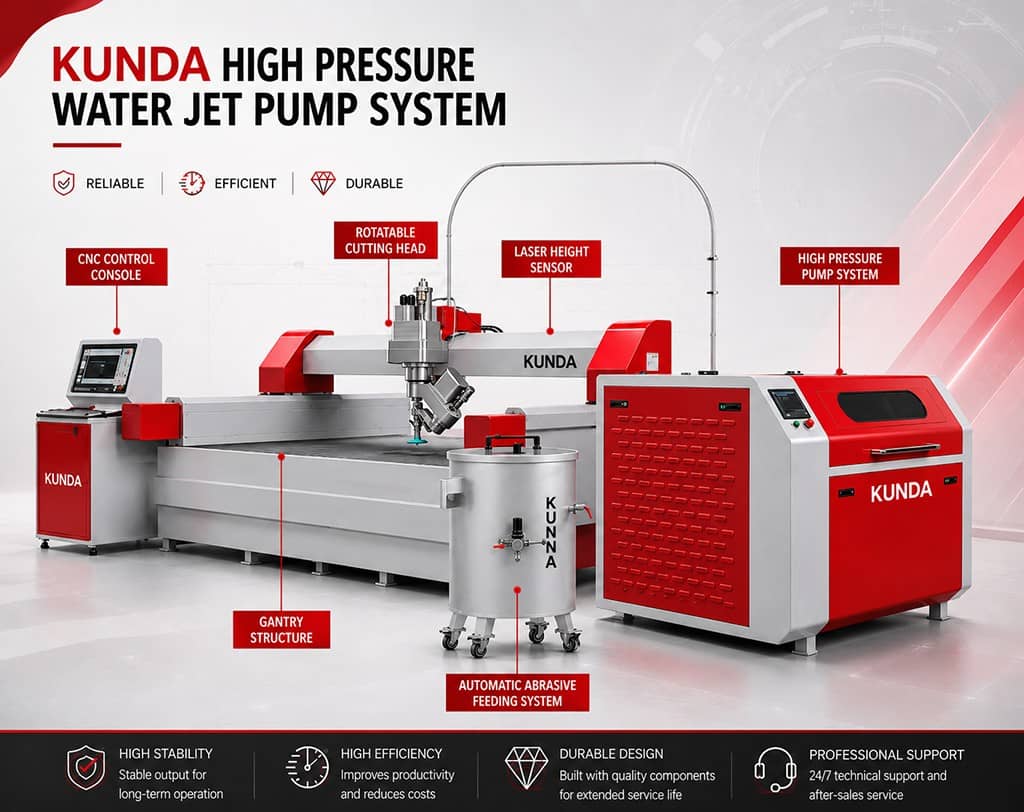

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply abrasive waterjet cutting machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.
Contact Us
If you are looking for reliable abrasive waterjet cutting machines, ceramic cutting solutions, or customized CNC waterjet systems, please feel free to contact KUNDA for more information and professional support.
