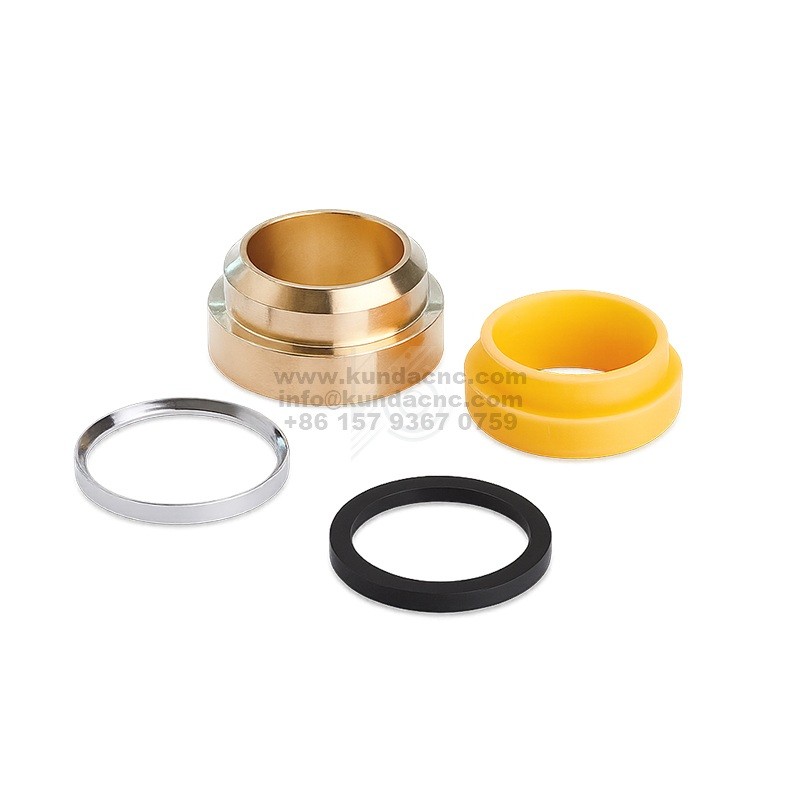

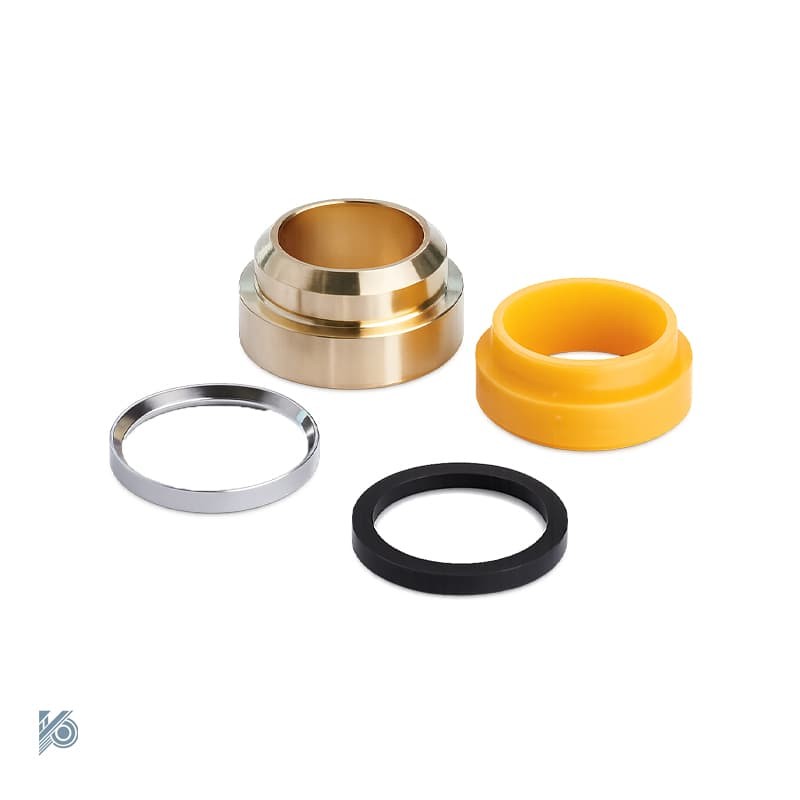

HP Seal Kit CP022100/220 For Waterjet Pump Parts Supplier

Short Description:

HP Seal Kit
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA

INQUIRY

Details

HP Seal Kit CP022100/220 For WaterJet Pump Parts Supplier

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens
1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4
1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

The HP Seal Kit CP022100/220 is a critical sealing component for the high-pressure end of a waterjet intensifier. It consists of various sealing rings, support rings, and auxiliary components to maintain the intensifier's sealing performance under extremely high pressures and prevent high-pressure water leakage. This kit's design ensures the stability and safety of the Water Jet Cutting Machine during continuous high-pressure operation.

Function: Ensures the seal of the intensifier's high-pressure cylinder, preventing high-pressure water leakage.
Applicable Location: The high-pressure end sealing system of a waterjet intensifier.
Material Features: Made of high-strength polymers, composite materials, and wear-resistant alloy components, it offers high-pressure, wear-resistant, and long-life performance.
Replacement Period: This is a typical consumable part and should be replaced regularly based on operating hours and the equipment's maintenance schedule to maintain optimal operating condition.

Choosing the high-quality HP Seal Kit CP022100/220 not only extends the life of the intensifier, but also reduces unplanned downtime and improves overall cutting efficiency.
