HP Seal Kit CP022058/220 Good Price Waterjet Replacement Supplier

Short Description:

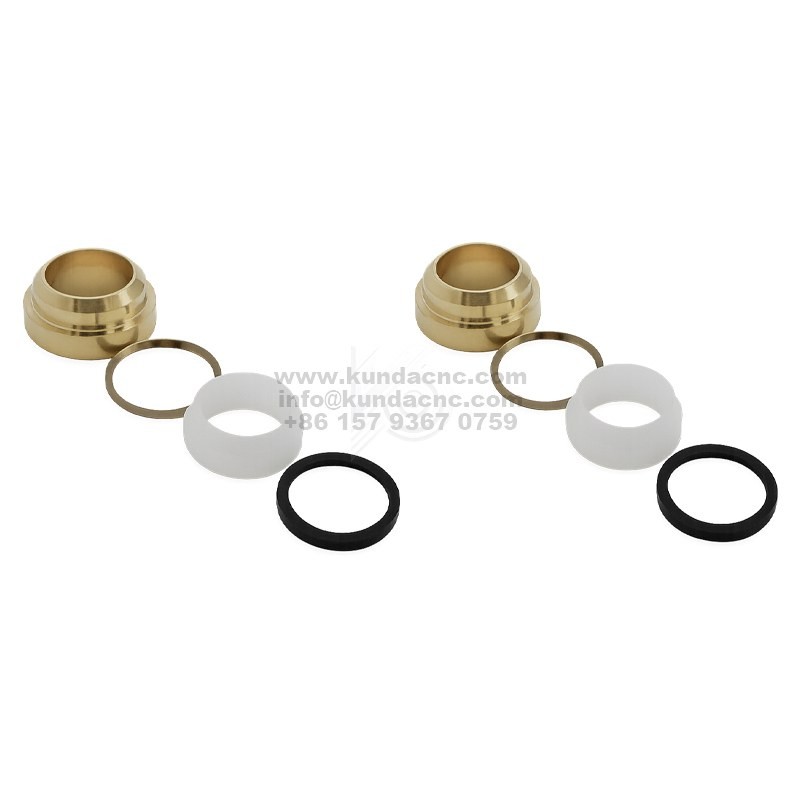

HP Seal Kit
105334
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.23 kg
Working Pressure: 4137 bar
Material: Steel, rubber, plastic, brass
Brass bushing, part number HT022027/527, 2 pcs.
Backup Ring, part number CP022012/780, 2 pcs.
O-Ring, part number CP022011/150, 2 pcs.
Square ring, code 9704521/220, 2 pcs.
Support ring, code CP022015/527, 2 pcs.

INQUIRY

Details

HP Seal Kit CP022058/220 Good Price Waterjet Replacement Supplier

Part Number	Alternative models	Description
5100146	CP022019/563	Flange
106659	CP022021/593	Thread Ring
5100131	CP022022/591	Ring
5102275	CP022031/069	Piston
1100023	CP022037/220	Major Spare Parts Kit
5100146	CP022039/563	Flange
1200657	CP022049/249	Seal Remover
5100169	CP022057/075	Clamping Ring
105334	CP022058/220	HP Seal Kit
4202884	D23M20x65/046	Cylinder Head Screw

The HP Seal Kit CP022058/220 is a core seal kit for the high-pressure end of a waterjet intensifier. It consists of a combination of sealing rings, support rings, and backup rings, ensuring a tight seal between the plunger and the high-pressure cylinder under ultra-high pressure conditions. This kit effectively prevents high-pressure water leakage and ensures continuous and stable intensifier operation.

Function: Provides a complete high-pressure sealing solution to prevent high-pressure water leakage during operation.
Applicable Location: Installed in the high-pressure cylinder sealing system of a waterjet intensifier.
Material: Constructed from high-performance polymers, composite materials, and wear-resistant components, it offers high-pressure resistance, erosion resistance, and a long lifespan.
Replacement Period: This is a typical consumable part and should be replaced regularly based on operating time, water quality, and maintenance schedule to maintain optimal operating condition.

The high-quality HP Seal Kit CP022058/220 significantly improves the seal reliability and service life of the intensifier, making it a critical component for the safe and efficient operation of Water Jet Cutting Machines.
