Cylinder WJ055004/320 Good Price Abrasive Water Jet Parts

Short Description:

Cylinder
5100133、106797
Minimum Order Quantity: 1
Availability: Yes
Weight: 0.32 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Cylinder WJ055004/320 Good Price Abrasive Water Jet Parts

Part Number	Alternative models	Description
WJ055004/320	5100133	Cylinder
WJ055005/249	5100079	Lower Parts
WJ055009/025	5100034	Connecting Ring
WJ055010/256	5100134	Bushing
WJ055013/591	5102107	Valve Body
WJ055014/591	5102241	Piston
WJ055017/220	4101220	Impact Plate
WJ055020/591	107115	Release valve
WJ070027/133	4100147	Coupling Nut
WJ070028/256	4100965	Collet Clamp
WJ070060/591	107491	Cutting Valve Repair Kit
WJ070061/591	5102215	Valve Body Cutting Head
WJ070068/593	5100136	Nozzle Body
WJ100037/152	5200004	Connection

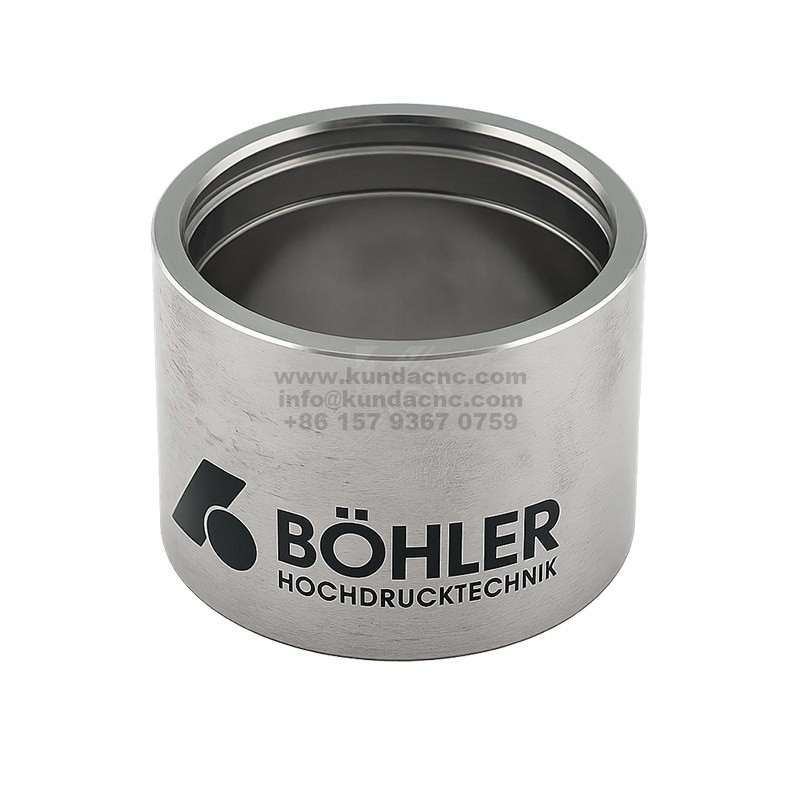

The WJ055004/320 cylinder is a core high-pressure component in Waterjet Intensifier Pumps, primarily used to withstand and transmit ultra-high-pressure liquids. Manufactured from high-strength alloy steel and precision machined and heat-treated, this cylinder offers excellent pressure resistance, fatigue resistance, and wear resistance.
The cylinder's interior is specially polished for a high surface finish, effectively reducing friction during piston movement and seal wear, thereby extending the life of the entire unit. Designed to meet the strict operating requirements of high-pressure systems, the cylinder maintains stable performance even under continuous operation and frequent start-stop conditions.
The WJ055004/320 cylinder is commonly used in conjunction with pistons, seals, and O-rings in waterjet intensifiers. Its reliability is directly linked to equipment safety and cutting accuracy, making it a crucial component for ensuring efficient and stable operation of Water Jet Cutting Machines.
