Detailed Explanation of Waterjet Cutting Machine Intensifier Pump

Detailed Explanation of WaterJet Cutting Machine Intensifier Pump

In modern waterjet cutting technology, the high-pressure booster assembly is as crucial as the engine in a car, serving as the power source for the entire system. It directly affects the stability of the water jet pressure, cutting efficiency, and equipment reliability. In short, a good booster assembly not only influences cutting quality but also determines the lifespan of the Waterjet Equipment.

Recently, we have comprehensively upgraded and improved our new generation of high-pressure booster assemblies for waterjet cutting, aiming to make its pressure output more stable and durable.

I. What is a High-Pressure Booster Assembly for Waterjet Cutting?

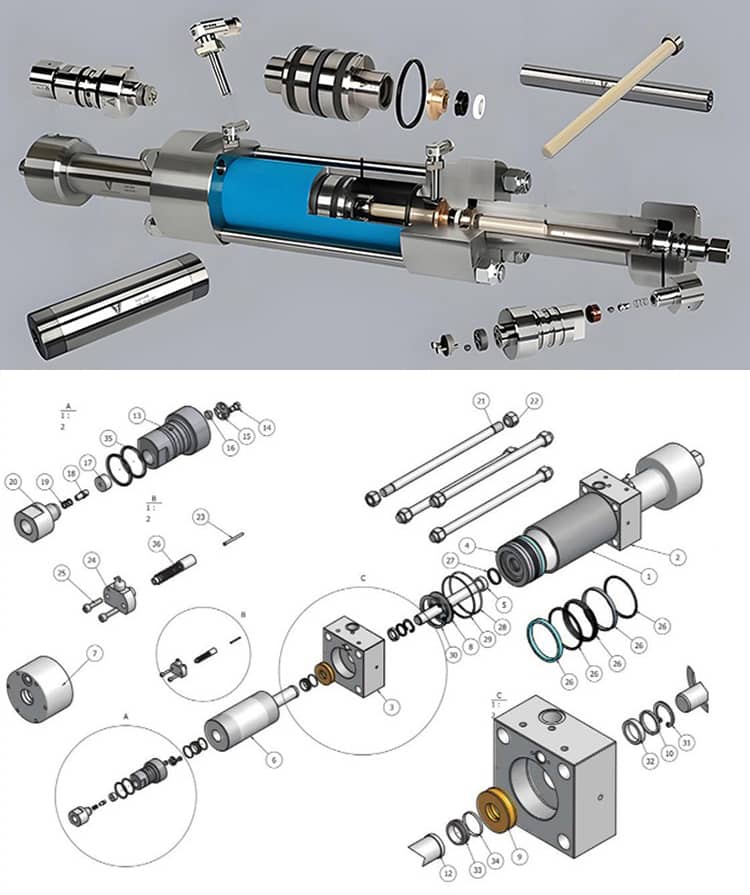

Simply put, a waterjet cutting booster assembly is a "pressure amplifier." Driven by hydraulics, it instantly increases ordinary water pressure to ultra-high pressure (typically around 300–420 MPa). Its basic structure includes:
1. Hydraulic drive system: Provides power to drive the boosting process.
2. High-pressure water cylinder: Contains high-pressure water and withstands enormous pressure.
3. Piston and sealing assembly: Transmits pressure and prevents high-pressure water leakage.
4. Inlet and outlet check valve system: Controls the direction of water flow, ensuring the smooth operation of the boosting process. 5. High-Pressure End Connector: Connects to the high-pressure water pipe, delivering high-pressure water to the nozzle.
The working principle is similar to a lever; a large hydraulic piston pushes a small high-pressure water jet, thus multiplying the pressure and ultimately forming a high-speed, high-energy water jet. This jet can cut a wide variety of materials.

II. Structural Features and Technical Advantages：

1. Robust Alloy Steel Structure: The booster cylinder is machined from a single piece of high-strength alloy steel, capable of withstanding ultra-high pressure for extended periods, ensuring safe and durable use.
2. Precision Machining and Sealing: Key sealing components employ highly precise machining processes, effectively preventing leakage and extending the lifespan of the seals.
3. Stable Hydraulic Control: The top hydraulic control module enables smooth reversal, reducing pressure fluctuations and improving the continuity of the water jet output for more stable cutting.
4. Wide Compatibility: This booster assembly is compatible with most Waterjet Cutting Equipment on the market, handling both pure water cutting and waterjet cutting with abrasive.

III. Impact on Waterjet Cutting Performance：

A good pressure boosting component brings tangible improvements:
1. More stable cutting pressure: Ensures stable pressure during the cutting process, resulting in better cutting results.
2. Better cutting edge quality: Produces smooth and even edges, reducing subsequent processing.
3. Smaller cutting errors: Reduces cutting deviations caused by pressure fluctuations, improving precision.
4. Longer lifespan of high-pressure pipelines and nozzles: Stable pressure reduces impact on other components, extending their lifespan.
5. Lower maintenance costs: A good pressure boosting component is less prone to failure, reducing maintenance frequency and lowering costs.
Especially in high-precision metal processing, stone cutting, and composite material processing, stable high-pressure output is a key factor in ensuring cutting quality.

IV. Application Areas：

This high-pressure boosting component for waterjet cutting has a wide range of applications:
1. Stainless steel, carbon steel, and aluminum alloy processing: Waterjet cutting is a commonly used method in the metal processing industry.
2. Precision cutting of stone and slabs: Waterjet cutting can cut various complex stone patterns.
3. Industrial Glass Processing: Waterjet cutting of glass does not produce cracks, making it ideal for processing high-precision glass.
4. Aerospace Composite Materials: The aerospace industry frequently uses composite materials, and waterjet cutting is an effective method for processing these materials.
5. Automotive Parts Manufacturing: Waterjet cutting can be used to manufacture various automotive parts.
In high-intensity, long-term continuous operation production environments, the stability of the booster assembly is particularly important, ensuring the normal operation of the production line.

V. Maintenance and Usage Recommendations：

To extend the lifespan of the booster assembly, we recommend the following:
1. Regularly replace high-pressure seals: Seals are wear parts; regular replacement prevents leaks.
2. Use clean water: Impurities in the water can wear down the booster assembly, so ensure the water source is clean.
3. Keep hydraulic oil clean: The cleanliness of the hydraulic oil directly affects the operation of the hydraulic system; it should be changed regularly.
4. Regularly inspect check valves and high-pressure connectors: Check these components for damage or loosening.
Proper maintenance not only reduces downtime risks but also significantly improves the overall operating efficiency of the equipment, ultimately saving costs.
In summary, the high-pressure booster unit is the core of a Waterjet Cutting System, and its performance directly affects cutting quality and equipment stability. Through optimized structural design and manufacturing processes, the new generation of booster units has improved in pressure output, durability, and safety, making it a significant driving force for the development of waterjet cutting technology.
