HP Cylinder HT022040/779 New Good Quality BFT Water Jet Parts

Short Description:

HT022040/779
HP Cylinder ,BFT Water Jet Parts
Recommended for: BFT, Maximator, STM
Alternative code (cross code): MJ0040236
Weight: 8.5 kg.
Working pressure: 4137 bar
Material: Stainless steel
Technical documentation: Intensifier

Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump intensifier.
What is the function (what is it used for, what role):
It is used to create high water pressure.

INQUIRY

Details

HP Cylinder HT022040/779 New Good Quality BFT Water Jet Parts

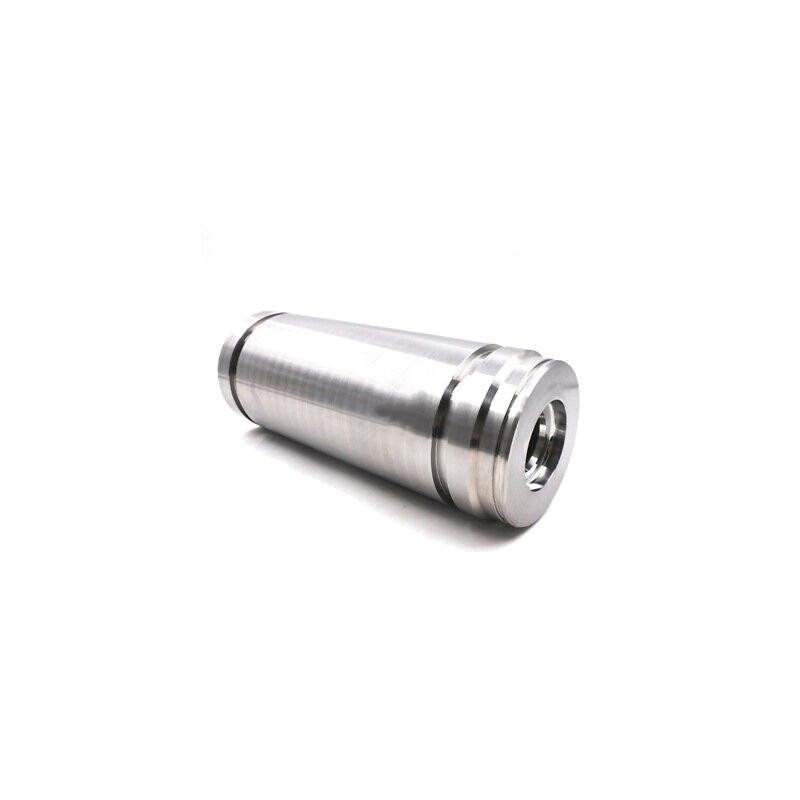

The HT022040/779 is the high-pressure cylinder for BFT/BHDT Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pumps, manufactured from stainless sTeel and featuring precision grooves on both ends for split Retaining Rings and an O-Ring groove near the end Cover to ensure concentric movement of the ceramic Plunger and end cap. It serves as the core pressure boundary in the intensifier assembly and is supplied globally through both OEM and aftermarket channels.

Technical Specifications
Part Number: HT022040/779
Material: Stainless steel
Groove Configuration:
Two Split-Ring Grooves: For retaining rings that clamp the Plunger Assembly
O-Ring Groove: Located near the end cover to center the cylinder and prevent metal-to-metal contact
Typical Weight: ~8 kg
Compatibility: BFT Intensifier Pumps; cross-referenced as CP022009/779 for complete assemblies
