Split Ring CP022022/591 Good Quality BFT Waterjet Parts

Short Description:

CP022022/591
Split Ring,BFT Waterjet Parts
Recommended for: BFT, Maximator, STM
Alternative code (cross code): MJ0040058, 5100131, 5300010, 106563
Weight: 0.06 kg.
Working pressure: 4137 bar

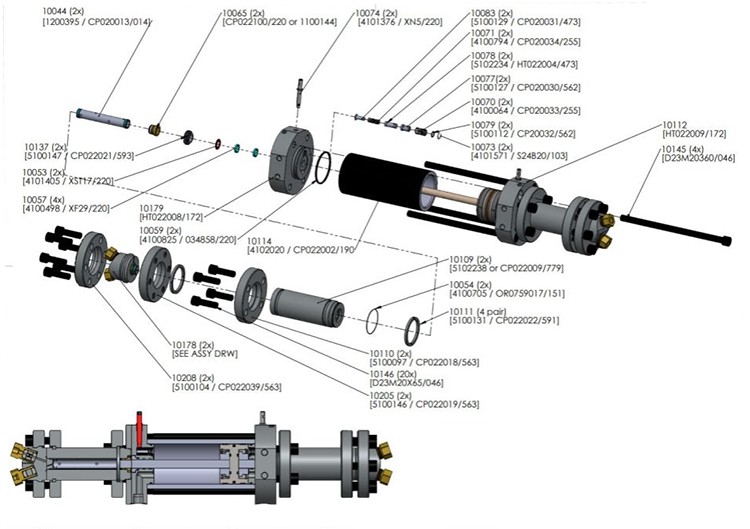

Technical documentation: High-pressure cylinder

Where is it located (in which unit, in which part of the equipment):
High-pressure intensifier element.
What is the function (what is it for, what role):
Serves to fix the high-pressure cylinder.

INQUIRY

Details

Split Ring CP022022/591 Good Quality BFT Waterjet Parts

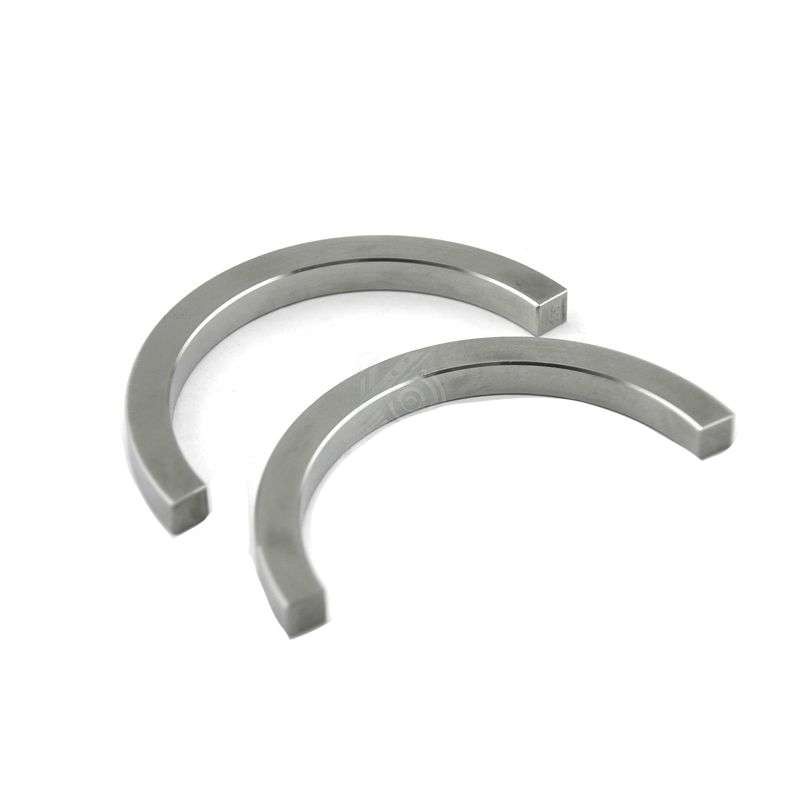

The CP022022/591 is a pair of split rings (Retaining Rings) used to axially secure components in the high-pressure cylinder assemblies of BFT Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pumps. Each set weighs 0.13 kg, is installed in grooves on either side of the cylinder end to clamp and fix internal parts under pressure.

Technical Specifications
Part Number: CP022022/591
Alternate BFT Code: 5100131
STM Cross-Reference: HD400141
Other Reference: 5300010
Net Weight (pair): 0.13 kg
Configuration: Split ring, two units per set
