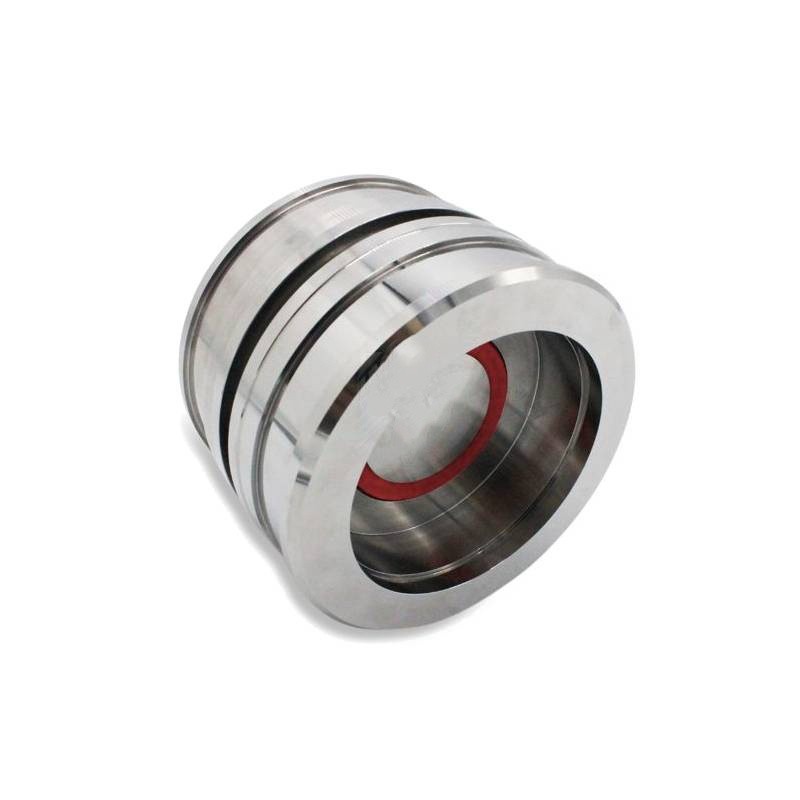

Piston Body CP022031/069 BFT Waterjet Parts Supplier

Short Description:

CP022031/069
Piston Body,BFT Waterjet Parts
Recommended for: BFT, BHDT, Maximator, STM
Alternative code (cross code): MJ0040059, 5102275, 106662
Weight: 2.9 kg.
Working pressure: 4137 bar
Material: Stainless steel, plastic

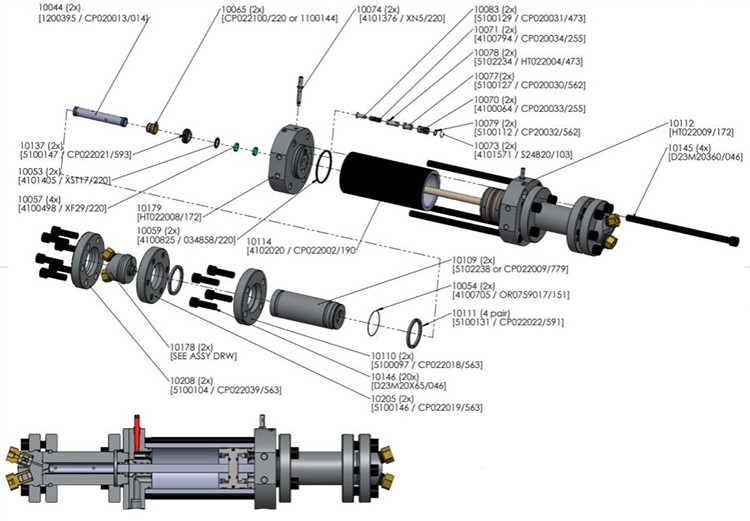

Technical documentation: Intensifier

Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump intensifier.
What is the function (what is it for, what role):
It is used to create low (hydraulic) pressure.

INQUIRY

Details

Piston Body CP022031/069 BFT Waterjet Parts Supplier

The CP022031/069 is the OEM piston for BFT high-pressure waterjet Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pumps, cross-listed under part number 5102275 and also referenced as CP-224-0003 (internal ref. 106662), and is packaged with two axial groove rings for secure retention in the pump cylinder.

Technical Specifications
Material:High-grade machined metal alloy
Net Weight:2,860 g (±50 g)
Included Accessories:2 × Axial groove ring (10005)
Operating Environment:Up to 4,137 bar, 0–80 °C
Packaging:Carton or wooden box; gross weight ~3 kg

If you are need other BFT Waterjet Parts,please contact us!
