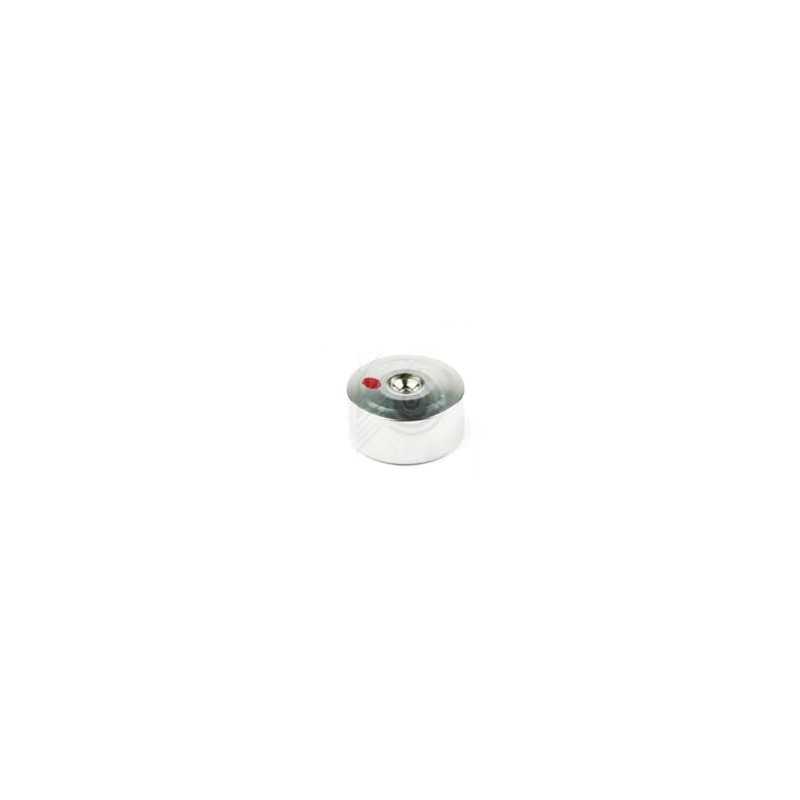

The part 1-12749-014 is a precision-ground 0.014 inch (0.35 mm) diamond Orifice designed for ultra-fine abrasive waterjet cutting at pressures up to 60 000 psi (4 100 bar). Manufactured to OEM specifications, it features a ±0.0002 inch diameter tolerance for consistent kerf control and must be used in conjunction with a thimble-style debris filter (e.g., part 1-12401) to prevent premature wear and maintain warranty Coverage.
Specifications
Part Number:1-12749-014
Orifice Size:0.014 in. (0.35 mm)
Diameter Tolerance:± 0.0002 in. (± 0.005 mm)
Material:Synthetic diamond embedded in hardened stainless-sTeel body
Pressure Rating:Up to 60 000 psi (4 100 bar)
Filter Requirement:Use thimble-style debris filter (part 1-12401) or warranty is void
Weight:Negligible (< 1 g)
Installation & Maintenance
Install Filter First: Always fit a 0.14 mm (0.0055 in.) thimble-style debris filter (e.g., part 1-12401) upstream of the orifice to capture abrasive particles and protect the diamond tip
Depressurize System: Fully relieve hydraulic and abrasive supplies before servicing.
Remove Old Orifice: Use the proper retaining nut or Collet-1-12276-Abrasive-Waterjet-Parts-With-Good-Quality-Supplier-p.html target='_blank'>Collet tool to extract the worn orifice.
Clean the Seat: Wipe the orifice seat clean of debris; inspect for wear or corrosion.
Press In New Orifice: Gently press the 1-12749-014 into the seat until fully seated—avoid excessive force.
Leak Test: Reassemble the head, bring the system to low pressure to check for leaks, then ramp to full operating pressure while monitoring jet quality.
Specifications
Part Number:1-12749-014
Orifice Size:0.014 in. (0.35 mm)
Diameter Tolerance:± 0.0002 in. (± 0.005 mm)
Material:Synthetic diamond embedded in hardened stainless-sTeel body
Pressure Rating:Up to 60 000 psi (4 100 bar)
Filter Requirement:Use thimble-style debris filter (part 1-12401) or warranty is void
Weight:Negligible (< 1 g)
Installation & Maintenance
Install Filter First: Always fit a 0.14 mm (0.0055 in.) thimble-style debris filter (e.g., part 1-12401) upstream of the orifice to capture abrasive particles and protect the diamond tip
Depressurize System: Fully relieve hydraulic and abrasive supplies before servicing.
Remove Old Orifice: Use the proper retaining nut or Collet-1-12276-Abrasive-Waterjet-Parts-With-Good-Quality-Supplier-p.html target='_blank'>Collet tool to extract the worn orifice.
Clean the Seat: Wipe the orifice seat clean of debris; inspect for wear or corrosion.
Press In New Orifice: Gently press the 1-12749-014 into the seat until fully seated—avoid excessive force.
Leak Test: Reassemble the head, bring the system to low pressure to check for leaks, then ramp to full operating pressure while monitoring jet quality.
