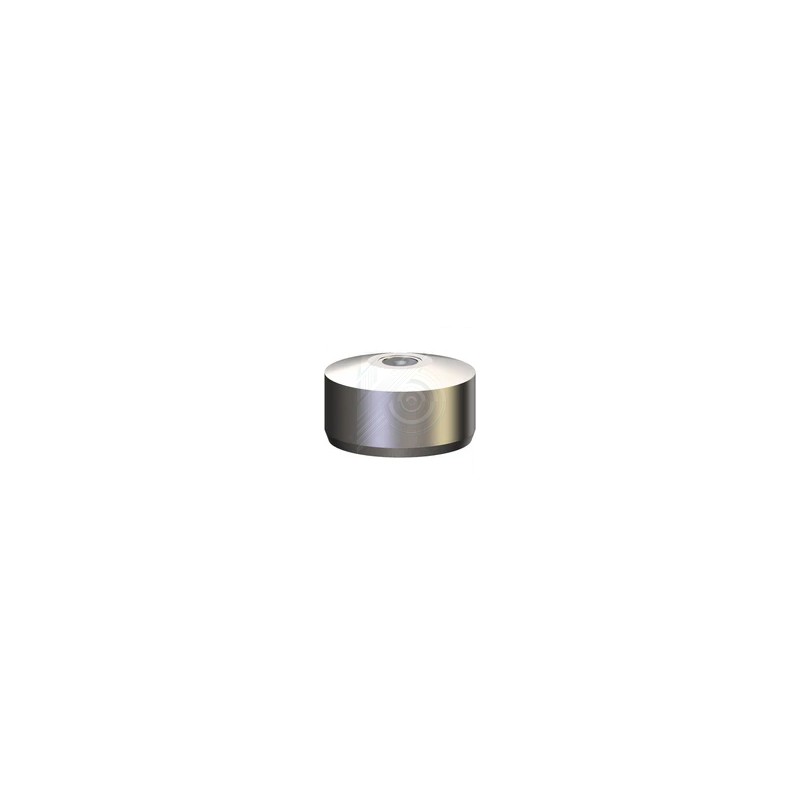

Diamond 12749-013 Techni Waterjet Parts In Stock
Diamond 12749-013 Techni Waterjet Parts In Stock
Specifications
Diameter Tolerance:± 0.0002 in. (± 0.005 mm)
Material:Synthetic diamond embedded in hardened stainless steel
Pressure Rating:Up to 60 000 psi (4 100 bar)
Service Life:Extended under proper filtration and abrasive quality
Installation & Maintenance
Install Filter First: Fit a 0.14 mm (0.0055 in.) thimble debris filter (part 1-12401) upstream to protect the diamond orifice
Depressurize System: Fully relieve hydraulic and abrasive pressures.
Remove Old Orifice: Extract the existing orifice using the appropriate collet or retaining nut tool.
Clean Seat: Wipe the orifice seat free of debris and inspect for damage.
Press In New Orifice: Gently press the 12749-013 into place until fully seated—do not overtighten.
Leak Test: Reassemble the head, bring to low pressure to check for leaks, then ramp to full operating pressure and verify jet quality.
Part Number
Size
1-12749-003
0.003 inch
1-12749-004
0.004 inch
1-12749-005
0.005 inch
1-12749-006
0.006 inch
1-12749-007
0.007 inch
1-12749-008
0.008 inch
1-12749-009
0.009 inch
1-12749-010
0.010 inch
1-12749-011
0.011 inch
1-12749-012
0.012 inch
1-12749-013
0.013 inch
1-12749-014
0.014 inch
1-12749-015
0.015 inch
1-12749-016
0.016 inch
1-12749-017
0.017 inch
1-12749-018
0.018 inch
1-12749-019
0.019 inch
1-12749-020
0.020 inch
Diameter Tolerance:± 0.0002 in. (± 0.005 mm)
Material:Synthetic diamond embedded in hardened stainless steel
Pressure Rating:Up to 60 000 psi (4 100 bar)
Service Life:Extended under proper filtration and abrasive quality
Installation & Maintenance
Install Filter First: Fit a 0.14 mm (0.0055 in.) thimble debris filter (part 1-12401) upstream to protect the diamond orifice
Depressurize System: Fully relieve hydraulic and abrasive pressures.
Remove Old Orifice: Extract the existing orifice using the appropriate collet or retaining nut tool.
Clean Seat: Wipe the orifice seat free of debris and inspect for damage.
Press In New Orifice: Gently press the 12749-013 into place until fully seated—do not overtighten.
Leak Test: Reassemble the head, bring to low pressure to check for leaks, then ramp to full operating pressure and verify jet quality.
Part Number | Size |
1-12749-003 | 0.003 inch |
1-12749-004 |
0.004 inch |
1-12749-005 |
0.005 inch |
1-12749-006 |
0.006 inch |
1-12749-007 |
0.007 inch |
1-12749-008 |
0.008 inch |
1-12749-009 |
0.009 inch |
1-12749-010 |
0.010 inch |
1-12749-011 |
0.011 inch |
1-12749-012 |
0.012 inch |
1-12749-013 |
0.013 inch |
1-12749-014 |
0.014 inch |
1-12749-015 |
0.015 inch |
1-12749-016 |
0.016 inch |
1-12749-017 |
0.017 inch |
1-12749-018 |
0.018 inch |
1-12749-019 |
0.019 inch |
1-12749-020 |
0.020 inch |
