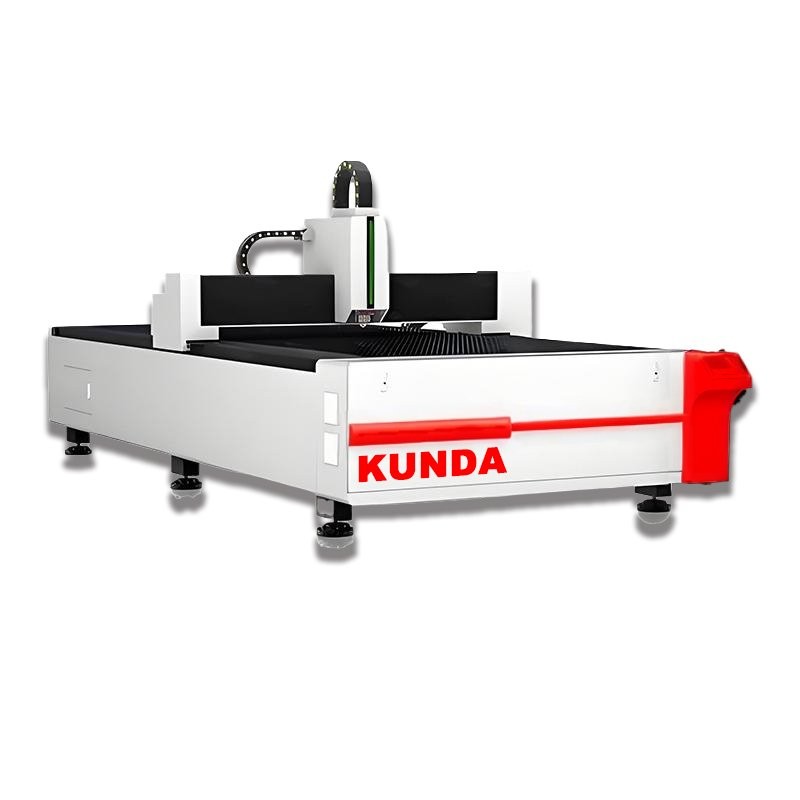

Co2 Laser Machine Home Laser Cutter Plasma Laser Cutting Machine
Co2 Laser Machine Home Laser Cutter Plasma Laser Cutting Machine
Co2 Laser Machine is a state-of-the-art solution designed for precision, efficiency, and reliability in metal fabrication. Powered by advanced fiber laser technology, this machine offers unmatched cutting speed and accuracy, making it ideal for a wide range of industries, including automotive, aerospace, electronics, and metalworking.
Model
KD-1530
Working Size
1500*3000MM
X-axis travel
1500MM
Y-axis travel
3000MM
Z-axis travel
120MM
Power
3000W
X, Y axis positioning accuracy
±0.03mm
X, Y axis repeat positioning accuracy
±0.03mm
Maximum moving speed
120m/min
Maximum cutting speed
60m/min
Maximum acceleration
1.0G
Total Power
25KW
Laser wavelength
1064nm
Cutting speed
Depends on the material
Auxiliary gas
Air, oxygen, nitrogen
Cooling method
Industrial circulating cooling water
Aiming and positioning
Red light
Working hours
24H
Machine weight
3000KG
Operating temperature
0-45℃
Working environment humidity
10%-85%





The Co2 Laser Machine generates a high-power density laser beam through a laser, which is focused and irradiated on the surface of the material, causing the material to melt, vaporize or reach the ignition point instantly. At the same time, the coaxial high-pressure gas (such as oxygen and nitrogen) blows the molten material away from the cutting area to form a slit. This non-contact processing method avoids deformation caused by mechanical stress, and the cutting accuracy can reach ±0.02mm. The relative movement of the beam and the material is controlled by the CNC system, and any plane figure can be cut.
Working principle
The Co2 Laser Machine generates a high-power density laser beam through a laser, which is focused and irradiated on the surface of the material, causing the material to melt, vaporize or reach the ignition point instantly. At the same time, the coaxial high-pressure gas (such as oxygen and nitrogen) blows the molten material away from the cutting area to form a slit. This non-contact processing method avoids deformation caused by mechanical stress, and the cutting accuracy can reach ±0.02mm. The relative movement of the beam and the material is controlled by the CNC system, and any plane figure can be cut.
Core advantages

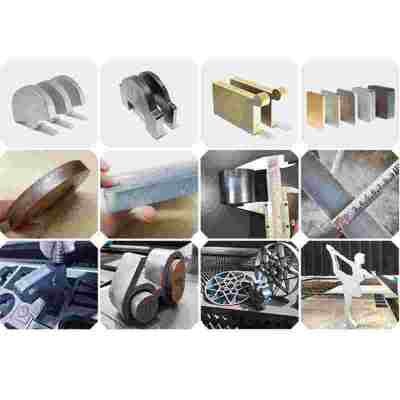

High precision and quality: The Co2 Laser Machine cutting width is only 0.1–0.3mm, the incision is smooth and burr-free, and no secondary processing is required.
High efficiency: The Co2 Laser Machine speed is much faster than traditional processes (such as flame/plasma cutting), and the thin plate cutting speed reaches several meters per minute.
Flexibility: Supports any graphic design, CNC programming realizes automatic typesetting, and saves materials.
Environmental protection and energy saving: No tool loss, energy consumption is lower than traditional mechanical cutting, and dust pollution is reduced.
