Industrial Cnc Waterjet Cutting Machine for Laminated Glass and Large Format Cutting

Product Introduction

The Industrial CNC Waterjet Cutting Machine is a large-format water jet cutting solution specially designed for laminated glass processing and industrial precision cutting applications. Using ultra-high pressure water cutting technology, this machine efficiently processes laminated glass, architectural glass, metal, ceramics, stone, composite materials, rubber, plastics, and foam while maintaining smooth cutting edges and excellent dimensional accuracy. The large working table, stable CNC control system, and durable industrial structure make this Large Water Jet Cutting Machine suitable for continuous industrial production and oversized material processing requirements.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

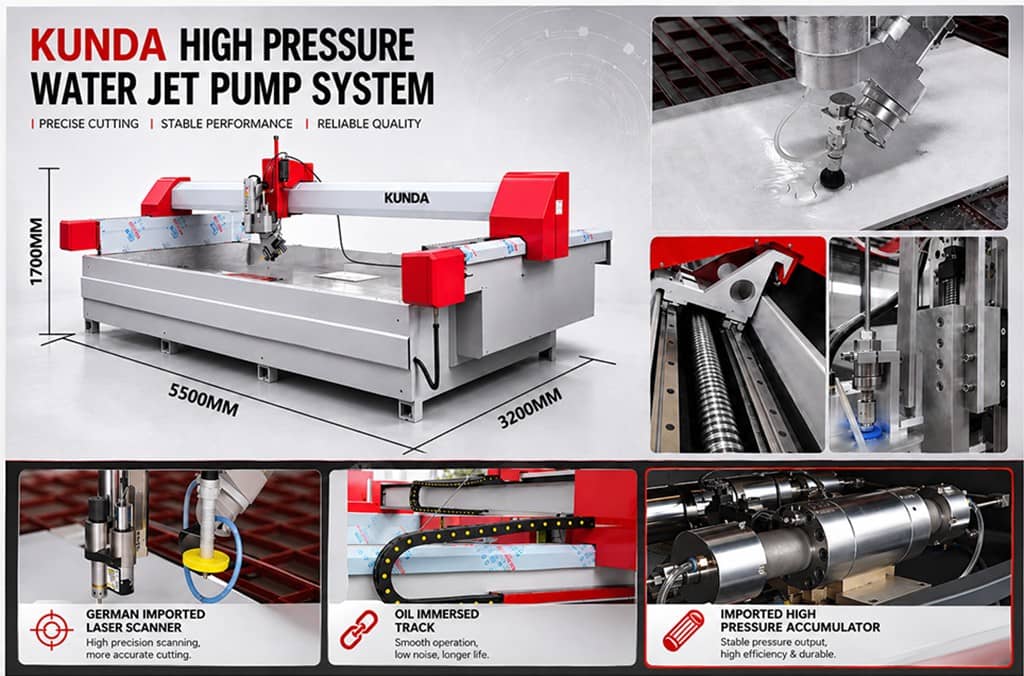

Large Format Industrial Waterjet Cutting Capability

This large water jet cutting machine is designed for processing oversized materials and industrial production applications requiring a large working area and stable cutting performance. The heavy-duty machine structure and large-format cutting table allow manufacturers to process large laminated glass sheets, metal plates, stone slabs, and customized industrial products with high efficiency.

Professional Laminated Glass Cutting Solution

The Industrial Water Jet cutting machine is specially designed for laminated glass processing applications requiring smooth cutting quality and minimal material damage. Waterjet cutting technology does not generate heat during operation, helping avoid cracking, edge chipping, thermal deformation, or internal stress damage on laminated glass materials.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

High Precision CNC Control System

This CNC waterjet cutting machine adopts advanced CNC motion control technology to achieve accurate and efficient cutting performance on various industrial materials. The precision motion system allows the machine to perform straight cutting, curve cutting, hole processing, and complex contour cutting while maintaining high dimensional accuracy and smooth cutting surfaces.

Durable Industrial Structure and Stable Operation

The Industrial Water Jet Cutting Machine is manufactured with a heavy-duty industrial frame, stable guide rail systems, and reliable hydraulic components to ensure long-term stable operation under demanding industrial conditions. High-quality servo motors, precision motion systems, and durable cutting components help reduce vibration during operation while improving machine reliability and cutting precision.

Optional Automation and Intelligent Upgrade Systems

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized intelligent CNC systems, and automated production solutions according to different industrial applications. These optional upgrade systems help improve cutting precision, reduce labor costs, and increase overall production efficiency.

Wide Industrial Applications

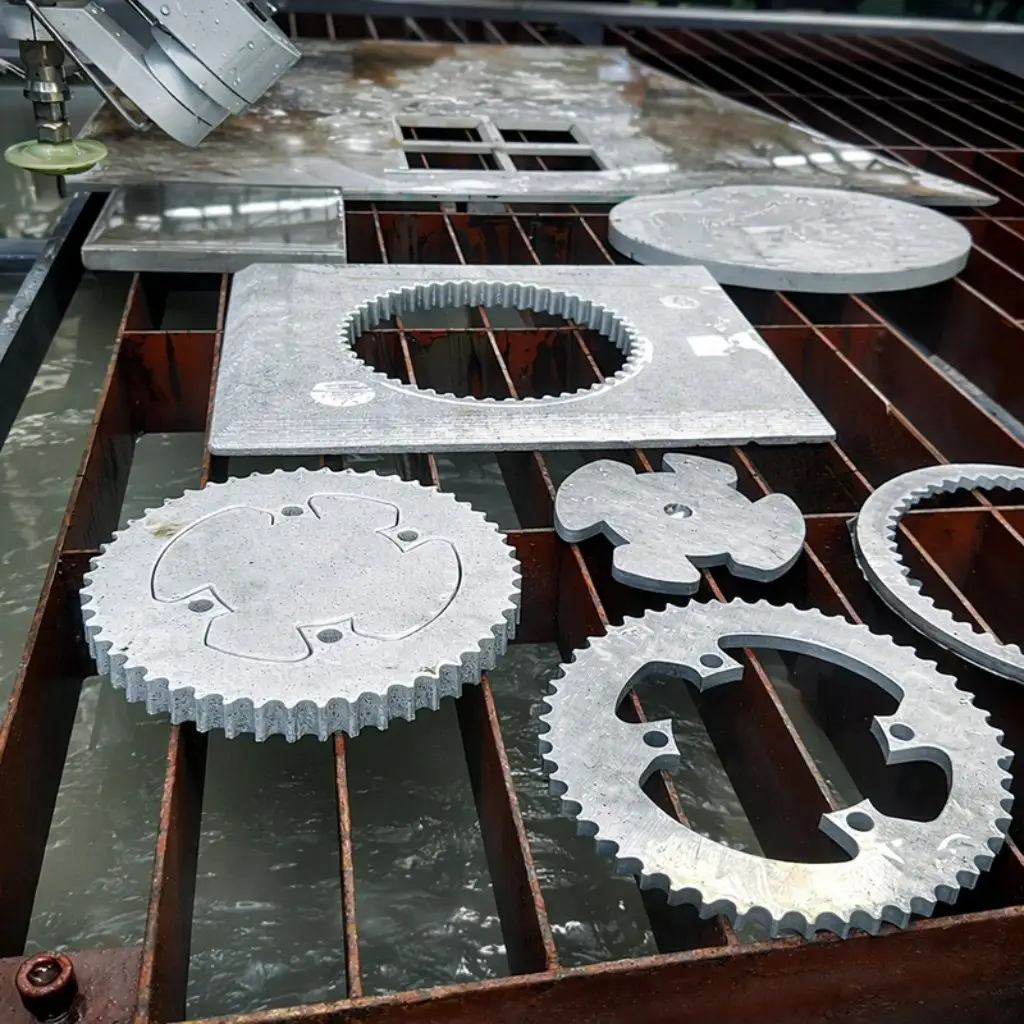

This CNC waterjet cutting machine is widely used in laminated glass processing, architectural glass manufacturing, metal fabrication, stone processing, ceramic cutting, automotive industries, aerospace production, machinery manufacturing, architectural decoration, and industrial custom fabrication industries.

Why Choose KUNDA Waterjet Cutting Solutions

KUNDA provides professional waterjet cutting solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable CNC waterjet cutting machines, laminated glass cutting solutions, or customized industrial waterjet systems, please feel free to contact KUNDA for more information and professional support.
