Gantry Abrasive Waterjet Equipment for Granite, Foam, and Industrial CNC Cutting

Product Introduction

The Gantry Abrasive Waterjet Equipment is a high-precision Cnc Water Jet Cutting Machine designed for processing granite, foam, metal, glass, ceramics, composite materials, and various industrial products. Using ultra-high pressure water combined with abrasive garnet materials, this Gantry Waterjet Cutting Machine achieves smooth, accurate, and efficient cutting performance while protecting the original material structure. The stable gantry structure, advanced CNC control system, and durable industrial-grade components make this abrasive waterjet equipment suitable for continuous industrial production and customized cutting applications.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

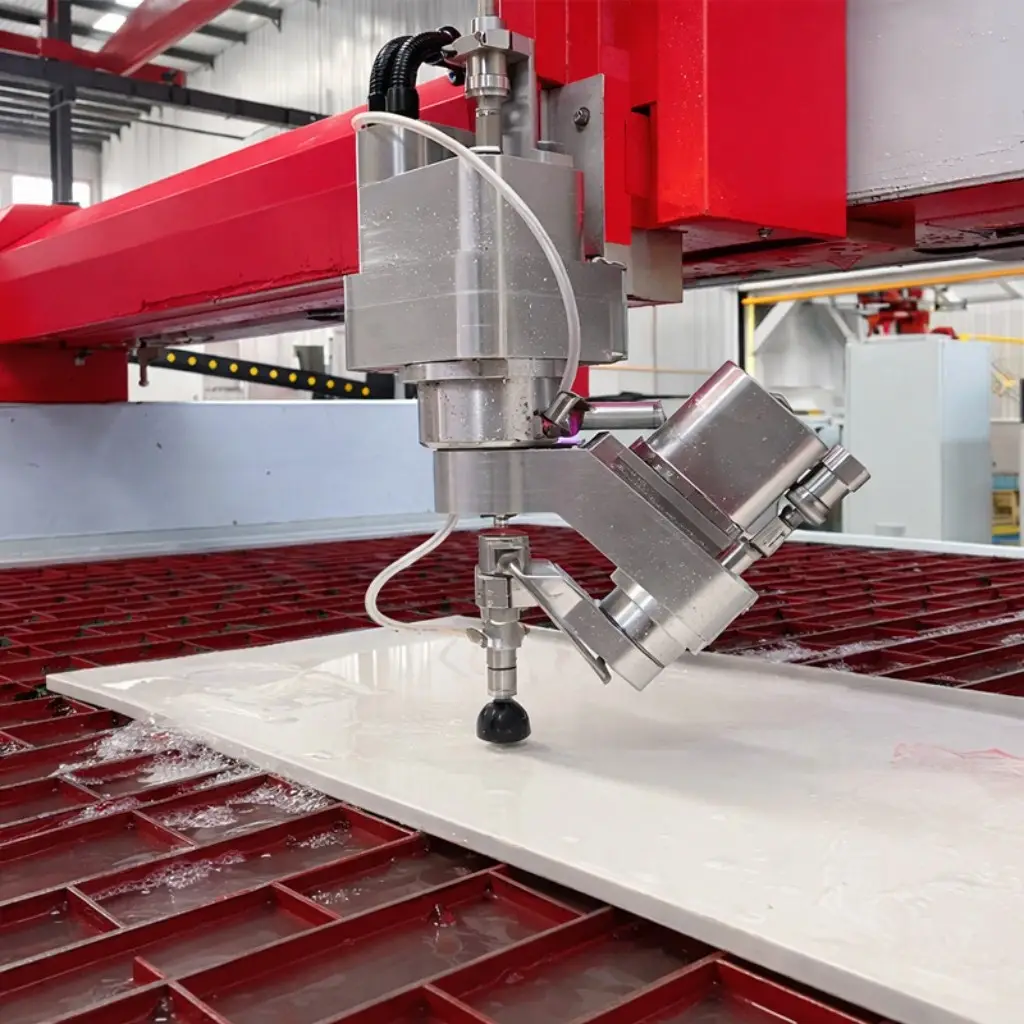

Stable Gantry Structure and High Precision Cutting

This gantry waterjet cutting machine adopts a heavy-duty gantry structure to provide excellent machine stability and cutting precision during operation. The stable bridge frame and precision guide rail system help reduce vibration during high-speed movement while improving cutting accuracy and machine reliability.

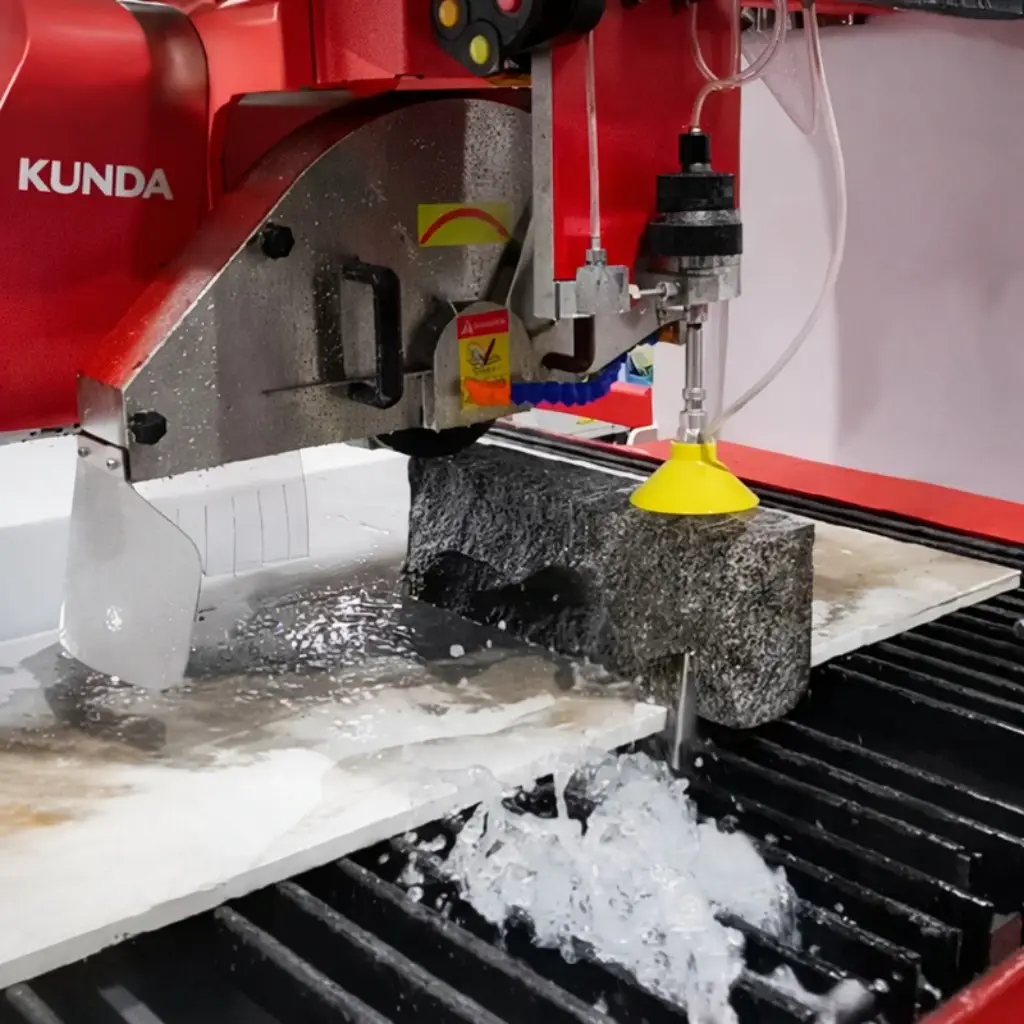

Professional Granite Cutting Performance

The granite water jet cutting machine is specially designed for stone fabrication and architectural decoration applications requiring high cutting quality and precise processing capability. The ultra-high pressure abrasive water flow efficiently processes granite, marble, quartz stone, ceramic tiles, and other hard materials while minimizing edge chipping and material waste.

Efficient Foam and Soft Material Cutting

This abrasive waterjet equipment can also process foam, rubber, insulation materials, plastics, gasket materials, and soft composite products with high precision. The accurate cutting capability allows manufacturers to achieve clean cutting edges and customized shape processing without causing material deformation or burning.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

Durable Industrial Structure and Reliable Operation

The Abrasive Waterjet Cutting Machine is manufactured with industrial-grade components and a robust machine structure to ensure stable long-term operation under demanding industrial environments. High-quality servo motors, hydraulic systems, guide rails, and cutting components help improve machine lifespan while reducing maintenance frequency during continuous production.

Optional Automation and Intelligent Upgrade Systems

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized automation systems, and intelligent CNC solutions according to different industrial applications. These optional upgrade systems help improve cutting precision, reduce labor costs, and increase overall production efficiency.

Wide Industrial Applications

This gantry abrasive waterjet cutting machine is widely used in granite processing, stone fabrication, foam cutting, glass manufacturing, metal processing, ceramic production, architectural decoration, machinery manufacturing, automotive industries, aerospace production, and industrial custom fabrication industries.

Why Choose KUNDA Waterjet Equipment

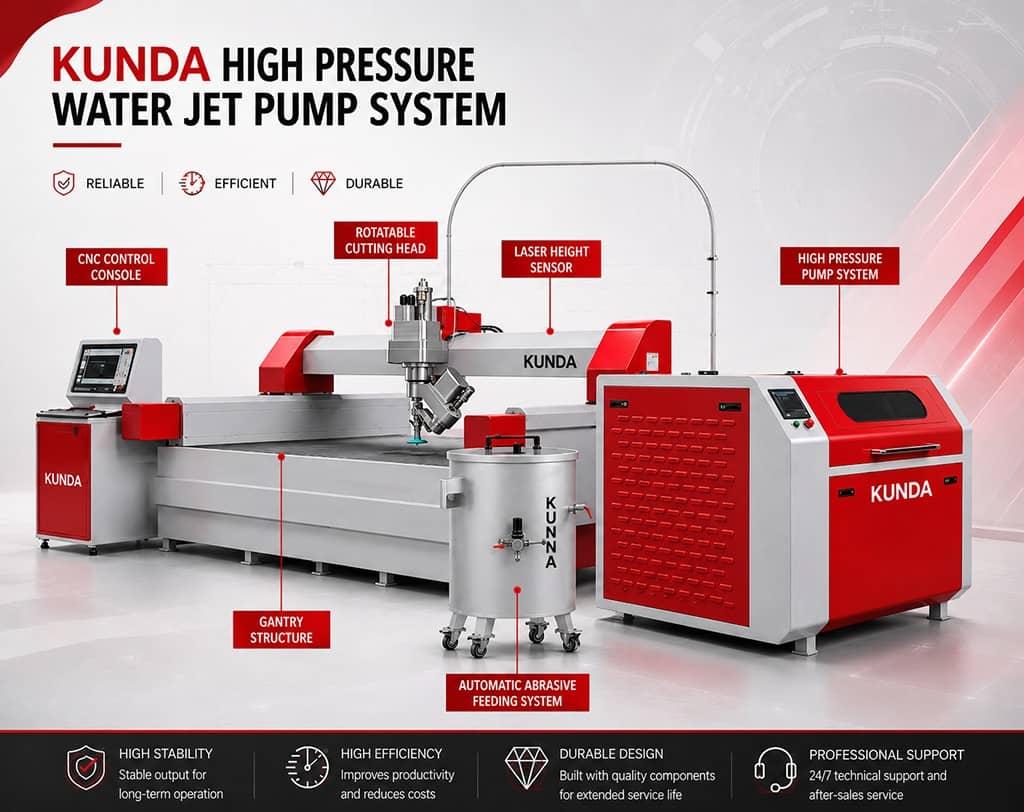

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply abrasive waterjet cutting machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.
