Abrasive Nozzle Assembly Single Port 20477959010 Waterjet Pump Replacement Parts

Short Description:

Diamond size: 0,25 mm ( 0,010" )
Article number: 10990
Net Weight: 421 g
Alternative code (cross code): AB20477950010
Weight: 0.36 kg.
Working pressure: 6,500 bar.
Material: Steel, artificial diamond

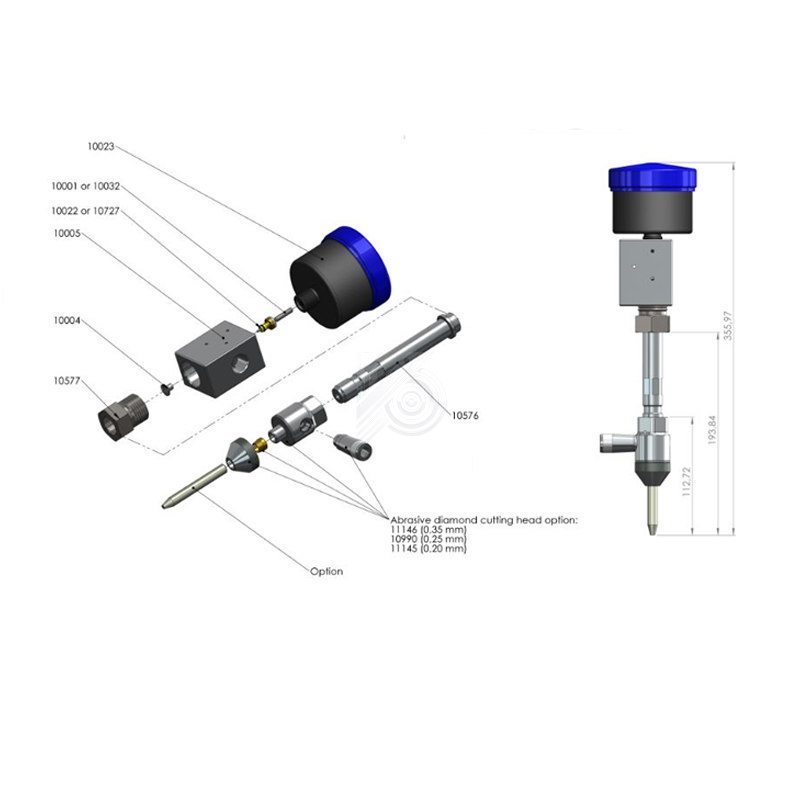

Technical documentation: Mixing chamber
Where is it located:
Element of the cutting head.
What is its function:
Serves to form a stream of water and mix it with garnet abrasive.

INQUIRY

Details

Abrasive Nozzle Assembly Single Port 20477959010 Waterjet-Pump-5-Axis-Waterjet-Cutting-Machine-For-Carbon-Fiber-p.html target='_blank'>Waterjet Pump Replacement Parts

The part 20477959010 is an IDE II abrasive diamond cutting head assembly designed for 60 000 psi (4 100 bar) waterjet systems, featuring a 0.010 in. (0.25 mm) premium diamond orifice without an integrated Short-Stop filter element. It uses ¾″-16 UNF left-hand threads, making it fully compatible with KMT Intensifier Pumps and IDE II-style cutting heads.

Specifications
Mixing Chamber Style:IDE II single-port diamond orifice assembly
Orifice Material:Premium, embedded diamond for precise jet alignment
Orifice Size:0.010″ (0.25 mm)
Filter Element:None (Short-Stop filter sold separately)
Rated Pressure:60 000 psi (4 100 bar)
Threading:¾″-16 UNF left-hand

If you need other Techni Waterjet Parts,Please contact us!
