The waterjet cutting head is one of the most critical components of a Waterjet Cutting Machine, directly influencing cutting quality, cutting speed, abrasive consumption, and daily operating costs.
During the Waterjet Cutting Process, certain parts of the cutting head are subjected to high-pressure water flow, abrasive impact, and continuous wear, necessitating regular inspection and replacement. These components are commonly referred to as waterjet cutting head wear parts.
Understanding these wear parts helps users minimize downtime, improve cutting quality, and control maintenance costs.

Why Cutting Head Consumables Are Important？

Abrasive waterjet cutting uses high-pressure water and garnet abrasive to cut metal, stone, glass, ceramics, rubber, composites, and other materials.
If cutting head consumables are worn or improperly selected, customers may encounter the following issues:
Poor cut edge quality
Widened kerf
Unstable cutting jet
Increased abrasive consumption
Nozzle clogging
Water leakage
Reduced cutting efficiency
Increased equipment downtime
Timely replacement of worn consumables is a crucial aspect of Waterjet Equipment maintenance.

Main Consumable Parts of a Waterjet Cutting Head

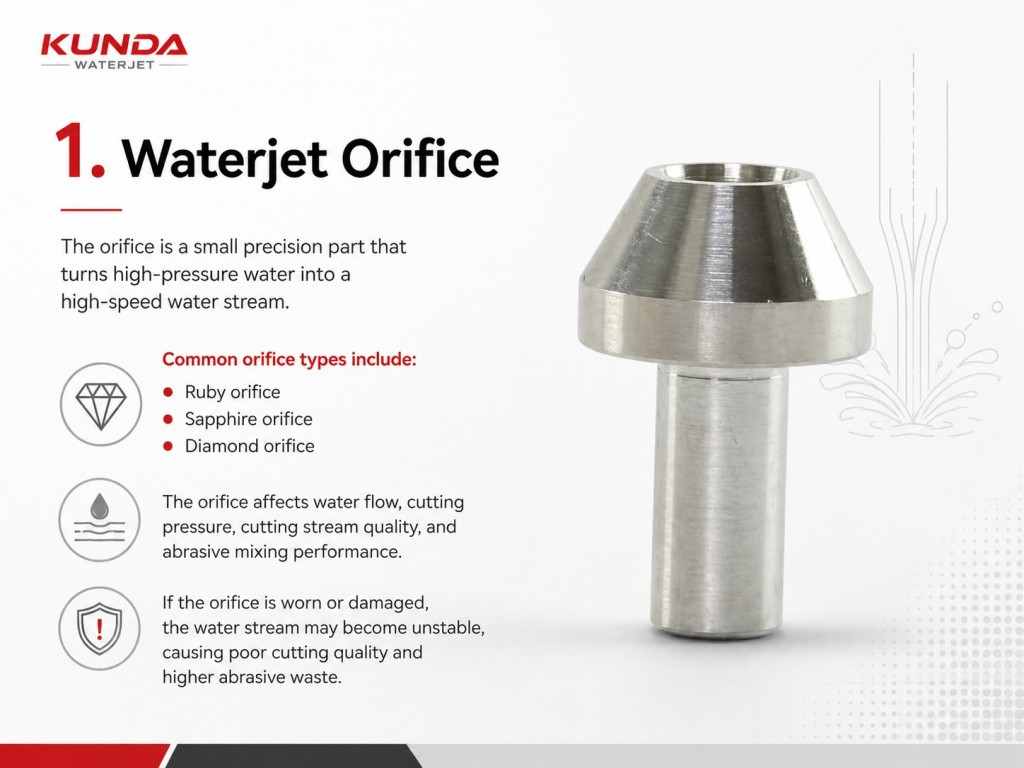

1. Waterjet Nozzle (Ruby/Sapphire/Diamond Nozzle)

The nozzle is a precision component used to convert high-pressure water into a high-speed water jet.
Common nozzle types include:
Ruby nozzles
Sapphire nozzles
Diamond nozzles
The nozzle directly affects the water flow, cutting pressure, jet quality, and abrasive mixing performance.
If the nozzle is worn or damaged, the water jet may become unstable, leading to reduced cutting quality and increased abrasive waste.

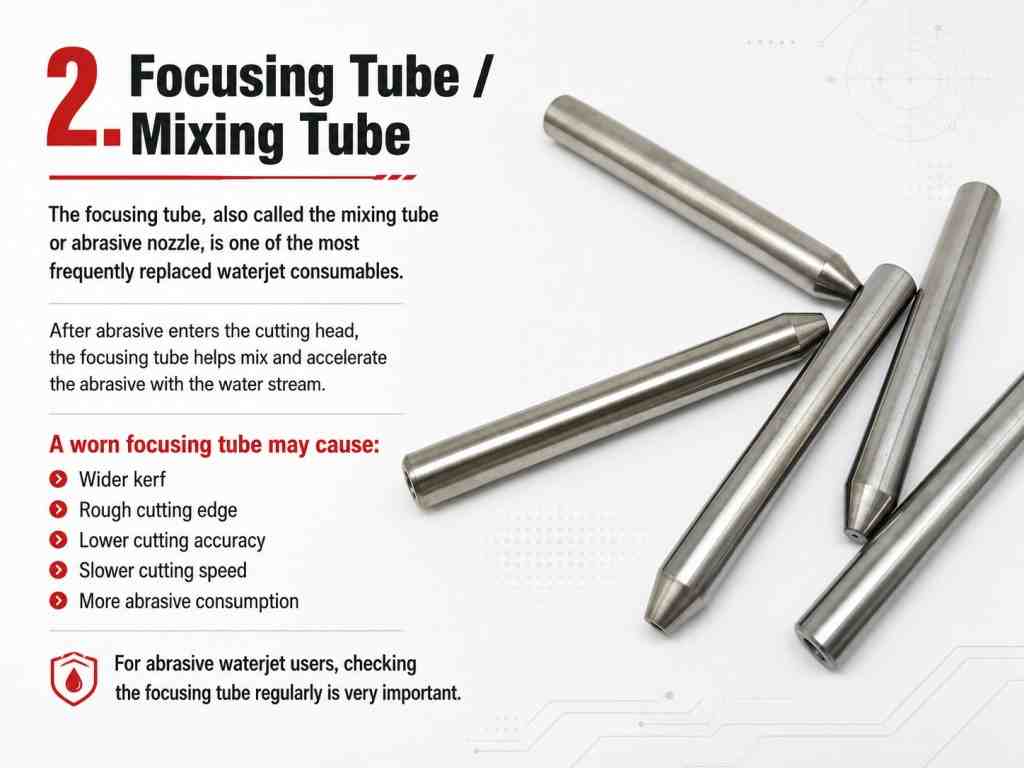

2. Focusing Tube / Mixing Tube

The focusing tube (also known as a mixing tube or Abrasive Nozzle) is one of the most frequently replaced wear parts in waterjet equipment.
After abrasive enters the cutting head, the focusing tube is responsible for mixing the abrasive with the water jet and accelerating the mixture.
Focusing tube wear can lead to:
Wider kerf (cut width)
Rough cut edges
Reduced cutting precision
Slower cutting speeds
Increased abrasive consumption
Regular inspection of the focusing tube is crucial for abrasive waterjet users.

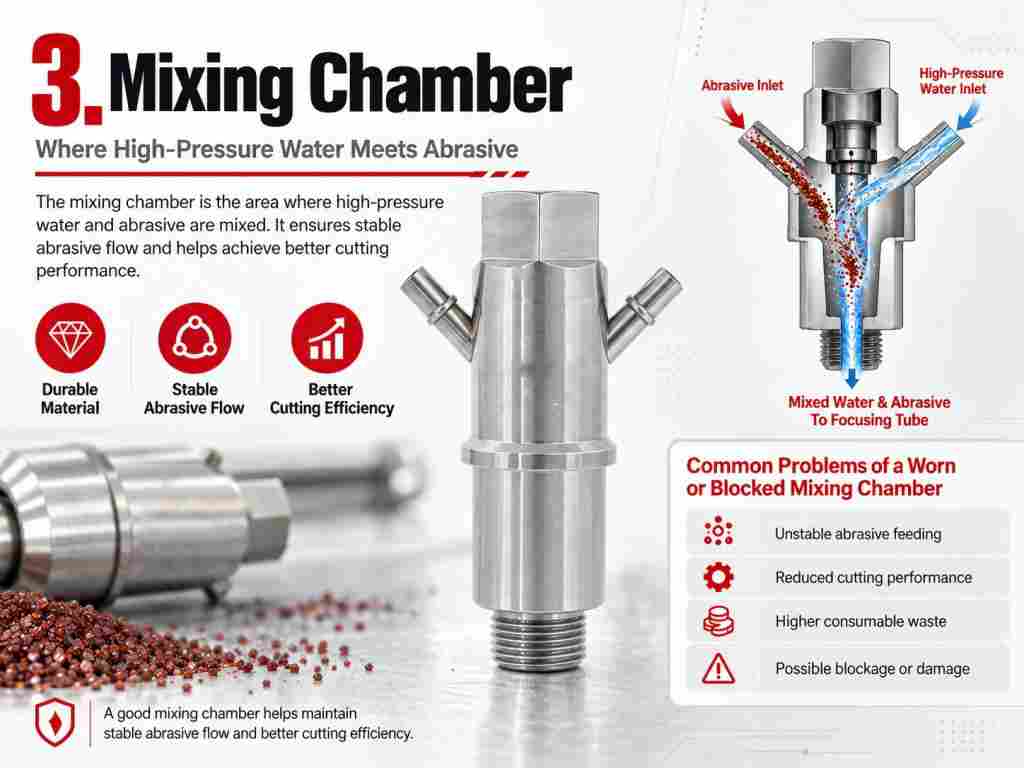

3. Mixing Chamber

The mixing chamber is the area where high-pressure water and abrasive mix.
If the mixing chamber is worn, clogged, or damaged, abrasive delivery may become unstable, affecting cutting performance and increasing consumable waste.
A high-quality mixing chamber helps maintain a stable abrasive flow, thereby improving cutting efficiency.

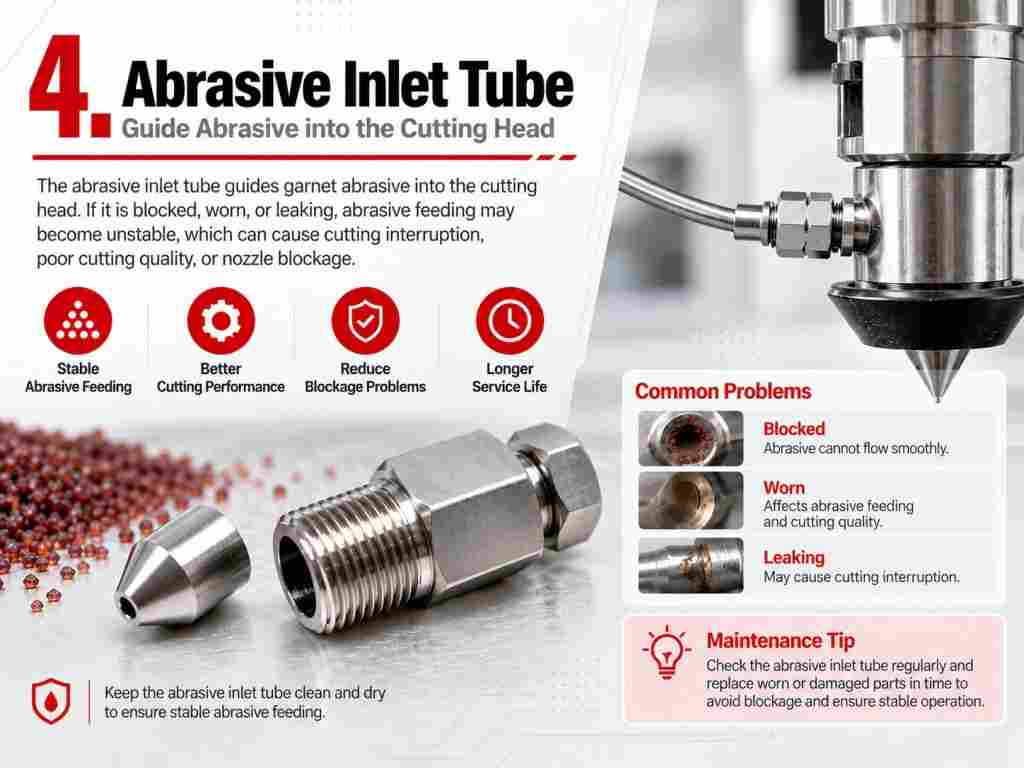

4. Abrasive Feed Tube

The abrasive feed tube guides garnet abrasive into the cutting head.
If the feed tube is clogged, worn, or leaking, abrasive delivery may become unstable, leading to cutting interruptions, reduced cut quality, or nozzle clogs.
Keeping the feed tube clean and dry helps reduce clogging issues.

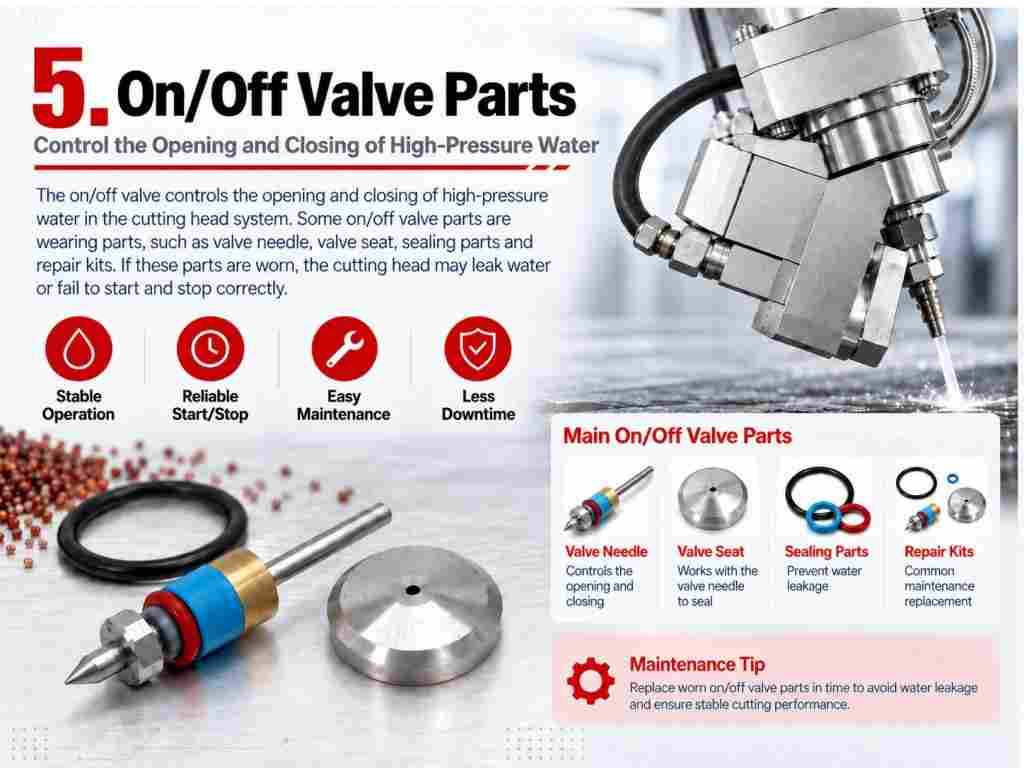

5. On/Off Valve Assembly

The on/off valve controls the flow of high-pressure water to the cutting head system.
Certain components within the on/off valve assembly are also wear parts, such as:
Valve needles
Valve seats
Seals
Repair kits
If these components wear out, the cutting head may leak or fail to start and stop correctly.

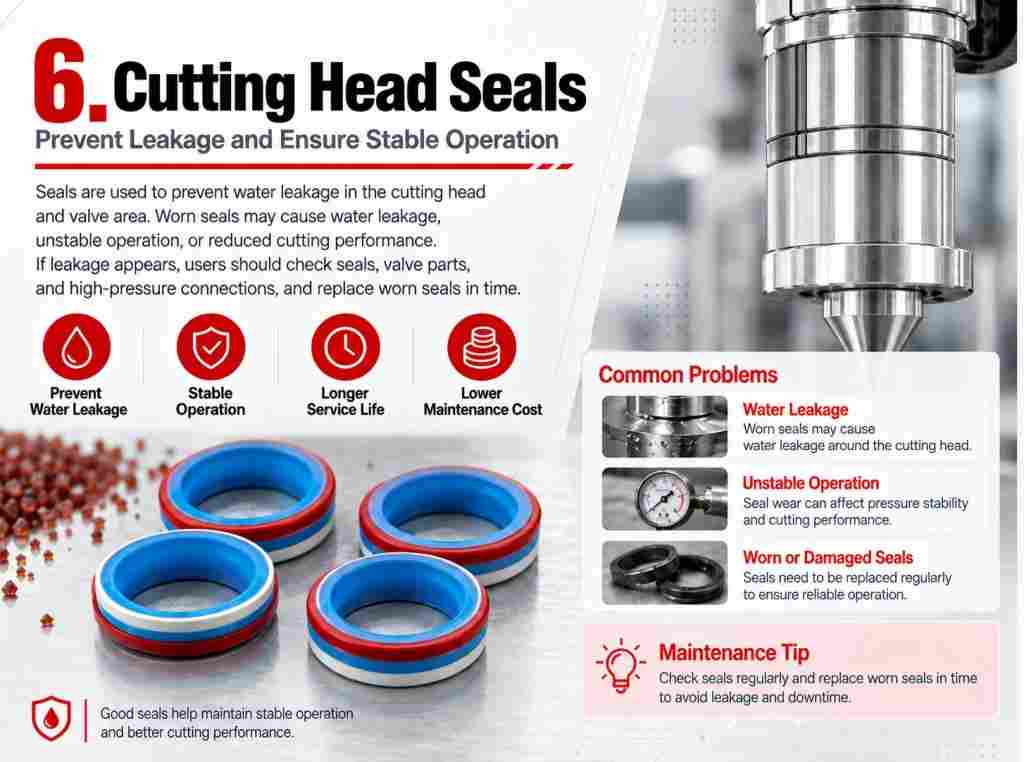

6. Cutting Head Seals

Seals are used to prevent leakage in the cutting head and valve body areas.
Worn seals can lead to water leakage, unstable operation, or reduced cutting performance. If a leak occurs around the cutting head, the user should inspect the seals, valve body assembly, and high-pressure connections.

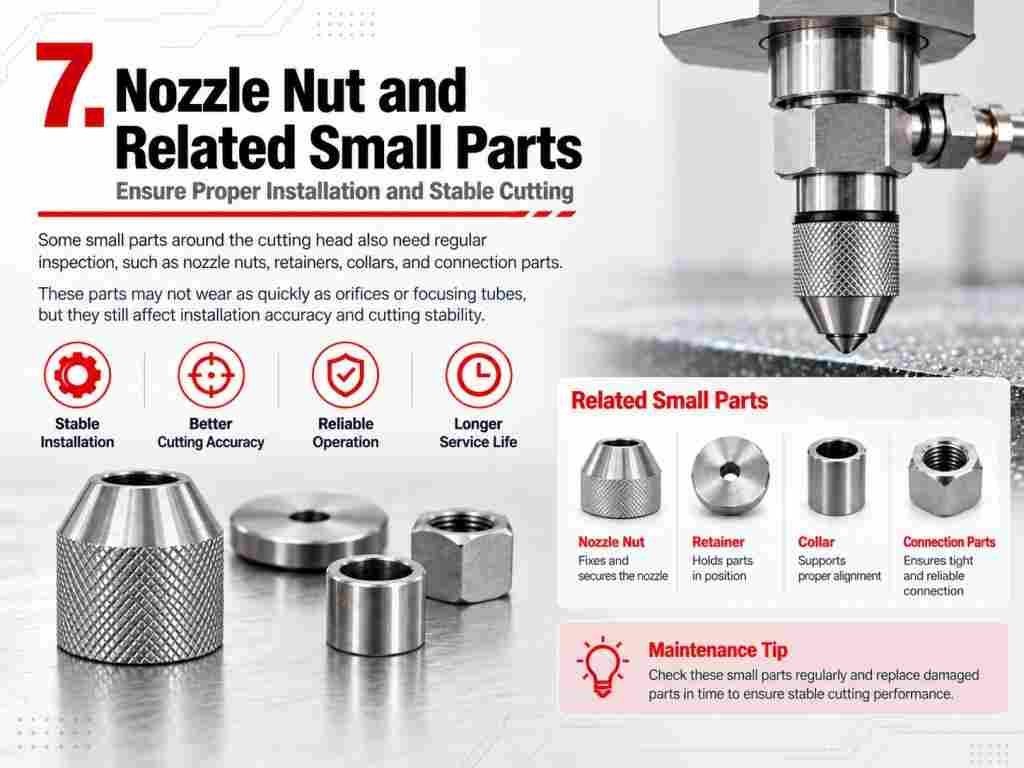

7. Nozzle nut and related small components

Certain small components around the cutting head—such as the nozzle nut, fasteners, collars, and connecting parts—also require regular inspection.
Although these components may not wear out as quickly as the nozzle insert or focusing tube, they can still affect installation precision and cutting stability.
How Often Should Cutting Head Consumables Be Replaced?
There is no fixed replacement schedule for waterjet equipment components. Replacement frequency depends on the following factors:
Operating pressure
Abrasive quality
Material being cut
Cutting duration
Water quality
Nozzle (jewel orifice) size
Focusing tube size
Operational habits
Equipment maintenance status
Users should inspect the cutting head's wear parts if cutting quality deteriorates, the cutting jet becomes unstable, or abrasive consumption increases.

How KUNDA Supports Customers？

KUNDA supplies cutting head components, pump parts, consumables, and compatible replacement parts for a wide range of waterjet systems.
We offer:
Ruby nozzles (jewel orifices)
Sapphire nozzles (jewel orifices)
Diamond nozzles (jewel orifices)
Focusing tubes
Mixing tubes
Mixing chambers
Abrasive feed tubes
On/off valve assemblies
Cutting head seals
Nozzle nuts
Cutting head repair kits
KUNDA also provides compatible parts for major waterjet brands, including FLOW, KMT, OMAX, AccuStream, BFT, WSI, Resato, Techni, and others.
If you are unsure which cutting head parts you need, please provide the following information:
Equipment brand
Cutting head model
Pump model
Part number
Photo of the old part
Operating pressure
Description of cutting issues
KUNDA will assist in identifying the correct parts and provide practical replacement solutions.
Key consumables for waterjet cutting heads include nozzles, focusing tubes, mixing chambers, abrasive feed tubes, on/off valve assemblies, seals, and related small components.
Selecting the right consumables and replacing worn parts promptly helps improve cutting quality, reduce abrasive waste, minimize downtime, and control long-term maintenance costs.
If you need waterjet cutting head consumables or replacement parts, please contact KUNDA with your equipment model, part number, or a photo of the old part, and we will help you find the right solution.

FAQ of Waterjet Cutting Head Part:

1. What are the most common waterjet cutting head consumables?

Nozzles and focusing tubes are the most common consumables. They directly affect the quality of the cutting jet, abrasive mixing efficiency, and overall cutting performance.

2. What are the consequences of focusing tube wear?

Wear on the focusing tube can lead to a wider kerf (cut width), rough cut edges, reduced precision, slower cutting speeds, and increased abrasive consumption.

3. Are nozzles considered consumables?

Yes. Nozzles are precision consumables. Ruby, sapphire, and diamond nozzles vary in terms of service life and cost.

4. Can cutting head parts cause water leaks?

Yes. Wear on seals, on/off valve assemblies, valve seats, or high-pressure connections can cause water leakage around the cutting head.

5. Can KUNDA assist in matching cutting head consumables?

Yes. Customers can provide the machine model, cutting head model, part number, or photos of old parts, and KUNDA will assist in identifying the appropriate replacement parts.
