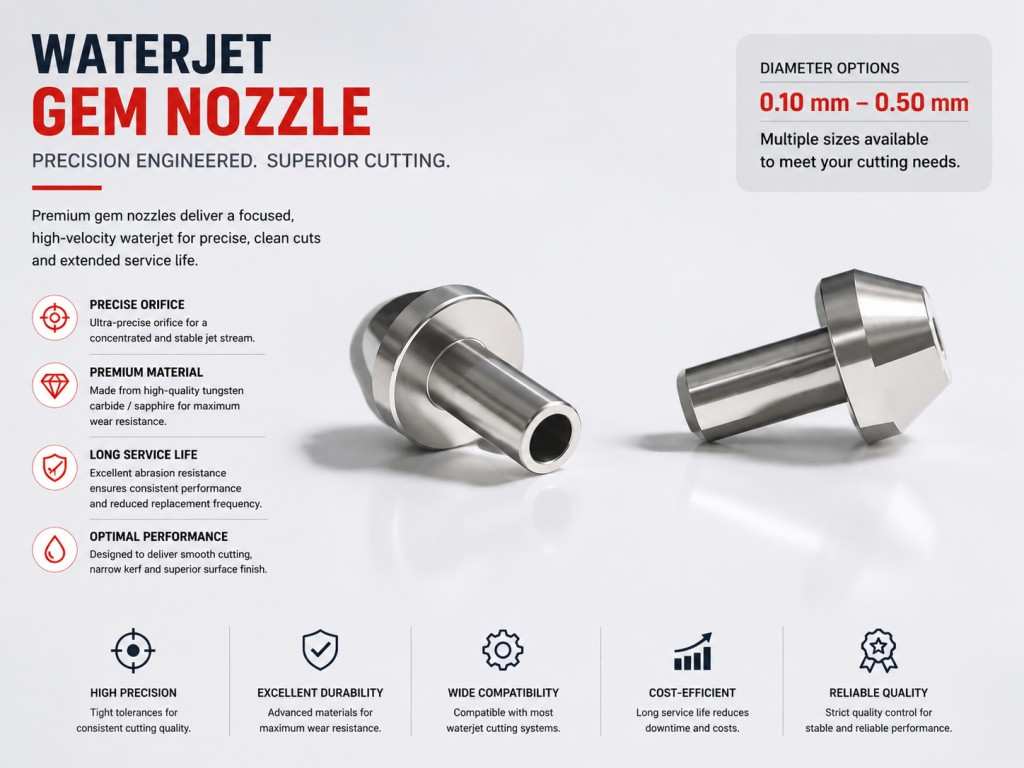

Waterjet Diamond Orifice Hybrid Ceramic Ultra Durable Waterjet Orifice

Short Description:

Waterjet Diamond Orifice
Applicable Water Pressure: 3000-6000 bar
Material: Ruby, Sapphire, and Synthetic Diamond
Aperture:0.10mm/0.18mm/0.25mm/0.30mm/0.35mm(0.004"/0.007"/0.010"/0.012"/0.014")
Lifespan and Durability:
Ruby/Sapphire: Typical lifespan is 40–100 hours.
Synthetic Diamond: Lifespan can exceed 500 hours with stable accuracy.

INQUIRY

Details

Waterjet Diamond Orifice Hybrid Ceramic Ultra Durable Waterjet Orifice

Product Overview

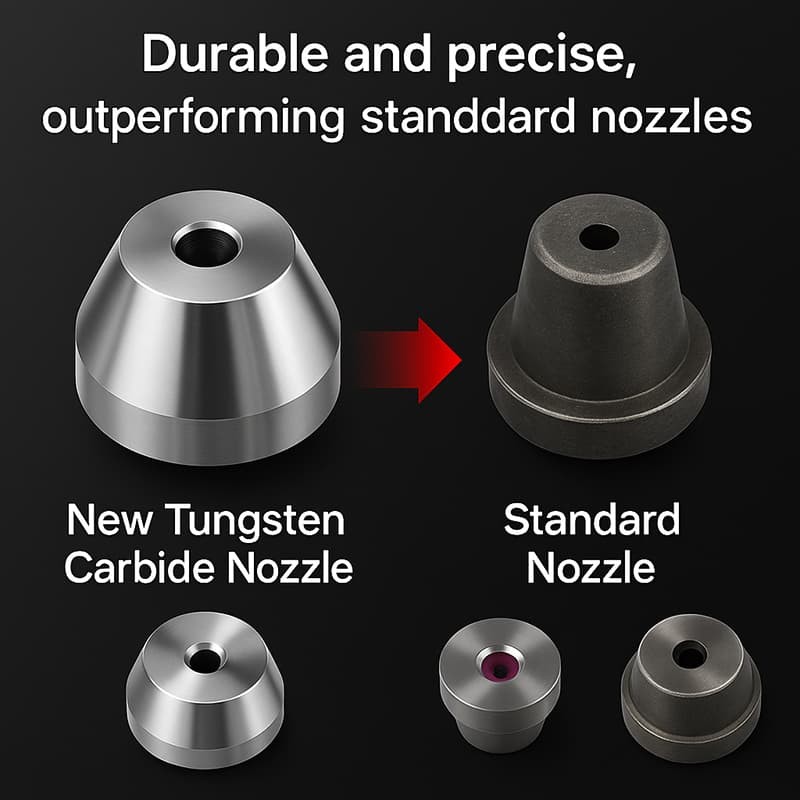

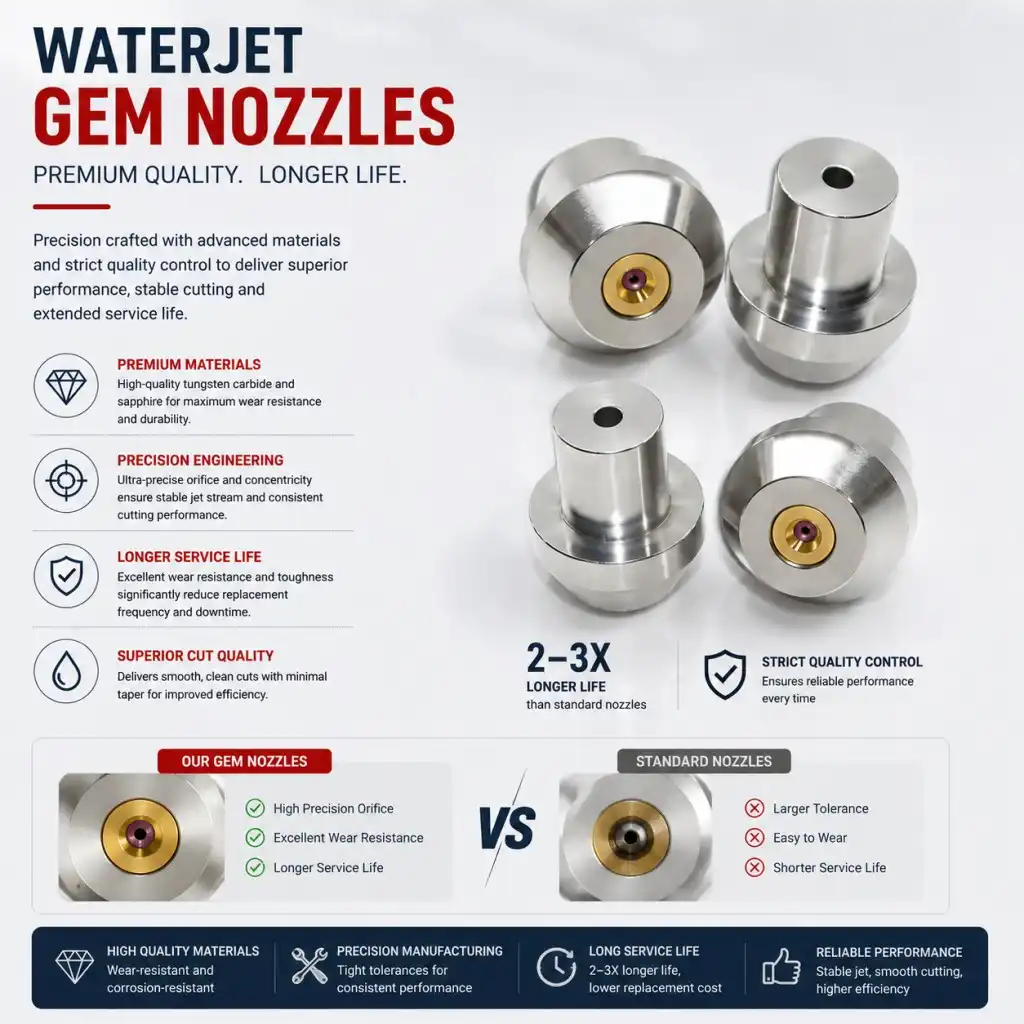

Waterjet Diamond Orifice is used in ultra-high pressure Waterjet Cutting Systems to create a stable and focused water stream. Compared with standard ruby or sapphire orifices, the diamond and hybrid ceramic structure offers better wear resistance and longer service life for continuous cutting work.

This waterjet orifice is suitable for abrasive waterjet cutting and pure waterjet applications. It can help improve cutting stability, reduce stream deviation, and support accurate cutting performance for different industrial materials.

Main Features

Diamond and hybrid ceramic construction
High wear resistance for long service life
Stable high-pressure water flow
Suitable for precision waterjet cutting

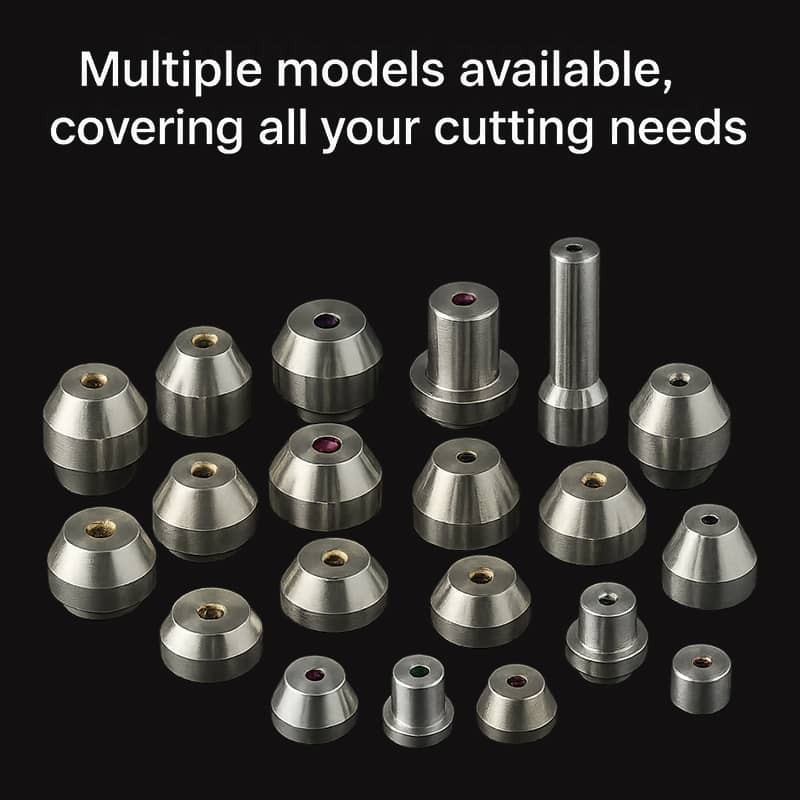

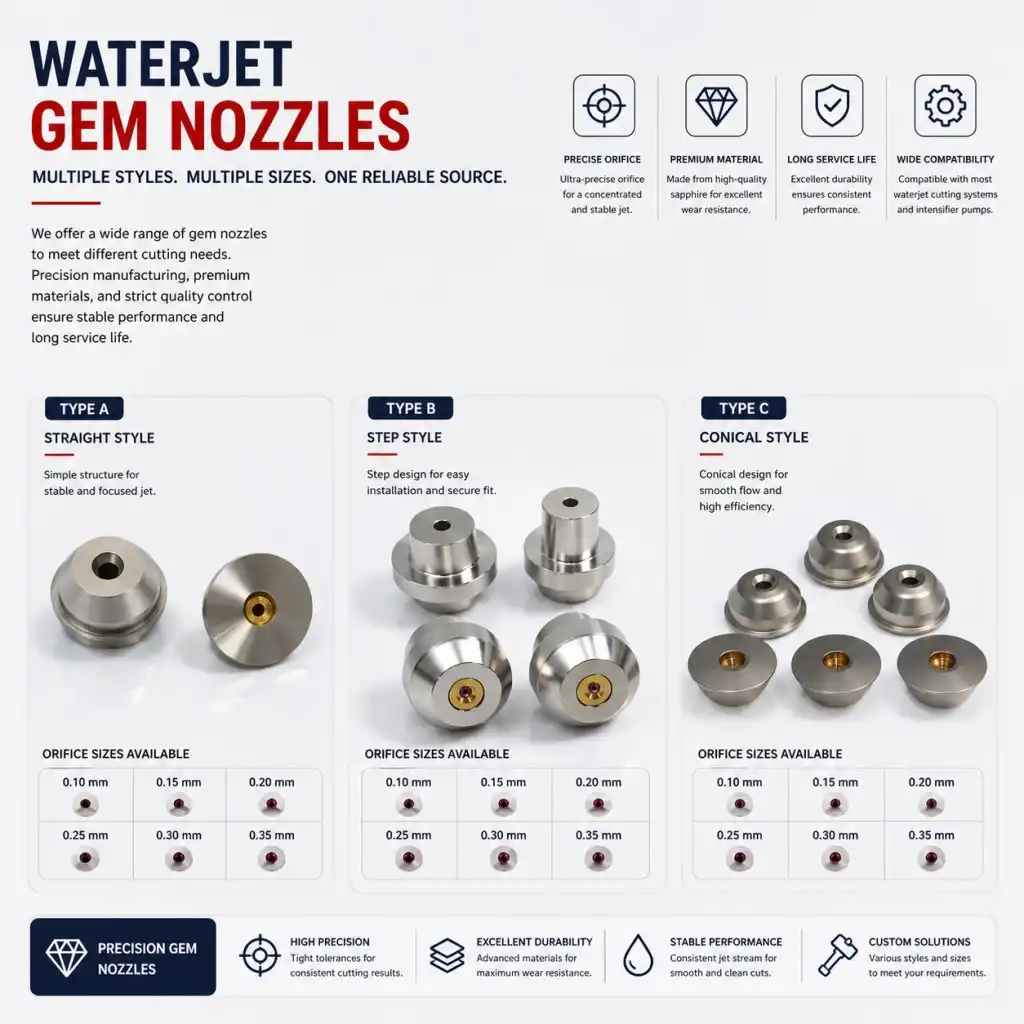

Available in multiple orifice sizes
OEM and custom specifications available

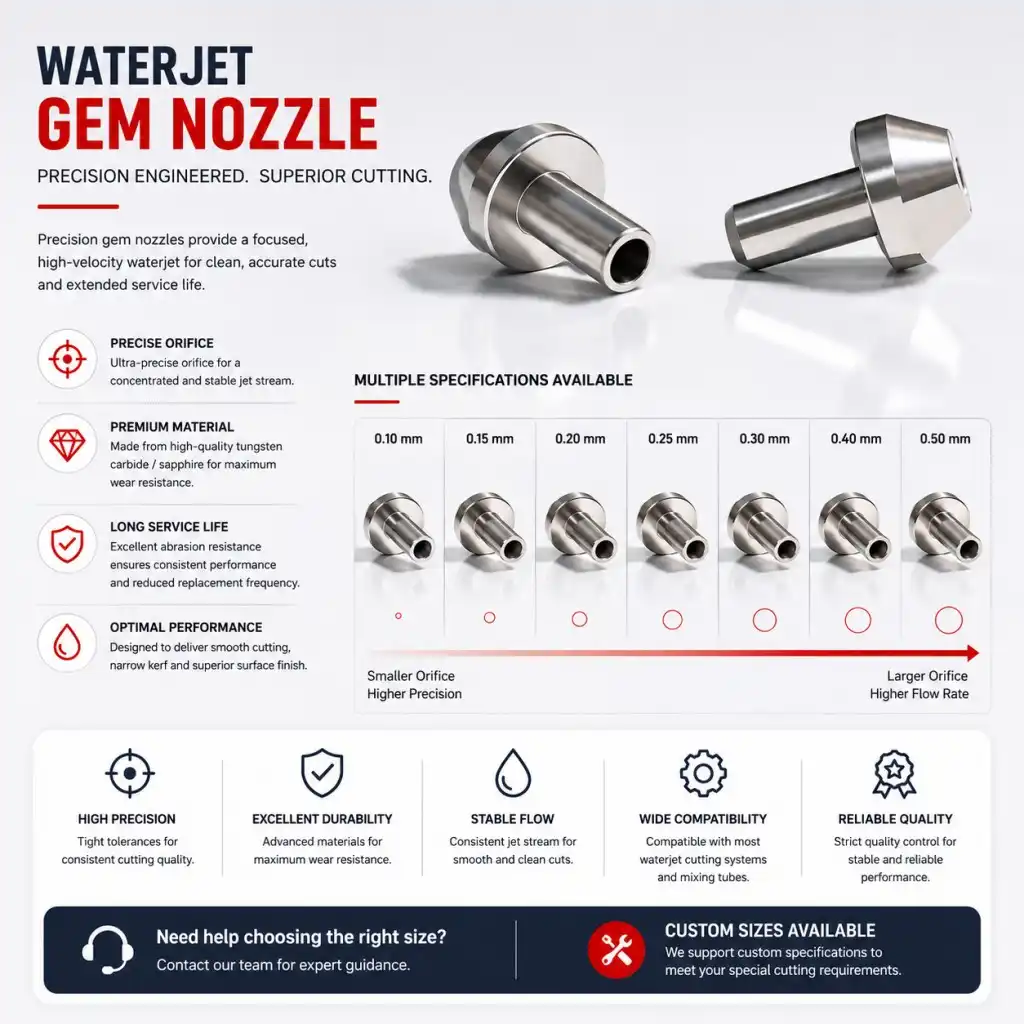

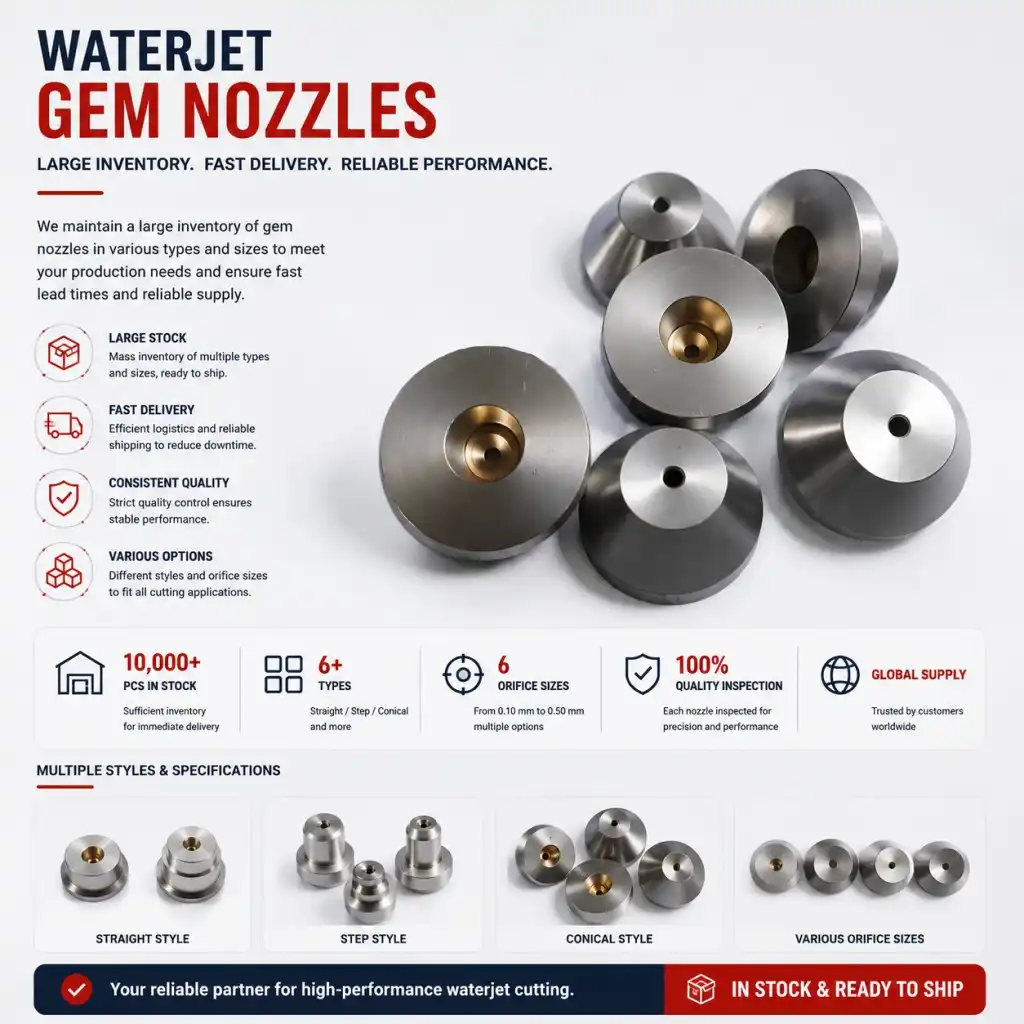

Available Orifice Sizes

Material	Available Size Range	Common Sizes
Diamond	0.076 mm - 0.559 mm	0.102 / 0.127 / 0.178 / 0.203 / 0.254 / 0.305 / 0.381 / 0.508 mm
Sapphire	0.076 mm - 0.508 mm	0.102 / 0.127 / 0.152 / 0.178 / 0.203 / 0.254 / 0.305 / 0.381 mm
Ruby	0.254 mm - 0.330 mm	0.254 / 0.305 / 0.330 mm

Applications

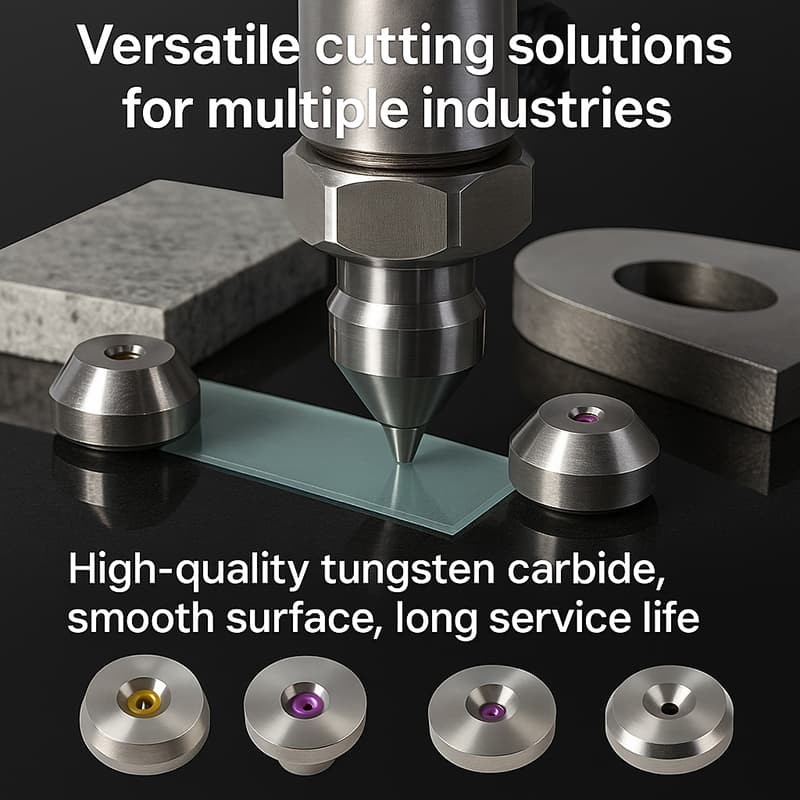

This waterjet diamond orifice can be used for cutting stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics.

Compatible Waterjet Systems

The orifice can be used with many Cnc Waterjet Cutting Machines, Abrasive Waterjet Systems, pure waterjet systems, and high-pressure cutting heads. Different specifications can be supplied according to machine model, working pressure, and cutting material.

Why Choose KUNDA

KUNDA supplies waterjet diamond orifices, ruby orifices, sapphire orifices, Mixing Tubes, Focusing Tubes, cutting heads, high-pressure pump parts, accumulators, tubing, and other waterjet spare parts. We support custom production, OEM service, bulk supply, and fast delivery for waterjet users and distributors.
