Waterjet Cutting Equipment for Marble, Granite, and CNC Stone Cutting

Product Introduction

The Waterjet Cutting Equipment is a high-precision CNC water jet marble cutting machine designed for processing marble, granite, ceramic tiles, glass, metal, and various industrial materials. Using ultra-high pressure water combined with abrasive garnet materials, this machine achieves smooth, accurate, and efficient cutting performance while protecting the original material structure. The stable CNC control system, durable industrial structure, and reliable high-pressure cutting technology make this water jet marble cutting machine suitable for continuous industrial production and customized decorative processing applications.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

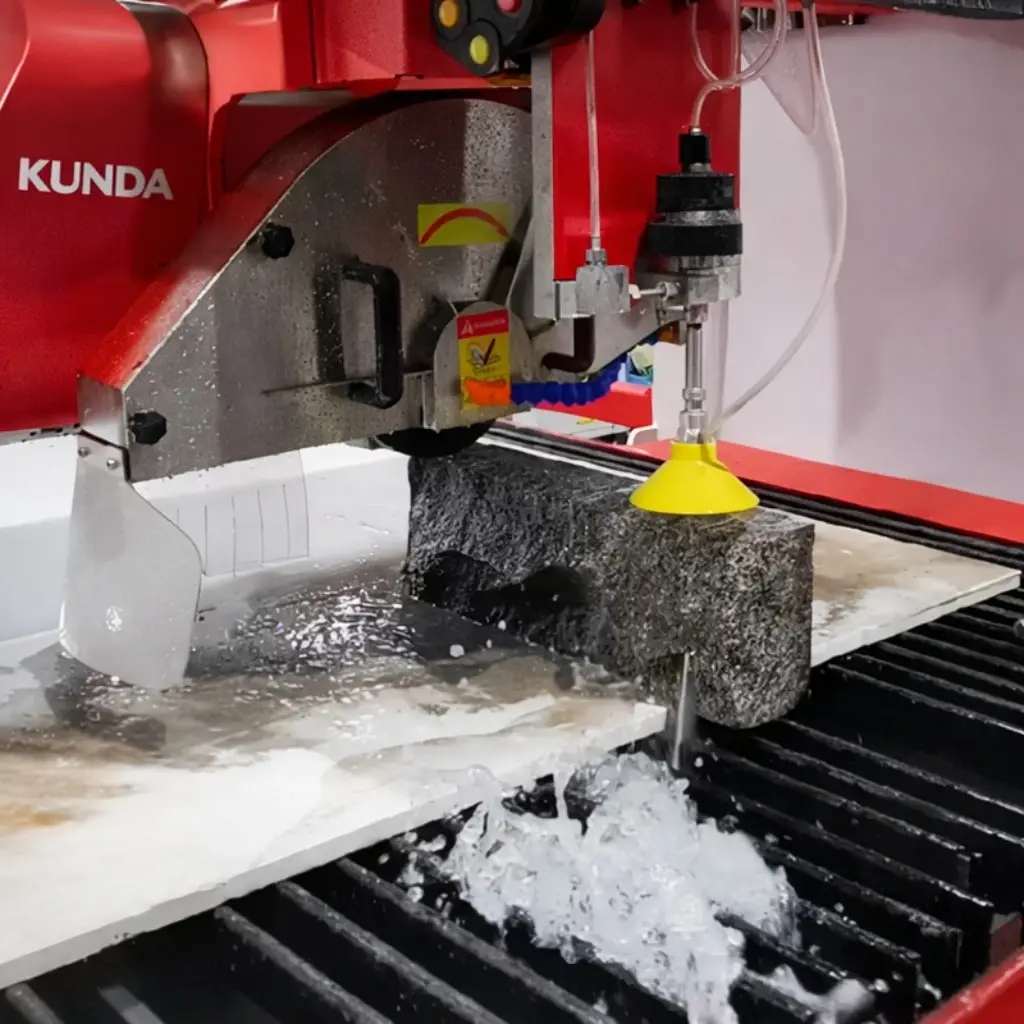

Professional Marble and Stone Cutting Performance

This water jet marble cutting machine is specially designed for processing marble, granite, quartz stone, ceramic tiles, and decorative stone materials with high precision and excellent cutting quality. The ultra-high pressure abrasive water flow allows the machine to process straight cuts, curves, holes, bevels, and complex decorative patterns while maintaining smooth cutting edges and accurate dimensions.

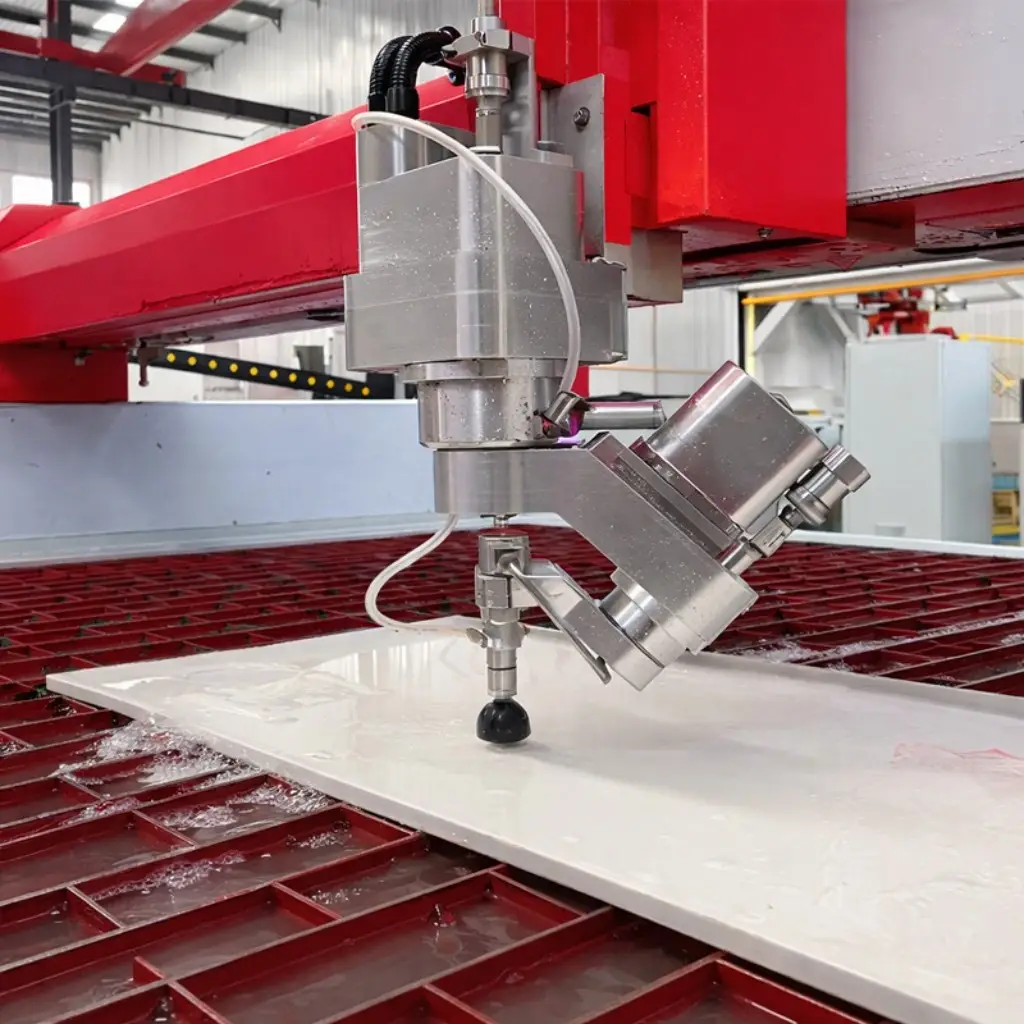

High Precision CNC Waterjet Technology

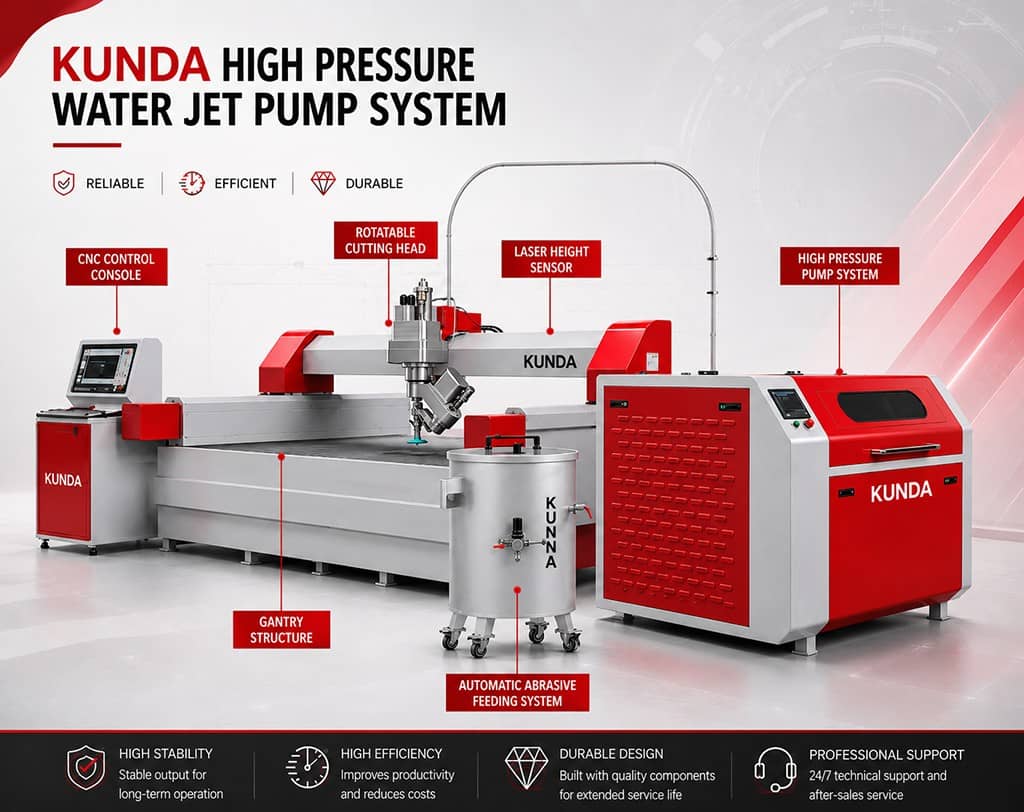

The waterjet cutting equipment adopts advanced CNC motion control technology and a stable hydraulic intensifier system to achieve accurate and efficient cutting performance on different industrial materials. Complex contour cutting and customized decorative designs can be processed efficiently while maintaining high-quality finished surfaces and reducing secondary processing requirements.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

Durable Industrial Structure and Stable Operation

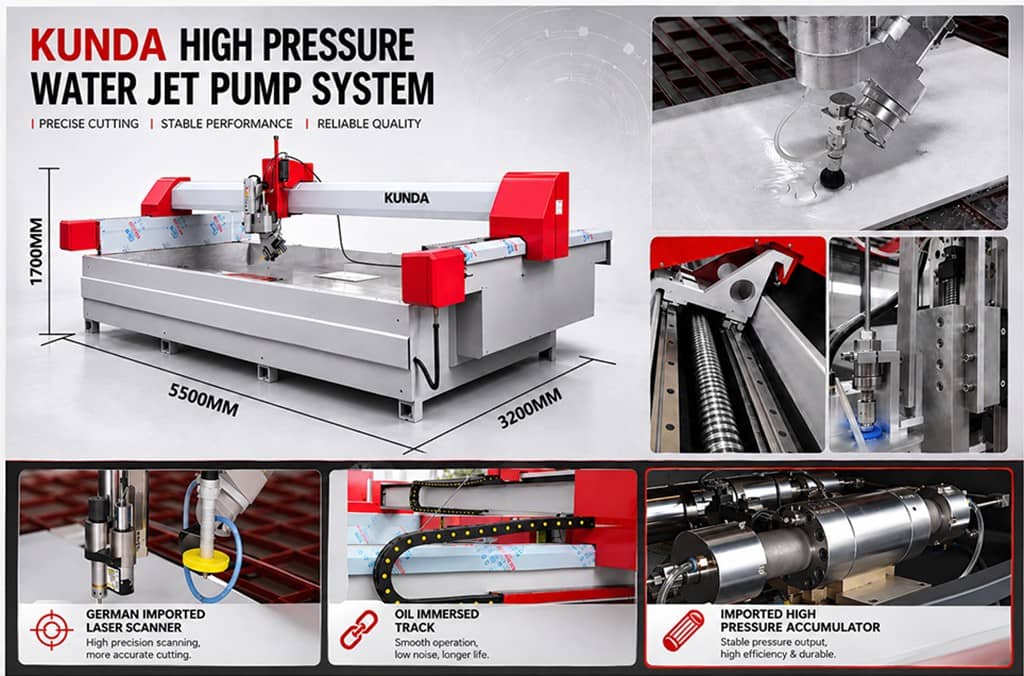

This Waterjet Cutting Machine is manufactured with a heavy-duty industrial frame, high-quality guide rail systems, and durable servo control components to ensure stable long-term operation under industrial production environments. High-quality hydraulic systems and industrial-grade cutting components help maintain stable cutting performance during continuous production.

Cost-Effective and Flexible Production Solution

The water jet marble cutting machine price is optimized to provide customers with stable industrial cutting performance and long-term operational value. The flexible CNC cutting capability allows manufacturers to process customized stone products, countertops, decorative panels, flooring materials, wall decorations, and industrial components according to different market requirements.

Optional Automation and Intelligent Upgrade Solutions

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized automation systems, and intelligent CNC solutions according to different industrial applications. These upgrade systems help improve cutting precision, reduce labor costs, and increase production efficiency.

Wide Industrial Applications

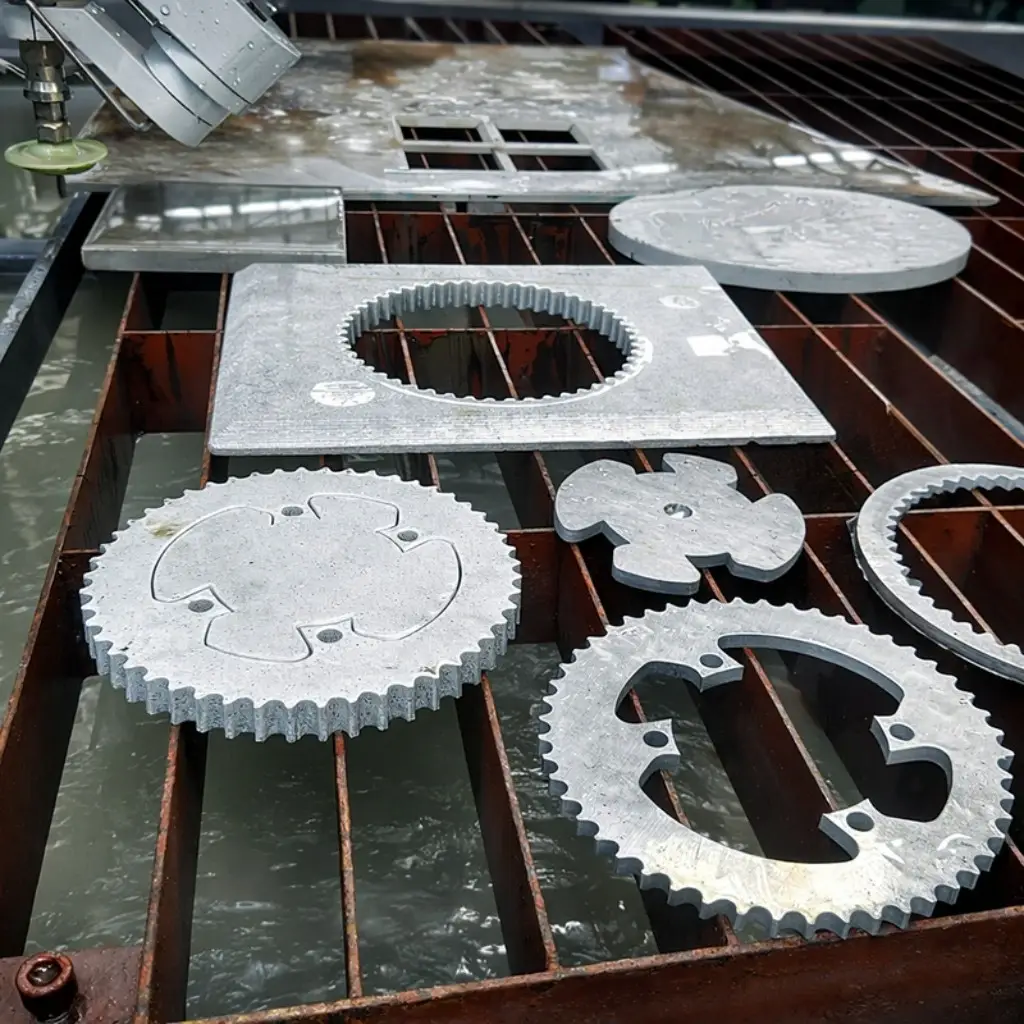

This waterjet cutting equipment is widely used in marble processing, granite fabrication, ceramic tile cutting, glass manufacturing, architectural decoration, stone countertop production, machinery manufacturing, metal fabrication, and industrial custom processing industries.

Why Choose KUNDA Waterjet Cutting Equipment

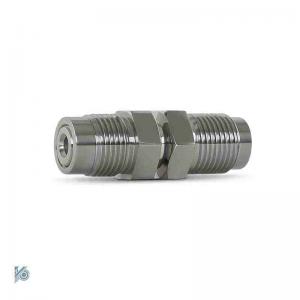

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable waterjet cutting equipment, marble cutting solutions, or customized CNC waterjet systems, please feel free to contact KUNDA for more information and professional support.
