Waterjet Cutting Cylinder High Precision Waterjet Cylinder Liner with Ceramic Plunger

Short Description:

Waterjet Cutting Cylinder
Pressure Withstand: 60-90k
Material: Stainless Steel
Warranty: 2 Years
Minimum Order Quantity: 1 pc
Manufacturer: Kunda

INQUIRY

Details

Waterjet Cutting Cylinder High Precision Waterjet Cylinder Liner with Ceramic Plunger

Waterjet Cutting Cylinder

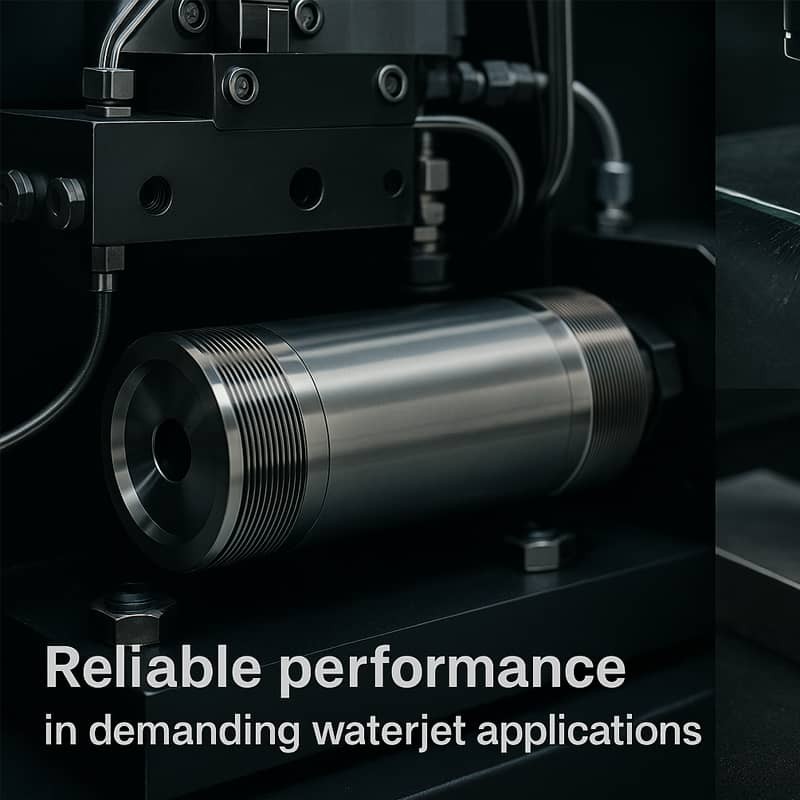

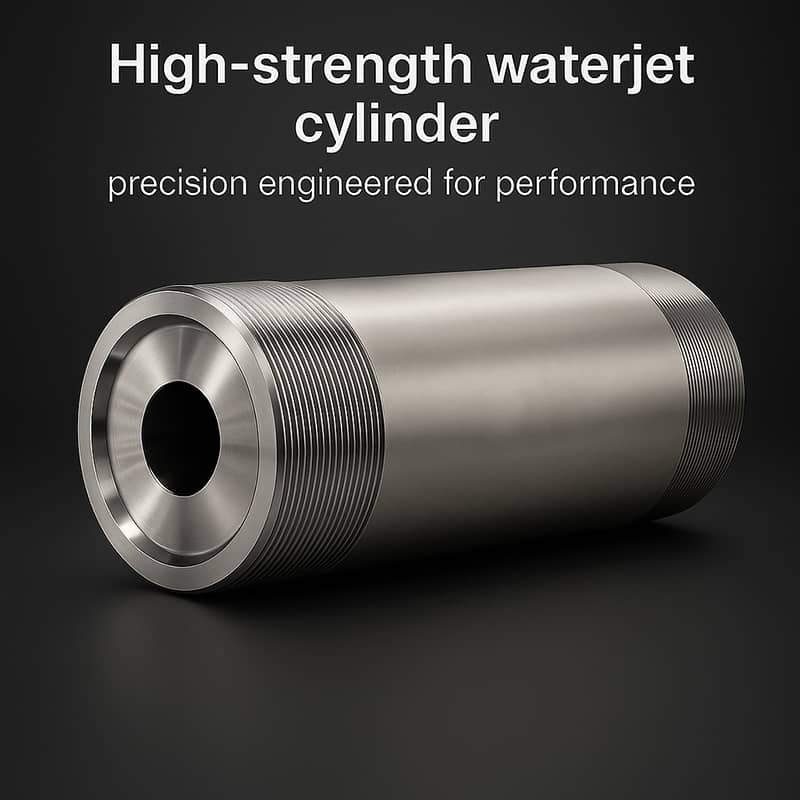

Waterjet Cutting Cylinder is a key component of intensifier pumps, designed to generate and sustain ultra-high pressure water for precise cutting. Manufactured from high-strength stainless steel and alloy materials, these cylinders deliver excellent durability, long service life, our cylinders provide reliable performance and support seamless integration with replacement parts and sealing kits.

Part Number	Type	Pressure Rating
C-1000-1	Low-Pressure Cylinder	60K
1-11522	High-Pressure Cylinder (60K Intensifier)	60K
72160831	High-Pressure Cylinder	Ultra High Pressure
7004719	High-Pressure Cylinder	Ultra High Pressure
05144647	High-Pressure Cylinder	Ultra High Pressure
020592-1	High-Pressure Cylinder	87K Intensifier HP Cylinder
72121850	UHP Cylinder, .875" Plunger, SST	90K UHP Cylinder
20453688	UHP Cylinder, .875" Plunger, SST	90K UHP Cylinder
007038-3	Intensifier High-Pressure Cylinder	60K (60,000 psi) Intensifier HP Cylinder
TL-001002-3	Intensifier High-Pressure Cylinder	60K (60,000 psi) Intensifier HP Cylinder
100001-1	Intensifier High-Pressure Cylinder	60K (60,000 psi) Intensifier HP Cylinder
1-11117	Intensifier High-Pressure Cylinder	60K (60,000 psi) Intensifier HP Cylinder
20460891	Cylinder Body, Intensifier
05059712	Cylinder Body, Intensifier
20458773	Repair Kit / Cylinder Body, High Pressure	60K Cylinder Repair or Replacement Parts
001198-1	Repair Kit / Cylinder Body, High Pressure	60K Cylinder Repair or Replacement Parts
1-11117	High Pressure Cylinder
1-11522	High Pressure Cylinder
308105	High Pressure Cylinder

Classification of Waterjet Cutting Cylinder：

1. High-Pressure Cylinder

Directly receives high-pressure water and is responsible for raising the water pressure to 60K/90K.

2. Low-Pressure Cylinder

Located at the hydraulic end, this cylinder acts as the oil pressure to push the piston.

3. Pump Cylinder / Intensifier Cylinder

Generally refers to the water cylinder portion of the intensifier. Typically, a pump has two symmetrical cylinders.

Imagery of Waterjet Cutting Cylinder:

You can think of a waterjet cylinder as the metal casing of a high-powered pump:

The reciprocating motion of the piston continuously compresses the water to ultra-high pressure.

The cylinder itself is a high-strength "tube" capable of withstanding this immense pressure.

Without it, the waterjet cannot generate the high-pressure water jet required for cutting.

Application Significance

The quality of the cylinder directly affects the lifespan, cutting stability, and maintenance frequency of the waterJet Pump.

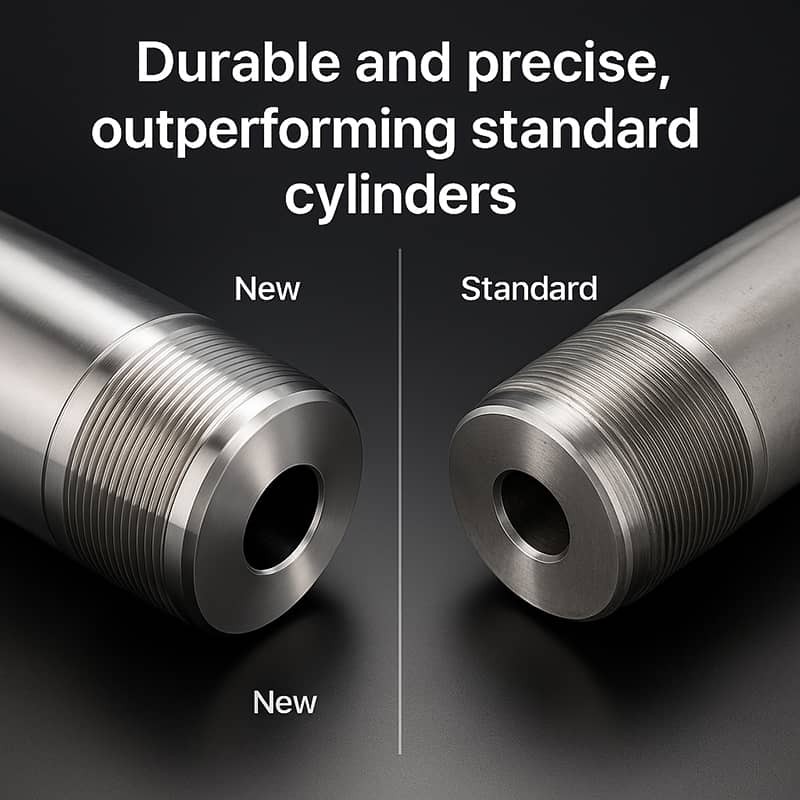

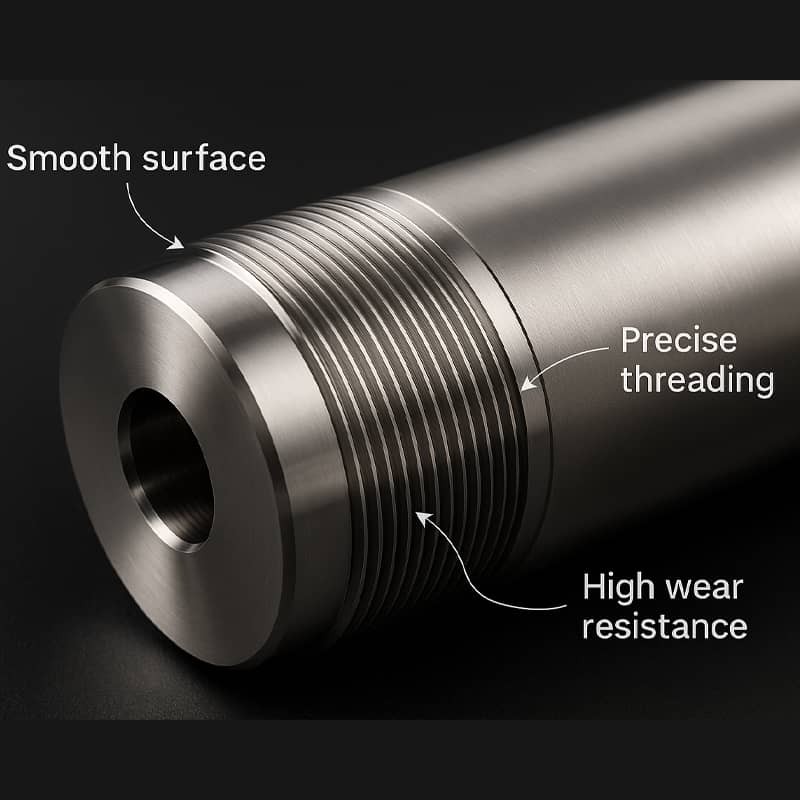

The cylinders used by KUNDA typically undergo ultra-precision machining and heat treatment for a longer service life.

Waterjet Cutting Cylinder
