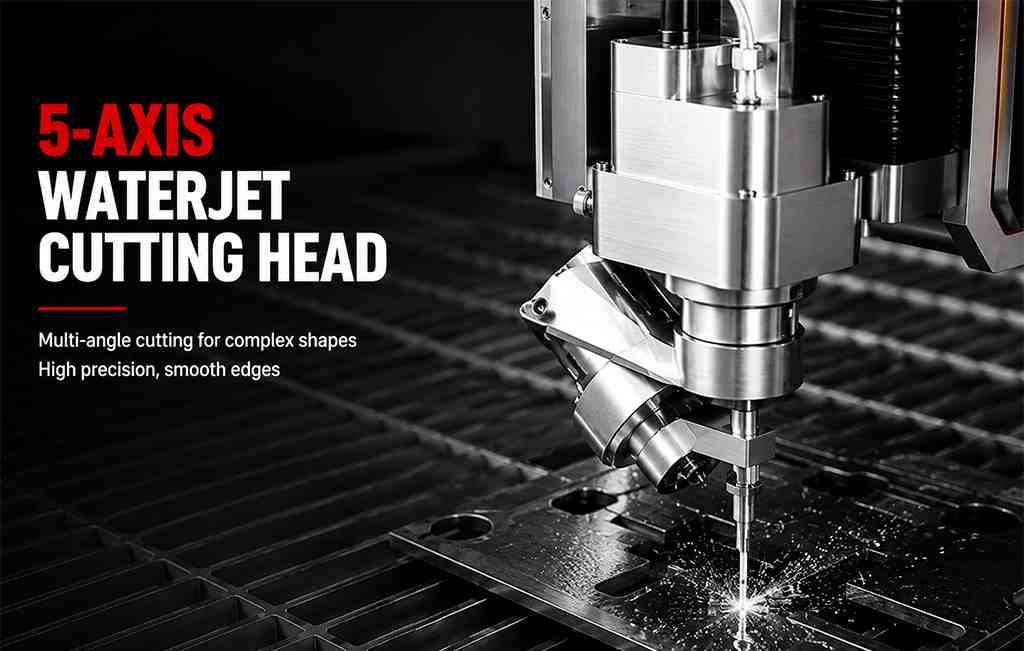

Waterjet 5 Axis Cutting Head Low Wear Waterjet Cutting Head Assembly Manufacturer China
Waterjet 5 Axis Cutting Head Low Wear Waterjet Cutting Head Assembly Manufacturer China
Product Introduction

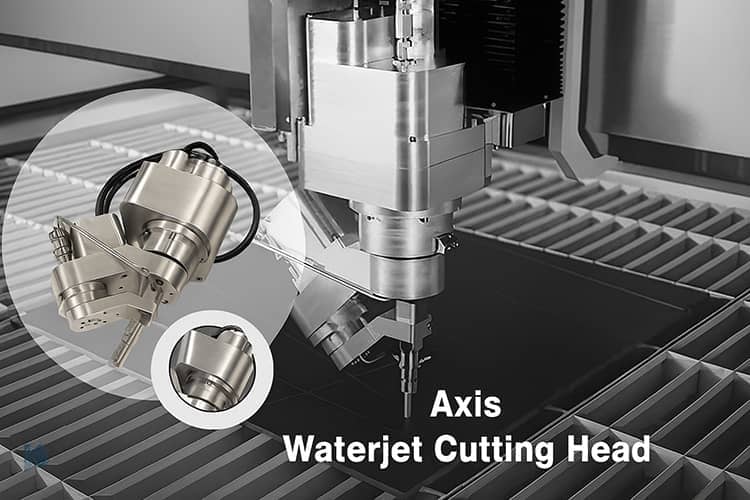

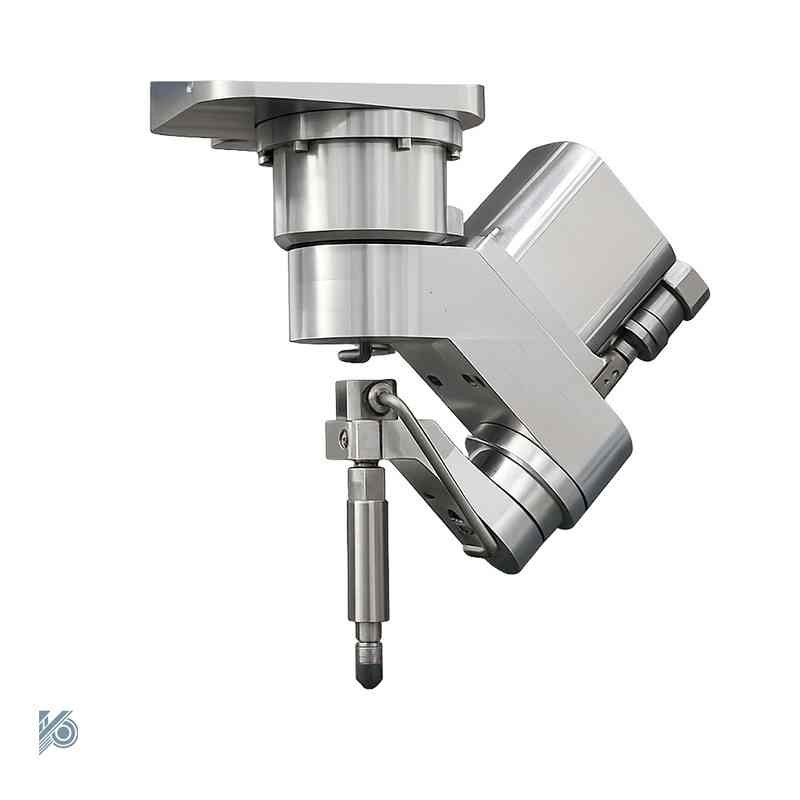

The Waterjet 5 Axis Cutting Head is a high-performance low-wear cutting head assembly designed for advanced CNC Waterjet Cutting Systems and precision industrial manufacturing applications.
Equipped with intelligent multi-axis motion control technology and durable wear-resistant components, this waterjet cutting head delivers accurate bevel cutting, dynamic angle compensation, and superior edge quality while maintaining a long service life.
Designed for ultra-high pressure Abrasive Waterjet Systems, the cutting head can efficiently process metal, stone, glass, ceramics, composite materials, and engineering plastics.
As a professional waterjet cutting head manufacturer in China, KUNDA provides reliable cutting head assemblies, OEM customization services, and complete technical support for global waterjet users.

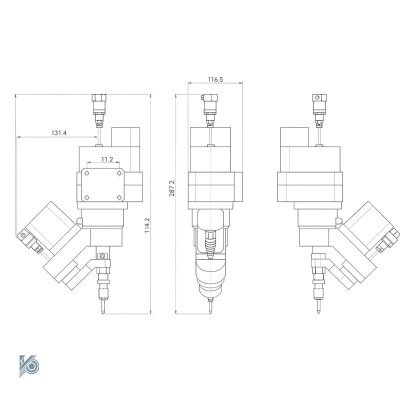

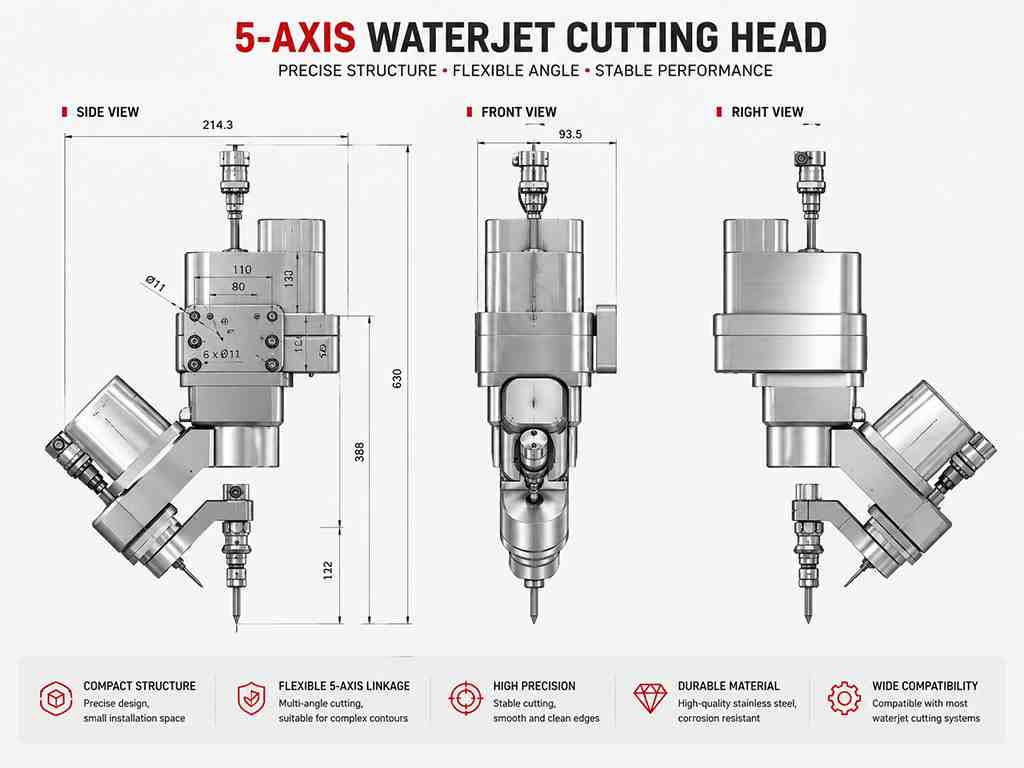

Technical Specifications
| A-axis Rotating Range | ±70° |
| C-axis Rotating Range | Infinite |
| Positioning Precision | 1.5' |
| Max Rotational Speed | 50 RPM |
| Cutting Precision at Fixed Point | ±0.05mm |
| Rotating Radius | 261mm |
| Automatic Height Measurement | Optional |
| Max Height | 607mm |
| Max Length | 376mm |
| Max Width | 161mm |
| High Pressure Tube Inlet Thread | 1/4 Inch |
Advanced 5 Axis Cutting Technology

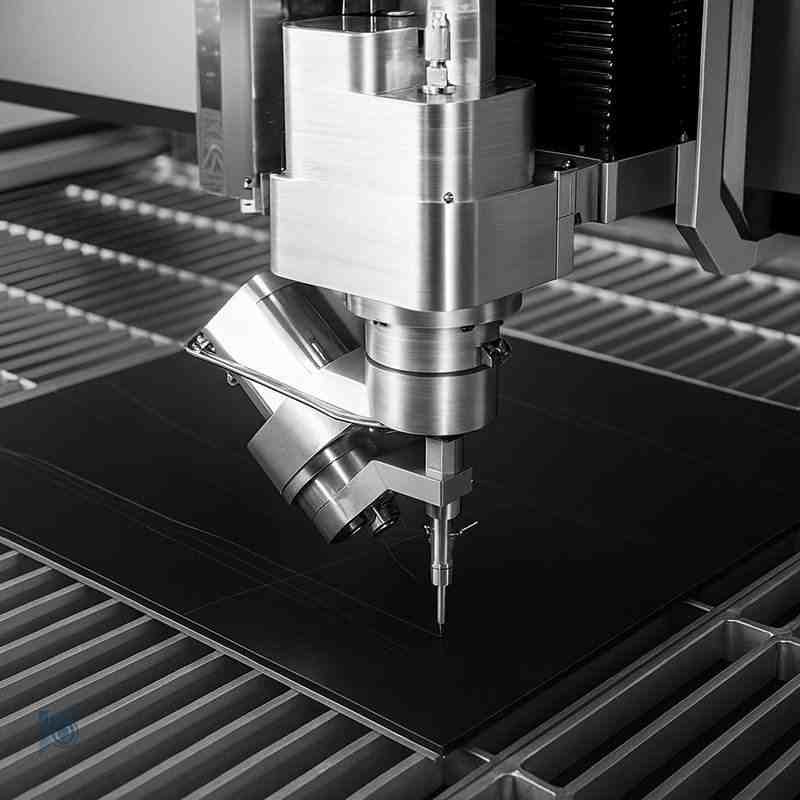

This waterjet 5 axis cutting head utilizes advanced multi-axis control technology to achieve precise angle cutting and complex contour processing.
The cutting head automatically adjusts cutting angles during operation, allowing manufacturers to process bevels, chamfers, weld preparations, and three-dimensional components with exceptional accuracy.
Compared with traditional vertical cutting heads, the 5-axis system significantly improves flexibility while reducing secondary machining operations and increasing production efficiency.
Low Wear Design for Longer Service Life
The low wear waterjet cutting head is engineered with high-quality wear-resistant materials and optimized internal structures to reduce component wear during continuous operation.
The improved abrasive flow path minimizes unnecessary erosion of critical components, helping extend service life and reduce maintenance costs.
This durable design allows manufacturers to maintain stable cutting performance while reducing downtime and replacement expenses.
Superior Cutting Accuracy and Edge Quality
The advanced motion control system and precision-engineered cutting structure help achieve exceptional cutting accuracy and smooth edge quality.
The cutting head effectively reduces taper during operation and improves dimensional consistency across different material thicknesses.
This allows manufacturers to produce high-quality components with reduced post-processing requirements and improved production efficiency.

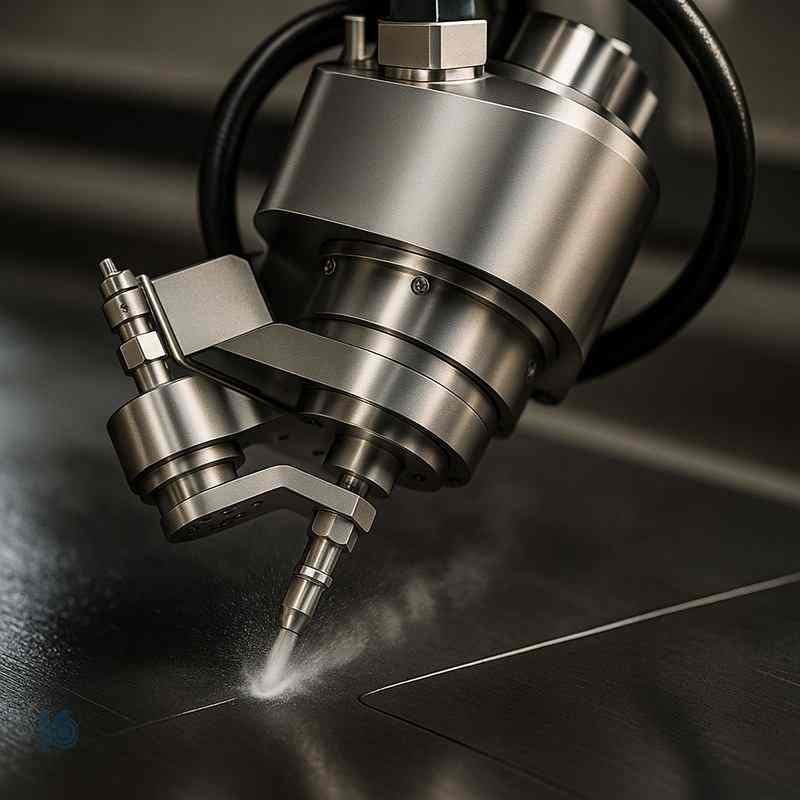

Ultra High Pressure Abrasive Cutting Capability
Designed for operation with ultra-High Pressure Waterjet Pump systems, this 5-axis cutting head can efficiently process:
- Stainless Steel
- Carbon Steel
- Aluminum
- Titanium
- Marble
- Granite
- Glass
- Ceramic Tiles
- Composite Materials
- Rubber
- Engineering Plastics
The stable abrasive stream and optimized cutting performance ensure consistent cutting quality and excellent productivity.

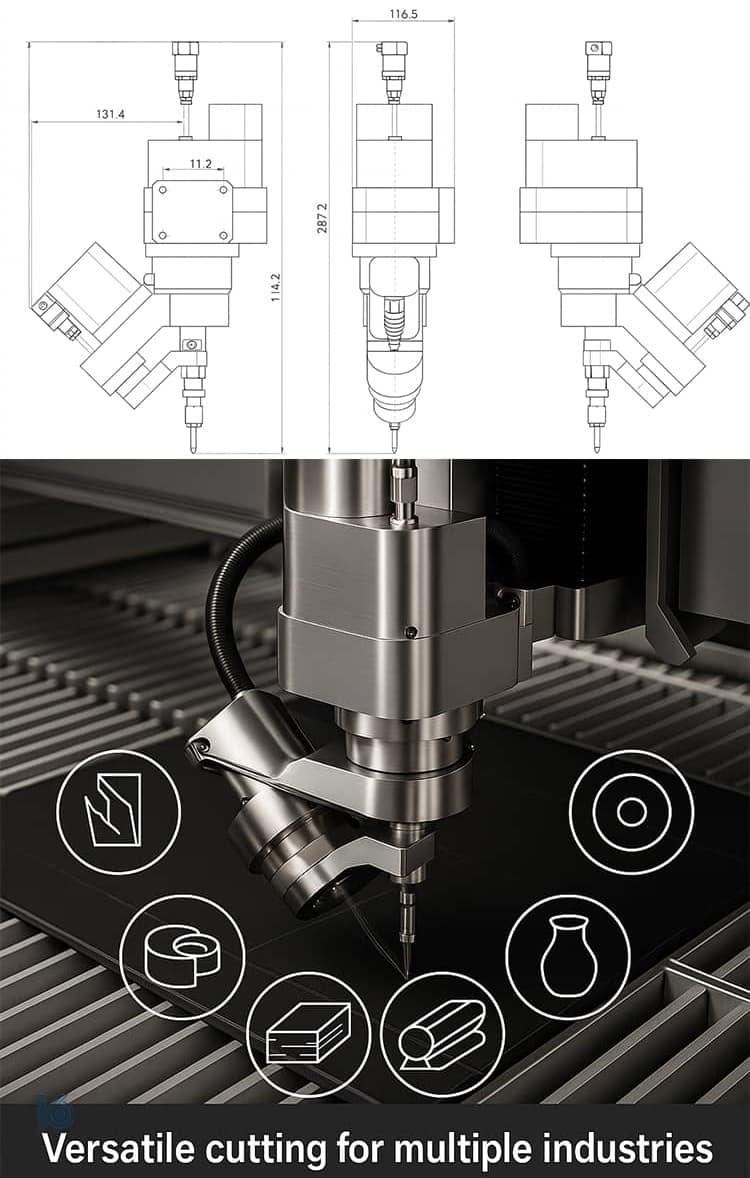

Applications of Waterjet 5 Axis Cutting Heads
- Bevel Cutting
- Chamfer Cutting
- Weld Preparation
- Metal Fabrication
- Aerospace Components
- Automotive Manufacturing
- Stone and Marble Processing
- Glass Cutting
- Ceramic Tile Cutting
- Composite Material Manufacturing
Durable Industrial Construction
Manufactured using precision-engineered components and industrial-grade materials, this waterjet cutting head assembly is designed for long-term operation under demanding production conditions.
The robust construction provides excellent resistance to wear and pressure-related stress, ensuring reliable cutting performance during continuous operation.
Compatible with Various Waterjet Systems
This waterjet 5 axis cutting head assembly can be integrated with various Cnc Waterjet Cutting Machines and automated production systems.
Whether used for new installations, equipment upgrades, or replacement projects, KUNDA can provide customized configurations and professional technical support according to specific application requirements.
Frequently Asked Questions
What is a waterjet 5 axis cutting head?
A waterjet 5 axis cutting head allows the nozzle to tilt and rotate during cutting, enabling bevel cutting, chamfer cutting, taper compensation, and complex contour processing.
What are the advantages of a low wear waterjet cutting head?
A low wear cutting head extends service life, reduces maintenance costs, minimizes downtime, and improves long-term cutting performance.
What materials can this cutting head process?
It can process stainless steel, carbon steel, aluminum, titanium, marble, granite, glass, ceramic, composite materials, rubber, and engineering plastics.
Can this cutting head be installed on existing CNC Waterjet Machines?
Yes. The cutting head can be integrated with many CNC waterjet cutting systems and ultra-High Pressure Pump configurations.
