Titanium Cnc Waterjet Cutting Machine for High Precision Industrial Cutting

Product Introduction

The Cnc Water Jet Cutting Machine is a high-precision industrial cutting solution designed for titanium processing and advanced manufacturing applications in the UAE and global markets. Using ultra-high pressure water combined with abrasive garnet materials, this machine efficiently processes titanium, stainless steel, aluminum, copper, stone, glass, ceramics, composite materials, foam, rubber, and plastics while maintaining smooth cutting edges and accurate dimensions. The advanced CNC control system, stable high-pressure cutting technology, and durable industrial structure make this Titanium Waterjet Cutting Machine suitable for continuous industrial production and customized fabrication requirements.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

Professional Titanium Cutting Performance

This titanium waterjet cutting machine is specially designed for processing titanium materials requiring high precision and excellent surface quality. Waterjet cutting technology does not generate heat during operation, helping avoid thermal deformation, oxidation, burning, or heat-affected zones on titanium components. The ultra-high pressure abrasive water flow allows manufacturers to process titanium plates, aerospace components, industrial parts, and customized products while maintaining the original material structure.

High Precision CNC Waterjet Technology

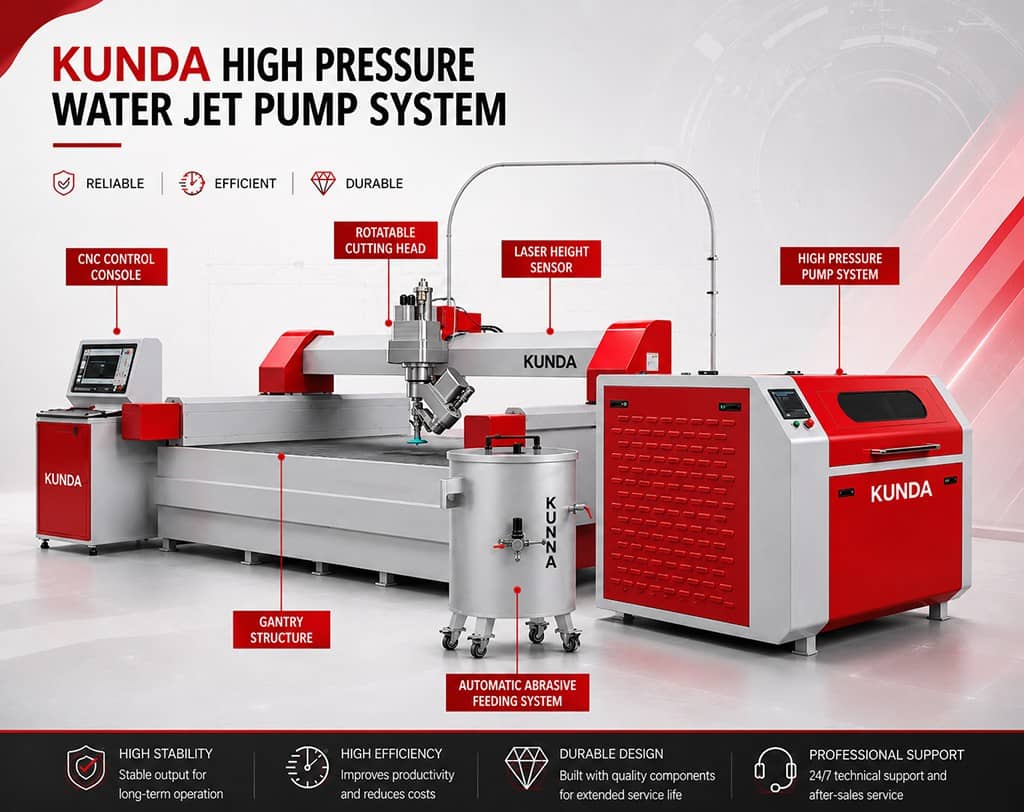

The Water Jet Cnc machine adopts advanced CNC motion control technology and a stable hydraulic intensifier system to achieve accurate and efficient cutting performance on various industrial materials. The machine processes straight cuts, curves, holes, bevels, and complex contour shapes while maintaining smooth cutting surfaces and excellent dimensional accuracy.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

Durable Industrial Structure and Stable Operation

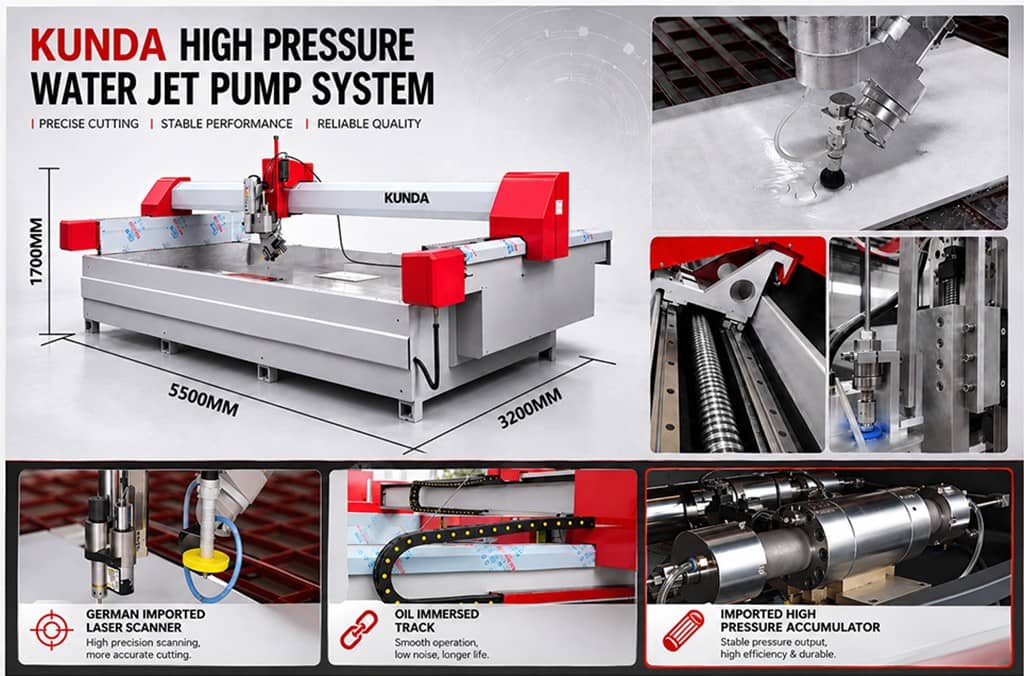

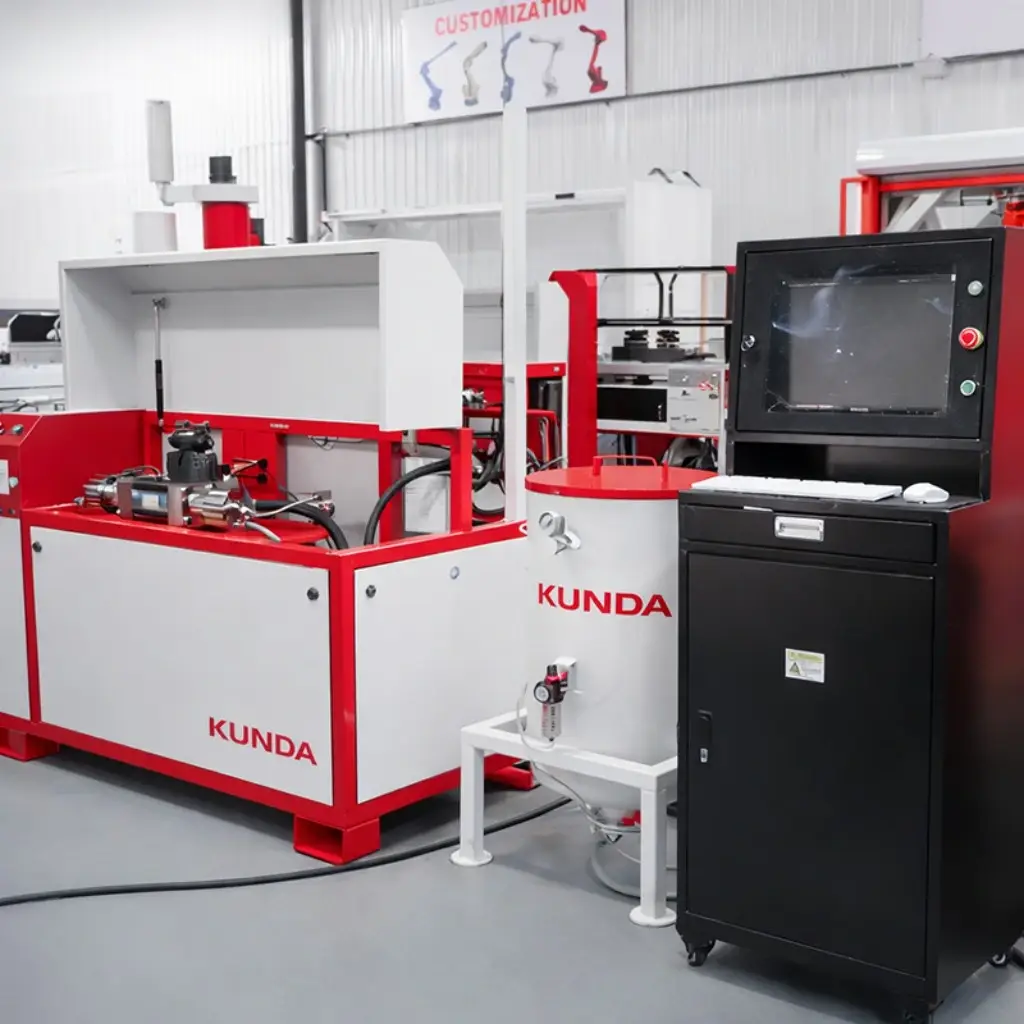

This water jet cutting machine is manufactured with a heavy-duty industrial frame, precision guide rail systems, and reliable servo control components to ensure long-term stable operation under demanding industrial environments. High-quality hydraulic systems, durable cutting components, and industrial-grade machine structures help improve operational reliability while reducing maintenance frequency.

Suitable for Multiple Industrial Materials

In addition to titanium processing, this CNC waterjet cutting machine can efficiently cut stainless steel, carbon steel, aluminum, copper, marble, granite, ceramic tiles, glass, foam, rubber, plastics, and composite materials. Waterjet cutting technology helps protect material structure and surface quality during processing.

Optional Automation and Intelligent Upgrade Systems

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized CNC systems, and intelligent automation solutions according to different industrial applications. These upgrade systems help improve cutting precision, reduce labor costs, and increase production efficiency.

Wide Industrial Applications

This titanium CNC waterjet cutting machine is widely used in aerospace manufacturing, metal fabrication, automotive industries, machinery manufacturing, architectural decoration, glass processing, stone fabrication, ceramic production, and industrial custom processing industries.

Why Choose KUNDA Waterjet Cutting Machines

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable titanium waterjet cutting machines, CNC water jet cutting systems, or customized Industrial Waterjet solutions, please feel free to contact KUNDA for more information and professional support.
