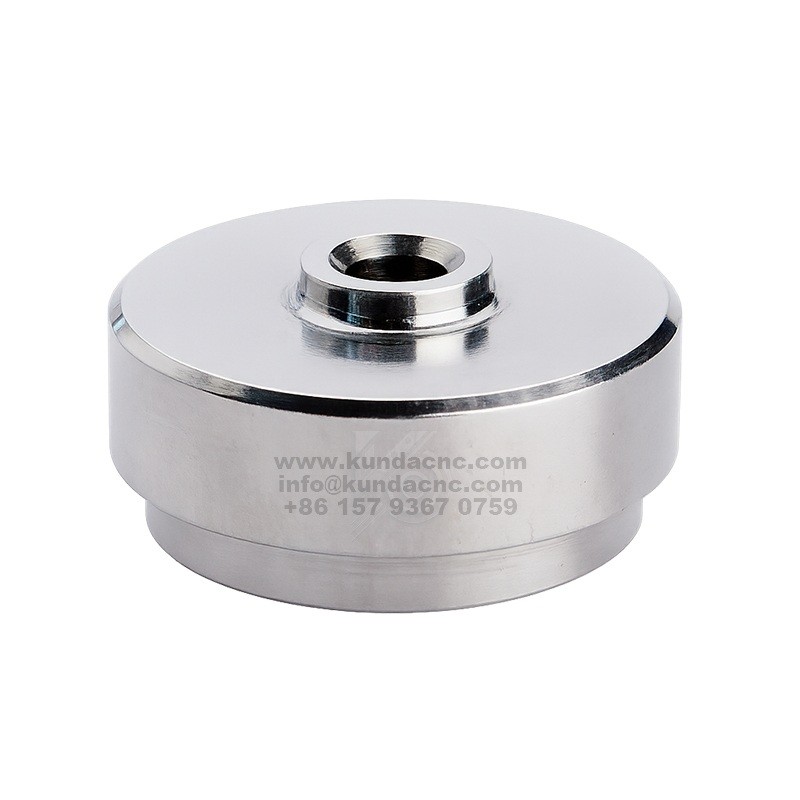

Valve Seat CP022046/593 Water Jet Parts Supplier

Short Description:

Valve Seat
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA

INQUIRY

Details

Valve Seat CP022046/593 Water Jet Parts Supplier

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens
1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4
1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

The Valve Seat CP022046/593 is a key component in the high-pressure check valve of a waterjet intensifier. It works with the valve ball to form a precise sealing surface, ensuring stable flow of high-pressure water within the check valve. The accuracy and wear resistance of the valve seat directly determine the sealing performance and service life of the check valve.

Function: Provides a working contact surface with the valve ball, ensuring unidirectional flow and sealing of high-pressure water.
Applicable Location: Intensifier high-pressure check valve assembly.
Material: Commonly made of tungsten carbide or ceramic, it offers high hardness, high-pressure resistance, and erosion resistance.
Replacement Period: This is a consumable part and should be replaced regularly based on operating time and water quality to maintain system stability.

High-quality Valve Seat CP022046/593 effectively reduces the risk of leakage and improves the reliability of Water Jet Cutting Machines under long-term high-pressure environments.
