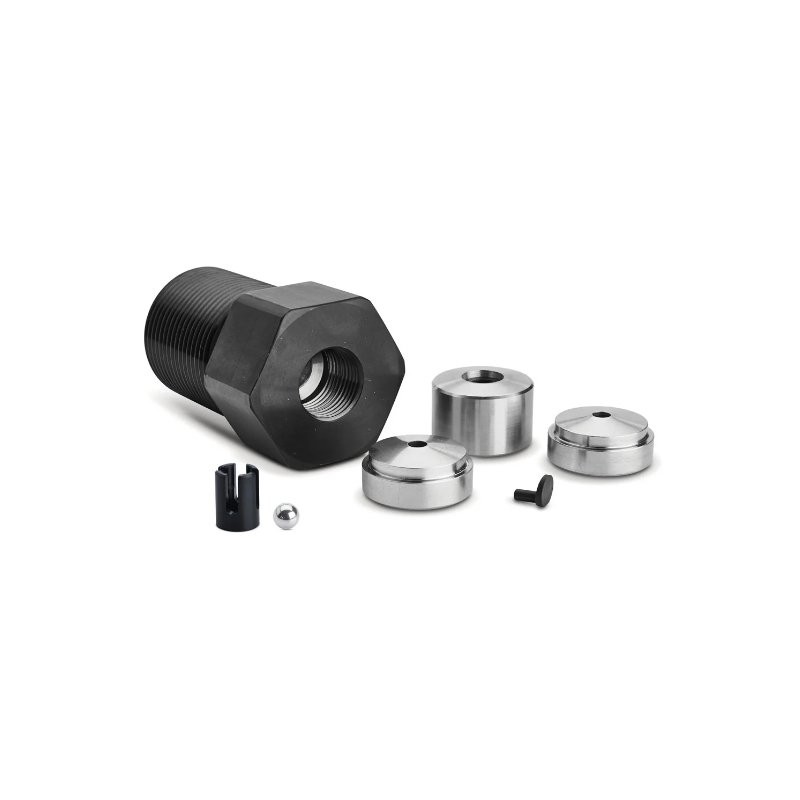

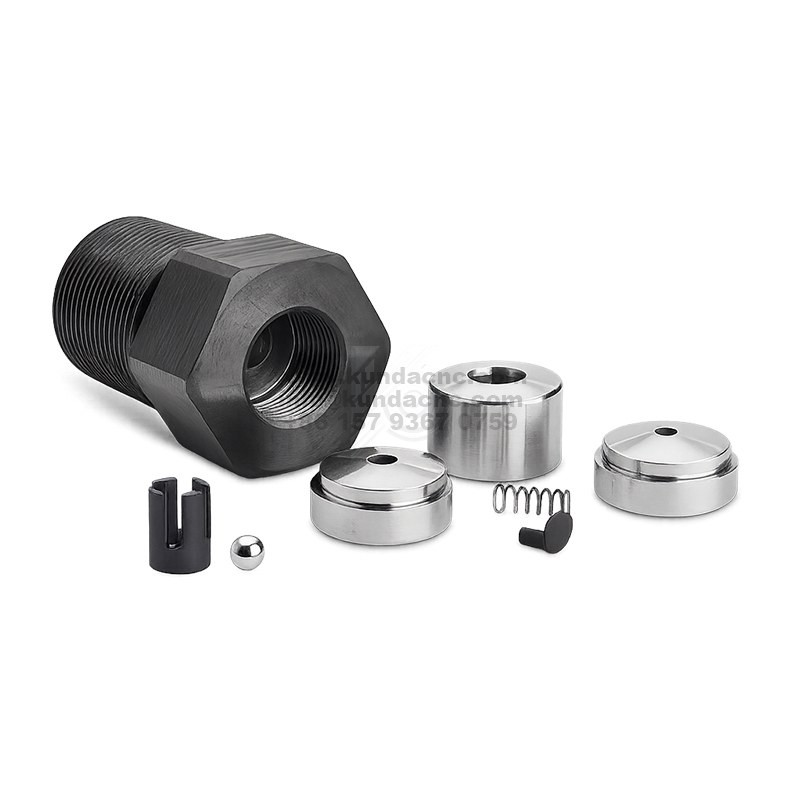

Union Suction Side Complete CP022109/844 Waterjet Replacment Parts

Short Description:

Union Suction Side Complete
1-18291
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA

INQUIRY

Details

Union Suction Side Complete CP022109/844 Waterjet Replacment Parts

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens
1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4
1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

The Union Suction Side Complete CP022109/844 is a key connection component at the waterjet intensifier's suction port, ensuring a stable low-pressure water supply to the intensifier system. Its precise sealing and robust structural design ensure a tight connection between the suction port and the piping, preventing loosening or leakage during high-frequency operation, thereby ensuring the intensifier can continuously and stably draw low-pressure water.

Function: Reliably connects the piping to the intensifier at the suction port, ensuring smooth water flow into the system.
Applicable Location: Installed at the low-pressure water inlet of the intensifier.
Material: Typically constructed of high-strength stainless steel or alloy, it offers corrosion resistance, pressure resistance, and fatigue resistance.
Replacement Period: While a durable component with a relatively long lifespan, it should be replaced promptly if subjected to long-term operation or if wear or corrosion occurs to maintain the seal and stability of the suction port.

The high-quality Union Suction Side Complete CP022109/844 effectively ensures efficient water intake and overall system stability, making it an essential component for continuous waterjet operation.
