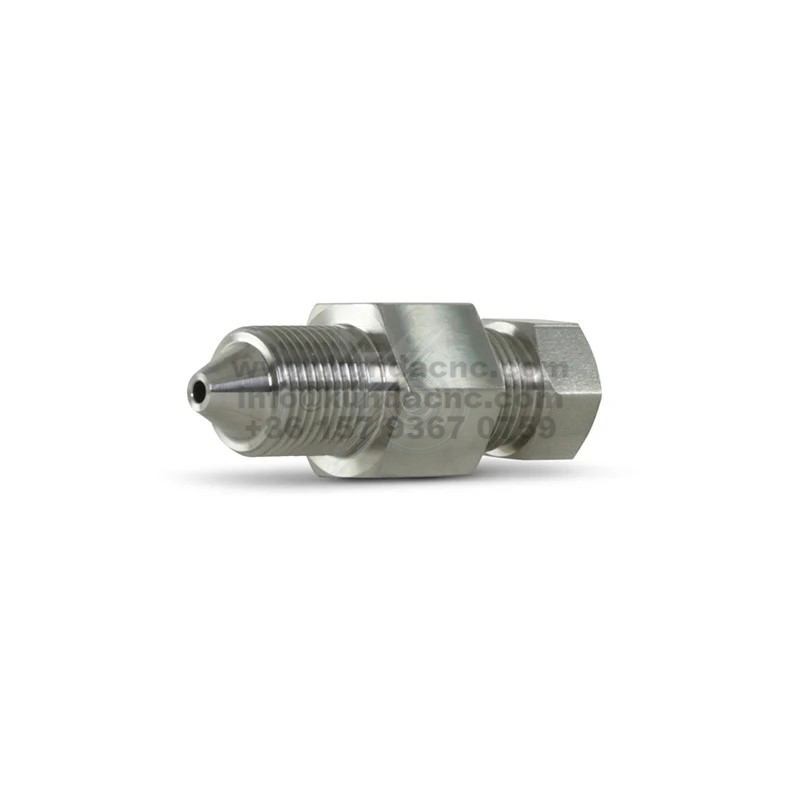

Thimble HP Filter Assembly 1-13174 Waterjet Parts Supplier

The Thimble HP Filter Assembly 1-13174 is a precision-engineered high-pressure filtration unit designed to protect critical components in Waterjet Cutting Systems, including intensifier pumps, valves, and cutting heads. Built from corrosion-resistant stainless steel, this assembly ensures clean, debris-free water flow under ultra-high-pressure (UHP) conditions—up to 60,000 psi (4,137 bar).

The 1-13174 Thimble HP Filter Assembly is strategically installed in the high-pressure line to capture fine particles and contaminants that can cause premature wear or failure of high-pressure seals, orifices, and nozzles. Its thimble-style filter element provides large surface area filtration, maintaining optimal water flow and pressure stability without clogging.

Designed to meet or exceed OEM standards, this filter assembly is fully compatible with KMT, FLOW, WSI, and BFT waterjet systems. The precision-machined housing allows easy installation, inspection, and replacement of the filter element, ensuring minimal downtime during maintenance.
