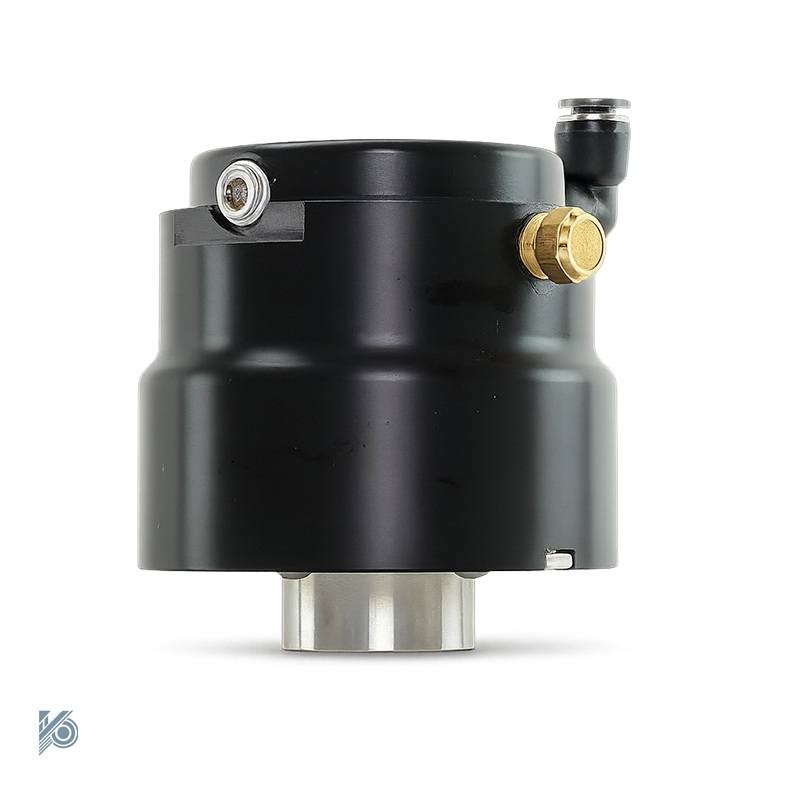

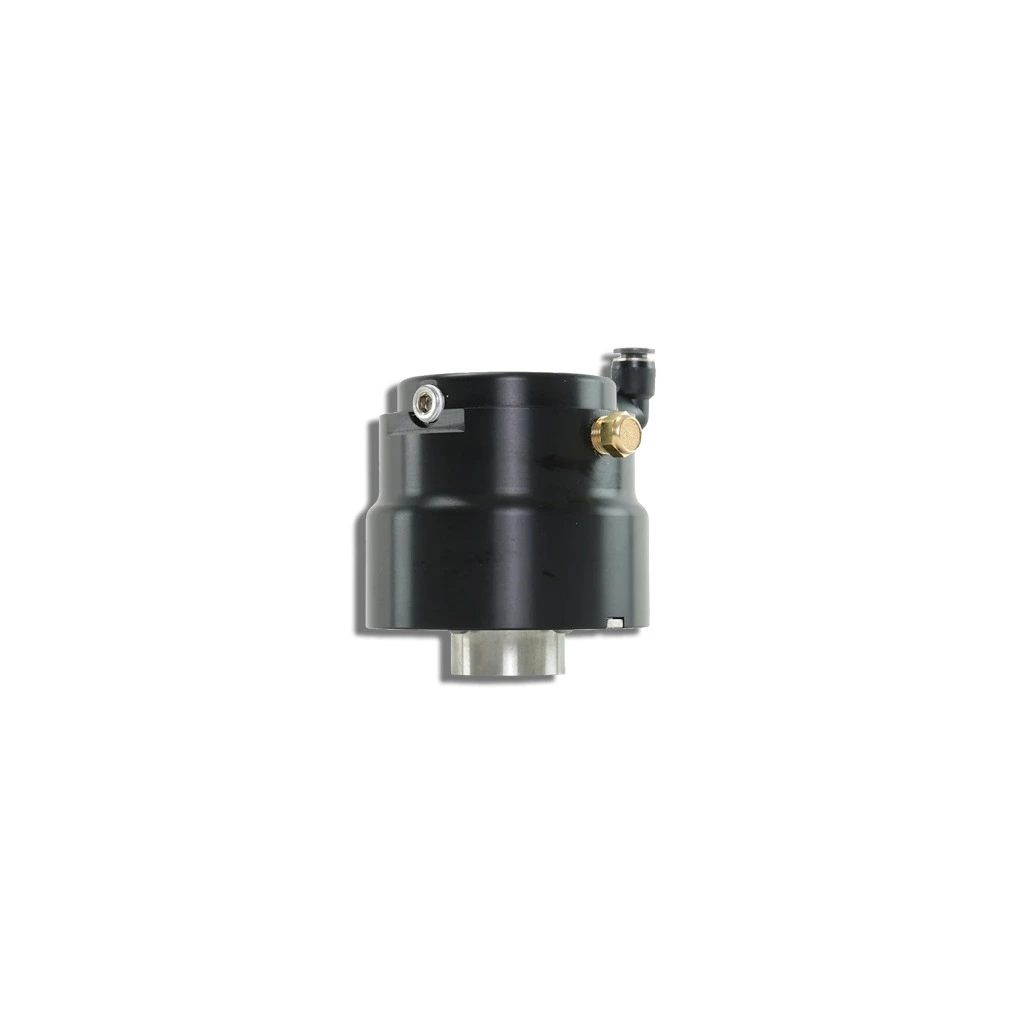

Side Inlet Valve Assembly 1-13732 Waterjet Side Entry Valve Assembly

The Side Inlet Valve Assembly 1-13732 is a critical flow-control component used in Waterjet Intensifier pump systems. Its main function is to control and regulate water intake from the side inlet section of the intensifier, ensuring stable one-way flow and reliable pump cycling during ultra-high-pressure operation.
This complete assembly typically includes the valve body, poppet, seat, spring, seals, and related internal components required for efficient inlet valve performance. It helps maintain stable water supply into the intensifier chamber, prevent backflow, and support consistent ultra-high-pressure water generation for cutting applications.
A high-quality side inlet valve assembly is essential for maintaining pump efficiency, stable cutting pressure, and long-term system reliability.

Is Side Inlet Valve Assembly 1-13732 a Wear Part?

Yes — the Side Inlet Valve Assembly 1-13732 is considered a wear assembly.
Because the internal valve components continuously operate under repeated opening and closing cycles, water impact, pressure fluctuation, vibration, and sealing contact, the poppets, springs, seats, and seals gradually wear or lose sealing performance over time.
If not maintained or replaced on schedule, it can cause leakage, unstable inlet flow, backflow, pressure instability, and reduced cutting performance.
Regular inspection and scheduled maintenance are strongly recommended.
